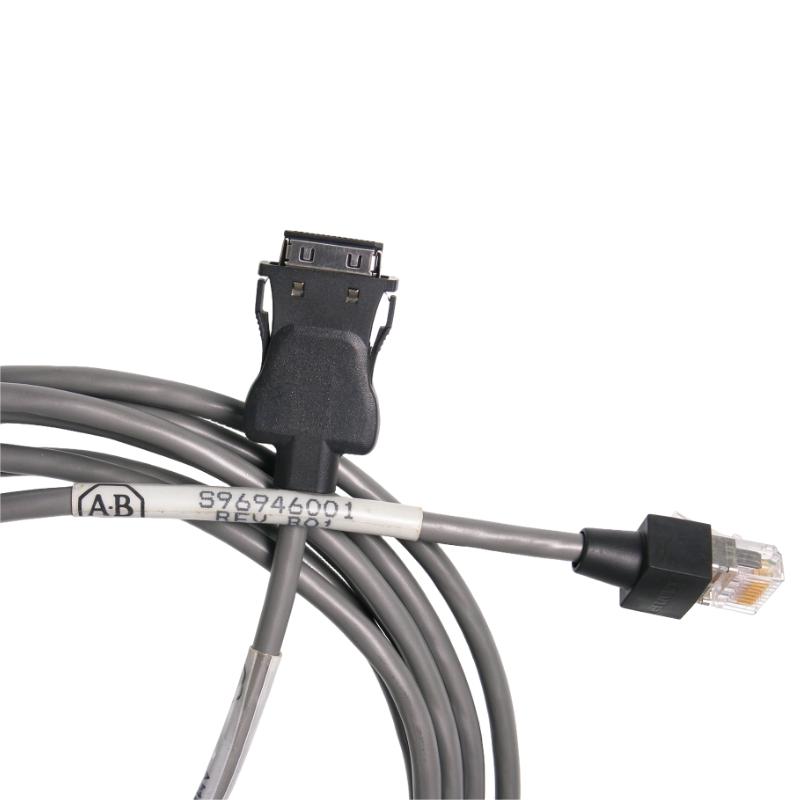

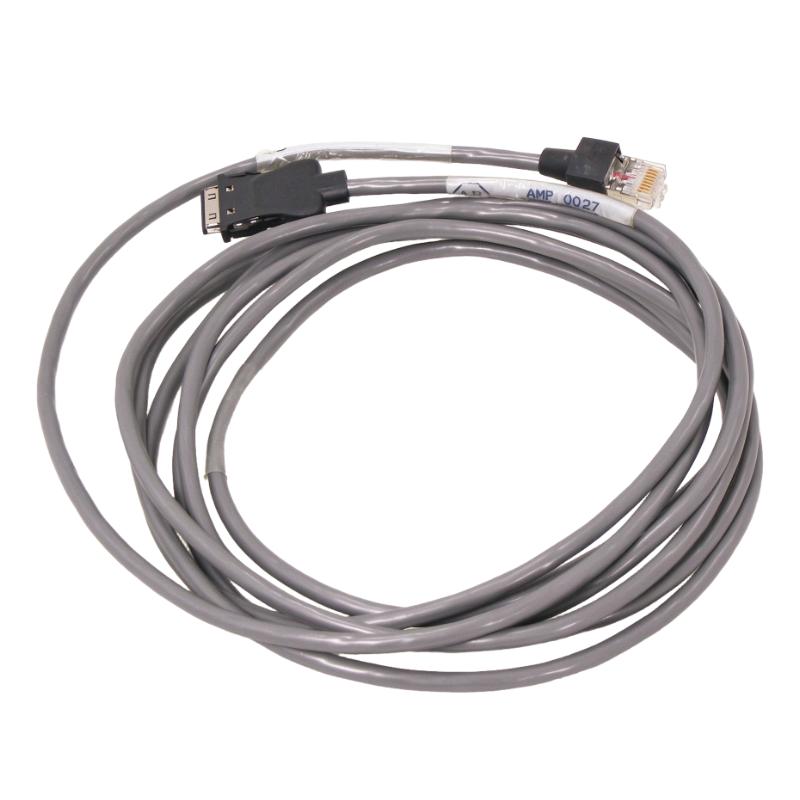

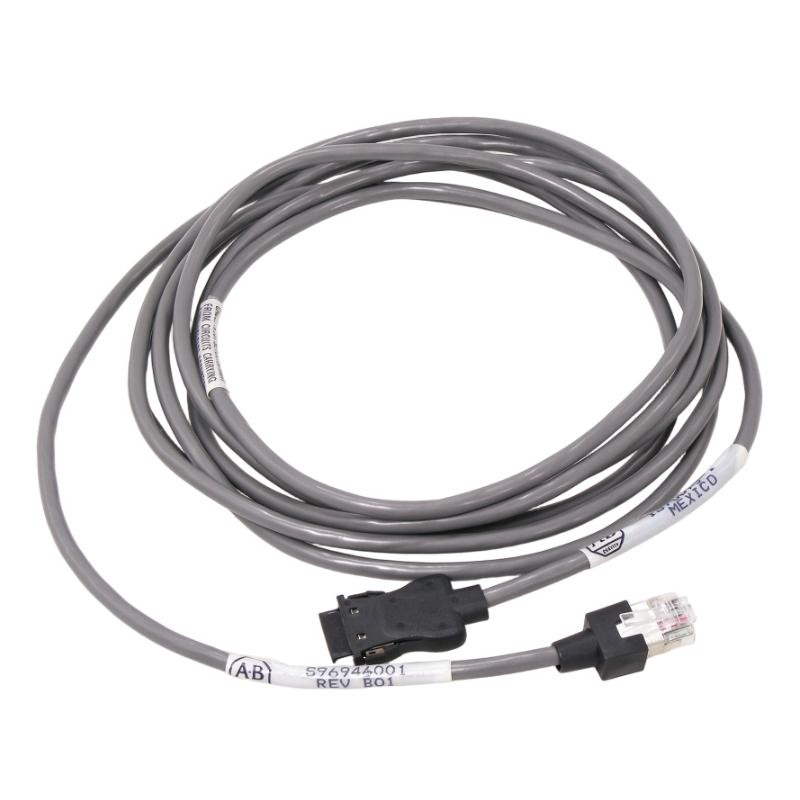

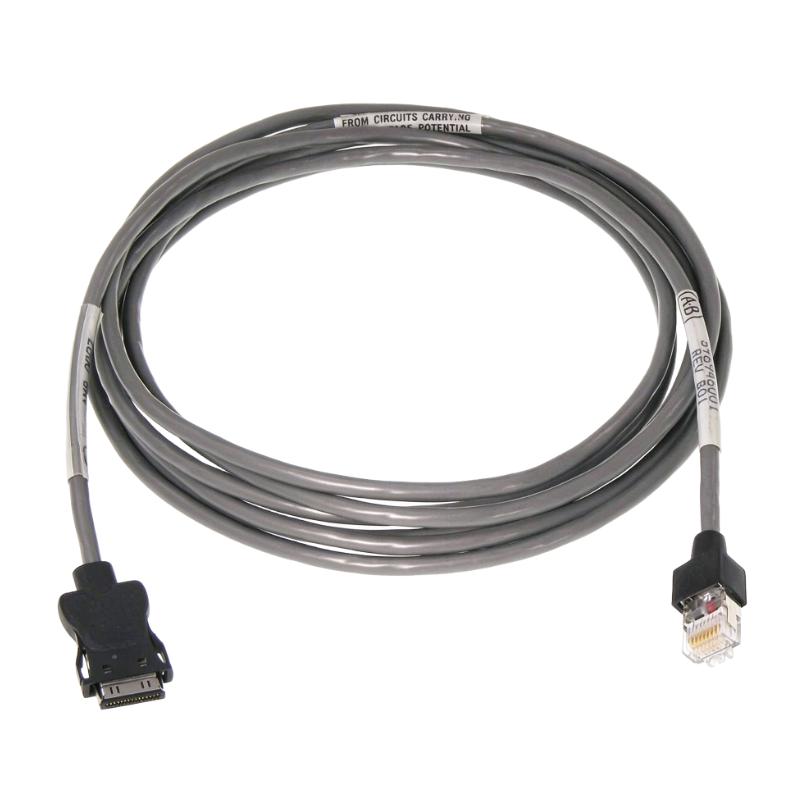

Allen Bradley 1784-PCC1 PCMCIA Card Interface Cable
Allen Bradley 1784-PCC1 PCMCIA Card Interface Cable
0.0
Points
Brand:Allen Bradley PLC Item No.:1784-PCC1 Product Origin:USA Product Dimensions:Cable Length: 10 feet Product Weight:Shipping Weight: 3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1784-PCC1 PCMCIA Card Interface Cable is a specialized accessory for compatible industrial automation interface configurations. It is associated with PCMCIA-based hardware, a technology historically used to connect peripheral and communication cards to computers.
For industrial maintenance teams, the correct interface cable can be important when preserving communication with legacy controllers or supporting older programming environments. Selecting the correct cable requires checking the associated interface hardware and the target equipment rather than relying on the product name alone.
With a specified cable length of 10 feet, the 1784-PCC1 can be considered for replacement-part sourcing where the existing installation calls for this exact catalog number. Before ordering, verify the connector type and compatibility requirements to help avoid connection problems or unnecessary downtime.
Technical Specifications
Parameter
Specification
Brand
Allen-Bradley
Model
1784-PCC1
Product Type
PCMCIA Card Interface Cable
Product Category
Industrial Automation Communication Accessory
Interface Technology
PCMCIA
Cable Length
10 ft / approximately 3.05 m
Compatible Equipment
Verify against the associated interface hardware documentation
Application
Compatible legacy industrial communication configurations
Shipping Weight
3.00 kg / 6.61 lb
Product Weight
Not independently specified
Note: The supplied 3 kg figure is identified as shipping weight, not confirmed net product weight. Connector details and exact compatibility should be verified against model-specific documentation.
Recommended Related Models
The following Allen-Bradley communication and interface products may be relevant when maintaining legacy automation systems. They are not necessarily direct substitutes for the 1784-PCC1.
Allen-Bradley 1784-PCMK — PCMCIA communication interface card.
Allen-Bradley 1784-KTCX15 — ControlNet communication interface card.
Allen-Bradley 1784-KTCX — ControlNet communication interface product family.
Allen-Bradley 1784-U2DHP — USB-to-Data Highway Plus interface converter.
Confirm the exact product variant and host-system requirements before choosing a compatible accessory.
Popular Related Models
Other Allen-Bradley communication products used in industrial automation include:
Allen-Bradley 1756-EN2T — ControlLogix EtherNet/IP communication module.
Allen-Bradley 1756-EN2TR — ControlLogix EtherNet/IP communication module.
Allen-Bradley 1784-U2DHP — USB-to-Data Highway Plus interface converter.
Allen-Bradley 1784-PCMK — PCMCIA communication interface card.
Selection note:Communication modules, interface cards, and cables have different functions. Verify the original hardware configuration, interface standard, and connector requirements before selecting a replacement for the 1784-PCC1.
Applications
The Allen-Bradley 1784-PCC1 PCMCIA Card Interface Cable is an industrial automation accessory associated with PC-based programming and data-transfer applications. It is intended for compatible hardware configurations that use PCMCIA interface technology to communicate with supported Allen-Bradley control products.
Typical applications include:
Industrial Controller Communication: Supports compatible interface configurations used to connect a computer with industrial control equipment.
PLC Programming and Maintenance: Can be used in supported legacy automation setups for controller-related programming or maintenance tasks.
Data Transfer: Helps establish the required physical connection for compatible PCMCIA interface hardware.
Legacy System Support: Useful when maintaining older automation installations that rely on PCMCIA-based communication accessories.
Industrial Equipment Servicing: May be required when replacing a missing or damaged cable in an existing supported configuration.
Compatibility depends on the associated interface card, computer hardware, controller family, and communication software.
Advantages
Dedicated Catalog Identification: The 1784-PCC1 model number helps identify the required cable accessory when sourcing replacement parts.
Legacy Automation Support: Can be relevant to maintaining older Allen-Bradley systems that still use PCMCIA-based interfaces.
Convenient Cable Length: The specified 10-foot cable provides flexibility for compatible equipment arrangements.
Maintenance and Replacement: Helps restore an existing installation when the original interface cable is damaged or missing.
System Integration: Supports the physical connection required by compatible interface hardware.
Industrial Spare-Part Sourcing: Provides a specific catalog number for procurement and inventory management.
Technical FAQs
1. What is the Allen-Bradley 1784-PCC1?
The 1784-PCC1 is identified as an Allen-Bradley PCMCIA card interface cable intended for compatible industrial automation interface equipment.
2. What is the cable length?
The specified cable length is 10 feet, equivalent to approximately 3.05 meters.
3. What does PCMCIA mean?
PCMCIA refers to the Personal Computer Memory Card International Association standard historically used for removable computer interface cards and peripherals.
4. Is this cable used for PLC programming?
It may be relevant to supported legacy programming configurations, but the exact application depends on the interface hardware and the controller being serviced.
5. Which Allen-Bradley products are compatible with the 1784-PCC1?
Compatibility should be verified against the documentation for the associated interface card and target controller. Do not assume that every Allen-Bradley PLC supports this cable.
6. Can it be used with a modern USB-only computer?
Not necessarily. A modern computer may lack the required PCMCIA interface. Additional compatible interface hardware may be necessary, and successful operation is not guaranteed.
7. Does the cable operate independently?
No. An interface cable generally requires compatible host and target hardware to perform its intended function.
8. Can a generic cable replace the 1784-PCC1?
Only if the replacement matches the connector arrangement, electrical characteristics, and communication requirements of the original cable. Physical similarity alone is insufficient.
9. What should be checked before ordering?
Verify the complete catalog number, cable length, connector configuration, interface-card compatibility, and the intended application.
10. Is the 1784-PCC1 suitable for legacy system maintenance?
It may be useful where an existing installation specifically requires this cable. Confirm the original system configuration and the availability of supported replacement parts before purchasing.
