Brand:Schneider PLC Item No.:LC1F400F7 Product Origin:France Product Dimensions:206 x 213 x 219 mm Product Weight:9.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

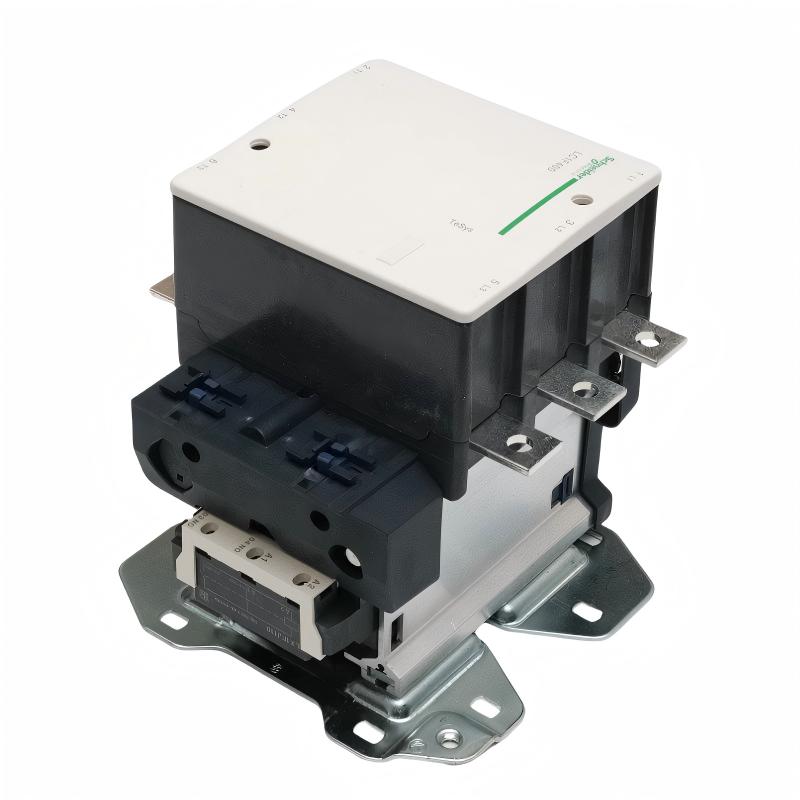

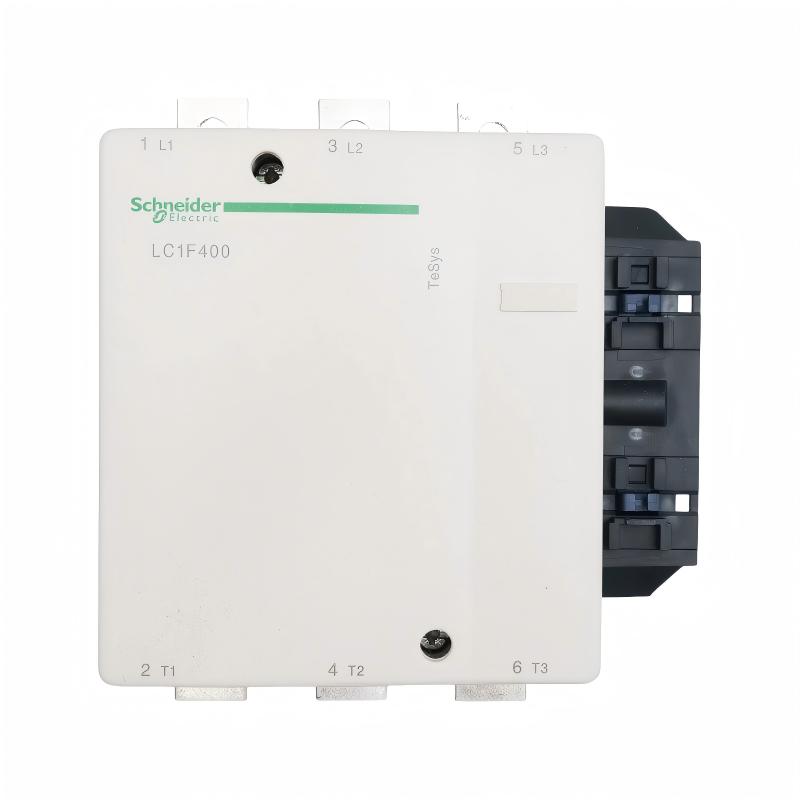

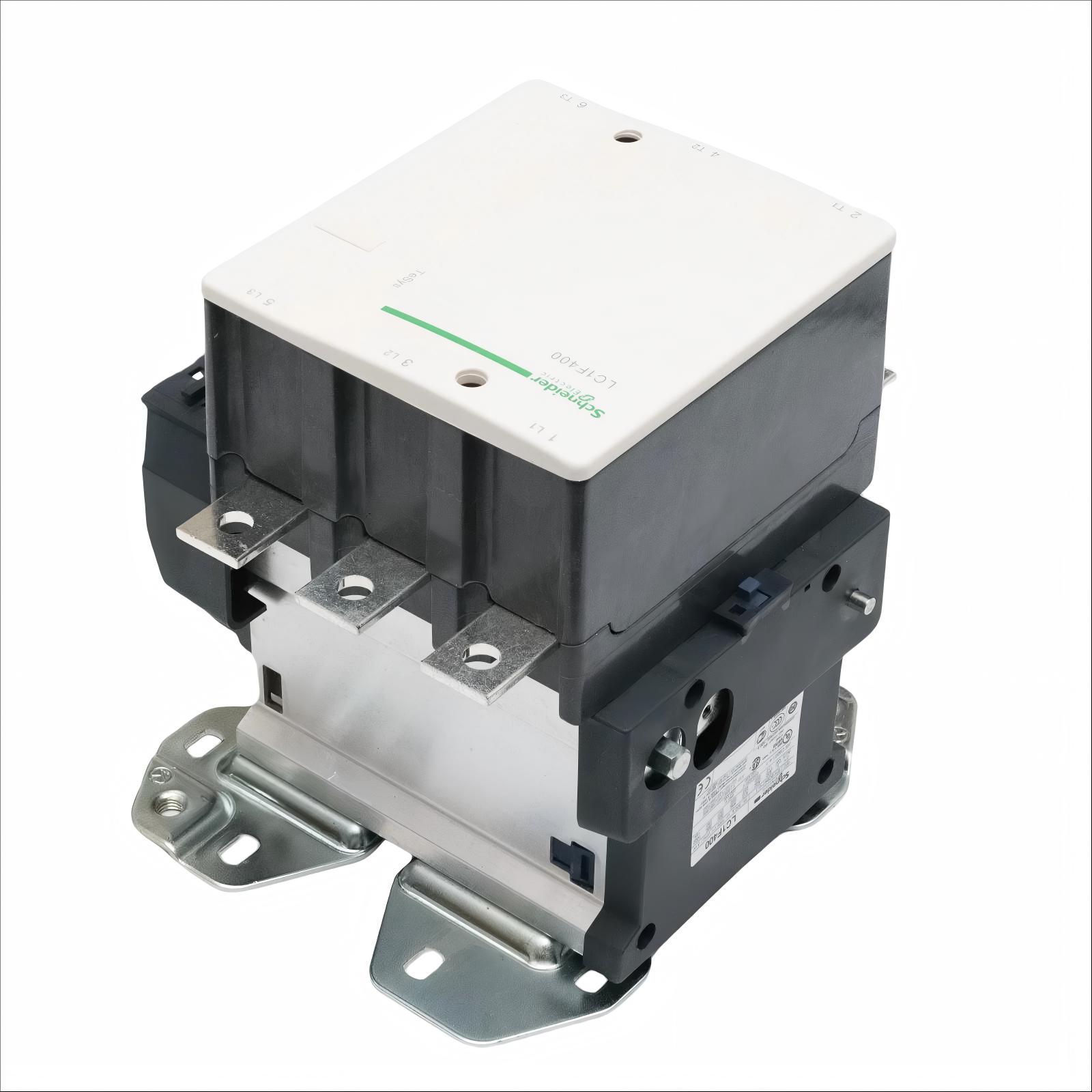

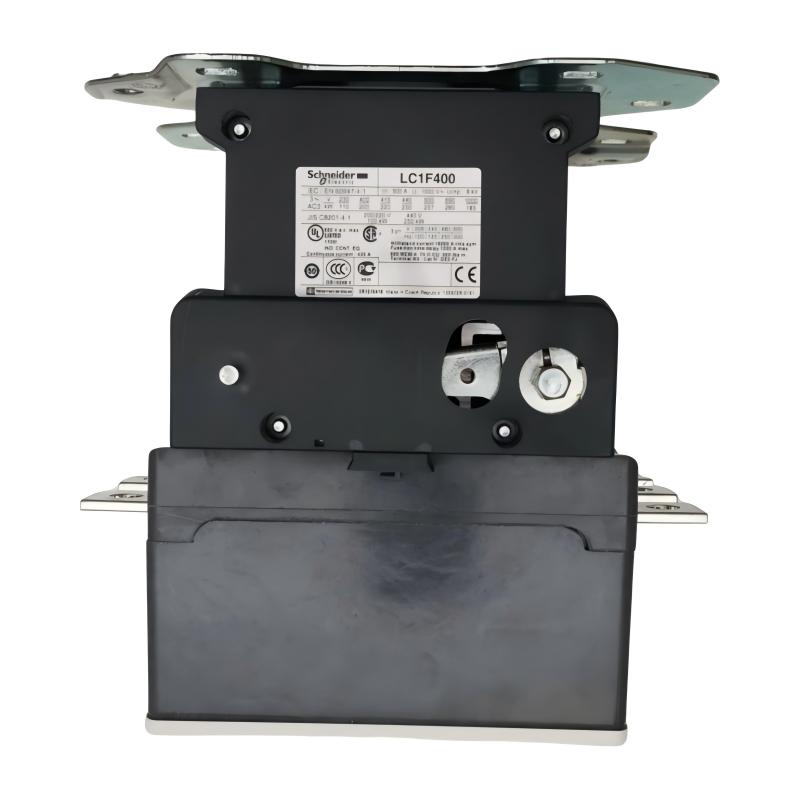

The Schneider LC1F400F7 Contactor is an industrial electrical switching component intended for integration into suitable power and control systems. Contactors are essential in industrial automation because they allow control circuits to operate higher-power electrical loads without directly switching those loads through low-power control devices.
When selecting this model for a new installation or replacement project, engineers should verify its exact electrical characteristics against the equipment manufacturer's documentation. Particular attention should be given to coil voltage, rated operational current, load type, and required accessories.
The LC1F400F7 can be considered for industrial control-panel applications where its confirmed ratings and mechanical configuration meet the system requirements. Correct installation and appropriate protective devices are important for safe and dependable operation.
Technical Specifications
Parameter
Specification
Brand
Schneider Electric
Model
LC1F400F7
Product Type
Contactor
Product Category
Industrial Electrical Control
Dimensions
206 × 213 × 219 mm
Dimensions (inches)
8.11 × 8.39 × 8.62 in
Weight
9.1 kg / 20.06 lb
Application
Industrial switching and motor control
Coil Voltage
Confirm using model-specific manufacturer documentation
Rated Operational Current
Confirm using model-specific manufacturer documentation
Main Contact Configuration
Confirm using model-specific manufacturer documentation
Auxiliary Contacts
Confirm the required configuration and compatibility
Mounting Method
Verify the applicable installation instructions
Manufacturer
Schneider Electric
Recommended Related Models
The following Schneider Electric contactor families and models may be worth comparing when planning a replacement or designing a compatible control system. They are not guaranteed direct substitutes for the LC1F400F7.
Schneider Electric LC1F series — Industrial contactors for demanding switching applications.
Schneider Electric LC1D series — TeSys D contactors used in a wide range of motor-control applications.
Schneider Electric LC1E series — Contactor options for selected industrial switching requirements.
Schneider Electric TeSys F family — Heavy-duty contactor range for applicable power-control systems.
Always confirm the complete part number and electrical ratings before substituting one model for another.
Popular Related Models
Schneider Electric LC1F115
Schneider Electric LC1F150
Schneider Electric LC1F185
Schneider Electric LC1F225
Schneider Electric LC1F265
Schneider Electric LC1F330
Schneider Electric LC1F400
Schneider Electric LC1D series contactors
Note: Related model numbers are provided as a starting point for product research. Verify availability, coil suffixes, electrical ratings, and compatibility against official Schneider Electric documentation before purchasing or installing.
Applications
The Schneider LC1F400F7 Contactor is designed for switching and controlling electrical loads in industrial power and motor control systems. Contactors in this class are commonly used in applications requiring reliable switching of high-current loads, coordinated motor starting, and integration into industrial control panels.
Typical application areas include:
Industrial motor control and power distribution systems
Manufacturing machinery and production lines
Pumps, fans, compressors, and other motor-driven equipment
Industrial HVAC and ventilation systems
Electrical control cabinets and motor control centers
Before installation, verify that the contactor's rated operational current, utilization category, coil voltage, and short-circuit coordination meet the application requirements.
Advantages
Industrial switching capability: Suitable for demanding motor-control and electrical switching applications when correctly rated.
Control-system integration: Can be incorporated into appropriately designed industrial control circuits.
Reliable operation: Proper selection, wiring, and maintenance help support consistent switching performance.
Panel installation: Its industrial construction makes it suitable for integration into compatible electrical control assemblies.
Maintenance accessibility: Routine inspection of terminals and contact condition helps support long-term operating reliability.
Application flexibility: Can be used in different industrial control arrangements, subject to its specific electrical ratings and configuration.
Technical FAQs
1. What is the primary function of the Schneider LC1F400F7?
It is a contactor intended for electrically controlled switching of power circuits. Its suitability for a specific load depends on its rated current, voltage, utilization category, and configuration.
2. Can the LC1F400F7 be used for three-phase motor control?
It may be suitable for three-phase motor-control applications when the motor ratings and operating conditions fall within the contactor's specified limits. Confirm the manufacturer's ratings before installation.
3. How is a contactor different from a circuit breaker?
A contactor is primarily designed to switch electrical loads through a control signal. A circuit breaker provides overcurrent protection and may also provide isolation, depending on its design. A contactor does not replace required circuit protection.
4. What should be checked before selecting a replacement contactor?
Check the complete model number, coil voltage, main-contact ratings, auxiliary-contact configuration, mounting arrangement, terminal layout, and application requirements.
5. Why is the coil voltage important?
The coil voltage must match the control circuit's supply and the contactor's specified coil rating. An incorrect voltage can cause unreliable operation, overheating, or coil damage.
6. Can the contactor switch inductive loads?
Contactors are commonly used with inductive loads such as motors, but the permitted switching duty depends on the utilization category and the manufacturer's ratings.
7. Does the contactor provide overload protection?
A contactor generally performs switching rather than overload protection. Motor overload relays or suitable electronic protection devices may be required as part of the control system.
8. What causes contactor overheating?
Potential causes include loose terminals, excessive load current, unsuitable operating conditions, damaged contacts, incorrect coil voltage, or inadequate heat dissipation. Troubleshooting should follow the manufacturer's safety procedures.
9. How can the service life of a contactor be improved?
Operate it within its rated limits, ensure secure electrical connections, maintain appropriate environmental conditions, and inspect the contacts and coil according to the maintenance schedule.
10. What information is needed to verify LC1F400F7 compatibility?
The most important details are the supply voltage, control-circuit voltage, motor power and current, switching frequency, utilization category, and required auxiliary contacts.
