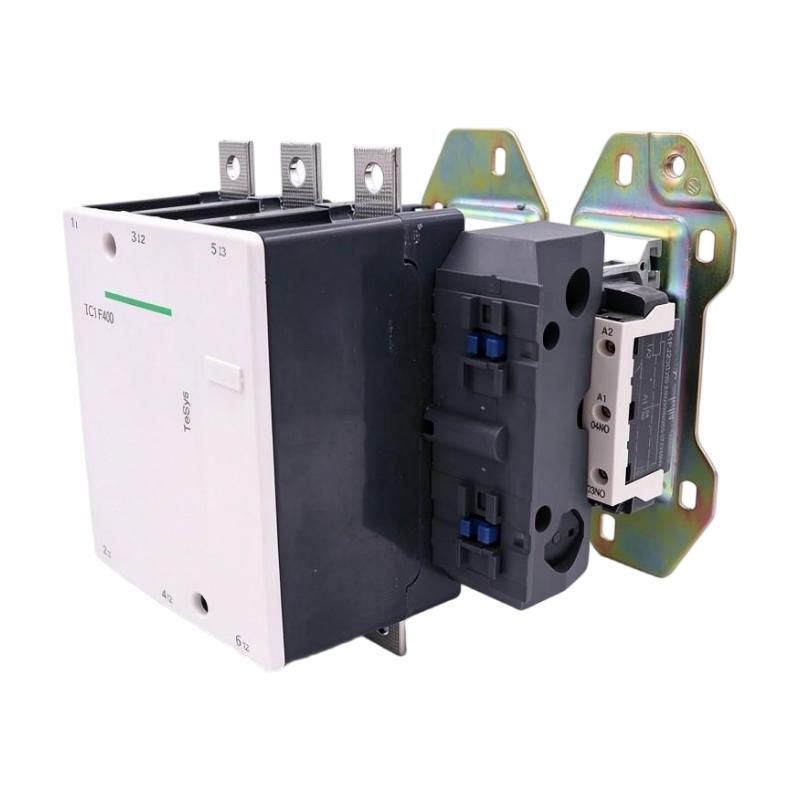

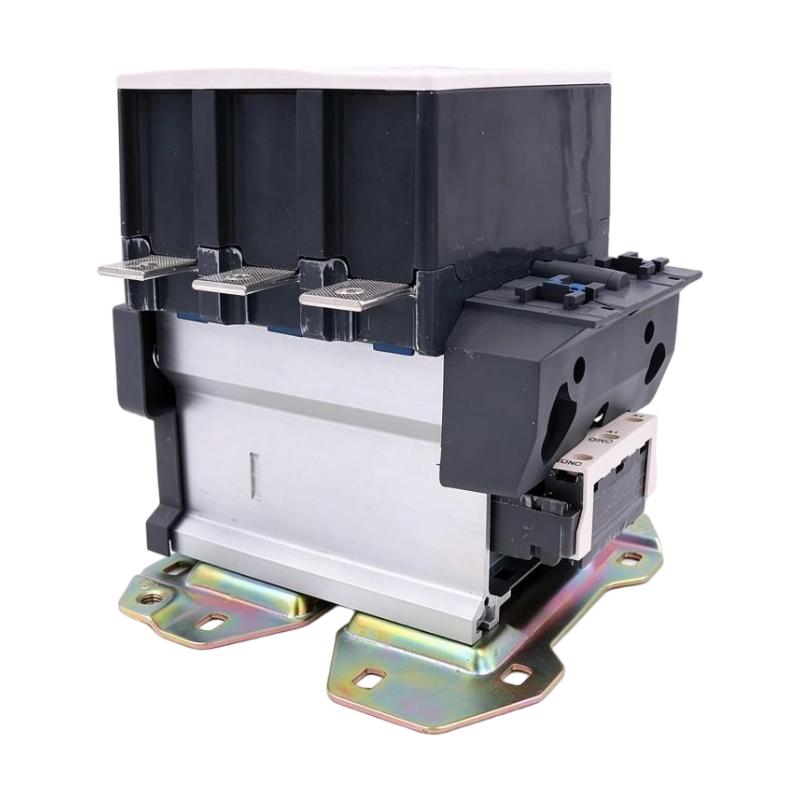

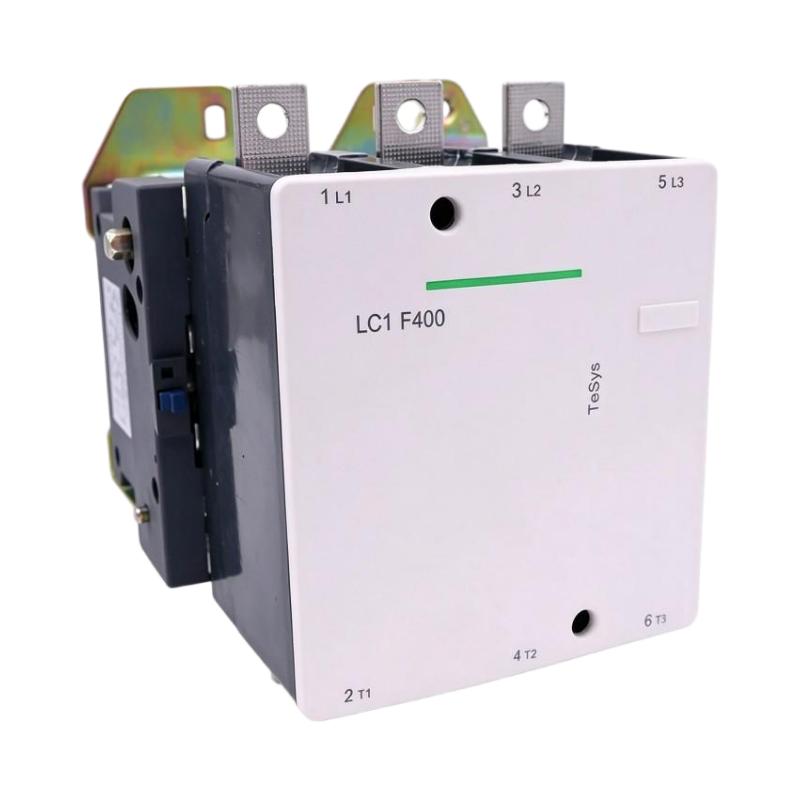

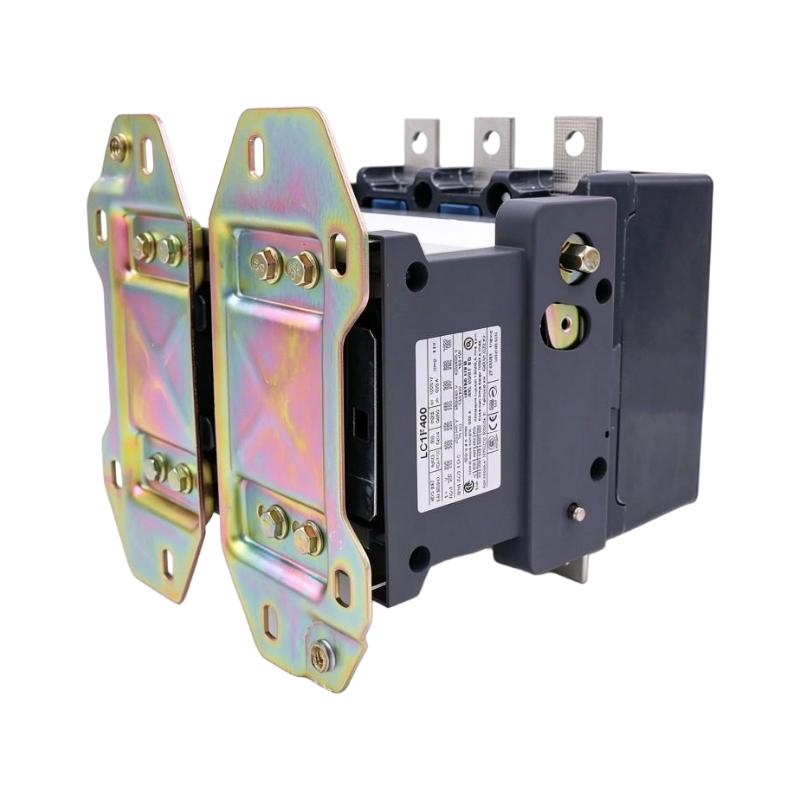

Schneider LC1F400FE7 Contactor

Applications

The Schneider LC1F400FE7 Contactor is an industrial electrical switching component designed for use in power control and motor control systems. It can be considered for industrial installations where electrically controlled switching of high-power loads is required, subject to verification of the model's rated electrical characteristics.

Typical application areas include:

• Industrial motor control panels

• Manufacturing machinery and automated production lines

• Pumping, ventilation, and compressor systems

• Industrial power distribution and control assemblies

• Heavy-duty electrical equipment

• Motor control centers and industrial switchboards

For any installation, verify the contactor's coil voltage, rated operational current, utilization category, and compatibility with the connected load.

Advantages

• Industrial switching design: Intended for integration into suitable industrial power and control circuits.

• Control-system integration: Supports electrically operated switching within appropriately designed control systems.

• Versatile applications: Can be evaluated for motor-control and other switching duties within its specified ratings.

• Panel integration: Suitable for installation in compatible electrical enclosures and control assemblies.

• Maintenance planning: Periodic inspection of terminals, contacts, and operating components can help maintain dependable performance.

• System coordination: Can be incorporated into a properly coordinated electrical system with suitable overload and short-circuit protection.

Technical FAQs

1. What is the Schneider LC1F400FE7 Contactor used for?

It is an industrial contactor intended for electrically controlled switching. Its precise application depends on its manufacturer-specified electrical ratings and configuration.

2. Can the LC1F400FE7 control three-phase motors?

It may be suitable for three-phase motor control if the motor's current, voltage, starting conditions, and utilization category are within the contactor's ratings. Confirm these parameters before installation.

3. What is the role of the contactor coil?

The coil creates the magnetic force that operates the contact mechanism when the correct control voltage is applied. The coil voltage must match the control circuit and the exact contactor variant.

4. What should be checked when replacing an existing contactor?

Compare the complete part number, coil voltage, rated operational current, contact arrangement, terminal configuration, mounting requirements, and compatible accessories.

5. Can this contactor switch resistive and inductive loads?

Contactors can be used with different load types when the relevant utilization category and ratings permit. Motor loads and resistive loads impose different switching demands.

6. Does the LC1F400FE7 provide overload protection?

A contactor primarily performs switching. Appropriate overload protection and short-circuit protection must be selected separately or as part of the overall electrical assembly.

7. What can cause a contactor to fail to operate?

Possible causes include an incorrect control voltage, a faulty coil, loose wiring, mechanical obstruction, or damaged contacts. Troubleshooting should be performed by qualified personnel with the circuit safely isolated.

8. How can contact wear be reduced?

Use the contactor within its specified switching limits, select the correct utilization category, maintain secure connections, and follow the manufacturer's inspection and maintenance recommendations.

9. Can the contactor be integrated into an automated control system?

Yes, provided its coil and control circuit are compatible with the automation system. Suitable interlocks and protective devices should be incorporated into the design.

10. What information is needed to confirm compatibility?

Confirm the supply voltage, control voltage, load current, motor power, switching frequency, utilization category, auxiliary-contact requirements, and installation dimensions.
