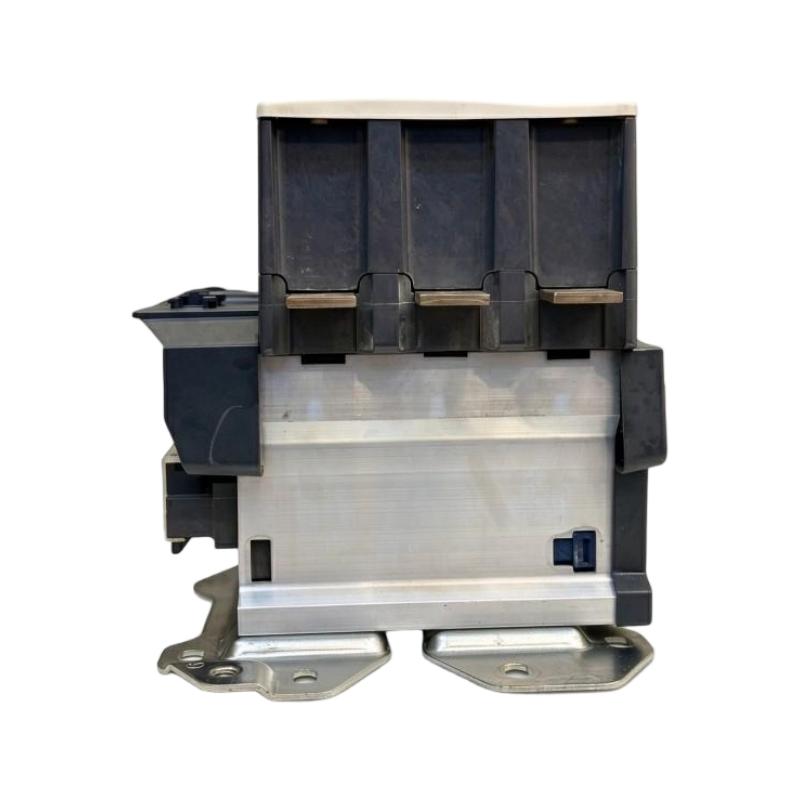

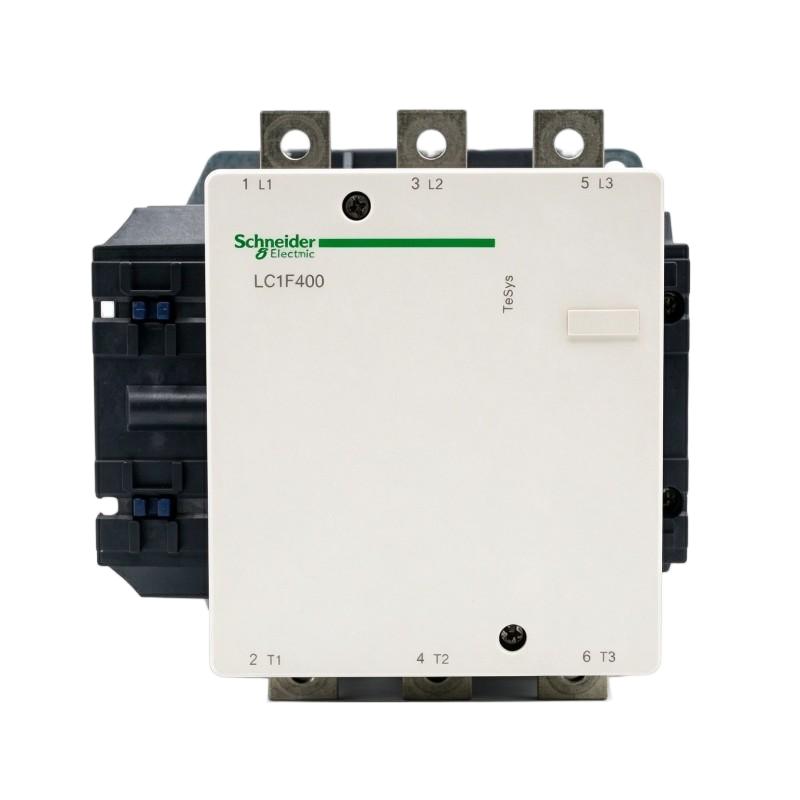

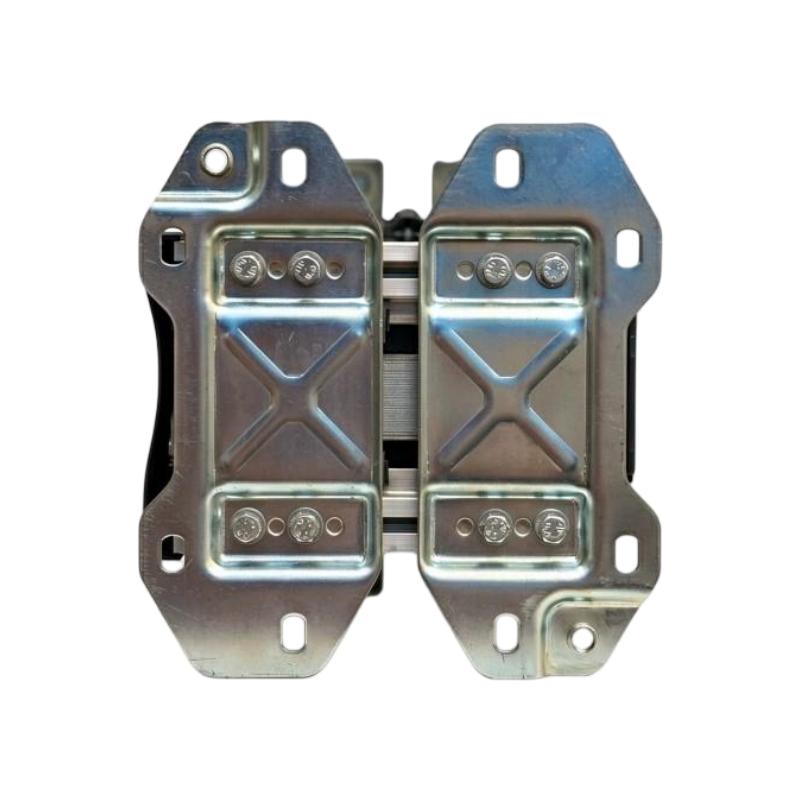

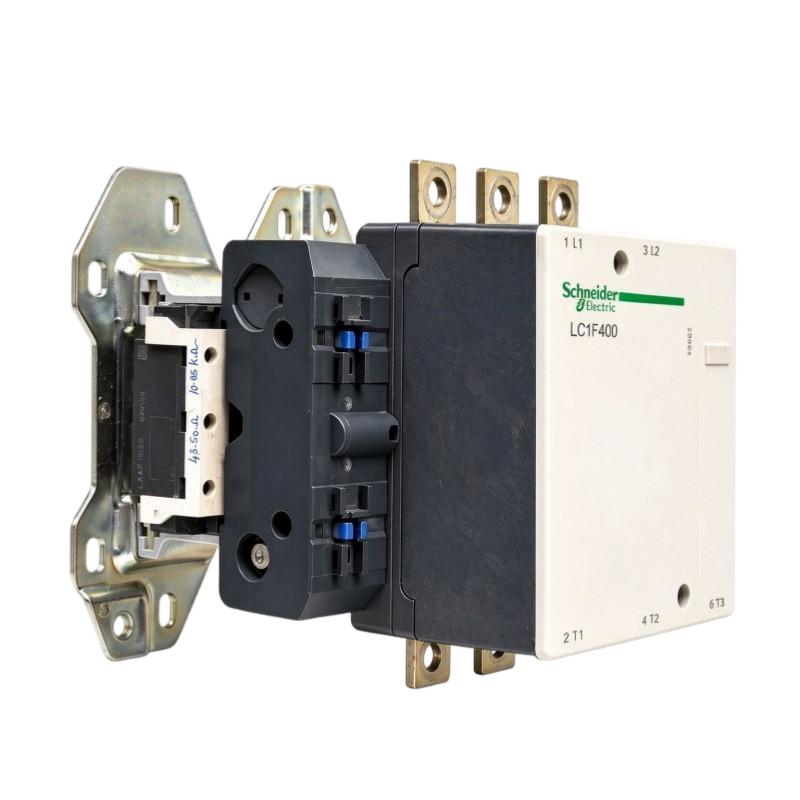

Schneider LC1F400M7 Contactor

Applications

The Schneider LC1F400M7 Contactor is an industrial electrical switching device intended for use in power control and motor control systems. Contactors allow electrical loads to be controlled remotely through a control circuit, making them important components in industrial automation and electrical installations.

Typical application areas include:

• Industrial motor control panels and switchboards

• Manufacturing machinery and automated production lines

• Pumping stations and water treatment equipment

• Industrial fans, blowers, and compressor systems

• Heavy-duty processing and material handling equipment

• Electrical control cabinets and motor control centers

Before installation, confirm the contactor's rated current, operating voltage, coil voltage, utilization category, and compatibility with the connected load.

Advantages

• Industrial switching capability: Supports electrical switching applications when operated within its specified ratings.

• Remote electrical control: Enables power circuits to be operated through a compatible control circuit.

• Automation integration: Can be incorporated into industrial control panels and motor-control systems.

• System flexibility: Suitable for evaluating in a range of switching applications based on load requirements.

• Maintenance planning: Regular inspection of terminals and contact components helps maintain operating reliability.

• Protective coordination: Can be used with appropriately selected overload and short-circuit protection devices.

Technical FAQs

1. What is the Schneider LC1F400M7 Contactor used for?

It is an industrial contactor designed to switch electrical circuits through an electrically operated mechanism. Its specific application depends on its rated electrical characteristics.

2. Can the LC1F400M7 be used for motor control?

It may be suitable for motor-control applications when the motor's voltage, current, starting conditions, and switching duty comply with the manufacturer's specifications.

3. Why must the coil voltage be verified?

The coil must receive the correct control voltage to operate reliably. Applying an unsuitable voltage can cause malfunction or damage.

4. What should be checked before replacing an existing contactor?

Verify the complete model number, coil voltage, rated operational current, contact configuration, terminal arrangement, mounting requirements, and accessory compatibility.

5. Does a contactor provide short-circuit protection?

A contactor is primarily a switching device. Appropriate short-circuit protection must be provided by suitable protective equipment selected for the installation.

6. What is the difference between a contactor and a motor starter?

A contactor performs electrical switching. A motor starter typically combines a contactor with overload protection and may include additional components depending on the design.

7. Can the contactor operate inductive loads?

Contactors can switch inductive loads when their ratings and utilization category permit the intended duty. Motor loads require particular attention to starting and switching conditions.

8. What can cause a contactor to overheat?

Possible causes include excessive load current, loose connections, worn contacts, an incorrect coil supply, or unsuitable operating conditions. The equipment should be inspected by qualified personnel.

9. How can contactor service life be maintained?

Operate the contactor within its rated limits, ensure correct wiring, maintain appropriate environmental conditions, and follow the manufacturer's inspection and replacement recommendations.

10. Can the LC1F400M7 be controlled by a PLC?

It can be incorporated into a PLC-based control system when the control circuit, coil supply, and interface components are compatible with the contactor's requirements.
