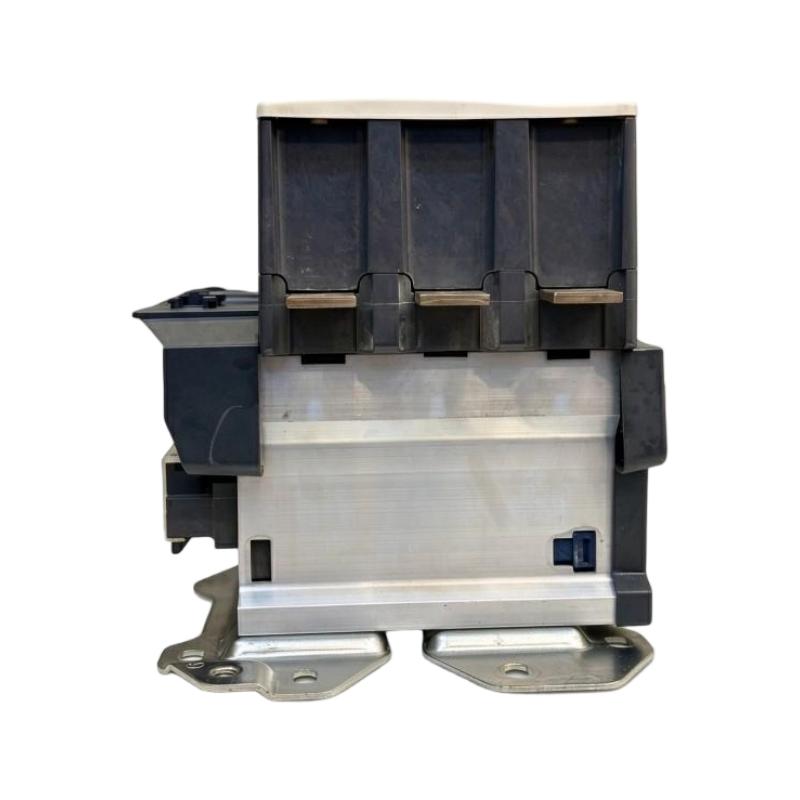

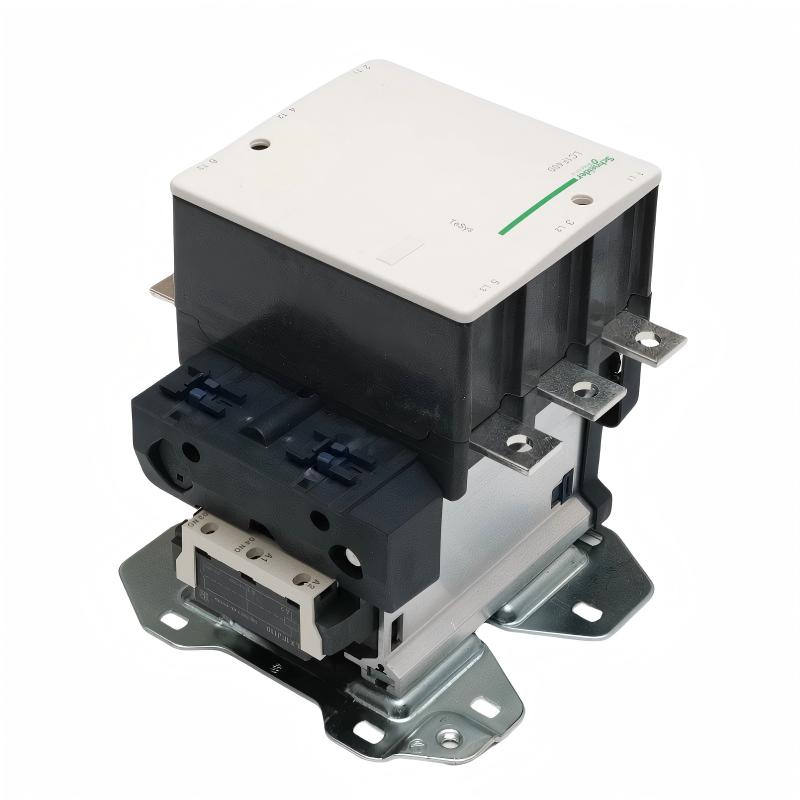

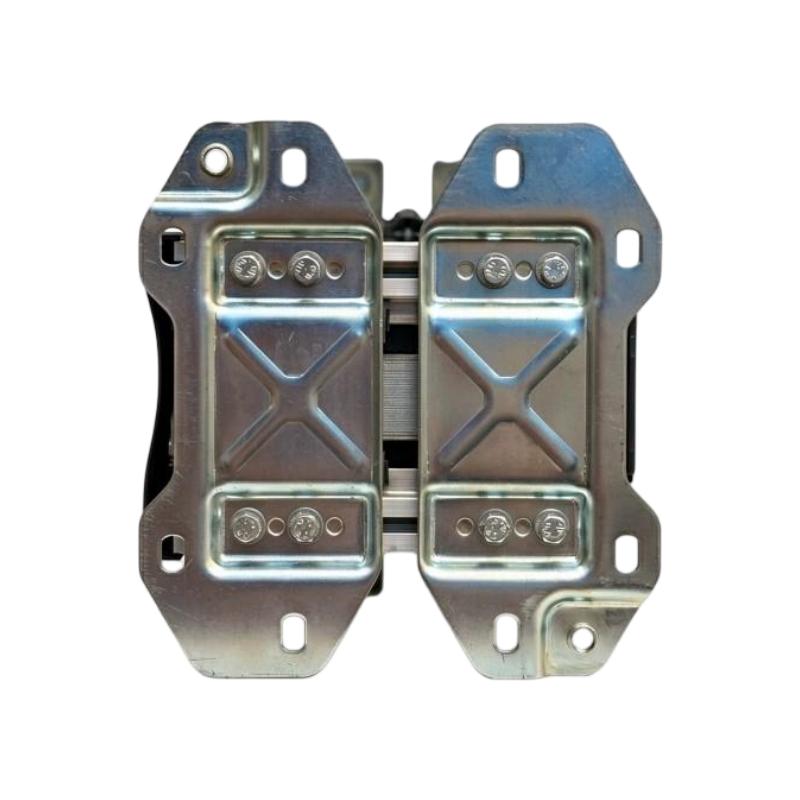

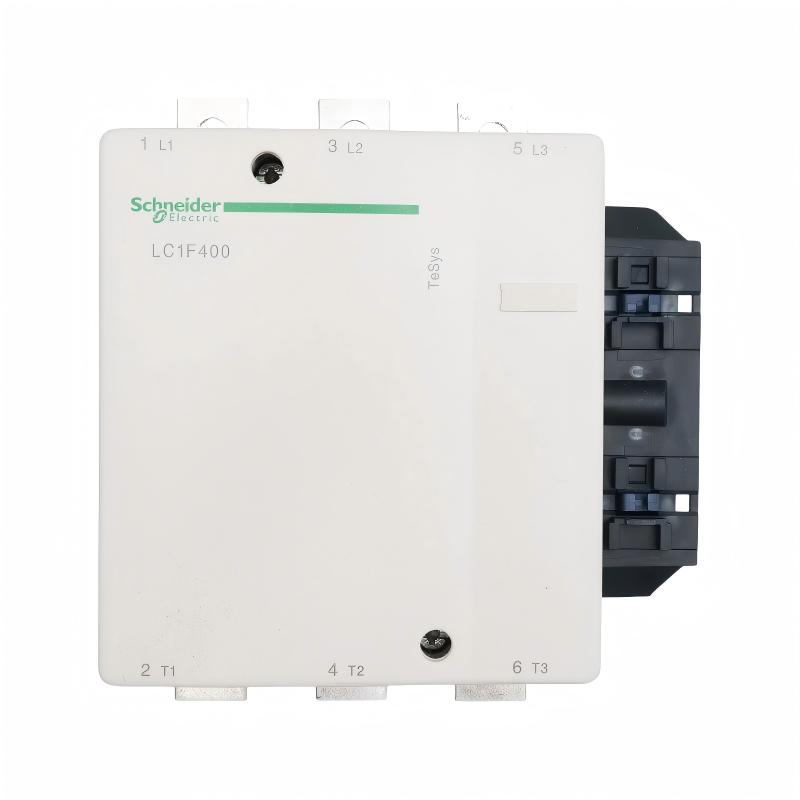

Schneider LC1F400R7 Contactor

Applications

The Schneider LC1F400R7 Contactor is an industrial electrical switching component intended for integration into suitable power control and motor control systems. Contactors allow electrical loads to be switched remotely through a control circuit, making them important components in industrial automation and electrical installations.

Typical application areas include:

• Industrial motor control panels and switchboards

• Automated manufacturing machinery and production lines

• Pumps, fans, blowers, and compressor systems

• Industrial processing and material handling equipment

• Electrical control cabinets and motor control centers

• Industrial power switching and distribution assemblies

Before installation, verify the contactor's rated operational current, operating voltage, coil voltage, utilization category, and compatibility with the connected load.

Advantages

• Industrial switching capability: Designed for use in suitable electrical switching applications within its specified ratings.

• Remote operation: Allows compatible power circuits to be controlled through an electrical control circuit.

• Automation integration: Can be incorporated into appropriately designed industrial control panels.

• Flexible system design: Supports switching applications when the electrical ratings match the load requirements.

• Maintenance planning: Periodic inspection of electrical connections and contact components helps support dependable operation.

• Protective coordination: Can be integrated with suitable overload and short-circuit protection devices.

Technical FAQs

1. What is the Schneider LC1F400R7 Contactor used for?

It is an industrial contactor intended for electrically controlled switching of power circuits. Its specific applications depend on its verified electrical ratings and operating conditions.

2. Can the LC1F400R7 be used for three-phase motor control?

It may be suitable for three-phase motor control when the motor's voltage, current, starting conditions, and utilization category meet the contactor's specifications.

3. Why must the coil voltage be verified?

The coil voltage determines the control supply required to operate the contactor. The control circuit must match the exact coil specification to ensure proper operation.

4. What should be checked before replacing an existing contactor?

Compare the complete model number, coil voltage, rated operational current, contact configuration, terminal arrangement, mounting requirements, and accessory compatibility.

5. Does the contactor provide overload protection?

A contactor primarily performs switching. Suitable overload protection and short-circuit protection must be provided by appropriately selected protective devices in the electrical system.

6. What is a contactor utilization category?

A utilization category specifies the types of electrical loads and switching duties a contactor is rated to handle. Correct selection is especially important for motor and inductive-load applications.

7. Can this contactor switch inductive loads?

It can be used for inductive loads when its electrical ratings and utilization category permit the intended switching duty.

8. What can cause a contactor to overheat?

Potential causes include excessive current, loose terminals, worn contacts, incorrect coil voltage, or unsuitable operating conditions. Inspection should be carried out by qualified personnel.

9. How can contactor service life be improved?

Operate the contactor within its rated limits, maintain secure connections, provide appropriate environmental conditions, and follow the manufacturer's maintenance instructions.

10. Can the LC1F400R7 be controlled by a PLC?

It can be integrated into a PLC-based system when the control circuit and coil supply are compatible with the contactor's specifications. Appropriate interlocks and protective measures should also be considered.
