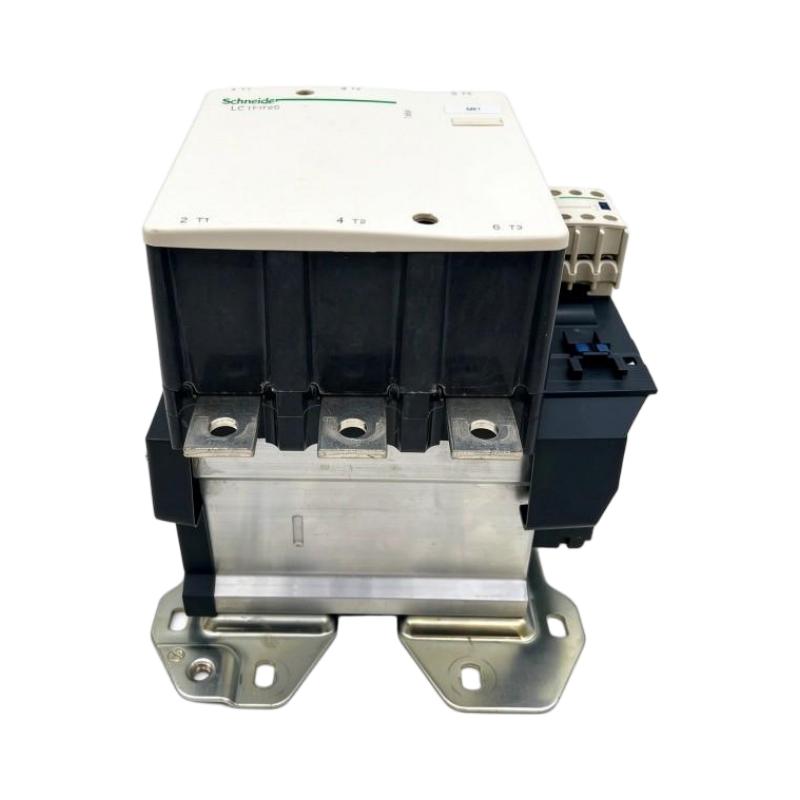

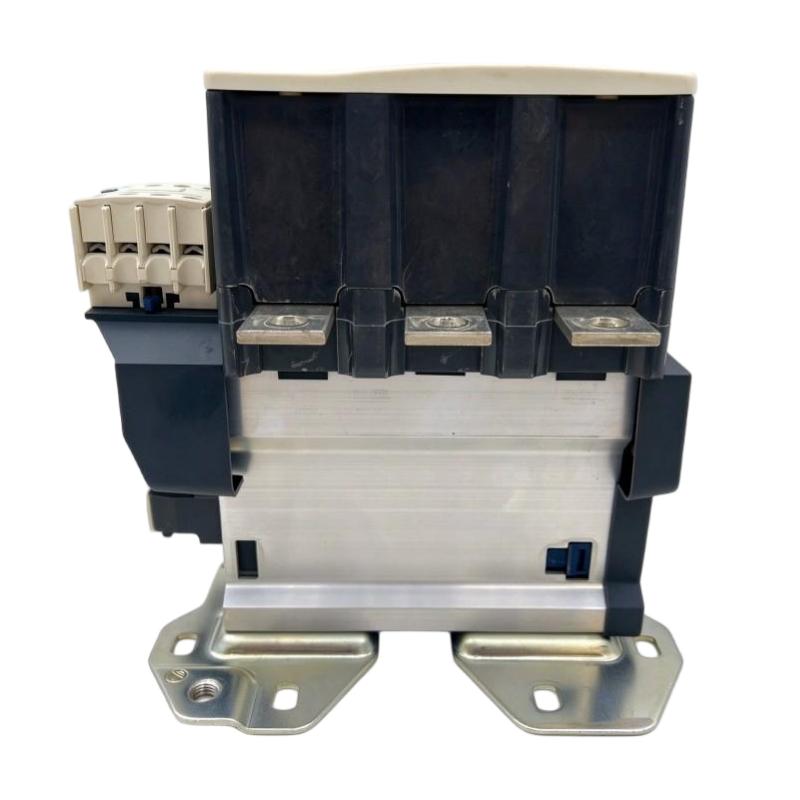

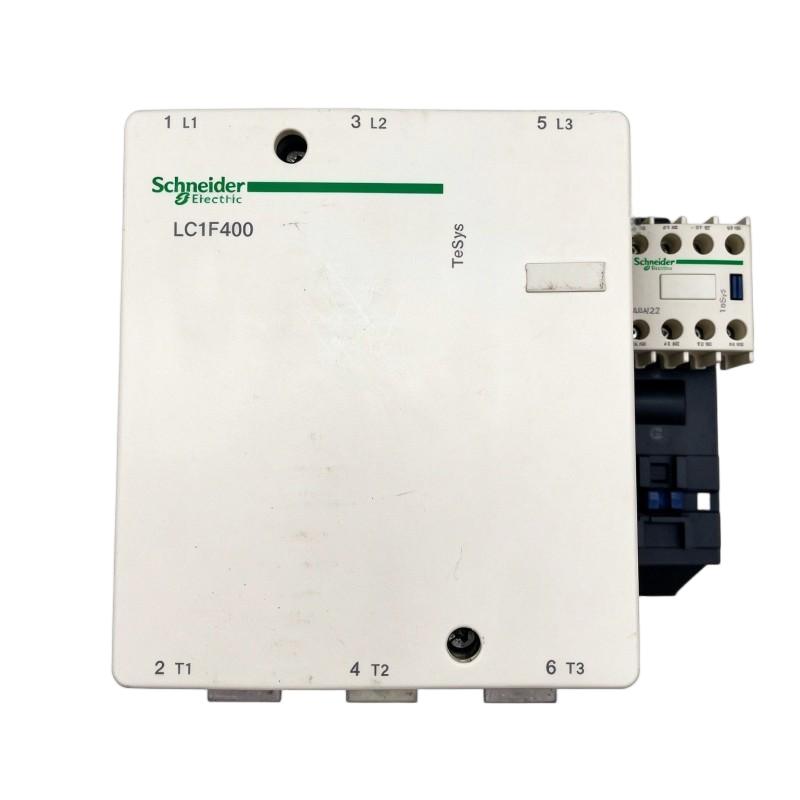

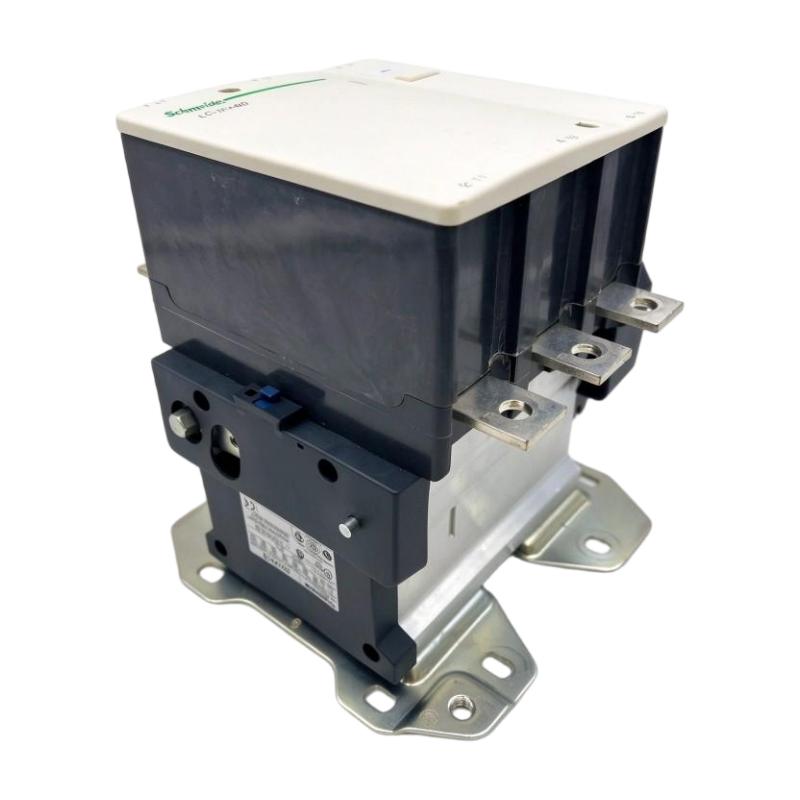

Schneider LC1F400U7 Contactor

Applications

The Schneider LC1F400U7 Contactor is an industrial electrical switching component intended for integration into suitable power control and motor control systems. Contactors allow electrical loads to be switched through a control circuit, supporting the operation of industrial machinery and automated equipment.

Typical application areas include:

• Industrial motor control panels and switchboards

• Automated manufacturing equipment and production lines

• Pumping, ventilation, and compressor systems

• Industrial processing and material handling machinery

• Electrical control cabinets and motor control centers

• Industrial power switching and distribution assemblies

Before selecting this contactor for a specific application, verify its rated operational current, operating voltage, coil voltage, utilization category, and compatibility with the connected load.

Advantages

• Industrial switching capability: Designed for suitable electrical switching applications within its specified ratings.

• Remote electrical operation: Enables compatible power circuits to be controlled through an electrical control circuit.

• Automation integration: Can be incorporated into appropriately designed industrial control panels.

• System flexibility: Supports different switching applications when the contactor's ratings match the load requirements.

• Maintenance planning: Periodic inspection of terminals and switching components helps support reliable operation.

• Protective coordination: Can be integrated with appropriately selected overload and short-circuit protection devices.

Technical FAQs

1. What is the Schneider LC1F400U7 Contactor used for?

It is an industrial contactor intended for electrically controlled switching of power circuits. Its suitability for a particular application depends on its verified electrical ratings and operating conditions.

2. Can the LC1F400U7 be used for motor control?

It may be suitable for motor-control applications when the motor's operating voltage, current, starting conditions, and utilization category meet the contactor's specifications.

3. Why is the coil voltage important?

The coil voltage determines the control supply required to operate the contactor. The control circuit must match the exact coil specification to help ensure reliable operation.

4. What should be checked before replacing an existing contactor?

Compare the complete model number, coil voltage, rated operational current, contact configuration, terminal arrangement, mounting requirements, and compatible accessories.

5. Does a contactor provide overload protection?

A contactor primarily performs switching. Appropriate overload and short-circuit protection must be provided by suitable protective devices in the overall electrical system.

6. What is a utilization category?

A utilization category defines the types of loads and switching duties a contactor is rated to handle. Selecting the correct category is particularly important for motor and inductive-load applications.

7. Can the contactor switch inductive loads?

It can be used for inductive loads when the manufacturer's ratings and utilization category support the intended switching duty.

8. What can cause a contactor to overheat?

Possible causes include excessive current, loose electrical connections, worn contacts, an incorrect coil supply, or unsuitable environmental conditions. Inspection should be performed by qualified personnel.

9. How can contactor service life be improved?

Operate the contactor within its rated limits, maintain secure connections, provide suitable operating conditions, and follow the manufacturer's maintenance recommendations.

10. Can the LC1F400U7 be controlled by a PLC?

It can be incorporated into a PLC-controlled system when the control circuit and coil supply are compatible with the contactor's specifications. Appropriate interlocks and protective measures should also be considered.
