Introduction

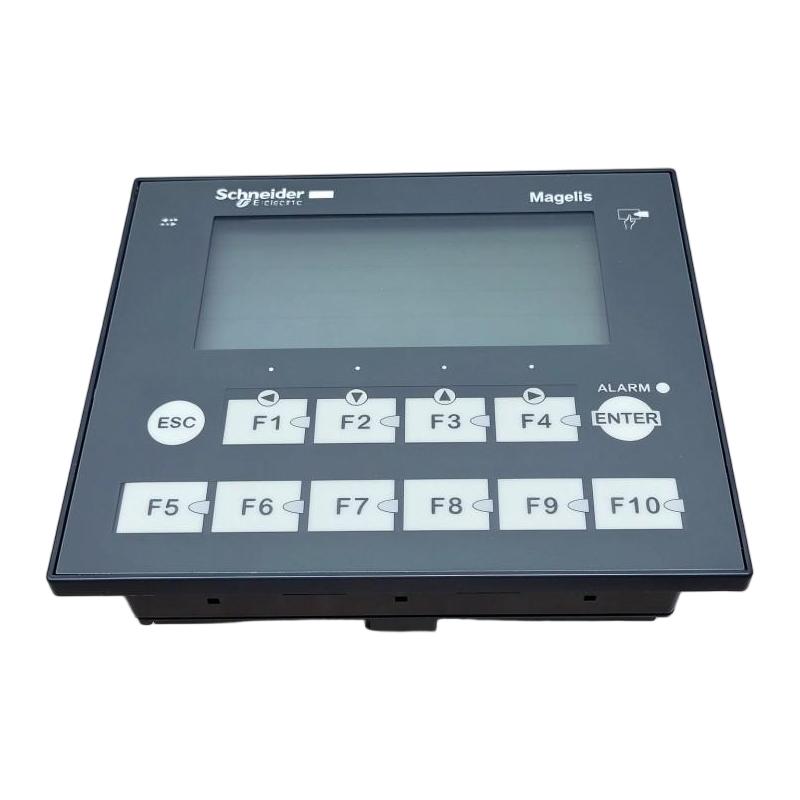

The Schneider XBTRT511 Compact Panel With Touchscreen and Keypad belongs to the Magelis XBTRT family of operator interfaces. Designed for compact industrial installations, it combines a matrix LCD, touchscreen functionality, physical keys, and serial communication interfaces in one panel-mounted device.

The panel supports the display of operating messages, alarms, and simple graphical objects. Its communication capabilities allow it to exchange information with compatible PLC systems, helping operators monitor equipment status and interact with automation processes.

The XBTRT511 is especially relevant for industrial maintenance teams managing legacy machinery and control systems. Because the model has been discontinued, replacement planning should account for the original application software, PLC communication protocol, wiring, panel cutout, and mounting arrangement.

For refurbishment or spare-parts procurement, verify the product's condition and confirm that the existing project files and communication configuration can be maintained. A newer HMI may be an alternative, but it should not be assumed to be a direct drop-in replacement.

Technical Specifications

Parameter	Specification
Brand	Schneider Electric
Model	XBTRT511
Product Range	Magelis XBTRT
Product Type	Compact HMI Panel With Touchscreen and Keypad
Display Type	Backlit matrix LCD
Display Resolution	198 × 80 pixels
Display Colors	Green, orange, red
Touchscreen	Matrix touch-sensitive area, 11 × 5 cells
Number of Keys	12
Customizable Keys	10
Fixed Keys	2
Rated Supply Voltage	24 V DC
Supply Voltage Limits	18–30 V DC
Power Consumption	Maximum 5 W
Memory Type	Flash
Memory Capacity	512 kB
Application Pages	Up to 200
Alarm Pages	Up to 256
Communication Protocols	Modbus, Uni-TE, subject to configuration
Serial Interface	RJ45, RS-232C/RS-485
Additional Interface	8-way female mini-DIN port
PLC Compatibility	Modicon M340, Momentum, Premium, Quantum, TSX Micro, Twido
Configuration Software	Vijeo Designer Lite
Mounting Type	Flush mounting
Panel Thickness	1.5–6 mm
Panel Cutout	119.6 × 105.2 mm, subject to specified tolerances
Front Protection Rating	IP65
Rear Protection Rating	IP20
Front NEMA Rating	NEMA 4X, indoor use
Operating Temperature	0–55°C
Storage Temperature	-20–60°C
Relative Humidity	0–85%, non-condensing
Dimensions (H × W × D)	118 × 137 × 79 mm
Dimensions (inches)	4.65 × 5.39 × 3.11 in
Weight	0.55 kg / 1.21 lb
Product Status	Discontinued
Manufacturer	Schneider Electric

Recommended Related Models

The following Schneider Electric HMI and automation product families may be useful when maintaining or upgrading a system built around the XBTRT511.

Schneider Electric XBTRT Series — Compact operator panels for legacy industrial automation installations.
Schneider Electric Magelis HMI Series — Operator interfaces designed for process visualization and machine control.
Schneider Electric Modicon M340 — Programmable automation controllers used in industrial control systems.
Schneider Electric Modicon Premium — PLC family found in legacy automation installations.
Schneider Electric Modicon Quantum — Automation platform used in industrial control and process applications.
Schneider Electric Twido — Compact PLC family used in smaller automation systems.

Compatibility between these products depends on communication protocols, configuration software, wiring, and the specific PLC application.

Popular Related Models

Schneider Electric XBTRT500
Schneider Electric XBTRT511
Schneider Electric Magelis HMI Panels
Schneider Electric Modicon M340 PLC
Schneider Electric Modicon Premium PLC
Schneider Electric Modicon Quantum PLC
Schneider Electric Twido PLC

Note: The XBTRT511 is discontinued. Confirm availability, product condition, communication compatibility, configuration software requirements, and replacement suitability before ordering.

Applications

The Schneider XBTRT511 Compact Panel With Touchscreen and Keypad is a compact human-machine interface (HMI) from the Magelis XBTRT range. It allows operators to monitor process information, view alarms, enter commands, and interact with compatible PLC-based automation systems through a small display and integrated keypad.

Typical application areas include:

Industrial machine operation and status monitoring
PLC-based automation and control systems
Manufacturing equipment and production lines
Industrial process monitoring and alarm display
Pumping, material handling, and packaging machinery
Equipment requiring a compact operator interface
Existing installations using compatible Schneider Electric automation platforms

The XBTRT511 is a discontinued model, so it is particularly relevant to maintenance, repair, and replacement projects involving existing equipment. Verify protocol support and system compatibility before integrating it into an installation.

Advantages

Compact design: Its small footprint makes it suitable for installations with limited panel space.
Touchscreen and keypad operation: Supports operator interaction through a matrix touchscreen and physical keys.
Clear process display: The backlit LCD supports text messages and simple graphical objects.
Multiple communication options: Provides serial communication through an RJ45 interface and a separate mini-DIN port for applicable connections.
PLC integration: Supports compatible automation systems and communication protocols, including Modbus and Uni-TE.
Alarm and message handling: Supports application pages and alarm pages for displaying operating conditions and diagnostic information.
Panel mounting: Uses a flush-mounting arrangement with spring clips for compatible panel thicknesses

Technical FAQs

1. What is the Schneider XBTRT511 used for?

The XBTRT511 is a compact HMI used to display process information and provide an operator interface for compatible industrial automation systems.

2. What is the display resolution?

The display resolution is 198 × 80 pixels. It uses a backlit matrix LCD with green, orange, and red display colors.

3. What supply voltage does the XBTRT511 require?

The rated supply voltage is 24 V DC, with a specified supply voltage range of 18–30 V DC. Confirm the supply requirements against the product documentation before installation.

4. Which communication protocols does the panel support?

The product documentation lists Modbus and Uni-TE, with support for compatible third-party protocols depending on the application configuration.

5. Which PLC families are compatible with the XBTRT511?

Documented compatible families include Schneider Electric Modicon M340, Momentum, Premium, Quantum, TSX Micro, and Twido. Compatibility depends on the communication protocol, PLC configuration, and application software.

6. Which software is used to configure the XBTRT511?

The specified configuration software is Vijeo Designer Lite for Windows. Confirm software availability and compatibility with the computer operating system before attempting to modify an existing application.

7. How many keys does the XBTRT511 have?

The panel has 12 keys, including two fixed keys and ten customizable keys. The touchscreen provides an additional method of operator interaction.

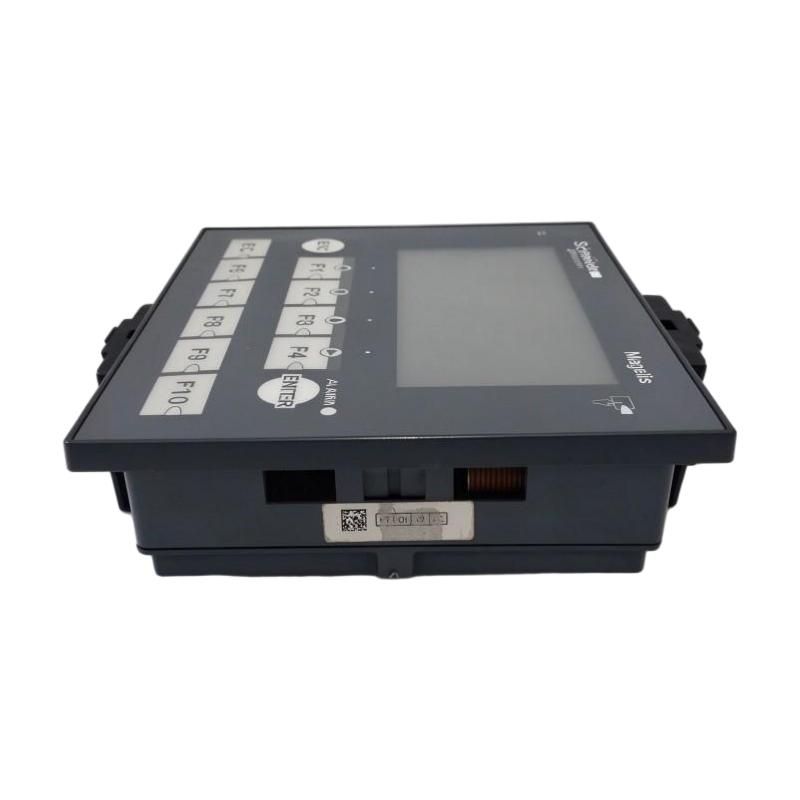

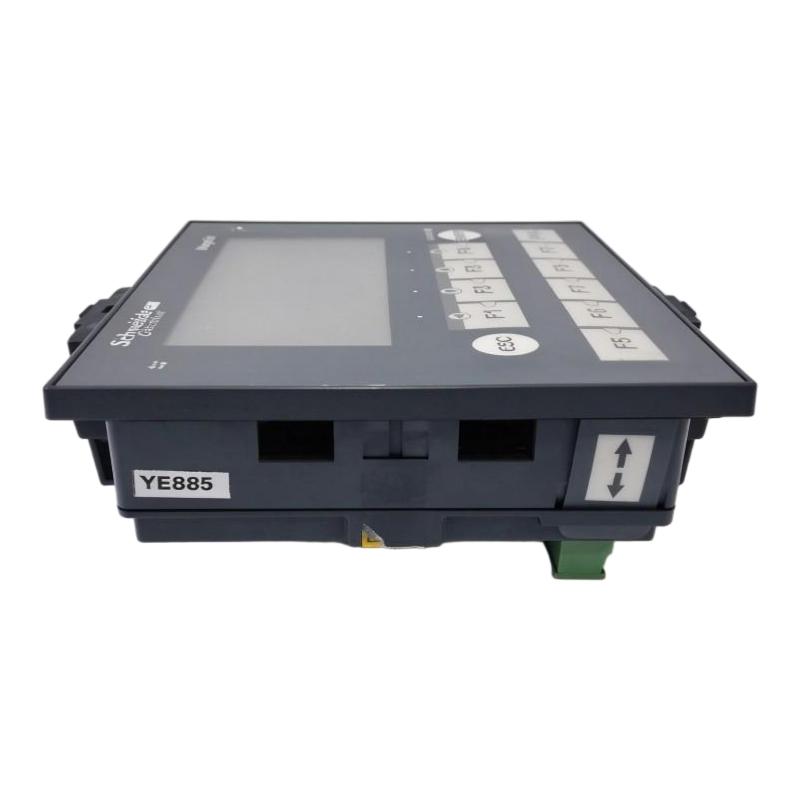

8. What communication connections are available?

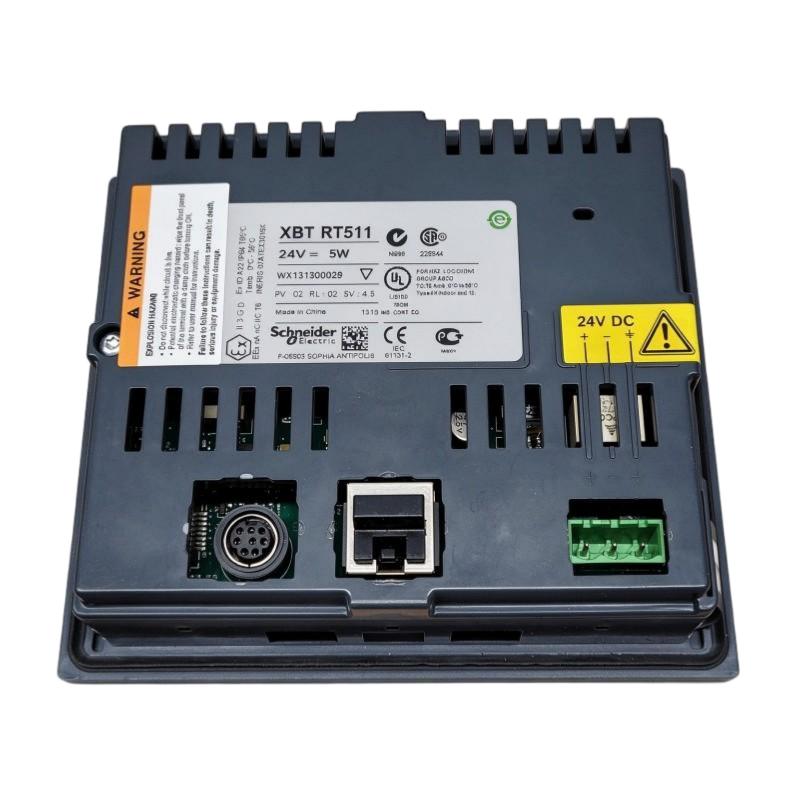

The documented connections include an RJ45 serial interface supporting RS-232C/RS-485 communication, an eight-way female mini-DIN printer port, and a removable screw-terminal block for the power supply.

9. What are the environmental protection ratings?

The front panel is rated IP65 and NEMA 4X for indoor use, while the rear panel is rated IP20. These ratings apply to their respective areas and do not mean the complete assembly is suitable for every environment.

10. Is the Schneider XBTRT511 still manufactured?

Schneider Electric lists the XBTRT511 as discontinued and indicates that it has not been replaced by a direct successor. Buyers maintaining older equipment should verify availability, condition, and compatibility before purchasing a replacement unit.
