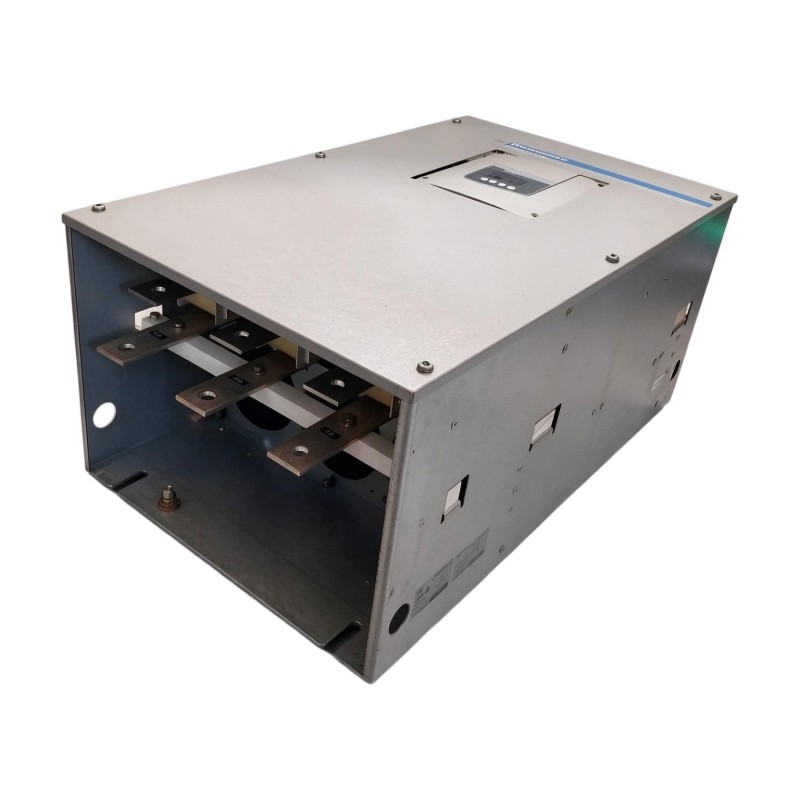

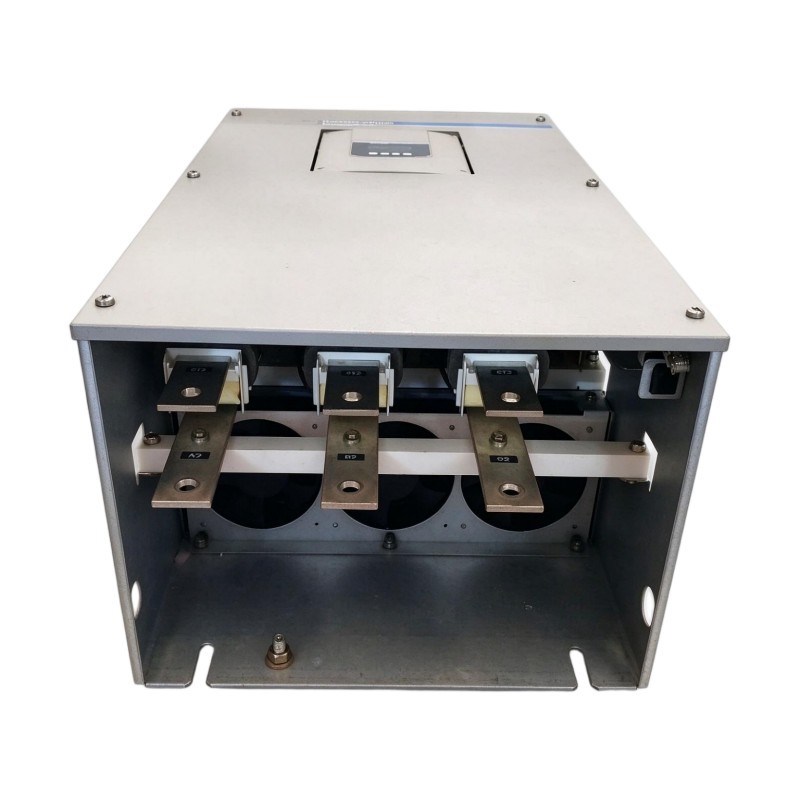

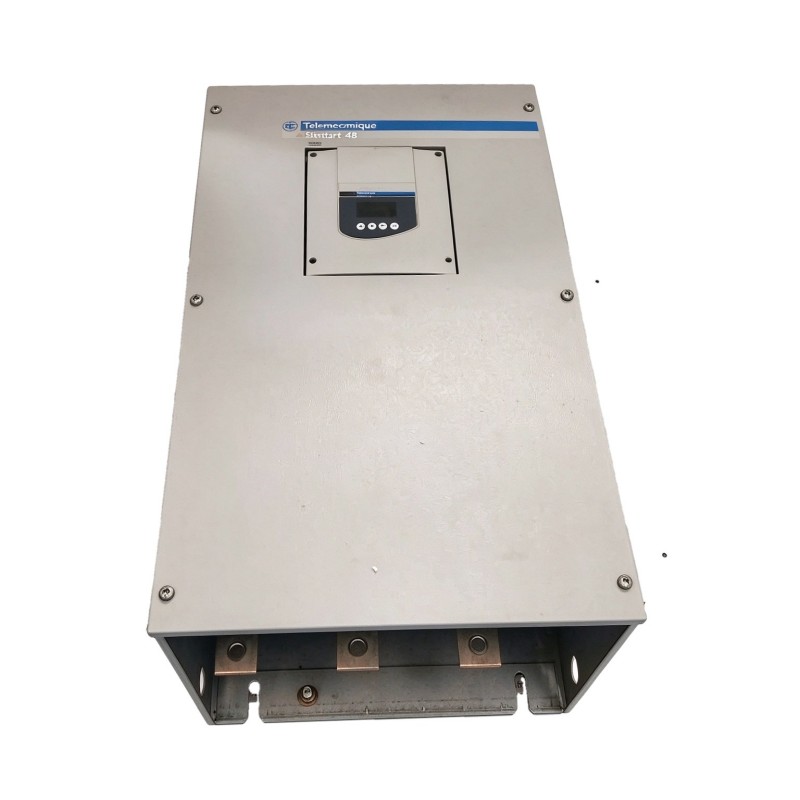

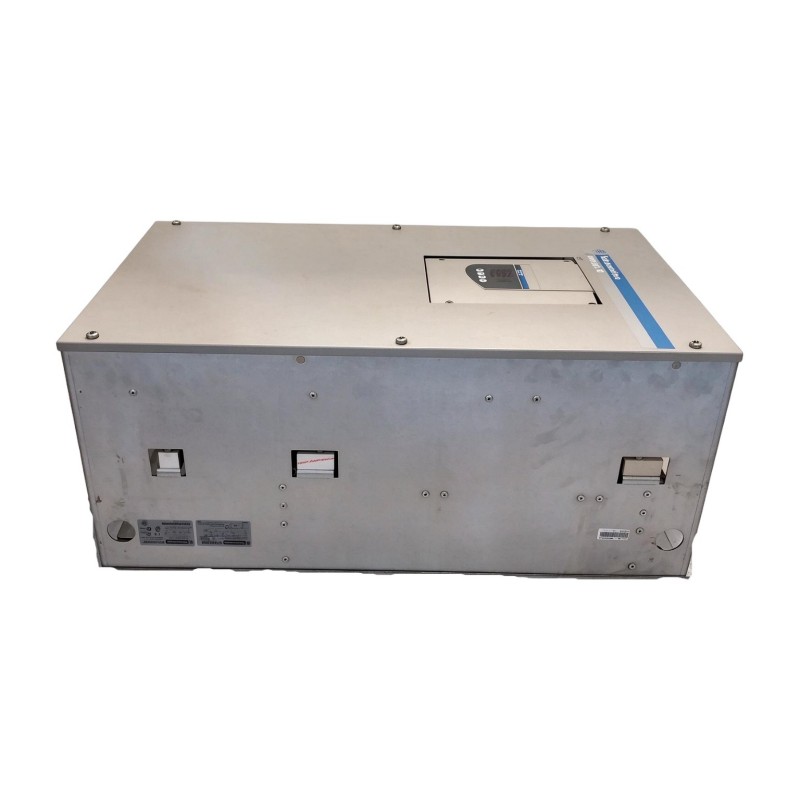

Schneider ATS48C59Y Soft Starter

Applications

The Schneider ATS48C59Y Soft Starter is part of the Altistart 48 soft starter series, designed to support controlled starting and stopping of three-phase asynchronous motors. Soft starters help reduce starting current and mechanical stress on motors and driven equipment, making them suitable for industrial applications that require smoother motor acceleration and deceleration.

Typical applications include:

• Pumps: Helps reduce pressure surges and mechanical stress during motor starting and stopping.

• Fans and blowers: Supports smoother acceleration and helps reduce stress on belts and drive components.

• Compressors: Helps manage motor startup in industrial compressed-air and process systems.

• Conveyors: Reduces sudden mechanical shocks to conveyor belts, gearboxes, and connected machinery.

• Industrial production lines: Supports controlled motor operation in automated manufacturing equipment.

• Material handling systems: Helps improve startup behavior in motor-driven machinery.

Advantages

• Reduced starting stress: Soft-start control helps limit abrupt torque changes during motor startup.

• Lower mechanical impact: Helps protect couplings, gearboxes, belts, and other connected components from sudden acceleration.

• Controlled motor stopping: Supports smoother stopping where the application benefits from reduced deceleration shock.

• Industrial integration: Suitable for motor control panels and industrial automation systems designed around compatible Altistart 48 equipment.

• Improved equipment operation: Helps reduce the impact of repeated starts on mechanical systems when configured correctly.

• Maintenance support: Clear model identification helps with replacement planning, spare-parts management, and equipment servicing.

Technical FAQs

Q1: What is the primary function of the ATS48C59Y?

It controls the starting and stopping of compatible three-phase asynchronous motors by gradually controlling motor voltage during the starting process.

Q2: How does a soft starter differ from a variable frequency drive (VFD)?

A soft starter primarily controls motor starting and stopping. A VFD also controls the motor's operating speed by adjusting the supply frequency and voltage.

Q3: Does the ATS48C59Y provide motor overload protection?

The ATS48 platform includes motor protection functions, but the applicable protection settings and coordination requirements must be checked against the exact device documentation and installation.

Q4: Can a soft starter reduce mechanical shock?

Yes. By controlling the motor's acceleration and, where configured, deceleration, it can reduce sudden torque changes transmitted to driven machinery.

Q5: Is the ATS48C59Y suitable for pump applications?

It may be suitable for compatible pump motors. Selection depends on motor current, starting duty, load characteristics, and the required stopping method.

Q6: What should be checked before replacing an existing soft starter?

Verify the complete model number, motor nameplate current, supply voltage, application duty, wiring arrangement, control interface, and protection settings.

Q7: Does the ATS48C59Y support communication with a PLC?

Integration depends on the available communication options and system configuration. Confirm the supported interface and any required accessories before connecting it to a PLC.

Q8: What causes a soft starter to trip during startup?

Possible causes include excessive starting time, incorrect motor settings, overload conditions, supply-voltage problems, phase loss, wiring faults, or an undersized starter.

Q9: Why is correct motor-current configuration important?

Correct settings help ensure that motor control and protection functions operate appropriately for the connected motor and its application.

Q10: What maintenance checks are recommended?

Inspect terminals and wiring, check for signs of overheating or contamination, confirm cooling clearances, review fault history, and verify settings according to the manufacturer's maintenance guidance.
