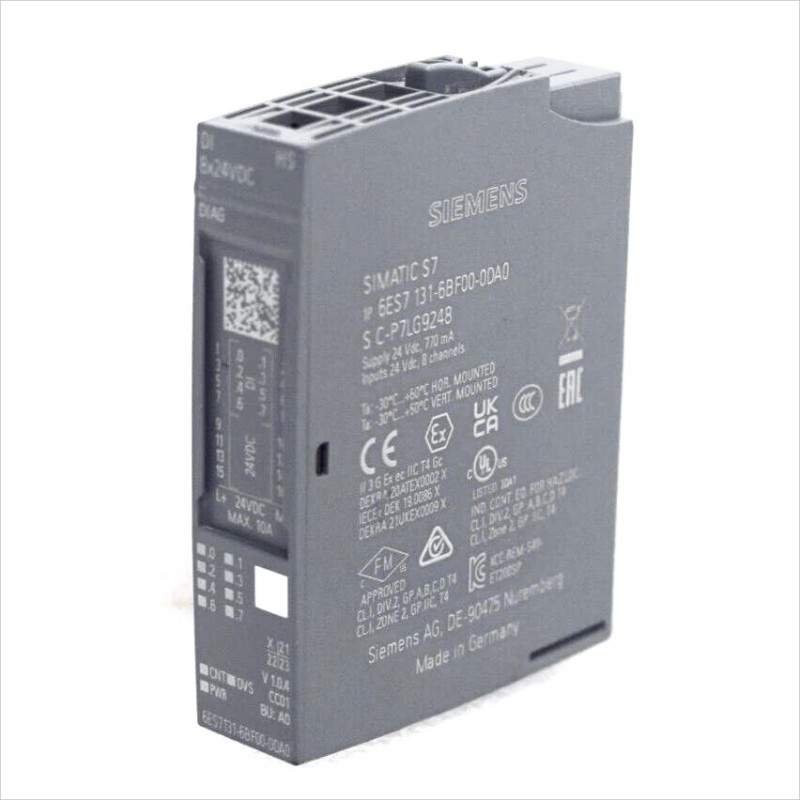

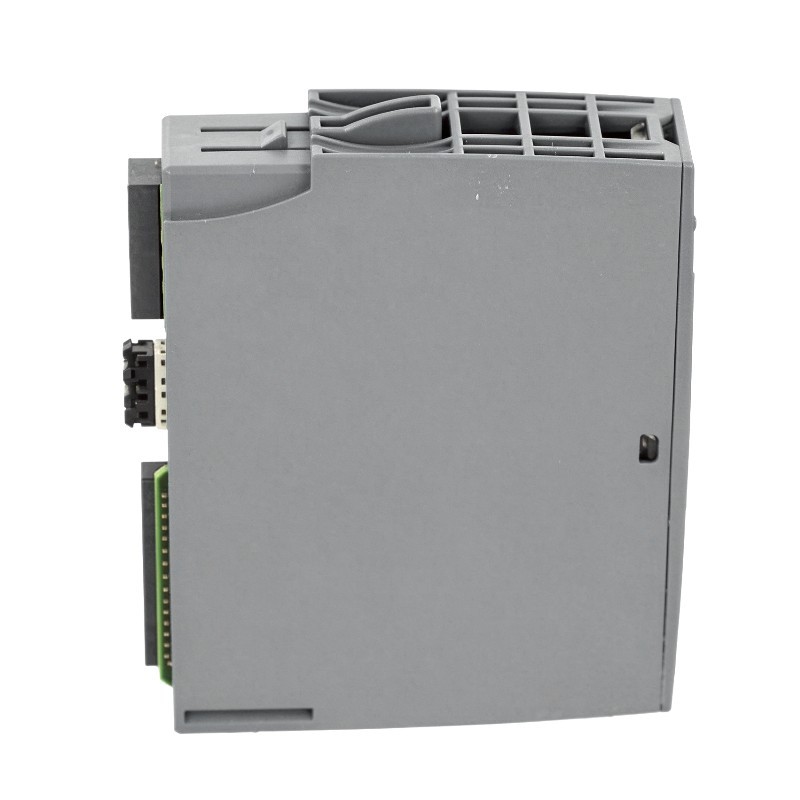

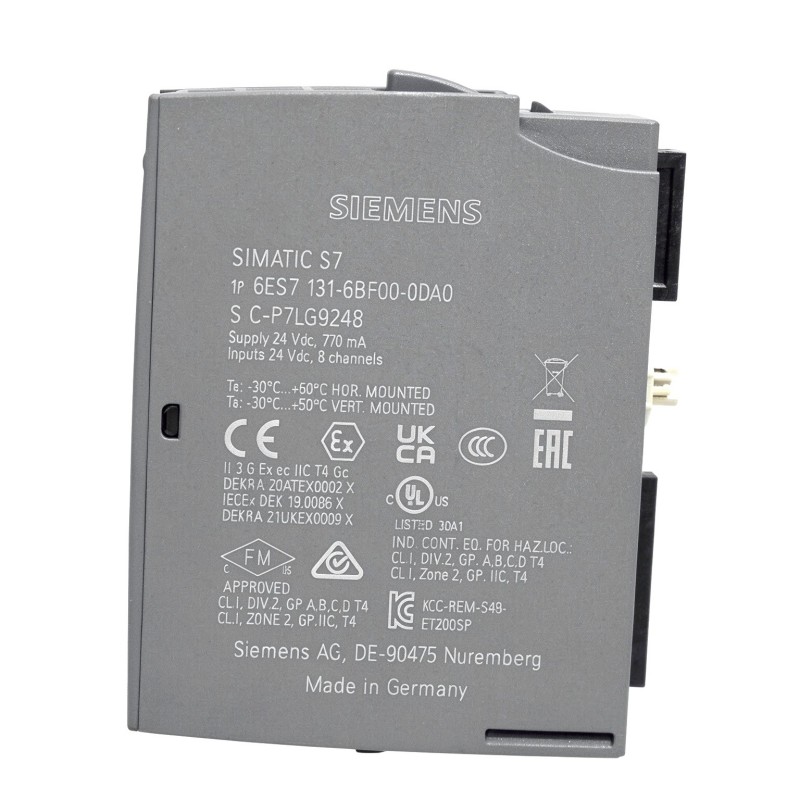

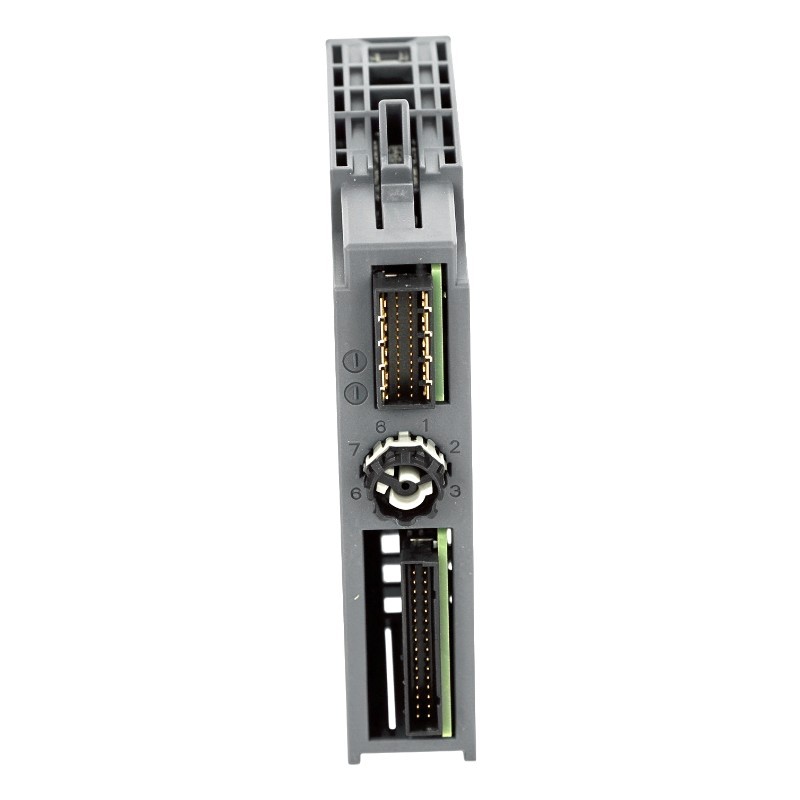

Siemens 6ES7131-6BF00-0DA0 Digital Input Module

Applications

The Siemens 6ES7131-6BF00-0DA0 Digital Input Module is part of the SIMATIC ET 200SP distributed I/O system. This high-speed module provides eight 24 V DC digital inputs and supports standard digital input operation, oversampling, and counter functions. It is designed for automation applications that require reliable signal acquisition and fast response to changing field conditions.

Typical applications include:

• High-speed machine control: Captures digital signals from sensors and switching devices in automated machinery.

• Factory automation: Monitors discrete signals across production lines and assembly systems.

• Position and pulse detection: Processes signals from compatible sensors for position monitoring and pulse counting.

• Conveyor systems: Tracks object detection and machine status signals.

• Packaging equipment: Supports fast signal acquisition for synchronized machine operations.

• Industrial measurement: Uses counter functions to count pulses and monitor repetitive events.

• Distributed control systems: Connects field-level signals to compatible SIMATIC controllers through an ET 200SP station.

Advantages

• Eight digital input channels: Collects multiple discrete signals within a compact module.

• High-speed signal processing: Designed for applications that require faster input acquisition than conventional digital input modules.

• Three operating modes: Supports digital input, oversampling, and four-counter operation.

• Oversampling capability: Captures multiple signal values within a controller cycle for time-sensitive applications.

• Integrated counter functions: Supports up to four counters with a maximum counting frequency of 10 kHz.

• Flexible pulse processing: Supports configurable pulse extension for selected operating requirements.

• Compact installation: Fits compatible SIMATIC ET 200SP BaseUnits of type A0.

• Engineering integration: Can be configured in compatible Siemens automation engineering environments.

Technical FAQs

Q1: What is the primary function of the 6ES7131-6BF00-0DA0?

It acquires digital signals from field devices and transfers the input information to the controller through the SIMATIC ET 200SP distributed I/O system.

Q2: How many digital inputs does this module provide?

It provides eight digital inputs designed for 24 V DC signals.

Q3: What makes this module different from a standard digital input module?

Its high-speed capabilities and support for oversampling and counter operation make it suitable for applications requiring faster signal acquisition or pulse processing.

Q4: What is oversampling mode?

Oversampling allows the module to acquire multiple signal samples within a controller cycle. This provides more detailed time-based input information for supported applications.

Q5: How many counters can the module support?

It supports up to four counters, with a maximum counting frequency of 10 kHz. Actual performance depends on configuration and operating conditions.

Q6: Can the module be used for encoder signals?

It can process compatible 24 V DC pulse signals. Before connecting an encoder, verify its electrical output characteristics, signal frequency, and wiring requirements.

Q7: Which BaseUnit is compatible with this module?

The module is designed for SIMATIC ET 200SP BaseUnit type A0. Confirm the precise BaseUnit and terminal arrangement required by the installation.

Q8: Can the module detect signal pulses that occur between controller scans?

Its high-speed and oversampling functions can capture signals that may not be adequately represented by ordinary cyclic input reading. The required operating mode and timing configuration must be selected correctly.

Q9: Which engineering software can configure the module?

It can be configured using compatible Siemens STEP 7 and TIA Portal versions. Verify the required software version and hardware catalog support for the project.

Q10: What should be checked before replacing this module?

Confirm the complete order number, input voltage, signal frequency, selected operating mode, BaseUnit compatibility, PLC hardware configuration, and any counter or oversampling settings.
