Introduction

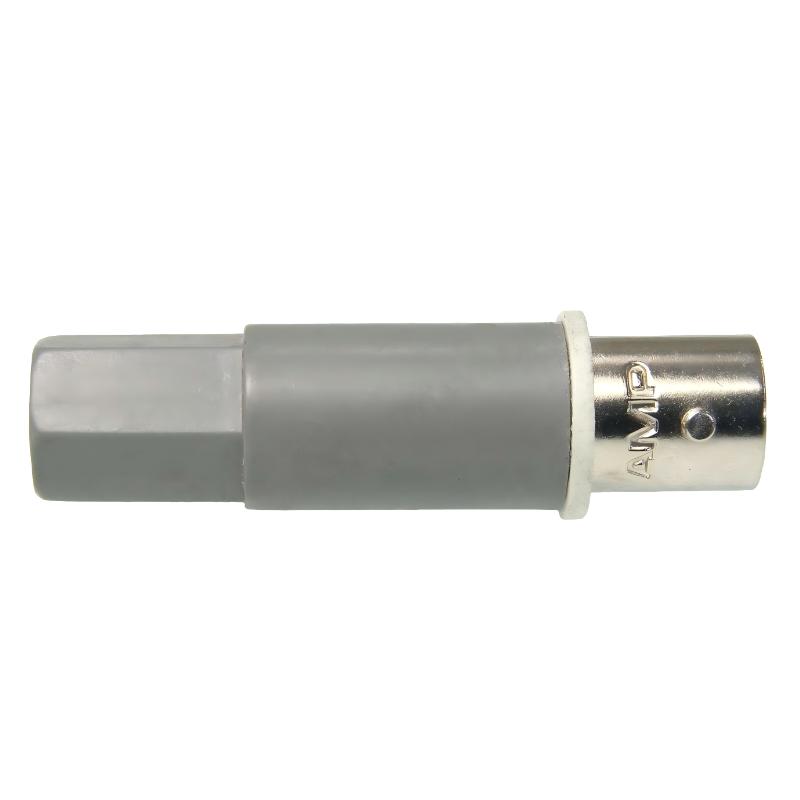

The Allen Bradley 1786-TCAP ControlNet Media Dummy Load Connector is a network accessory intended for applications involving compatible ControlNet media configurations. Correct selection of network accessories is important because each component must match the electrical and physical requirements of the communication system.

ControlNet networks are used in industrial automation environments to support communication between compatible controllers and other network devices. Maintaining the correct media configuration can help reduce installation errors and simplify troubleshooting when communication problems occur.

When purchasing the 1786-TCAP, confirm the precise function of the accessory and its intended connection point. The supplied dimensions and weight can assist with inventory planning, but electrical and application compatibility should be established before installation.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	1786-TCAP
Product Type	ControlNet Media Dummy Load Connector
Product Category	Industrial Network Accessory
Network	ControlNet
Dimensions	30 × 10 × 20 mm
Weight	0.1 kg / 0.22 lb
Application	ControlNet media configuration and maintenance
Connector Interface	Verify against the exact product documentation
Electrical Function	Confirm the intended dummy-load function
Installation	As specified for the applicable ControlNet configuration
Compatibility	Verify with the installed network media and equipment

The dimensions and weight are based on the supplied product information. Confirm the exact electrical function and installation requirements before procurement or use.

Recommended Related Models

The following Allen Bradley products may be relevant when maintaining ControlNet network infrastructure. Their functions differ, so verify compatibility before selecting an accessory.

Model	Product Type	Selection Consideration
Allen Bradley 1786-XT	ControlNet Terminator	Verify termination requirements and connector compatibility
Allen Bradley 1786-TPR	ControlNet T-Tap	Check the required coaxial network connection arrangement
Allen Bradley 1786-TPYR	ControlNet Y-Tap	Confirm suitability for the intended network topology
Allen Bradley 1786-RG6	ControlNet Coaxial Cable	Verify cable specifications and network requirements

These products should not be treated as interchangeable. Confirm the required media function and approved network configuration before ordering.

Popular Related Models

Other Allen Bradley ControlNet components may be relevant to network installation, maintenance, and expansion.

Model	Product Type	Typical Role
Allen Bradley 1786-RPA	ControlNet Repeater Adapter	Supports compatible repeater configurations
Allen Bradley 1786-RPFM	ControlNet Fiber Repeater Module	Supports fiber-optic communication in compatible installations
Allen Bradley 1786-RPFS	ControlNet Short-Range Fiber-Optic Repeater Module	Supports compatible short-range optical network links
Allen Bradley 1786-FS60	ControlNet Fiber-Optic Cable Assembly	Provides a fiber-optic communication path

These components serve different functions within ControlNet systems. Verify the exact model, media type, and network architecture before purchasing.

Applications

The Allen Bradley 1786-TCAP ControlNet Media Dummy Load Connector is an accessory associated with ControlNet coaxial network installations. Media termination and dummy-load accessories are used in specific network configurations to help establish the required electrical conditions at designated connection points.

In industrial automation systems, correct network termination is important for maintaining signal integrity and minimizing communication problems. The 1786-TCAP should be selected according to the network topology and the termination requirements of the installed ControlNet equipment.

Typical application areas include:

ControlNet Network Maintenance: Supporting maintenance activities involving compatible ControlNet media components.
Network Configuration: Providing a designated accessory for applicable ControlNet coaxial media arrangements.
Industrial Automation Systems: Supporting communication infrastructure used by PLC-based control systems.
Troubleshooting and Replacement: Serving as a replacement accessory when the existing component's catalog number and function have been confirmed.
Control Cabinet Installation: Supporting organized installation of compatible network media accessories within industrial control environments.

The exact installation position and electrical function should be verified against the applicable Allen Bradley documentation. This accessory should not be assumed to replace a standard network terminator unless the network design specifically calls for it.

Advantages

ControlNet Media Accessory: Intended for use in applications involving compatible ControlNet network components.
Compact Form Factor: The supplied dimensions of 30 × 10 × 20 mm make it suitable for evaluation in space-constrained installation layouts.
Simplified Spare-Part Identification: The model number helps maintenance teams identify the required accessory during procurement and replacement.
Network Maintenance Support: Helps technicians maintain the specified media configuration when the correct accessory is used.
Industrial Automation Application: Supports the physical infrastructure associated with ControlNet-based control systems.
Procurement Convenience: A clearly identified catalog number can simplify inventory management and spare-parts planning.

Before use, confirm the connector interface, intended termination function, and compatibility with the existing ControlNet media arrangement.

Technical FAQs

Q1: What is the purpose of the Allen Bradley 1786-TCAP?

The 1786-TCAP is identified as a ControlNet Media Dummy Load Connector. Its intended use should be confirmed against the manufacturer's documentation and the requirements of the specific network configuration.

Q2: What is a dummy load in an industrial communication system?

A dummy load is a component designed to present a specified electrical load to a circuit or interface. Its purpose depends on the equipment and network design in which it is used.

Q3: Is a dummy load connector the same as a standard network terminator?

Not necessarily. Dummy-load connectors and network terminators can serve different purposes. Always confirm the exact function and approved installation position before substituting one component for another.

Q4: Can the 1786-TCAP be used with any ControlNet cable?

Compatibility should not be assumed based on the network name alone. Verify the connector interface, media type, and intended application against the specifications of the connected equipment.

Q5: What should be checked before installing this accessory?

Confirm the full catalog number, connector compatibility, intended connection point, and network configuration. Follow the installation procedure specified for the applicable ControlNet equipment.

Q6: Can an incorrect media accessory affect network communication?

Yes. An accessory with unsuitable electrical characteristics or an incorrect connection arrangement may affect signal integrity or prevent the network from operating correctly.

Q7: How can a suspected faulty connector be diagnosed?

Inspect the connector for physical damage, contamination, loose connections, and incorrect installation. Check network diagnostics and compare the installed component with the approved configuration.

Q8: Does this component require a separate power supply?

Do not assume that it requires a separate supply. Confirm its electrical characteristics and intended function in the manufacturer's documentation.

Q9: What precautions should be followed during replacement?

Follow the site's maintenance and electrical safety procedures, identify the correct component, and document the original connection arrangement. Verify network operation after completing the replacement.

Q10: What information should be confirmed when ordering the 1786-TCAP?

Verify the complete catalog number, product description, physical connector configuration, condition, and intended application. For existing installations, compare the replacement part with the component specified in the network documentation.
