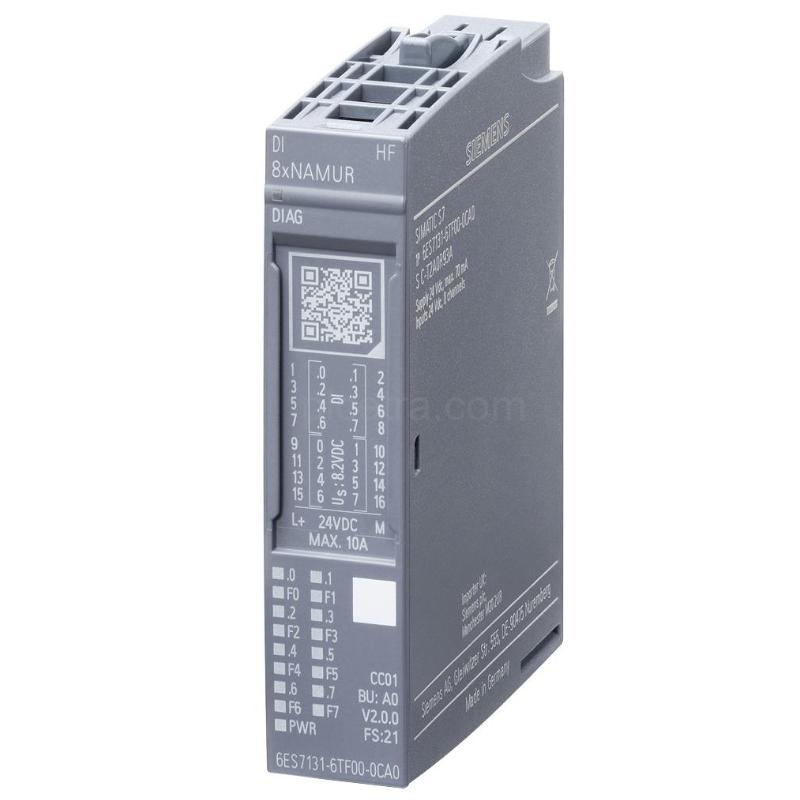

Siemens 6ES7131-6TF00-0CA0 Digital Input Module

Applications

The Siemens 6ES7131-6TF00-0CA0 Digital Input Module is identified as a digital input component for industrial automation applications. Digital input modules enable control systems to receive discrete signals from compatible field devices, allowing programmable logic controllers (PLCs) to monitor equipment states and respond to programmed operating conditions.

In automated production environments, reliable input signals are essential for machine sequencing, equipment status monitoring, and coordination between field devices and control logic. The correct module must be selected according to the electrical requirements and hardware configuration of the installation.

Typical application areas for compatible digital input modules include:

• Manufacturing Automation: Collects discrete signals from sensors and switches used in automated production equipment.

• Machine Control: Provides input states for PLC logic governing machine sequences and operating conditions.

• Material Handling Systems: Supports monitoring of compatible position sensors and switching devices.

• Industrial Equipment Monitoring: Helps control systems track discrete equipment status signals.

• Control Cabinet Integration: Can be considered for installations requiring a compatible digital input interface.

• Maintenance and Spare Parts Management: The complete Siemens order number helps technicians identify the intended component when planning replacements.

Before installation, verify the exact specifications of the 6ES7131-6TF00-0CA0, including its input characteristics, supported configuration, and compatibility with the existing automation system.

Advantages of Siemens 6ES7131-6TF00-0CA0 Digital Input Module

1. Reliable Discrete Signal Acquisition

Digital input modules provide a defined interface between field devices and a PLC. They allow the controller to receive discrete operating signals and process them according to the automation program.

2. Support for Automated Equipment Monitoring

Input signals can help identify changes in machine state, sensor activation, and switch position. When incorporated into a properly designed control program, these signals support equipment monitoring and automated sequencing.

3. Compact Module Dimensions

With the supplied dimensions of 15 × 73 × 58 mm, this component may suit installations where cabinet space is limited. Confirm the actual mounting arrangement and clearance requirements before incorporating it into a control panel.

4. Model-Specific Identification

The complete order number, 6ES7131-6TF00-0CA0, helps maintenance teams and purchasing departments identify the requested Siemens component. Accurate identification is especially important when different input modules have similar appearances but different electrical specifications.

5. Support for Maintenance Planning

Maintaining accurate records of installed modules and their order numbers can simplify spare-parts management, reduce procurement errors, and help engineers plan replacement work more efficiently.

6. Integration into Compatible Control Architectures

When the module's specifications match the system requirements, it can form part of an industrial signal acquisition arrangement. Compatibility must be established using the relevant Siemens documentation rather than assumed from the product name alone.

Technical FAQs

Q1. What is the primary function of a digital input module?

A digital input module receives discrete electrical signals from compatible field devices and makes the corresponding input states available to the automation controller.

Q2. What types of devices can be connected to digital inputs?

Depending on the module's rated electrical characteristics, typical devices may include push buttons, limit switches, proximity sensors, and auxiliary contacts. The connected signal must comply with the module's specifications.

Q3. How can I confirm the input voltage of the 6ES7131-6TF00-0CA0?

Consult the technical documentation for the complete order number. Input voltage and signal thresholds should never be inferred from another Siemens module with a similar designation.

Q4. What should I check if a field signal is not detected?

Inspect the field device, its power supply, wiring, terminal connections, and reference potential. Then review diagnostic indicators and the PLC's input status to determine where the signal path may be interrupted.

Q5. Can this module replace another Siemens digital input module?

A replacement should only be selected after confirming electrical specifications, channel configuration, mechanical compatibility, and system requirements. Similar product names do not guarantee interchangeability.

Q6. Why is correct PLC hardware configuration important?

The engineering configuration must correspond to the installed hardware and the system's I/O addressing. Incorrect configuration can lead to communication or diagnostic problems and may prevent input data from being interpreted correctly.

Q7. What causes intermittent digital input signals?

Potential causes include loose terminals, damaged cables, electrical interference, unstable sensor power, defective field devices, or incorrect wiring. A systematic check of the complete signal path helps isolate the cause.

Q8. How can input signals be used in machine interlocks?

A PLC program can evaluate input states before allowing a machine sequence to continue. Interlocks must be designed and validated according to the machine's functional and safety requirements; an ordinary digital input should not automatically be treated as a safety-rated input.

Q9. What precautions are necessary before removing the module?

Follow site lockout procedures and the manufacturer's instructions. Isolate relevant power sources as required, document connections, verify compatibility of the replacement, and observe the specified handling and installation procedures.

Q10. How should the module be tested after installation?

Check the station and module diagnostics, confirm the hardware configuration, and verify input states using approved test procedures. Ensure that each relevant field device produces the expected PLC input status before returning the equipment to normal operation.
