Introduction: Industrial Protection with a Focus on Compatibility

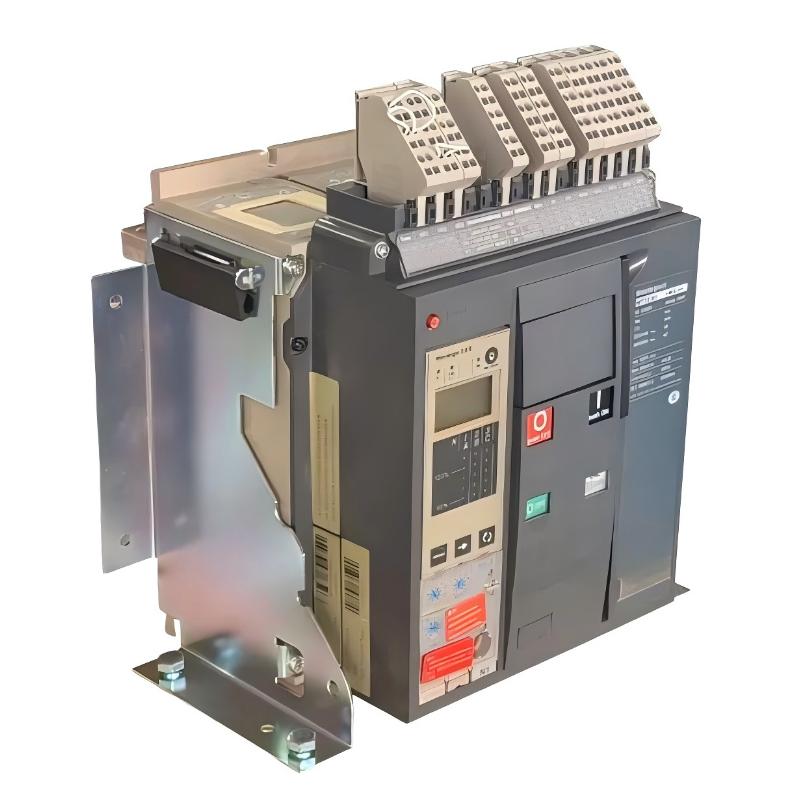

The Schneider MT12N2 Circuit Breaker is a model designation to evaluate when sourcing electrical protection equipment for industrial distribution systems. For plant maintenance teams, electrical contractors, and industrial procurement specialists, selecting the right breaker requires more than matching a product name. The device must meet the installation's electrical requirements and fit the intended switchgear configuration.

Circuit breakers contribute to electrical system safety by interrupting current under specified abnormal conditions. Their suitability depends on rated current, operating voltage, short-circuit breaking capacity, protection characteristics, and coordination with other protective devices.

For replacement projects, checking the original nameplate and the complete catalog number is an important first step. Differences in mounting arrangements, trip units, terminals, or accessories may affect whether an alternative can be installed safely and correctly.

When purchasing the MT12N2, buyers should confirm the exact product identity, condition, technical ratings, and required accessories before placing an order. This approach helps reduce procurement errors and supports efficient maintenance planning.

For new electrical installations, the final selection should follow the approved engineering design and applicable electrical standards.

Technical Specifications

The following table summarizes the product information supplied for the Schneider MT12N2 Circuit Breaker. Electrical characteristics not included in the supplied data are marked for verification.

Parameter	Specification
Brand	Schneider Electric
Model	MT12N2
Product Type	Circuit Breaker
Application	Industrial Electrical Distribution
Dimensions (W × H × D)	537 × 297 × 352 mm
Weight	35 kg (77.16 lb)
Rated Current	Verify against the product nameplate
Rated Operational Voltage	Verify against the product nameplate
Number of Poles	Confirm the exact configuration
Short-Circuit Breaking Capacity	Verify against technical documentation
Trip-Unit Configuration	Confirm the installed unit
Mounting Arrangement	Verify before installation
Product Condition	Confirm with the supplier

Specification note: Dimensions and weight are based on the information supplied. Confirm the manufacturer's specifications and exact product configuration before installation or replacement.

Recommended Related Models

The following Schneider Electric model designations may be considered for comparison when sourcing related circuit breakers. They are candidates for technical evaluation, not verified direct replacements for the MT12N2.

Model	Product Type	Evaluation Focus
Schneider MT06N1	Circuit Breaker	Electrical ratings and mounting compatibility
Schneider MT08N1	Circuit Breaker	Configuration and protection requirements
Schneider MT10N1	Circuit Breaker	Application suitability and technical compatibility
Schneider MT12N1	Circuit Breaker	Comparison of configuration and electrical ratings
Schneider MT16N1	Circuit Breaker	Frame and protection characteristics

Before selecting an alternative, verify the complete catalog number, rated current, operating voltage, breaking capacity, pole arrangement, trip-unit characteristics, mounting interface, and accessory requirements.

Popular Related Models

For broader Schneider Electric circuit breaker sourcing, the following models may be useful starting points for technical comparison and industrial spare-parts planning.

Model	Product Family	Procurement Consideration
Schneider MT06N1	MT Series	Confirm electrical and mechanical compatibility
Schneider MT08N1	MT Series	Verify complete product configuration
Schneider MT10N1	MT Series	Review circuit protection requirements
Schneider MT12N1	MT Series	Check trip-unit and mounting details
Schneider MT16N1	MT Series	Confirm ratings and application suitability

For more reliable procurement, provide the full model designation and clear nameplate information when requesting a quotation. Confirm product identity, condition, electrical ratings, and accessory configuration before purchase. Careful verification helps minimize ordering errors and supports more effective industrial equipment maintenance.

Applications

Industrial power distribution systems require circuit protection equipment that matches the electrical characteristics and operating demands of the installation. The Schneider MT12N2 Circuit Breaker is a model designation for industrial equipment sourcing and technical evaluation. Before specifying it for a project, engineers should verify the exact product configuration and its compatibility with the intended switchgear.

Potential application areas for a suitably specified circuit breaker include:

Industrial Power Distribution: Integration into compatible distribution assemblies to support circuit protection and controlled power delivery.
Manufacturing Facilities: Use in electrical distribution systems supplying production equipment, auxiliary machinery, and plant utilities, provided the device meets the required ratings.
Switchgear Assemblies: Evaluation for compatible electrical cabinets and switchgear systems where mounting arrangements and connections match.
Infrastructure Modernization: Consideration during industrial power system upgrades and distribution equipment replacement projects.
Maintenance and Spare-Parts Management: Procurement evaluation for existing installations when the complete model designation and technical characteristics have been confirmed.
Industrial Electrical Engineering: Inclusion in protection schemes designed around verified fault-current levels and coordination with other protective devices.

Selecting the correct breaker requires confirmation of rated current, operating voltage, breaking capacity, pole configuration, trip-unit characteristics, and installation requirements. These details should be checked before purchase and commissioning.

Advantages and Operational Benefits

1. Supports Industrial Circuit Protection

A properly specified circuit breaker helps interrupt electrical current under defined overload and fault conditions. Its actual protective capability depends on the device's verified ratings and configuration.

2. Facilitates Switchgear Compatibility Assessment

Confirming the mounting interface, terminal arrangement, frame configuration, and accessory requirements helps engineers determine whether a breaker can be integrated into the target assembly.

3. Improves Replacement Planning

Accurate model identification enables maintenance teams to compare replacement options more systematically and reduces the risk of selecting equipment with incompatible electrical characteristics.

4. Supports Coordinated Protection Design

A circuit breaker must operate appropriately within the wider protection system. Evaluating coordination with upstream and downstream devices helps engineers develop a more consistent approach to fault management.

5. Helps Organize Spare-Parts Inventory

Maintaining accurate equipment records supports purchasing, planned maintenance, and replacement scheduling, particularly in facilities operating multiple electrical distribution assemblies.

6. Encourages Informed Procurement Decisions

Confirming the complete product designation, product condition, and applicable documentation before purchase helps buyers evaluate the suitability of the equipment with greater confidence.

7. Supports Long-Term Equipment Management

Recording the installed configuration and following appropriate inspection procedures can improve maintenance planning and help identify issues before they lead to unplanned interruptions.

Technical FAQs

Q1. What is the main purpose of the Schneider MT12N2 Circuit Breaker?

The exact protection functions should be confirmed using the applicable technical documentation. In general, a circuit breaker interrupts an electrical circuit when specified overload or fault conditions occur.

Q2. How can I verify the rated current?

Check the nameplate and the technical documentation for the exact device configuration. Do not assume that the model designation alone establishes the rated current.

Q3. Why is short-circuit breaking capacity important?

The breaker must be capable of interrupting the prospective fault current at the installation point under its specified conditions. Its breaking capacity must meet the requirements of the electrical system.

Q4. What should be checked before using the breaker in a three-phase system?

Confirm the pole arrangement, rated operational voltage, connection configuration, and intended application. These characteristics must be compatible with the system design.

Q5. Can the MT12N2 be used in a motor-control application?

Its suitability depends on the verified breaker characteristics and the complete motor-control design. Engineers must consider motor starting current, overload protection, short-circuit protection, and coordination with contactors and overload relays.

Q6. Is the MT12N2 interchangeable with other MT-series breakers?

Not automatically. Confirm the complete catalog designation, electrical ratings, mounting interface, terminal arrangement, trip-unit configuration, and accessory requirements before selecting a substitute.

Q7. What are common causes of unexpected tripping?

Possible causes include sustained overload, short circuits, ground faults, unsuitable protection settings, or faults in connected equipment. The cause should be investigated before the circuit is re-energized.

Q8. How should trip-unit settings be determined?

Settings should be based on load characteristics, conductor ratings, prospective fault current, and the protection-coordination study. Adjustments should be performed by qualified personnel.

Q9. What maintenance procedures should be followed?

Follow the manufacturer's maintenance instructions and site electrical safety procedures. Depending on the design, inspections may cover connection integrity, mechanical operation, insulation condition, and evidence of overheating or damage.

Q10. What information helps identify a suitable replacement?

Provide the complete model designation, nameplate photographs, rated electrical characteristics, pole arrangement, trip-unit information, mounting details, and accessory requirements. These details help establish compatibility before procurement.
