CP6407 1SAP540710R0001

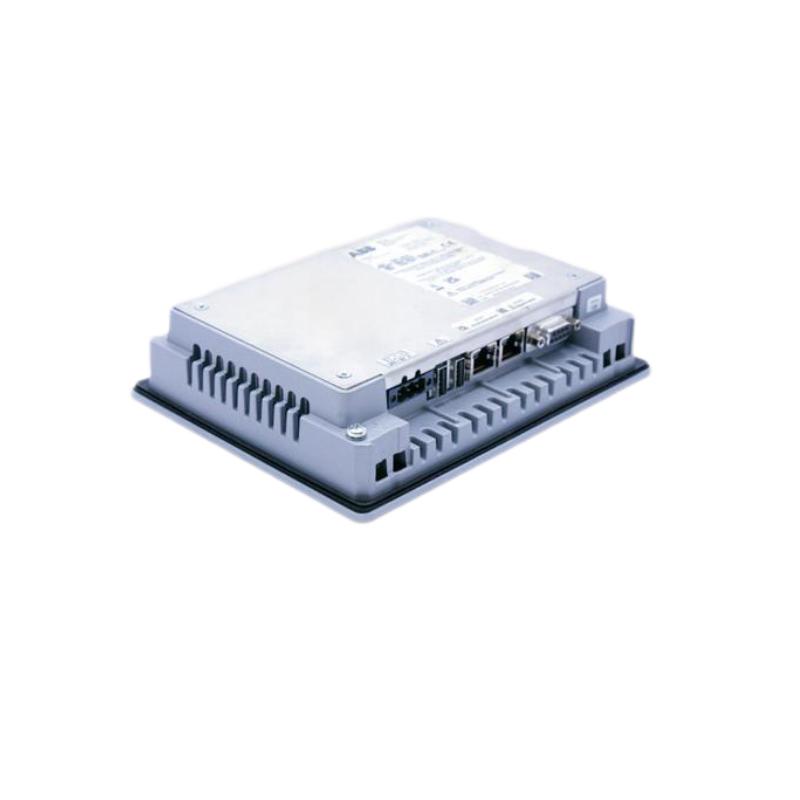

The ABB CP6407 Communication Processor is engineered to offer seamless, high-performance communication solutions for ABB's automation systems. Featuring extensive protocol support—including Ethernet/IP, PROFINET, and Modbus TCP—this module enhances the connectivity and scalability of your industrial systems. Whether you're integrating field devices, PLCs, or SCADA systems, the CP6407 ensures that data flows reliably and efficiently, enabling faster decision-making and greater control over your automation processes.

Technical Specifications

Model: CP6407
Type: Communication Processor
Dimensions: 6.8 inches x 3.5 inches x 2.2 inches (173 mm x 88 mm x 56 mm)
Weight: 0.88 lbs (0.4 kg)
Power Supply: 24V DC
Power Consumption: 4 W
Ethernet Port: 1x Gigabit Ethernet (10/100/1000 Mbps)
Supported Protocols: Ethernet/IP, PROFINET, Modbus TCP, OPC UA
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 180 mA at 24V DC

Recommended Related Models

ABB AC500 PLC: A high-performance modular PLC system for scalable automation.
ABB S800 I/O Modules: Versatile I/O modules for expanding your control system.
ABB PM560 Power Meter: Energy management solution for monitoring power consumption.
ABB COM600 Communication Module: Extends communication capabilities within ABB’s AC500 PLC range.

Popular ABB Models

ABB AC500-eCo PLC: Compact PLC solution for smaller automation systems.
ABB CP600 Communication Processor: A powerful processor designed for advanced communication in industrial automation.
ABB S500 I/O System: Modular I/O system tailored for complex industrial processes.

Applications

The ABB CP6407 is ideal for a broad spectrum of industrial applications, including:

Factory Automation: Seamlessly integrates into automated production lines, enabling fast data exchange across machines and control systems.
Energy Management: Enables real-time monitoring and control of energy usage, helping organizations optimize power consumption and reduce costs.
Process Control: Facilitates efficient communication between PLCs and field devices in industries like chemical, food processing, and pharmaceuticals.
Building Automation: Used to integrate and control HVAC systems, lighting, and security systems, ensuring energy-efficient building operations.
Remote Monitoring: Ideal for distributed systems where remote data acquisition and control are necessary for effective monitoring and troubleshooting.

Advantages

Robust Protocol Support: With compatibility for Ethernet/IP, PROFINET, Modbus TCP, and OPC UA, the CP6407 supports a wide range of industrial networks and applications.
High-Speed Data Transfer: The CP6407 offers gigabit Ethernet connectivity, providing fast and reliable data transfer across your automation network.
Seamless Integration: Easily integrates with ABB’s AC500 PLCs and I/O systems, allowing for a flexible, scalable automation solution.
Compact Design: Despite its powerful functionality, the CP6407 is compact and space-efficient, ideal for installations in constrained environments.
Reliability in Harsh Environments: With an operating temperature range of -20°C to 60°C (-4°F to 140°F), this module is designed to operate reliably in demanding industrial conditions.

Technical FAQs

What communication protocols are supported by the CP6407?
The CP6407 supports Ethernet/IP, PROFINET, Modbus TCP, and OPC UA, ensuring flexible integration into various industrial networks.
What is the power consumption of the CP6407?
The CP6407 consumes 4 W of power during operation, making it energy-efficient for extended use in automation systems.
Can the CP6407 be used with ABB’s AC500 PLC?
Yes, the CP6407 is fully compatible with the AC500 series of ABB PLCs, offering robust communication capabilities for these systems.
What is the temperature range for operating the CP6407?
The CP6407 can operate within a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for most industrial environments.
Does the CP6407 support network redundancy?
Yes, it supports redundancy features when integrated with compatible Ethernet/IP or PROFINET networks, ensuring high availability and minimal downtime.
How many Ethernet ports are available on the CP6407?
The CP6407 is equipped with 1 Ethernet port, supporting gigabit speeds for high-performance communication.
Can the CP6407 be used in hazardous environments?
The CP6407 is rated IP20 and should be installed in appropriate enclosures if used in hazardous or extreme environments.
What is the environmental rating of the CP6407?
The CP6407 is rated IP20, which means it is suitable for indoor use in typical industrial settings but not for harsh outdoor environments.
What is the weight of the CP6407?
The CP6407 weighs approximately 0.88 lbs (0.4 kg), making it lightweight and easy to integrate into your automation setup.
Can I use the CP6407 for remote control and monitoring?
Yes, the CP6407 supports remote monitoring and control via various communication protocols, allowing for efficient management of distributed automation systems.
