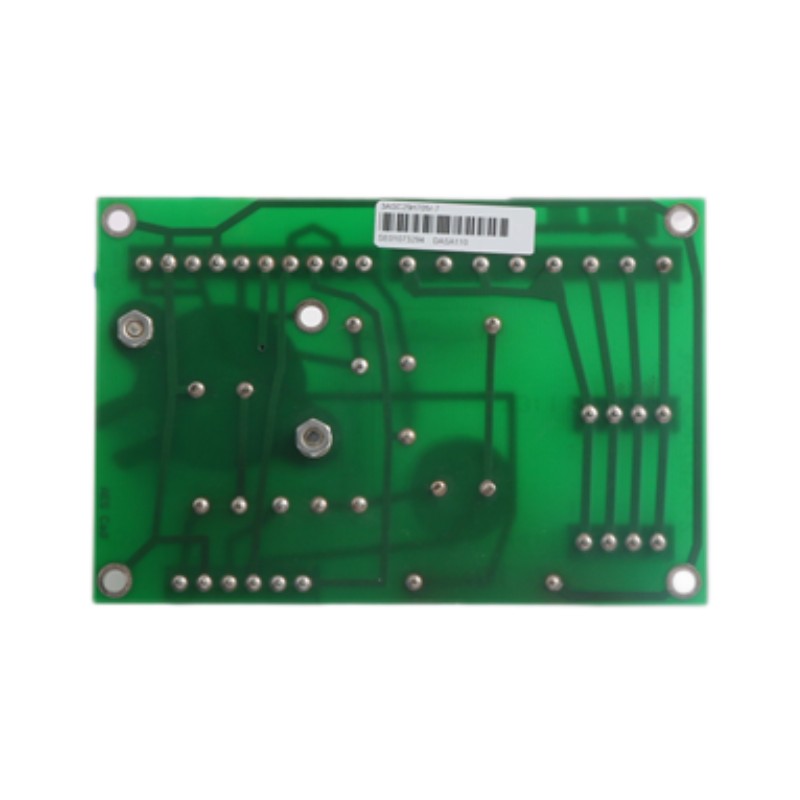

DASA110 3ASC25H705 7 2 DASA110 3ASC25H705 7 4 DASA110 3ASC25H705 7 1 DASA110 3ASC25H705 7 3

The ABB DASA110 is a robust and high-performance industrial control and monitoring module designed to integrate seamlessly into a wide range of automation systems. Offering advanced communication capabilities and flexible I/O options, this module is perfect for applications in process control, energy management, and industrial equipment monitoring. With its versatile features and reliable operation, the DASA110 is engineered to provide efficient control, real-time monitoring, and easy integration into both small and large-scale automation systems.

Technical Specifications

Model: DASA110
Type: Control and Monitoring Module
Dimensions: 6.0 inches x 4.2 inches x 3.0 inches (153 mm x 107 mm x 76 mm)
Weight: 1.3 lbs (0.6 kg)
Power Supply: 24V DC
Power Consumption: 5 W
Communication Ports:
- 1x Ethernet Port (10/100 Mbps)
- 1x Serial RS-232/RS-485 Port
- 1x CANopen Port
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 230 mA at 24V DC
Protocols Supported: Modbus TCP, EtherNet/IP, CANopen, OPC UA

Recommended Related Models

ABB AC500 PLC: A modular PLC offering high scalability and flexibility, perfect for expanding the DASA110 system.
ABB PM800 Power Meter: An energy monitoring solution ideal for integrating with the DASA110 to optimize energy efficiency.
ABB COM600 Communication Module: A module designed to enhance communication and connectivity in ABB automation systems.
ABB S800 I/O Modules: A comprehensive range of I/O modules to complement the DASA110’s control capabilities.

Popular ABB Models

ABB AC500-eCo: A compact and cost-effective PLC that delivers powerful functionality for smaller automation systems.
ABB CP600 Communication Processor: A flexible and reliable processor for controlling and managing automation systems across various industries.
ABB S500 I/O System: A highly modular and scalable I/O system that supports diverse industrial automation needs.

Applications

The ABB DASA110 is highly versatile and suitable for a wide variety of applications, including:

Process Control: Manage and monitor complex industrial processes with precision and reliability, ensuring optimized performance and safety.
Energy Management: Collect, analyze, and monitor data from various energy meters and equipment, helping companies to reduce energy consumption and improve efficiency.
Industrial Equipment Monitoring: Monitor the status and health of industrial machinery, enabling proactive maintenance and reducing downtime.
Building Automation: Control HVAC systems, lighting, and security devices within industrial or commercial buildings, contributing to energy-efficient building operations.
Machine Automation: Control and monitor production lines, assembly lines, and machine operations, ensuring optimal productivity and minimal downtime.

Advantages

Advanced Communication Features: With support for EtherNet/IP, Modbus TCP, CANopen, and OPC UA, the DASA110 allows seamless integration into complex industrial networks.
Flexible I/O Integration: The DASA110 supports a variety of digital and analog I/O options and can be expanded with additional I/O modules for customized solutions.
Compact and Efficient Design: Despite its small form factor, the DASA110 delivers high-performance functionality, making it ideal for space-constrained applications.
Energy-Efficient: With a power consumption of just 5 W, the DASA110 offers reliable operation with minimal energy costs.
Wide Temperature Range: Designed to operate in a wide temperature range of -20°C to 60°C (-4°F to 140°F), the DASA110 is suitable for a broad spectrum of industrial environments.

Technical FAQs

What communication protocols does the DASA110 support?
The DASA110 supports EtherNet/IP, Modbus TCP, CANopen, and OPC UA, making it highly flexible for integration into various industrial networks.
How many communication ports are available on the DASA110?
The DASA110 features 1 Ethernet port (10/100 Mbps), 1 serial port (RS-232/RS-485), and 1 CANopen port, offering versatile communication options.
What is the power consumption of the DASA110?
The DASA110 consumes only 5 W of power, making it a cost-effective and energy-efficient solution for industrial applications.
Can the DASA110 be used for remote control and monitoring?
Yes, the DASA110 supports remote monitoring and control via Ethernet/IP, Modbus TCP, and OPC UA protocols, ideal for distributed automation systems.
Is the DASA110 suitable for energy management applications?
Yes, the DASA110 is well-suited for energy management tasks, with its ability to collect data from energy meters and integrate with energy management systems.
What is the operating temperature range of the DASA110?
The DASA110 operates within a temperature range of -20°C to 60°C (-4°F to 140°F), ensuring reliable operation in most industrial environments.
How many I/O ports does the DASA110 support?
The DASA110 comes with expandable I/O options for both digital and analog signals, allowing for customized system configurations.
What is the environmental rating of the DASA110?
The DASA110 has an IP20 environmental rating, making it suitable for indoor use. It should be protected from water and dust during installation.
Can the DASA110 be integrated with ABB’s PLCs?
Yes, the DASA110 integrates seamlessly with ABB AC500 PLCs and other ABB control systems, offering a complete automation solution.
What is the weight of the DASA110?
The DASA110 weighs approximately 1.3 lbs (0.6 kg), making it a compact and lightweight solution for easy installation in control panels.
