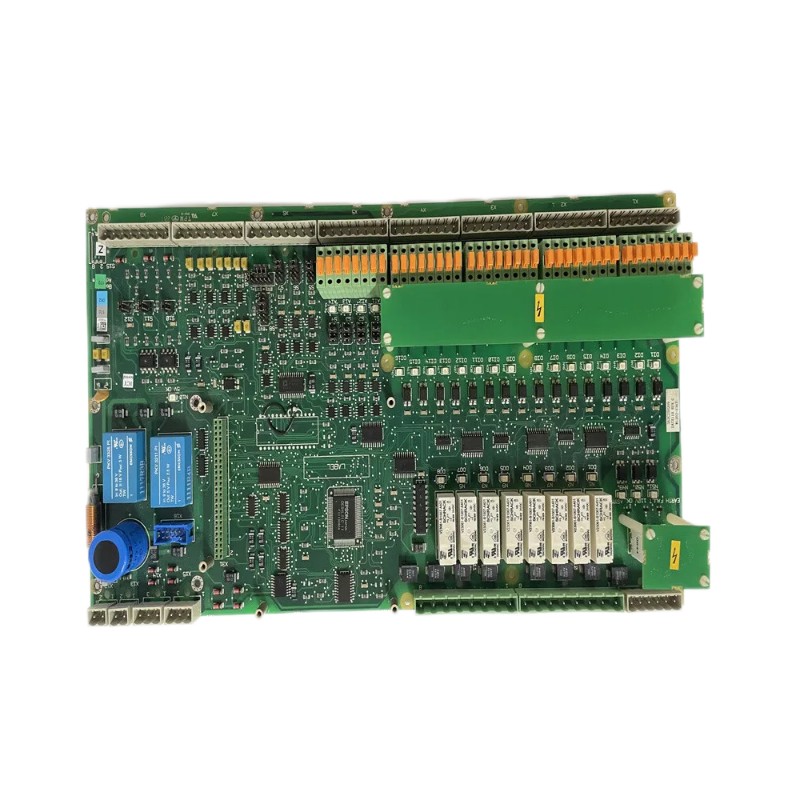

The ABB DATX110 is an advanced industrial communication gateway designed to enable seamless data exchange and protocol conversion between different industrial systems. With support for multiple communication protocols, this versatile gateway allows disparate devices, systems, and networks to communicate effortlessly, ensuring that data flows smoothly across various components of your automation infrastructure. Ideal for industries such as manufacturing, energy management, and building automation, the DATX110 enhances system efficiency and optimizes operations by ensuring reliable communication and integration between devices using different communication standards.

Technical Specifications

Model: DATX110
Type: Industrial Communication Gateway
Dimensions: 6.7 inches x 4.5 inches x 3.2 inches (170 mm x 115 mm x 80 mm)
Weight: 1.3 lbs (0.6 kg)
Power Supply: 24V DC
Power Consumption: 6 W
Communication Ports:
- 1x Ethernet Port (10/100 Mbps)
- 2x Serial Ports (RS-232/RS-485)
- 1x CANopen Port
Supported Protocols: Modbus TCP, EtherNet/IP, Profibus DP, OPC UA, CANopen, and more
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
Environmental Rating: IP20 (for indoor use)
Bus Current: 220 mA at 24V DC
Data Rate: 100 Mbps (Ethernet)

Recommended Related Models

ABB AC500 PLC: A modular, scalable PLC system that pairs seamlessly with the DATX110 for integrated control and communication.
ABB COM600 Communication Module: A versatile communication module for expanding the communication capabilities of your automation system.
ABB PM800 Power Meter: Integrate the DATX110 with ABB’s power meters for effective energy management and optimization of industrial processes.
ABB S800 I/O Modules: Expand your system’s I/O capabilities and interface with the DATX110 to manage more devices.

Popular ABB Models

ABB AC500-eCo: A compact and cost-effective PLC solution for smaller applications, ideal for pairing with the DATX110 for a complete system.
ABB CP600 Communication Processor: A robust communication processor for industrial applications, supporting multiple protocols.
ABB S500 I/O System: A highly modular I/O system for a wide range of applications, offering flexible integration with the DATX110.

Applications

The ABB DATX110 is designed for a wide variety of industrial applications requiring reliable communication and data integration:

Protocol Conversion: Convert and integrate different protocols, such as Modbus TCP, EtherNet/IP, Profibus DP, and CANopen, to enable seamless communication between diverse systems.
Data Logging and Monitoring: Collect and log data from various sensors, devices, and meters, offering detailed insights into system performance.
Industrial Automation: Ensure smooth communication across industrial controllers, PLCs, sensors, actuators, and other devices in large-scale automation systems.
Energy Management: Enable integration with energy meters and other devices to monitor and optimize energy usage in industrial applications.
Building Automation: Control HVAC systems, lighting, and other building systems efficiently by using the DATX110 for communication between devices.

Advantages

Multi-Protocol Support: The DATX110 supports various industrial protocols like Modbus TCP, EtherNet/IP, Profibus DP, OPC UA, and CANopen, ensuring seamless integration with a broad range of devices and systems.
Compact and Efficient: Despite its compact size, the DATX110 offers high-performance features and is easy to install in systems with limited space.
Reliable Communication: With support for Ethernet and serial communication ports, the DATX110 ensures that data exchange is efficient and reliable, even in complex industrial networks.
Versatile Data Logging: It offers powerful data logging and monitoring capabilities, making it ideal for applications where performance tracking and system diagnostics are critical.
Energy-Efficient: Consuming just 6 W, the DATX110 provides reliable operation without significantly impacting energy consumption, making it a cost-effective solution.

Technical FAQs

What communication protocols does the DATX110 support?
The DATX110 supports a wide range of protocols, including Modbus TCP, EtherNet/IP, Profibus DP, OPC UA, and CANopen, enabling communication across different industrial devices and systems.
How many communication ports are available on the DATX110?
The DATX110 offers 1 Ethernet port (10/100 Mbps), 2 serial ports (RS-232/RS-485), and 1 CANopen port, providing flexibility in connecting to various devices.
What is the power consumption of the DATX110?
The DATX110 consumes 6 W, ensuring that it is energy-efficient while providing high-performance communication and data integration.
Can the DATX110 be used for protocol conversion?
Yes, the DATX110 is specifically designed to convert and integrate multiple industrial protocols, making it ideal for connecting devices with different communication standards.
What is the data rate for the DATX110’s Ethernet port?
The Ethernet port on the DATX110 supports a data rate of 100 Mbps, ensuring fast and reliable communication for connected devices.
Can the DATX110 be used in harsh environments?
With an IP20 rating, the DATX110 is designed for indoor use. It should be installed in environments protected from dust, moisture, and water.
What is the operating temperature range of the DATX110?
The DATX110 can operate in a temperature range of -20°C to 60°C (-4°F to 140°F), making it suitable for most industrial settings.
What is the weight of the DATX110?
The DATX110 weighs 1.3 lbs (0.6 kg), making it lightweight and easy to install in industrial control systems.
How can the DATX110 help with energy management?
By integrating with ABB’s power meters and other energy monitoring devices, the DATX110 enables you to track and optimize energy usage across your industrial operations.
Is the DATX110 compatible with ABB PLC systems?
Yes, the DATX110 is fully compatible with ABB PLCs, particularly the AC500 series, providing seamless communication and integration for advanced automation solutions.
