Introduction

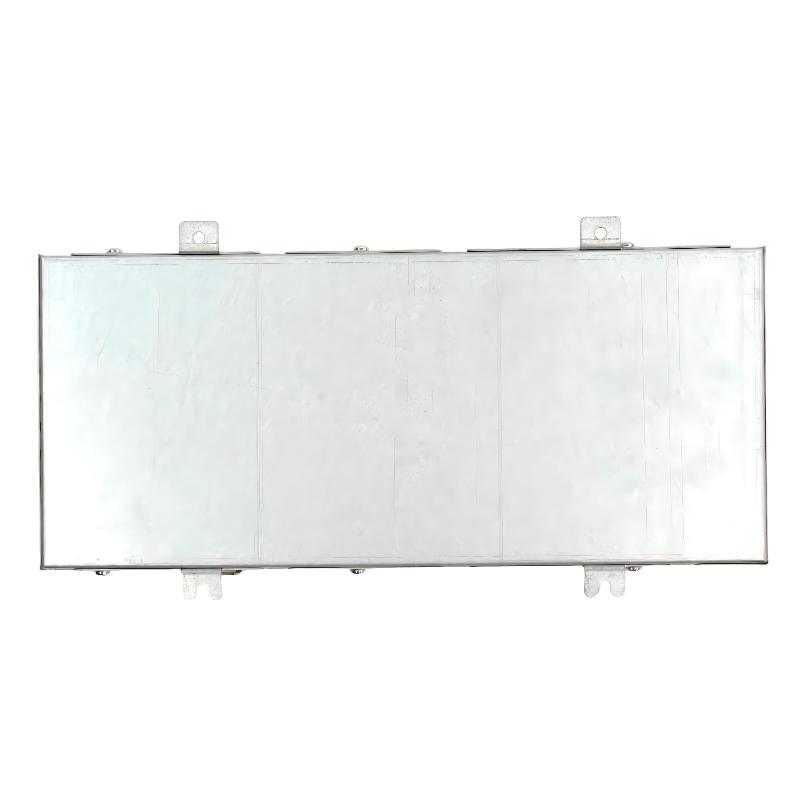

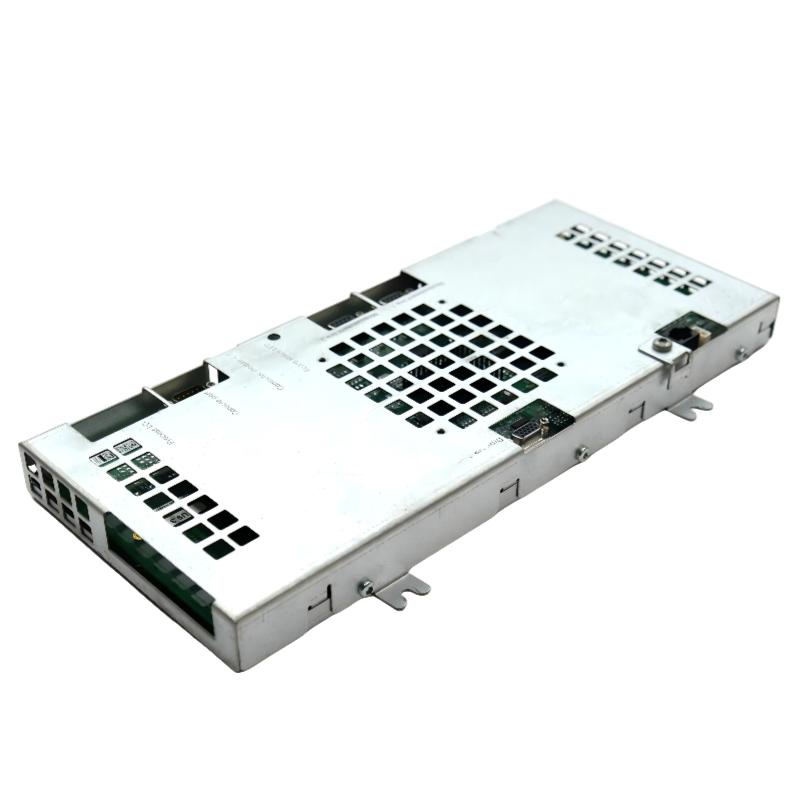

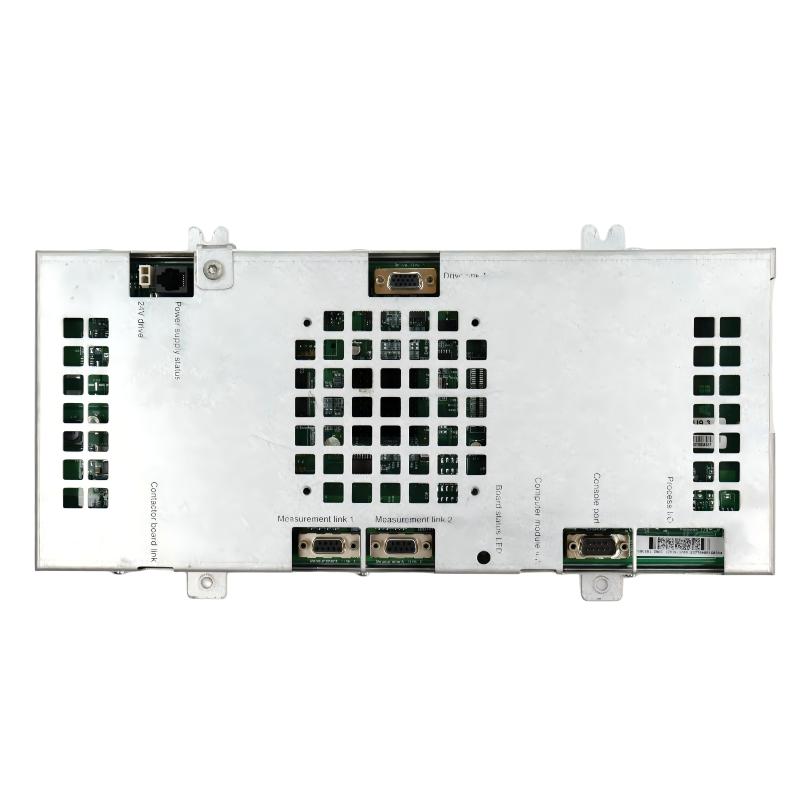

The ABB DSQC 601 3HAC12815-1/09 Axis Computer provides high-precision computation and control for robotic axes in industrial automation. Its compact and lightweight design allows easy integration into ABB Robot Controllers while ensuring robust, reliable performance in demanding manufacturing environments. Ideal for multi-axis robotics, it enables accurate motion, reduced downtime, and enhanced productivity.

Technical Specifications

Specification	Details
Model Number	DSQC 601 3HAC12815-1/09
Function	Axis Computer
Dimensions	355 × 21.2 × 150 mm
Weight	0.4 kg
Compatible Systems	ABB Robot Controllers
Mounting	Robot control cabinet installation
Environmental Protection	Industrial-grade, vibration & temperature resistant
Application	Multi-axis robotic motion control
Performance	High-speed, precise computation

Recommended Related Models

ABB DSQC 602 3HAC12815-1/10 Axis Computer
ABB DSQC 603 3HAC12815-1/11 Axis Computer
ABB Robot Controller IRC5 3HAC02867-1
ABB DSQC 605 3HAC12815-1/12 Axis Computer
ABB Robot Motion Feedback Module

Popular Related Models

ABB DSQC 604 3HAC12815-1/13 Axis Computer
ABB DSQC 606 3HAC12815-1/14 Axis Computer
ABB Robot Controller IRC5 Compact
ABB DSQC 607 3HAC12815-1/15 Axis Computer
ABB IRC5 Safety Module

Applications

The ABB DSQC 601 Axis Computer is designed for precise control of industrial robotic axes and automation systems. Key applications include:

Coordinating multi-axis motion in ABB industrial robots for assembly, welding, and material handling.
Integrating with ABB Robot Controllers for real-time axis computation and feedback.
High-speed automation processes where precise motion and positioning are critical.
Supporting predictive maintenance and diagnostics in robotic systems.
Use in automotive, electronics, and heavy manufacturing facilities to enhance productivity.

Advantages

Precision Control: Ensures accurate axis positioning and smooth motion for robotic systems.
Robust Industrial Design: Can withstand vibration, heat, and other industrial environmental factors.
Seamless Integration: Compatible with ABB controllers and automation systems.
Compact & Lightweight: Dimensions of 355 × 21.2 × 150 mm and weight of 0.4 kg simplify installation.
Reliable Performance: Supports continuous operation in high-demand industrial applications.

Technical FAQs

What is the primary function of the DSQC 601?
Computes and manages axis movements for ABB industrial robots.
Which systems is it compatible with?
Works seamlessly with ABB Robot Controllers and automation systems.
What are the physical dimensions?
355 × 21.2 × 150 mm.
What is the weight of the module?
0.4 kg.
Can it operate in harsh industrial environments?
Yes, designed for vibration, temperature variations, and mechanical stress.
Is it suitable for multi-axis robots?
Yes, supports precise control of multiple robotic axes.
Does it support predictive maintenance functions?
Yes, enables diagnostics and early fault detection.
Mounting type?
Designed for compact installation within robot control cabinets.
Expected lifespan?
Typically exceeds 10 years under normal industrial operating conditions.
Is maintenance required?
Minimal; periodic inspection recommended.
