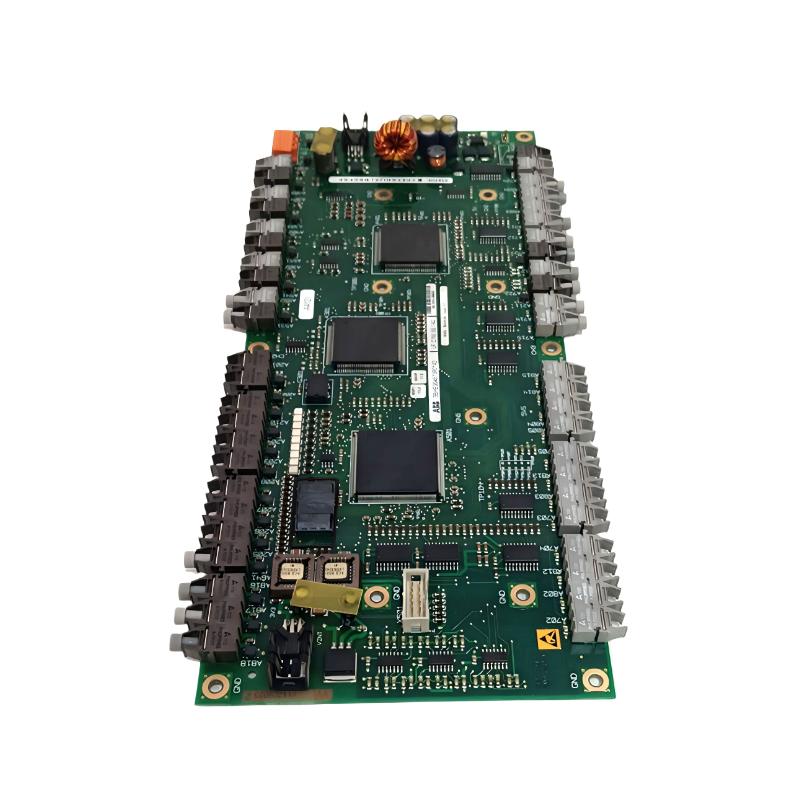

ABB UF C760 BE141 3BHE004573R0141 Control Board

Applications

The ABB UF C760 BE141 control board is engineered for robust performance in industrial automation and energy management systems. It excels in precision-driven applications where reliability and quick response are critical. Typical applications include:

• Motor control in manufacturing facilities

• Energy distribution and management systems

• Process automation in chemical, pharmaceutical, and food industries

• Robotics and conveyor line integration

Advantages

• High Reliability: Designed to maintain stable operation in industrial environments.

• Lightweight & Compact: Measuring 210 × 150 × 40 mm and weighing only 0.62 kg, it is easy to install and handle.

• Versatile Connectivity: Supports both analog and digital control signals.

• Durable Construction: Resistant to electrical noise, vibrations, and temperature variations.

• Enhanced Safety: Integrated overcurrent and short-circuit protection for reliable system operation.

Technical FAQs

1. What voltage does the board operate at?
   24 V DC.

2. Can this board handle extreme temperatures?
   Yes, operational range is -20°C to 70°C.

3. Is it compatible with other ABB UF C series modules?
   Yes, it integrates seamlessly with UF C series systems.

4. What is the board’s weight?
   0.62 kg, ideal for panel mounting and maintenance.

5. Does it allow real-time process monitoring?
   Yes, live diagnostics and monitoring are supported.

6. Are firmware updates supported?
   Yes, via ABB’s official tools and service portals.

7. What are the installation dimensions?
   210 × 150 × 40 mm.

8. Does it provide built-in protection?
   Yes, it includes overcurrent and short-circuit safeguards.

9. Which control signals are compatible?
   Both analog and digital signals are fully supported.

10. Is technical support available from ABB?
    Yes, ABB provides full documentation and expert support.
