Introduction

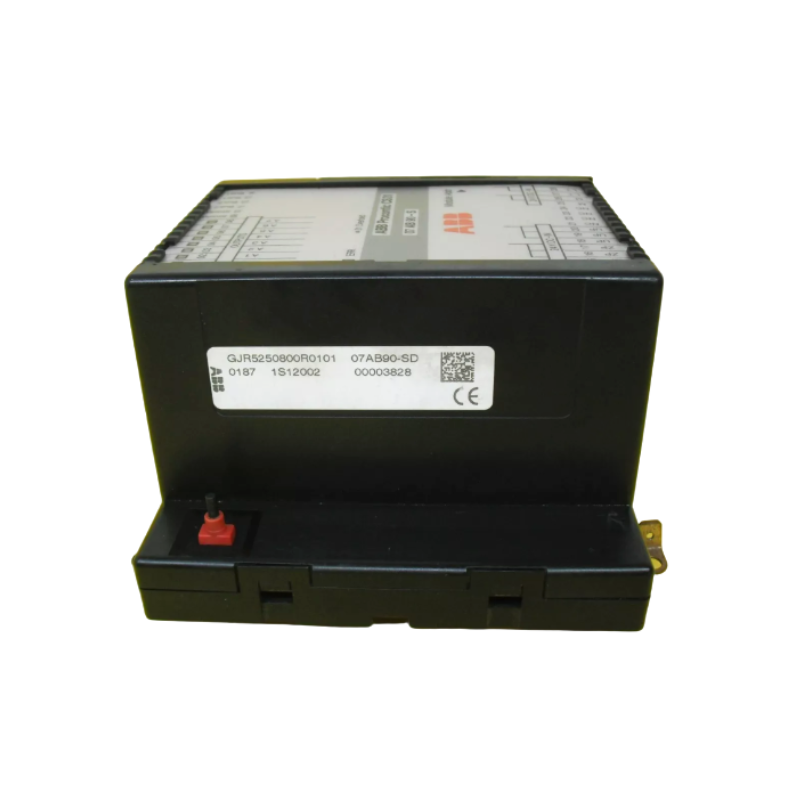

The ABB 07AB90-S/07AB90-SD GJR5250800R0101 Digital Output Module combines compact design with reliable performance. It is engineered to ensure precise digital signal control, making it ideal for automation systems where accuracy, durability, and uptime are critical. From machine control to complex industrial processes, this module provides a trustworthy solution for modern facilities.

Technical Specifications

Specification	Detail
Model	07AB90-S / 07AB90-SD
Part Number	GJR5250800R0101
Module Type	Digital Output Module
Channels	8
Operating Voltage	24–48 V DC
Switching Frequency	Up to 500 Hz
Response Time	2 ms
Mounting	DIN rail or panel
Operating Temperature	−20°C to 60°C
Dimensions	200 x 140 x 40 mm
Weight	1.2 kg

Recommended Related Models

ABB 07AB90-R – Digital Output Module
ABB 07AB91-S – Analog Input Module
ABB 07AB94-S – Relay Module
ABB 07AB95-S – Signal Conditioning Module

Popular Related Models

ABB 07AB92-S – Digital Output Module
ABB 07AB93-S – Analog Input Module
ABB 07AB96-S – Relay Module
ABB 07AB97-S – Signal Conditioning Module

Applications

Industrial automation control systems requiring reliable digital output.
Machine and process monitoring in manufacturing plants.
Signal interfacing for PLC and DCS systems.
Critical infrastructure applications where uptime is essential.
Integration with modular ABB control architectures for scalable solutions.

Advantages

High Reliability: Built for continuous operation under demanding industrial conditions.
Compact Form Factor: Space-saving design (200 x 140 x 40 mm) for flexible installation.
Precision Output Control: Ensures accurate and consistent digital signal transmission.
Seamless Integration: Compatible with ABB standard interfaces and automation platforms.
Durable Design: Resistant to vibration, temperature changes, and electrical interference.
Low Maintenance: Long operational lifespan reduces downtime and maintenance costs.

Technical FAQs

What is the operating voltage?
24–48 V DC, suitable for standard ABB control modules.
How many output channels does it provide?
8 digital channels for versatile control applications.
Can it handle high-speed switching?
Yes, supports switching frequencies up to 500 Hz.
Is the module hot-swappable?
No, replacement requires powering down the system.
What is the response time per channel?
Approximately 2 ms.
Does it include diagnostic feedback?
Yes, built-in LED indicators display operational status.
What are the environmental limits?
Operating temperature: −20°C to 60°C; Humidity: 5–95% non-condensing.
Is it backward compatible with older ABB systems?
Yes, fully compatible with most legacy ABB automation architectures.
How is the module mounted?
Supports DIN rail or panel mounting for versatile installation.
Which safety standards does it meet?
IEC 61131-2 and CE certified for industrial safety compliance.
