Introduction

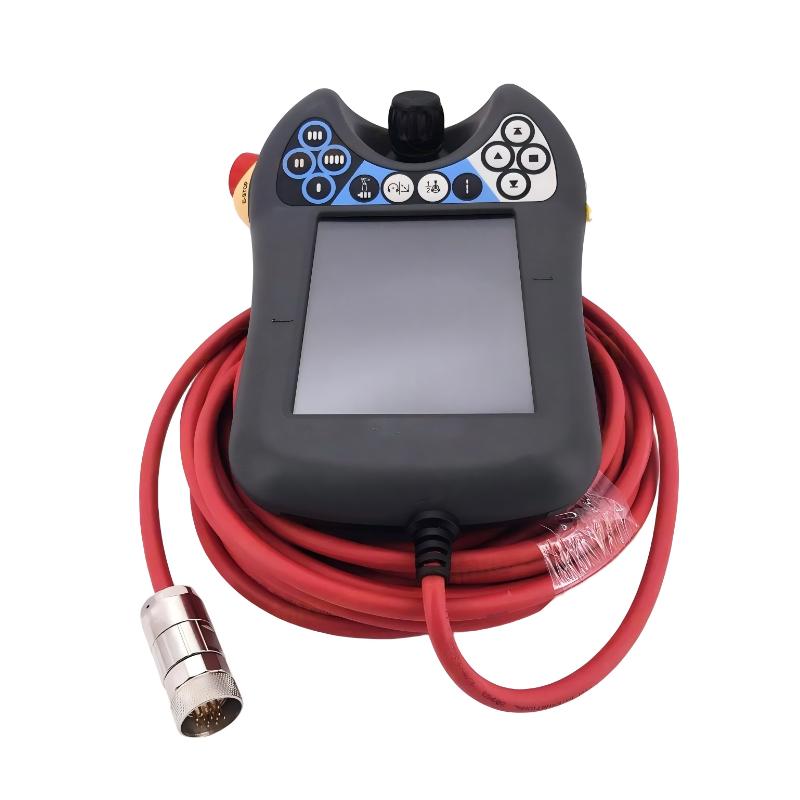

The ABB DSQC 679 3HAC028357-001 Teaching Pendant provides operators with precise, intuitive control over ABB industrial robots. Designed for both programming and daily operation, it combines ergonomic handling with robust construction. Whether used during commissioning, production adjustments, or maintenance, this teaching pendant delivers dependable performance and a smooth user experience that keeps robotic systems running efficiently.

Technical Specifications

Parameter	Description
Product Type	Teaching Pendant
Manufacturer	ABB
Function	Robot Programming & Operation Interface
System Compatibility	ABB Industrial Robot Controllers
Installation	Handheld / Controller-Connected
Dimensions	400 × 300 × 150 mm
Weight	3.06 kg

Recommended Related Models

ABB DSQC 663 3HAC029818-001 – Robot servo drive unit for precise motion control
ABB DSQC 662 3HAC026254-001 – Power distribution unit for robot controllers
ABB DSQC 679-TP 3HAC028358-001 – Teaching pendant variant for extended robot systems
ABB DSQC 661 3HAC026253-001 – Power supply unit supporting robot control hardware

Popular Related Models

ABB DSQC 609 3HAC14178-1 – I/O and auxiliary power module for ABB robots
ABB DSQC 651 3HAC025784-001 – Controller power supply module
ABB DSQC 655 3HAC026289-001 – Power management unit for robotic cabinets
ABB FlexPendant 3HAC050917-001 – Advanced touchscreen teaching pendant for newer ABB robots

Applications

The ABB DSQC 679 Teaching Pendant is an essential human–machine interface for programming, operating, and maintaining ABB industrial robots. It is widely used wherever intuitive control and precise teaching are required:

Robot programming and path teaching in ABB robotic cells
Manual jogging, setup, and commissioning of robot axes
Operator interaction during production changeovers
Maintenance diagnostics and system monitoring
Training environments for robot operation and process optimization

Advantages

Ergonomic handheld design for comfortable, long-duration operation
High-visibility display and tactile controls for precise robot teaching
Direct integration with ABB robot controllers ensures fast response and accuracy
Rugged industrial housing suitable for shop-floor environments
Trusted ABB interface that shortens learning curves and boosts productivity

Technical FAQs

What is the main function of the DSQC 679?
It serves as a teaching and operating interface for ABB industrial robots.
Is this pendant used for robot programming?
Yes. It is used for programming, jogging, and editing robot motion paths.
Which ABB systems support this pendant?
It is compatible with various ABB robot controllers using DSQC-series interfaces.
Does it support manual and automatic modes?
Yes. Operators can switch between teaching, manual operation, and monitoring modes.
Is it suitable for production environments?
Absolutely. It is designed for daily industrial use on the shop floor.
Can it be used as a replacement pendant?
Yes. It is commonly installed as a direct replacement for compatible ABB systems.
Does it include emergency and safety controls?
Yes. Safety-related controls are integrated to support safe robot operation.
Is any software installed on the pendant itself?
The pendant works in conjunction with the robot controller software.
How is it connected to the controller?
It connects directly via dedicated ABB control cables and interfaces.
Why choose an original ABB teaching pendant?
Original ABB pendants guarantee full compatibility, safety compliance, and reliable operation.
