Brand:ABB PLC Item No.:SDCS-PIN-H41 Product Origin:Sweden (SE) Product Dimensions:130 × 100 × 20 mm Product Weight:0.24 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

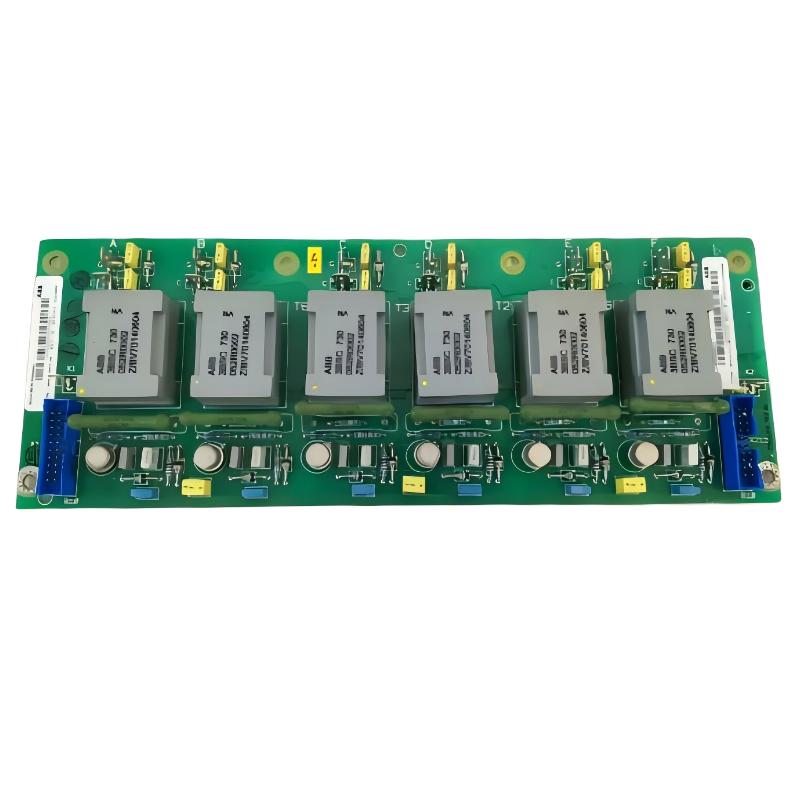

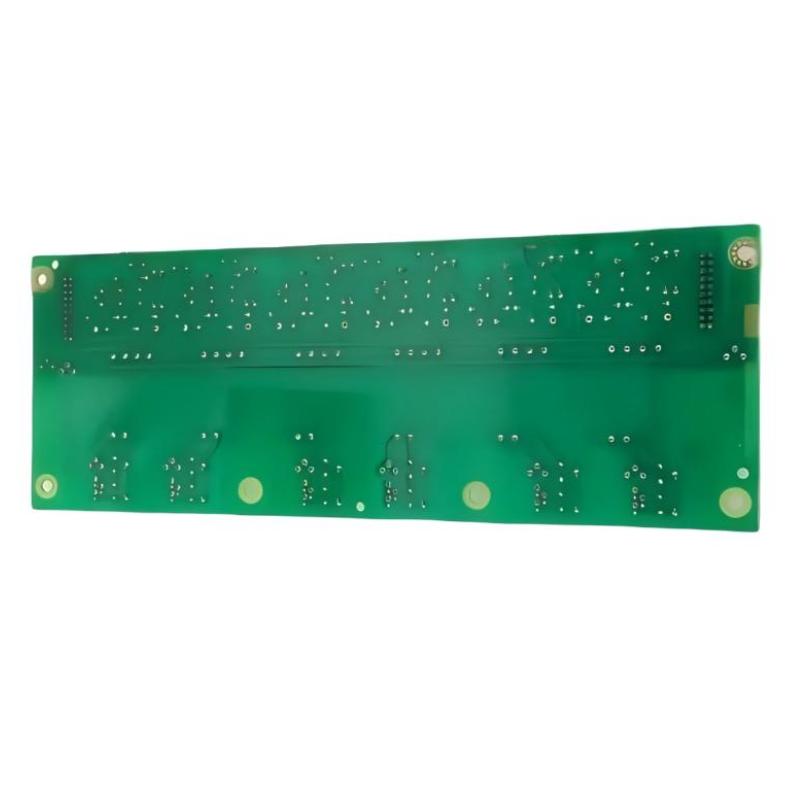

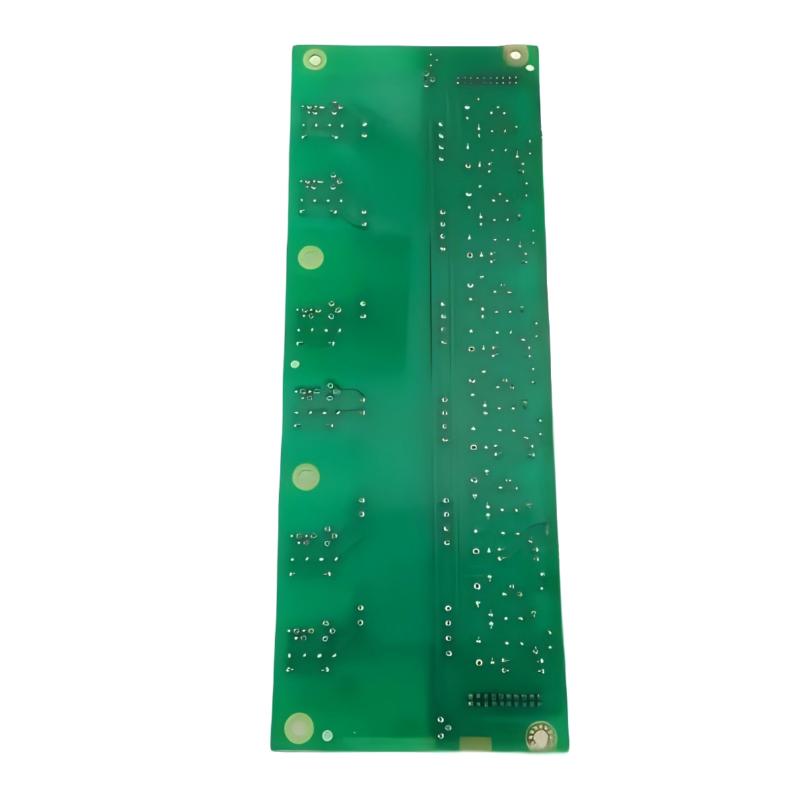

The ABB SDCS-PIN-H41 3ADT320600R1501 Firing Pulse Transformer Board is a high-precision module engineered for accurate firing pulse delivery in industrial power control systems. It enhances the performance of thyristor- and IGBT-based drives, ensuring reliable switching, reduced misfiring, and improved overall system efficiency.
Its compact and robust design makes it suitable for integration into new installations or retrofits, providing stable and precise pulse control under demanding industrial conditions.
Technical Specifications
Parameter
Specification
Product Model
SDCS-PIN-H41 3ADT320600R1501
Module Type
Firing Pulse Transformer Board
Application
Accurate pulse delivery to thyristor and IGBT modules
System Compatibility
ABB industrial drives and power modules
Protection Features
Stable operation under electrical stress and vibration
Dimensions
130 × 100 × 20 mm
Weight
0.24 kg
Recommended Related Models
Model
Product Type
Key Function
AGDR-71C 68439990A
Driver Board
Controls signal delivery to IGBT and I/O modules
FS450R17KE3/AGDR-71C
IGBT Kit
High-speed switching for industrial drives
ACS550-01-015A-4
Frequency Converter
Motor speed and torque control
SDCS-PIN-H42 3ADT320601R1502
Firing Pulse Transformer Board
Companion transformer for pulse distribution
1VCR017053G0001
Power Supply Board
Provides stable DC power for control and I/O modules
Popular Related Models
Model
Product Type
Application Focus
SDCS-PIN-H41 3ADT320600R1501
Firing Pulse Transformer Board
Precise firing pulse delivery for industrial drives
FS500R17OE4D-B61/BGAD-21C
IGBT Module
High-speed switching for industrial drives
AGDR-71C 69038352A
Driver Board
Signal driving for control and I/O modules
ACS880-01-09A4-3 3ABD00035963-D
Frequency Converter
Medium-power industrial motor control
ZPOW-591 3AUA0000075499
Power Supply Board
Stable DC power for ABB modules
Applications
The ABB SDCS-PIN-H41 Firing Pulse Transformer Board is designed for precise pulse delivery to power electronics in industrial systems. It plays a critical role in ensuring accurate switching in thyristor-based drives and other high-power semiconductor applications.
Typical applications include:
Delivering firing pulses to thyristors and IGBT modules in industrial drives
Integration in power control and drive systems for energy-intensive processes
High-precision pulse generation in motor control and automation
Enhancing reliability of pulse-controlled industrial equipment
Retrofitting or upgrading existing drive systems for improved pulse accuracy
This board ensures precise timing, high reliability, and stable operation in demanding industrial environments.
Advantages
Precise pulse delivery
Provides accurate firing signals to thyristors and IGBT modules.
Stable and reliable operation
Reduces risk of misfiring and improves system efficiency.
Compact design
Fits easily into control panels and industrial enclosures.
Robust construction
Withstands vibration, temperature fluctuations, and electrical stress.
Easy integration
Designed for seamless installation with ABB drive and power control modules.
Enhanced system performance
Optimizes switching timing and reduces electrical stress on power devices.
Technical FAQs
1. What is the main function of the SDCS-PIN-H41?
It delivers precise firing pulses to thyristors and IGBT modules.
2. Can it improve motor control efficiency?
Yes, precise pulse delivery ensures smoother and more reliable drive operation.
3. Is it compatible with ABB drives and power modules?
Yes, it is designed for seamless integration with ABB industrial systems.
4. Does it support high-frequency pulse generation?
Yes, it is capable of delivering rapid and accurate pulses required by industrial drives.
5. Can it operate in harsh industrial environments?
Yes, it withstands vibration, heat, and electrical stresses.
6. Is installation straightforward?
Yes, it is designed for quick integration into drive and control panels.
7. Can it reduce the risk of misfiring?
Yes, stable and precise pulse generation minimizes misfiring events.
8. Is it suitable for retrofitting older drive systems?
Yes, it can replace worn or outdated transformer boards.
9. Does it enhance the longevity of power electronics?
Yes, accurate pulse control reduces electrical stress on thyristors and IGBT modules.
10. Can it support multiple thyristor or IGBT modules simultaneously?
Yes, it is capable of handling pulse distribution for several devices in a system.
