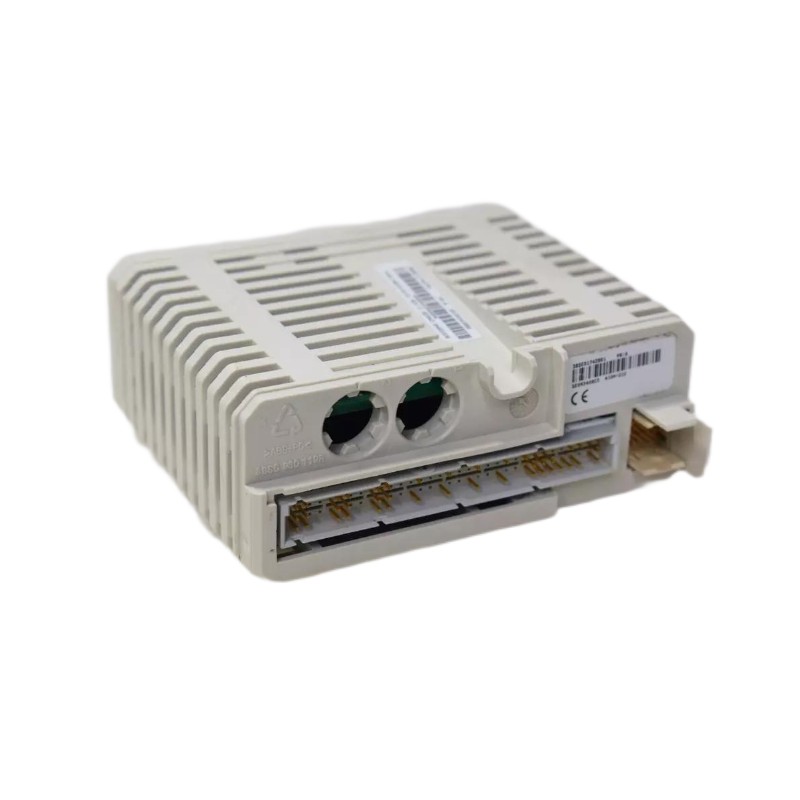

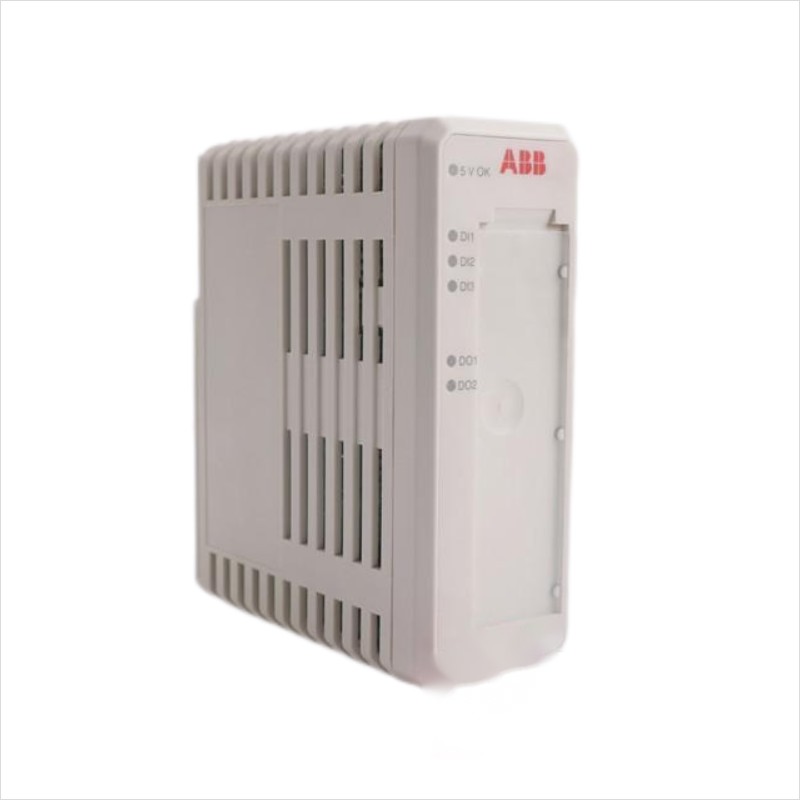

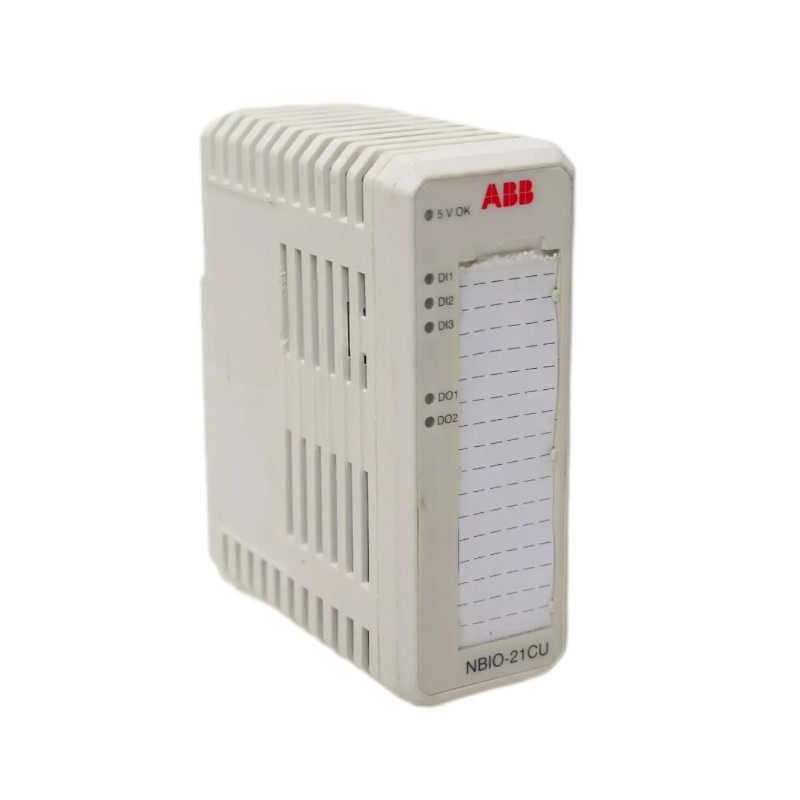

The ABB NBIO-21CU Universal Input/Output Interface Board Module is engineered to provide reliable and adaptable signal interfacing within ABB industrial drives and control systems. Designed to handle a broad mix of digital and analog signals, this board offers flexible connection options and robust performance that supports precision control tasks in demanding operational environments.
With its universal I/O capability and rugged construction, the NBIO-21CU enables stable communication between field devices and drive logic. This flexibility simplifies system design in applications where versatile signal integration and consistent data acquisition are required.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ABB |
| Model | NBIO-21CU |
| Module Type | Universal I/O Interface Board Module |
| Application | Industrial Drive and Control Platforms |
| I/O Configuration | Mixed Digital and Analog Inputs/Outputs |
| Installation Type | Drive-integrated PCB |
| Power Supply | Internal drive power |
| Communication Interface | Internal control bus / backplane |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions (L × W × H) | 250 × 170 × 35 mm |
| Weight | 0.72 kg |
| Protection Features | Integrated signal filtering |
Recommended Related Models
For comprehensive system integration and enhanced performance, pair the NBIO-21CU with these ABB modules:
-
ABB NAMC-11C – Main Control Board Module
-
ABB NAIO-01 – Analog I/O Expansion Module
-
ABB NETA-21 – Ethernet Adapter Module
-
ABB RDCO-03 – Drive Communication Board
-
ABB NDCO-03 – Drive Fieldbus Interface Board
These complementary modules support expanded functionality and broader connectivity across drive and automation platforms.
