ABB PFRA101 Precision Pressure/Control Unit Module for PRESSDUCTOR and Force Feedback Systems
ABB PFRA101 Precision Pressure/Control Unit Module for PRESSDUCTOR and Force Feedback Systems
0.0
Points
Brand:ABB PLC Item No.:ABB PFRA101 Product Origin:Sweden Product Dimensions:230 mm × 160 mm × 60 mm Product Weight:0.9 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

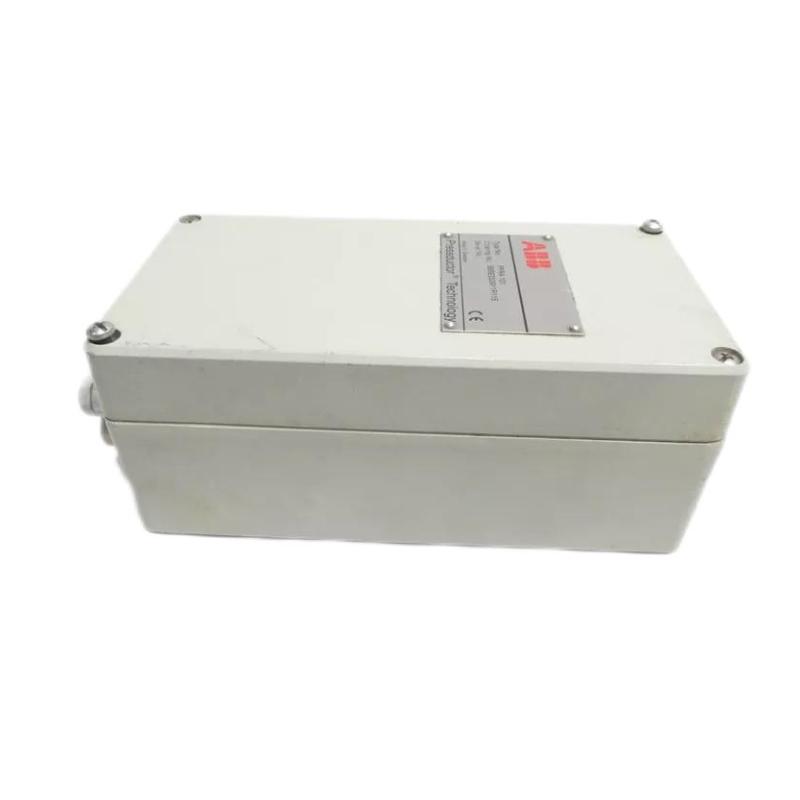

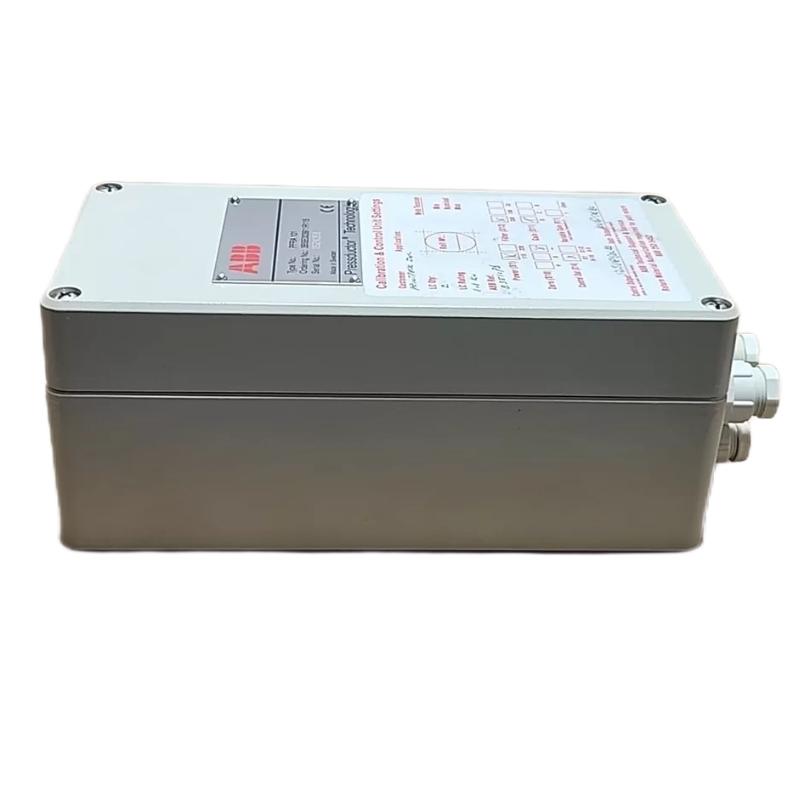

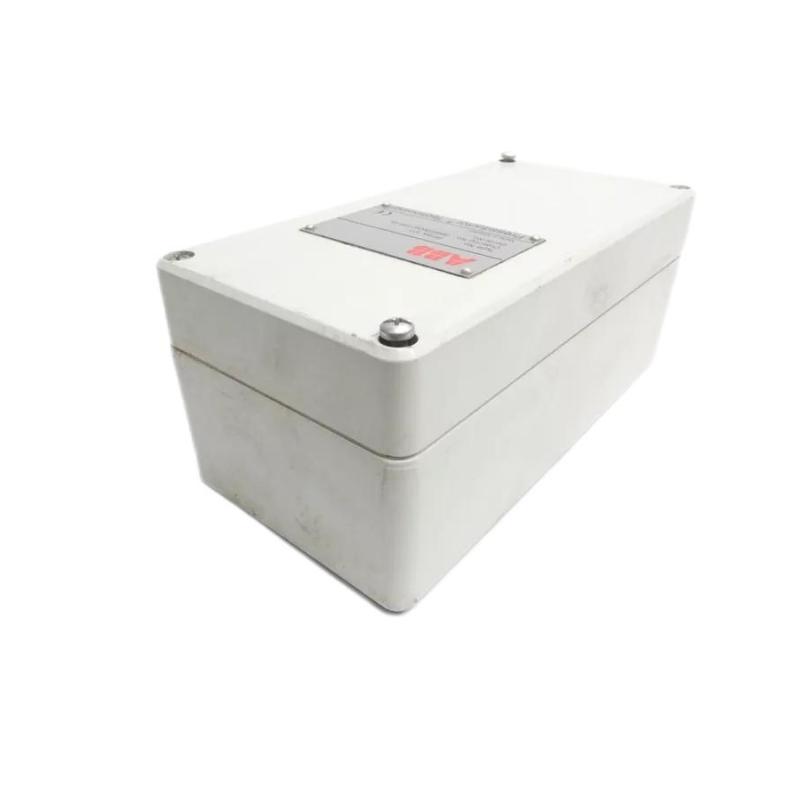

The ABB PFRA101 Control Unit Module is a highly capable industrial control processor designed to act as the central controller in ABB PRESSDUCTOR® systems, force measurement applications, and related automation environments. With robust logic processing, closed-loop force regulation, and advanced communication interfaces, this unit enables accurate control of pneumatic, hydraulic, and force-feedback systems. It is widely deployed as a core component in precision force control and automation feedback systems that demand high performance, stability, and long-term reliability.
Built for demanding industrial conditions, the PFRA101 enables intelligent force application, data memory, and system orchestration — making it essential for integrated tension and force management architectures.
Technical Specifications
Parameter
Specification
Product Name
ABB PFRA101
Module Type
Control/Force Measurement Unit
Core Function
Closed-loop force control and system management
Designed For
PRESSDUCTOR and related force application systems
Communication
RS-485 / CANbus (fieldbus integration)
Logic Control
Embedded industrial control processor
Memory
Multi-setpoint storage, data logging capabilities
Safety Functions
Built-in overload, alarm protection
Operating Voltage
115 V (typical configuration)
Operating Temperature
Industrial range suitable for control cabinets
Mounting
Panel or rack installation depending on system
Dimensions (W × H × D)
Approx. 230 mm × 160 mm × 60 mm (typical control unit form factor)
Weight
≈ 0.9 kg (≈ 900 g) (varies by configuration)
Recommended Related Models
To build a complete precision force and tension control system, the PFRA101 is commonly paired with:
ABB PFCL241SEE Pressductor PillowBlock Load Cell
ABB PFEA112 Force Signal Electronics Unit
ABB PFEA113 Signal Amplifier Module
ABB AC500 PLC Automation Platform
These modules work together to enable true closed-loop control, high-resolution measurement, and comprehensive system feedback.
Popular ABB Automation Platforms
The PFRA101 interfaces effectively with a range of ABB control architectures, including:
ABB PRESSDUCTOR Force Application Systems
ABB Web Tension and Force Feedback Control
ABB AC500 PLC-based Process Automation
Custom industrial force control solutions
Its integration flexibility and communication support make it suitable for both OEM designs and retrofit installations.
Industrial Applications
The ABB PFRA101 is used for advanced control in applications including:
Precision force application in metal forming and pressing
Tension and strip force regulation in web handling lines
Pneumatic/hydraulic press control with closed-loop feedback
Automated assembly processes requiring force accuracy
Test benches for materials characterization
In systems where dynamic force and pressure accuracy are critical to product quality and process stability, this control unit plays a decisive role.
Advantages
High-performance closed-loop force regulation
Multi-setpoint memory and rapid force retargeting
Integrated safety and alarm monitoring
RS-485/CANbus communication for flexible integration
Engineered for continuous industrial operation
Enhances system control precision and repeatability
Supports comprehensive diagnostics and data logging
Compact design suited for control enclosures
The PFRA101 delivers industrial strength and intelligent control logic in a single module — ideal for systems where force accuracy and feedback responsiveness are mission-critical.
