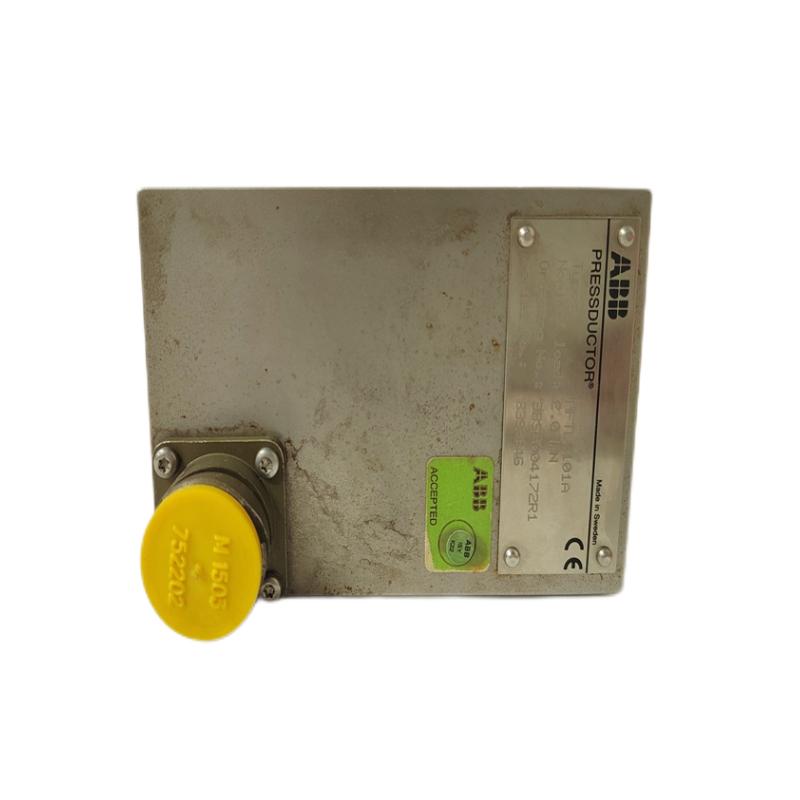

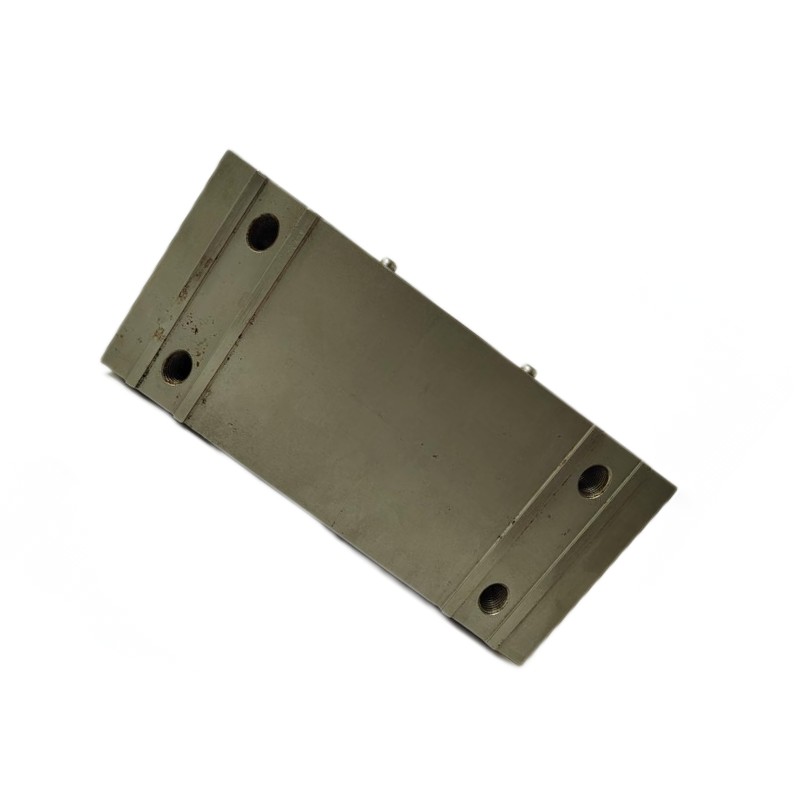

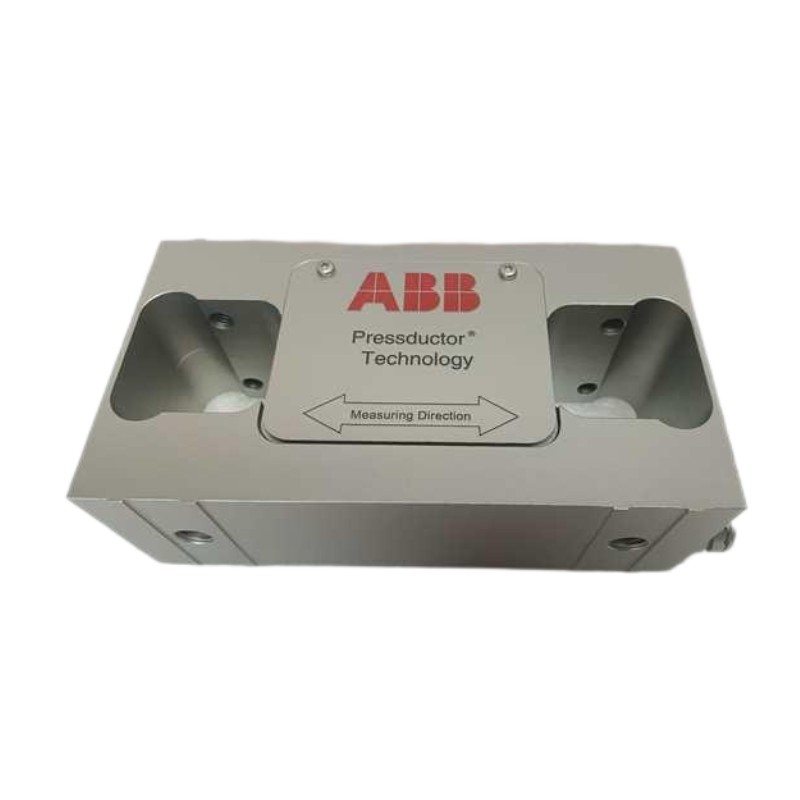

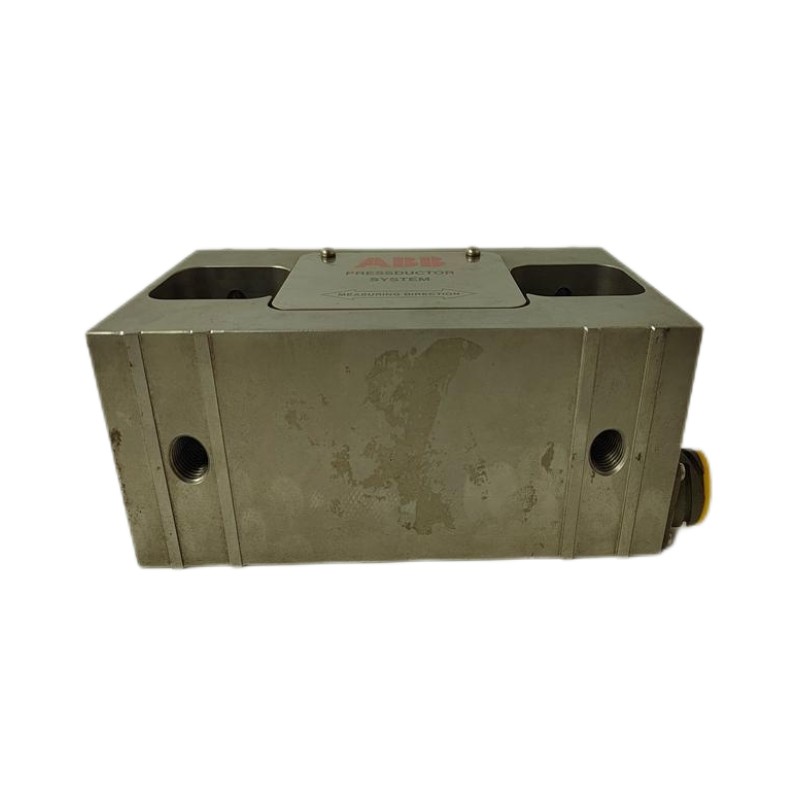

The ABB PFTL101A-0.5KN Pressductor PillowBlock Load Cell is a high-accuracy horizontal force sensor designed for industrial web tension measurement in systems handling narrow, lightweight materials such as films, foils, textiles, and narrow paper webs. It belongs to ABB’s renowned Pressductor® load cell family, which combines proven magneto-elastic sensing with low drift and exceptional overload tolerance — ideal for applications where precision and robustness directly influence product quality and process stability.
This compact load cell is especially suited for low-tension zones on converting lines, coaters, winders, and inspection shafts where reliable measurement under dynamic motion is essential. Engineered for demanding industrial use, it offers minimal deflection, high repeatability, and long-term operational stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB PFTL101A-0.5KN |
| Module Type | Pressductor PillowBlock Load Cell |
| Core Function | Horizontal force / web tension measurement |
| Nominal Load Capacity | 0.5 kN (500 N) |
| Measurement Principle | Magneto-elastic Pressductor® technology |
| Accuracy Class | ±0.5 % of full scale |
| Repeatability Error | < ±0.05 % |
| Overload Capacity | Up to 2.5 kN horizontal |
| Deflection at Nominal Load | 0.015 mm |
| Installation Method | Pillow-block between frame and roll bearing |
| Housing Material | Stainless steel / corrosion-resistant |
| Operating Temperature | Typically −10 °C to +60 °C |
| Dimensions (L × W × H) | ~150 mm × 100 mm × 60 mm (approx.) |
| Weight | ~1.5 kg (typical for this format) |
Note: Exact dimensions and weight vary slightly depending on cable version and mounting options.
Recommended Related Models
For complete implementation and signal processing, the PFTL101A-0.5KN is often paired with:
-
ABB PFEA112 Tension Electronics Unit – tension signal conditioning and output
-
ABB PFEA113 Signal Amplifier Module – advanced outputs and diagnostics
-
ABB AC500 PLC Control System – automation processing and integration
-
ABB PFCL201 Series Load Cells – for higher tension ranges
These integrated solutions deliver robust closed-loop tension control and improve quality across continuous production lines.
Popular ABB Integration Platforms
This load cell fits seamlessly into a variety of ABB automation and control systems, such as:
-
ABB Web Tension Control Solutions
-
ABB High-Speed Converting Line Automation
-
ABB PLC-Based Process Monitoring Cabinets
-
Custom Force Feedback Measurement Packages
Its compatibility with standard control architectures makes it a flexible choice for both OEMs and engineering teams.
