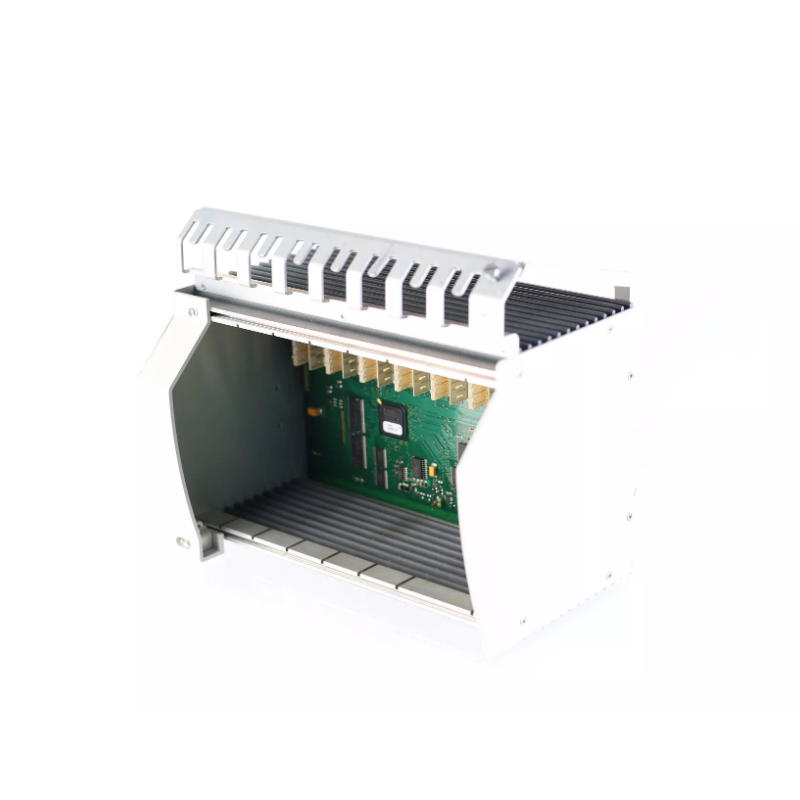

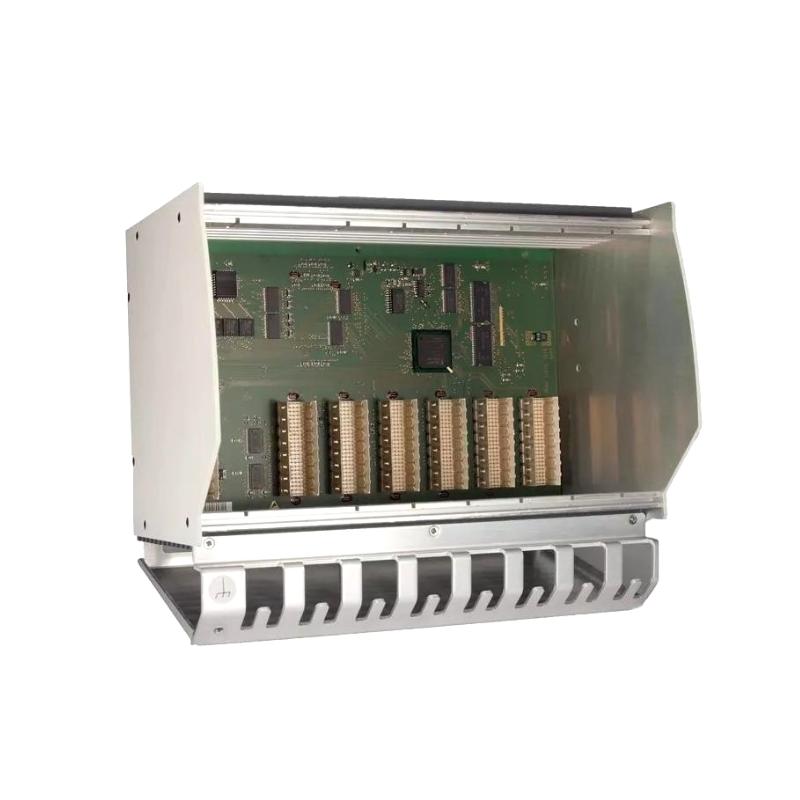

The ABB PM 803F Base Unit Controller is a high-reliability central processing module used in ABB’s AC 800F controller family and Freelance Distributed Control Systems (DCS) for industrial automation. It acts as the core CPU engine, executing control logic, managing communication with field devices, and coordinating system-wide data exchange in process control, manufacturing automation, and mission-critical applications.
Engineered for continuous operation in harsh industrial environments, the PM 803F combines robust computing performance with modular expandability. It supports memory-intensive control applications, flexible communication configurations, and seamless system integration — making it a trusted choice for process, utility, and large-scale production control platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB PM 803F |
| Module Type | Base Unit Controller / Central Processing Unit |
| Part Number | 3BDH000530R1 |
| Controller Family | AC 800F / Freelance DCS |
| Processor | 32-bit RISC microprocessor (industrial grade) |
| Memory | 16 MB SDRAM (battery-buffered), 8 MB Flash |
| Communication Slots | Up to 6 communication module slots |
| Power Slot | 1 power slot |
| Operating System | Loaded during configuration (Freelance software required) |
| Power Supply | 24 V DC (system supply) |
| Operating Temperature | Typical industrial range (e.g., –25 °C to +60 °C) |
| Dimensions (W × H × D) | ~239 mm × 202 mm × 164 mm |
| Weight | ~1.6 kg |
| System Compatibility | ABB AC 800F / Freelance DCS automation networks |
Notes: Processor speed and memory architecture are designed for robust control execution; OS is not pre-loaded and must be installed via engineering tools.
Recommended Related Models
To build fully functional control systems, the PM 803F is typically used with:
-
ABB CI854A Communication Interface Modules – industrial fieldbus connectivity
-
ABB AA800 Analog Input Modules – precision process variable acquisition
-
ABB DS800 Digital I/O Modules – high-density signal interfaces
-
ABB CP801 Power Supply for controller cabinets
These components combine to create scalable, high-availability automation solutions.
Popular ABB Automation Platforms
The PM 803F integrates within established ABB control architectures such as:
-
AC 800F Distributed Control System
-
Freelance DCS configurations
-
Process plant automation networks (chemical, food, paper, energy)
-
Large-scale manufacturing control systems
Its modular design allows engineers to expand performance and interface support as system requirements evolve.
