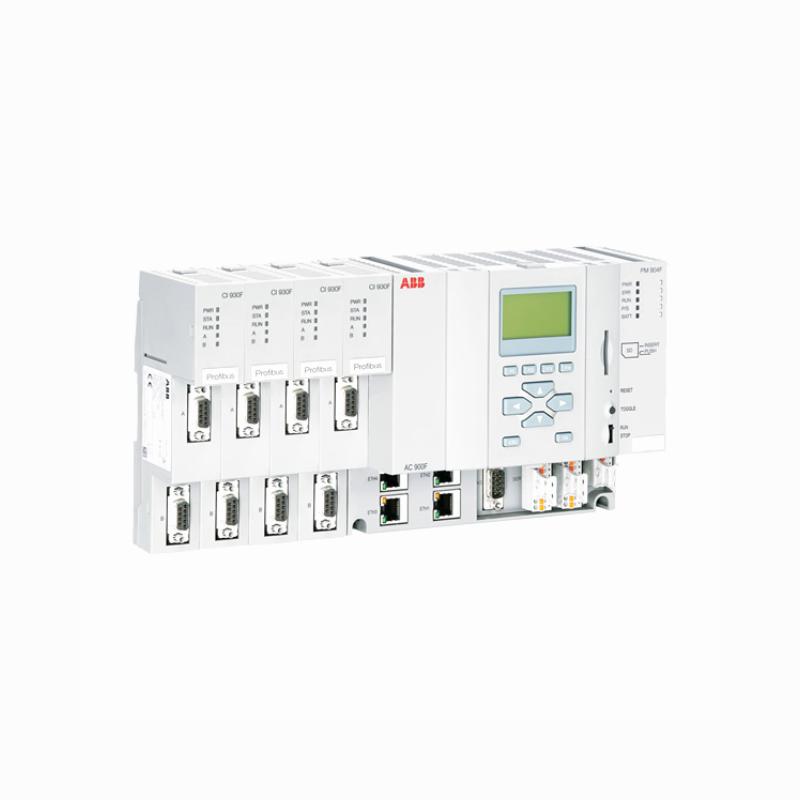

The ABB PM 902F Controller Module is a mid-tier CPU base unit within the ABB Freelance AC 900F Distributed Control System (DCS) family, engineered to deliver dependable logic execution, communication, and process control performance in industrial automation environments. Its powerful processing core, modular connectivity, and scalable I/O support make it suitable for mid-sized process plants, manufacturing automation, and system integration projects where reliability and flexibility are essential.

This controller is designed to operate continuously within demanding industrial conditions, supporting up to ~1500 I/O points and multiple network interfaces. It integrates seamlessly with ABB automation hardware and engineering software, making it a trusted choice for system integrators and control engineers who need robust performance and long-term operational stability.

Technical Specifications

Parameter	Specification
Product Name	ABB PM 902F
Part Number	3BDH001000R0001
Module Type	Base Unit Controller / CPU Module
Controller Family	Freelance AC 900F DCS
Processor	800 MHz high-performance CPU
Memory	24 MB controller memory (8 MB buffered SRAM + 16 MB DRAM)
I/O Support	Up to ~1500 I/O points (local/remote)
Communication Interfaces	4 × Ethernet (10/100 Mbps)
Expansion Slots	2 communication interface slots
Power Supply	24 V DC external (required)
Operating Temperature	0 °C to +60 °C (typical industrial)
Environmental Rating	IP20 industrial enclosure
Dimensions (W × H × D)	~227 mm × 152 mm × 95 mm
Weight	~1.1 kg
Redundancy	Supported (redundant cabinet configurations)
Software	OS loaded via ABB engineering tools (2013 or later required)

Technical features summarized from ABB Freelance product selector information.

Recommended Related Models

For fully integrated system performance, combine the PM 902F with these ABB modules:

ABB CI83x / CI930F Fieldbus Interface Modules – PROFIBUS/fieldbus support
ABB S700 I/O Modules – Digital and analog signal acquisition
ABB AC 800M Redundancy Modules – for high-availability systems
ABB TD951F Display Unit – local operator interface

These complement the PM 902F’s CPU capabilities by broadening connectivity, expanding I/O, and improving on-site interaction.

Popular ABB Control Platforms

The PM 902F is engineered for deployment in:

ABB Freelance AC 900F Distributed Control Systems
PLC and hybrid automation cabinets in process industries
Mid-sized power generation systems
Chemical, oil & gas, utilities, and manufacturing plants

Its balanced mix of processing power, connectivity, and I/O capacity supports a wide range of applications.

Applications

Common use cases for the ABB PM 902F include:

Process control automation in continuous and batch plants
Remote skid controllers in modular automation systems
Safety-aware industrial monitoring and control
Integration with SCADA and MES systems via Ethernet interfaces
Quality and throughput optimization in manufacturing lines

Its mid-range performance class makes it highly adaptable across industries needing reliable distributed control.

Advantages

Balanced performance: Strong 800 MHz processor with ample memory for mid-range workloads.
Expandable I/O support: Typically supports up to ~1500 I/O points with modular expansion.
Rich communication set: Four embedded Ethernet ports and support for multiple protocols.
Modular architecture: Two slots for communication modules, enabling flexible fieldbus integration.
Reliable industrial build: Designed for continuous operation in control cabinets.
Redundancy capable: Supports high-availability system configurations.
Seamless integration: Works with ABB Freelance engineering environments and I/O families.
