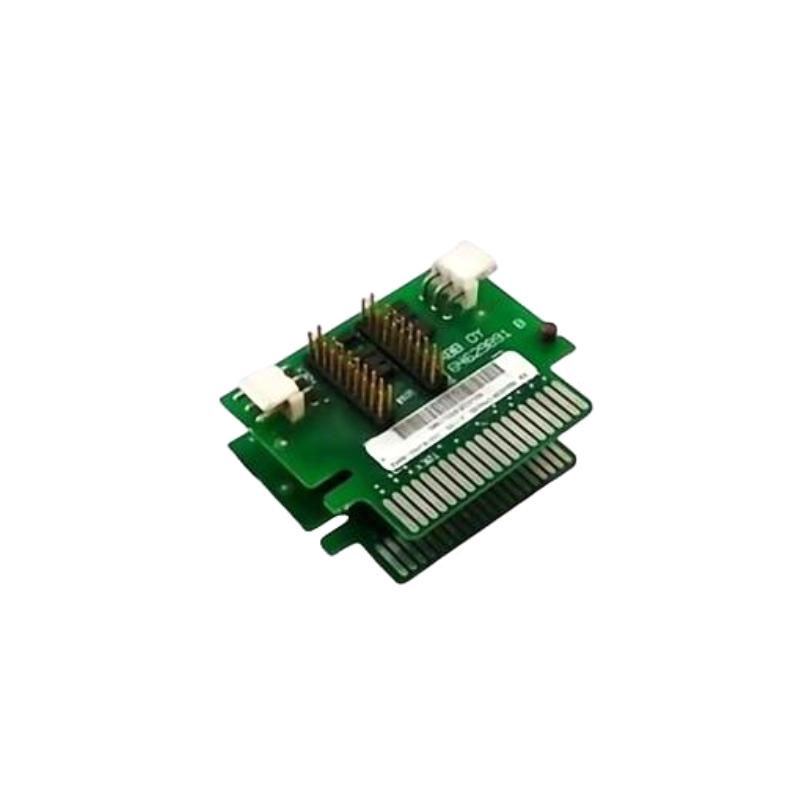

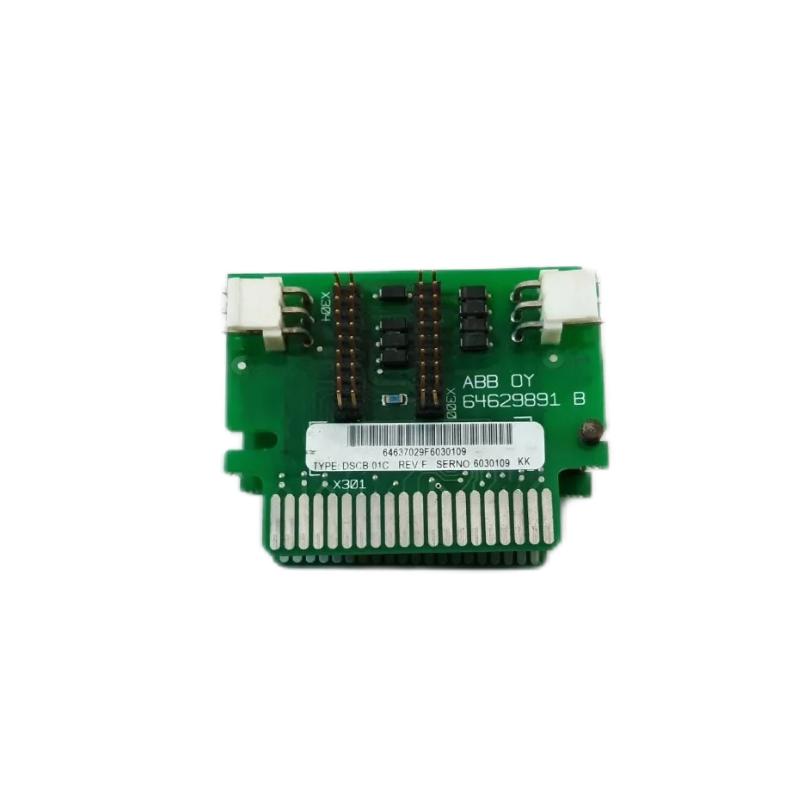

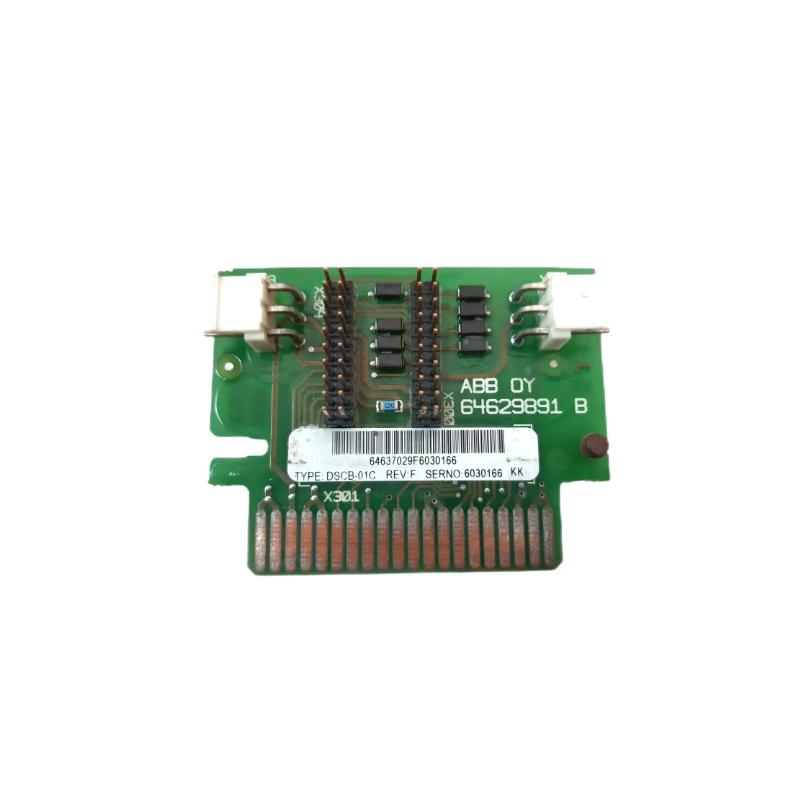

ABB DSCB-01C Compact Communication Module for Distributed Control and Industrial Network Connectivity
ABB DSCB-01C Compact Communication Module for Distributed Control and Industrial Network Connectivity
0.0
Points
Brand:ABB PLC Item No.:ABB DSCB-01C Product Origin:Sweden Product Dimensions:40 × 90 × 100 mm Product Weight:0.28 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB DSCB-01C is a compact, high-reliability communication module engineered to support efficient data exchange within ABB’s distributed industrial control systems. Designed for robust performance in factory automation, process control, and networked I/O applications, this module ensures consistent signal communication between controllers and connected subsystems.
Combining a space-efficient form factor with industrial-grade durability, the DSCB-01C provides dependable connectivity where reliable communication performance is essential. Whether integrated in new installations or used for system upgrades, it delivers the stable interface foundation needed for modern automated systems.
Technical Specifications
Specification
Details
Brand
ABB
Model
DSCB-01C
Module Type
Communication Module
System Compatibility
ABB Automation & Control Architectures
Mounting Format
DIN-rail or Backplane Mounting
Communication Function
Internal System Data Interface
Operating Temperature
−20 °C to +60 °C
Storage Temperature
−40 °C to +85 °C
Relative Humidity
5–95 % (non-condensing)
Cooling Method
Passive (Natural Convection)
Dimensions (W × H × D)
Approx. 40 × 90 × 100 mm
Weight
Approx. 0.28 kg
Mechanical measurements are provided for control panel design and integration planning.
Recommended Related Models
To build a seamlessly interconnected ABB automation system, pair the DSCB-01C with:
ABB DSCA 125A – Communication Interface Module
ABB DSBC 176 – Bus Extension Communication Module
ABB DSBB 172B – Communication Interface Module
ABB DSCA 160A – System Communication Module
Popular ABB Automation Modules
The following ABB modules are widely adopted across industrial automation projects:
ABB PM866K01 – Processor Unit
ABB CI854A – Communication Interface Module
ABB AI810 – Analog Input Module
ABB DI810 – Digital Input Module
ABB DO810 – Digital Output Module
Applications
The ABB DSCB-01C is well-suited for a variety of industrial environments, including:
Machine-level automation communication networks
Small to mid-sized distributed control system (DCS) segments
Factory floor I/O data interfacing
Integration hubs for networked sensors and field devices
Retrofit projects involving legacy system upgrades
Infrastructure automation requiring reliable signal exchange
Its compact design and dependable interface capability ensure it fits both space-constrained and performance-centric control applications.
Advantages
Compact and Flexible Installation – Optimized for panel-mount or backplane use
Reliable Data Interface – Supports consistent communication across connected modules
Industrial-Grade Durability – Engineered for continuous 24/7 operation
Seamless ABB Ecosystem Integration – Works reliably within ABB control systems
Low Maintenance Operation – Minimal service requirements over long lifecycle
The DSCB-01C delivers dependable communication performance while reducing integration complexity and supporting system stability.
Technical FAQs
1. What function does the ABB DSCB-01C serve?
It acts as a compact communication interface module within ABB automation and distributed control systems.
2. How is the DSCB-01C mounted?
It can be installed on a DIN-rail or into a compatible backplane depending on system design requirements.
3. What operating temperature range is supported?
It reliably operates between −20 °C and +60 °C.
4. Is a separate power supply required?
Power is typically supplied via the system backplane or DIN-rail power assembly.
5. Can it be used for system upgrades?
Yes, it is commonly selected for modernization and retrofit projects.
6. What industries typically deploy this module?
Manufacturing, energy, utilities, and process automation sectors.
7. Does it support high-humidity environments?
Yes — up to 95 % non-condensing humidity.
8. What cooling method does it use?
It uses passive natural convection cooling with no moving parts.
9. How does it enhance system reliability?
By providing stable communication pathways between controllers and connected subsystems.
10. Why choose ABB DSCB-01C?
Because it offers compact installation flexibility, dependable communication performance, and seamless integration into ABB automation networks—making it a trusted choice for reliable control system communication.
