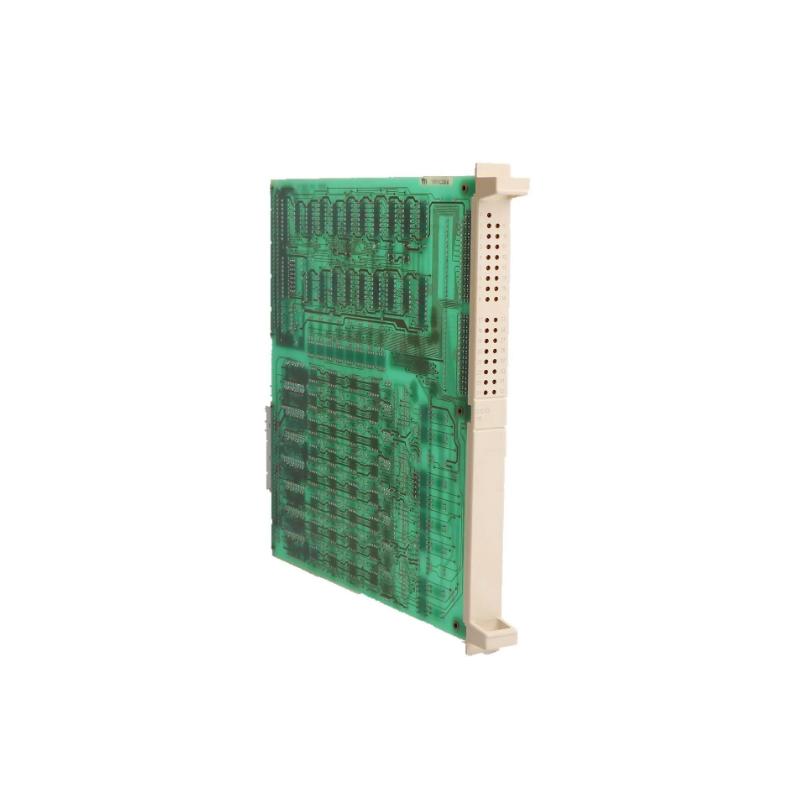

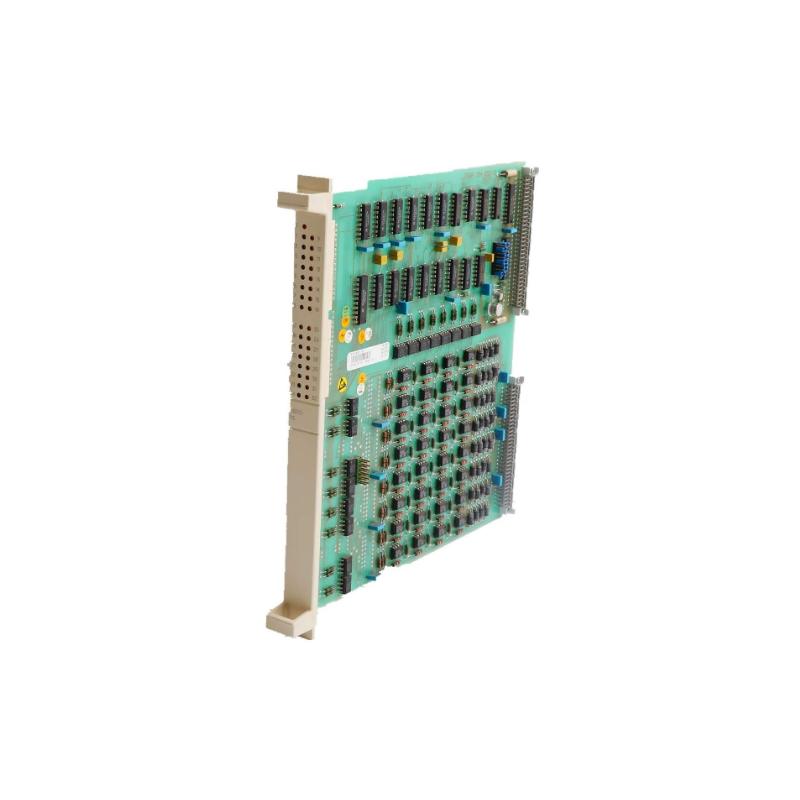

The ABB DSDO 115 is an industrial-grade Digital Output Module engineered for reliable actuation of discrete signals within ABB distributed control systems (DCS) and automation installations. Designed to accurately translate control logic into real-world actions, this module drives field-level devices such as alarms, solenoids, relays, and status indicators with consistent performance.

Built for demanding industrial environments and continuous 24/7 operation, the DSDO 115 combines strong electrical performance with ABB’s trusted durability. Its stable switching behavior, robust noise immunity, and seamless system integration make it an excellent choice for engineers seeking predictable digital output behavior in both new automation projects and legacy system upgrades.

Technical Specifications

Specification	Details
Brand	ABB
Model	DSDO 115
Module Type	Digital Output Module
System Platform	ABB Distributed Control Systems
Installation Method	Rack / Backplane Mounting
Output Type	Discrete Digital Outputs
Operating Temperature	−25 °C to +60 °C
Storage Temperature	−40 °C to +85 °C
Humidity Range	5–95 % (non-condensing)
Cooling Method	Passive (Natural Convection)
Dimensions (W × H × D)	Approx. 40 × 115 × 110 mm
Weight	Approx. 0.34 kg

Mechanical data is provided for control panel layout and engineering integration.

Recommended Related Models

To enhance system communication and I/O capabilities, consider pairing the DSDO 115 with these ABB modules:

ABB DSDI 120A – Digital Input Module
ABB DSDC 110B – Digital Communication Module
ABB DSDI 110A – Digital Input Module
ABB DSBC 176 – Bus Extension Module
ABB DSBB 172B – Communication Interface Module

Popular ABB Automation Modules

The following ABB modules complement digital output performance in modern automation systems:

ABB PM866K01 – Processor Unit
ABB CI854A – Communication Interface Module
ABB AI810 – Analog Input Module
ABB DI810 – Digital Input Module
ABB DO810 – Digital Output Module

Applications

The ABB DSDO 115 is ideal for discrete digital output control in a variety of industrial settings:

Actuation of relays, solenoids, and annunciators
Field-level indicator and alarm output control
Discrete device actuation for machine automation
Digital control signal distribution in utilities and process plants
Integration with DCS logic for sequence-of-operation control
Retrofit upgrades of existing digital output configurations

By reliably triggering field devices based on controller logic, this module plays a pivotal role in executing automation strategies and responsive control actions.

Advantages

Precise Output Actuation – Reliable switching with strong noise immunity
Industrial-Strength Design – Engineered for continuous 24/7 operation
ABB Ecosystem Compatibility – Seamless integration into ABB automation platforms
Compact Mechanical Footprint – Efficient use of cabinet and rack space
Low Maintenance with Longevity – Minimal servicing across extensive use

The DSDO 115 delivers dependable digital output performance—critical for stable automation control and timely response execution.

Technical FAQs

1. What is the main function of the ABB DSDO 115?
It provides precise digital output actuation of field devices based on control logic in ABB automation systems.

2. How is the module installed?
The module is mounted into a compatible ABB rack or system backplane.

3. What type of outputs does it support?
Discrete digital outputs used for relays, indicators, solenoids, and similar devices.

4. What operating temperature range is supported?
It operates reliably between −25 °C and +60 °C.

5. Does it require an external power supply?
No — power is supplied through the system backplane.

6. Is the module suitable for continuous operation?
Yes, it is designed for 24/7 industrial environments.

7. Can it be used in modernization or retrofit projects?
Yes — commonly selected for phased automation upgrades and retrofits.

8. What industries typically deploy the DSDO 115?
Manufacturing, energy, utilities, oil & gas, chemical processing, and water treatment sectors.

9. What cooling method does it use?
Passive natural convection — no fans or active cooling required.

10. Why choose ABB DSDO 115?
Because it combines dependable digital output control, rugged industrial design, and seamless integration with ABB automation systems—making it a reliable choice for control-critical applications.
