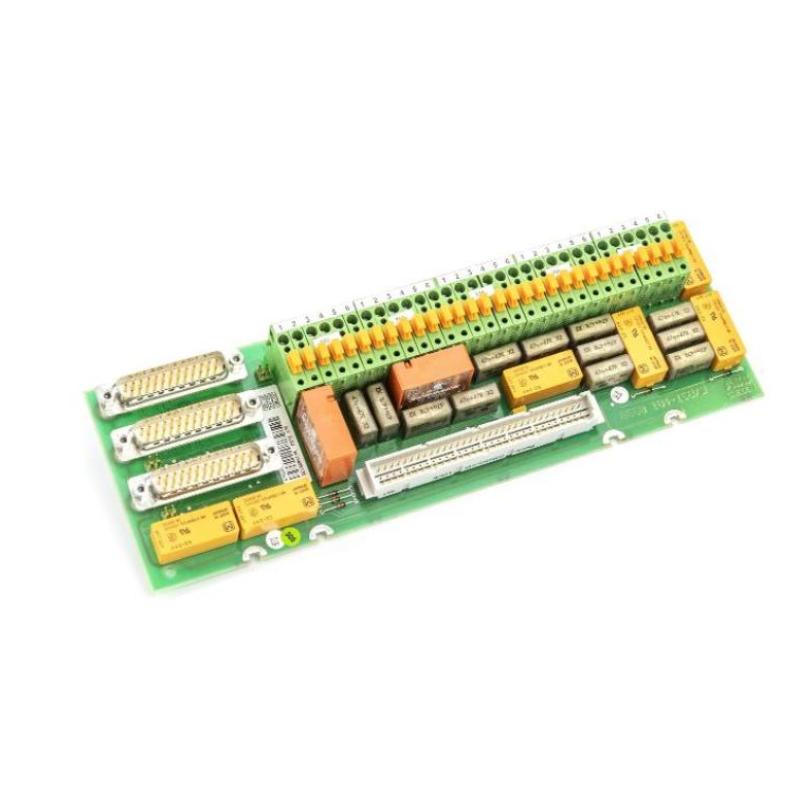

DSTC 170 57520001-BK (3) DSTC 170 57520001-BK (4) DSTC 170 57520001-BK (1) DSTC 170 57520001-BK (2)

The ABB DSTC 170 is a robust drive converter module engineered for industrial motion control systems where precision, efficiency, and reliable power conversion matter. Designed to meet the challenges of medium-to-high power motion applications, this unit delivers stable voltage conversion, rapid torque response, and excellent dynamic behavior — key factors for systems such as conveyors, machining centers, robotics auxiliary drives, and processing equipment. Built with industrial-grade components and optimized thermal management, the DSTC 170 ensures consistent performance, simplifies integration, and supports long service life in demanding environments.

Technical Specifications

Specification	Details
Brand	ABB
Model	DSTC 170
Module Type	Drive Converter Module
Primary Function	Power conversion for industrial motion control
Rated Output Power	170 kW
Input Voltage	380–480 V AC, Three-Phase
Control Interface	Digital/Analog I/O with feedback support
Dimensions (L × W × H)	510 mm × 310 mm × 205 mm
Weight	34 kg
Cooling Method	Integrated Forced-Air Cooling
Operating Temperature Range	0 °C to +50 °C
Protection Class	IP20 (installed inside cabinet)
Mounting	Panel or Rack Mount

Recommended Related Models

ABB DSTC 150 – Mid-Range Drive Converter for Compact Systems
ABB DSTC 200 – Higher-Power Industrial Drive Converter
ABB ACS880-01 – Universal Industrial Drive Platform
ABB DSC 600 Series – Servo Drive Controllers with Advanced Motion Control

Popular ABB Motion & Drive Products

ABB ACS580 – Low-Voltage Variable Frequency Drive Series
ABB FSM Servo Drives – Flexible Servo Drive Solutions
ABB BSM Servo Motors – Precision Motion Motor Family
ABB IMfinity® MCP – Motor Control & Protection Integration

Applications

The DSTC 170 is engineered for versatile applications across industrial automation:

Conveyor systems with dynamic load profiles
Packaging and labeling machines requiring responsive speed control
CNC machine auxiliary drives and support axes
Robotics auxiliary and transfer unit drives
Industrial pump, fan, and blending systems requiring controlled torque

Advantages

High-Power Conversion Efficiency
Delivers 170 kW continuous power with optimized thermal and electrical stability for long-term operation.

Dynamic Motion Support
Provides high responsiveness to torque and speed changes, enhancing process accuracy.

Industrial-Ready Design
Engineered for continuous industrial use with effective cooling and electrical protection.

Flexible Integration
Compatible with a wide range of control I/O and feedback devices for sophisticated automation architectures.

Service-Friendly Installation
Clear terminal layout, modular design, and intuitive diagnostics reduce commissioning time.

Technical FAQs

What is the ABB DSTC 170 intended for?
The DSTC 170 is a drive converter module that takes AC line power and converts it into controlled drive output for motion systems.
What is its rated power output?
This module delivers approximately 170 kW of continuous output power.
What are the physical dimensions?
Approximately 510 mm × 310 mm × 205 mm.
How much does it weigh?
Around 34 kg.
What input voltage does it require?
Standard 380–480 V AC, three-phase industrial supply.
Is it suitable for high-duty motion applications?
Yes — designed to deliver dynamic torque and speed control in demanding motion systems.
What cooling system is used?
Integrated forced-air cooling with internal heat dissipation.
Can it be installed in a control cabinet?
Yes — panel or rack mounting inside an appropriate enclosure is standard.
Does it support integration with feedback devices?
Yes — supports standard digital and analog I/O with encoder/feedback loops.
Why choose the DSTC 170 for industrial drives?
It combines compact yet powerful performance, robust industrial reliability, and responsive motion control, making it a versatile choice for medium-to-high power automation systems.
