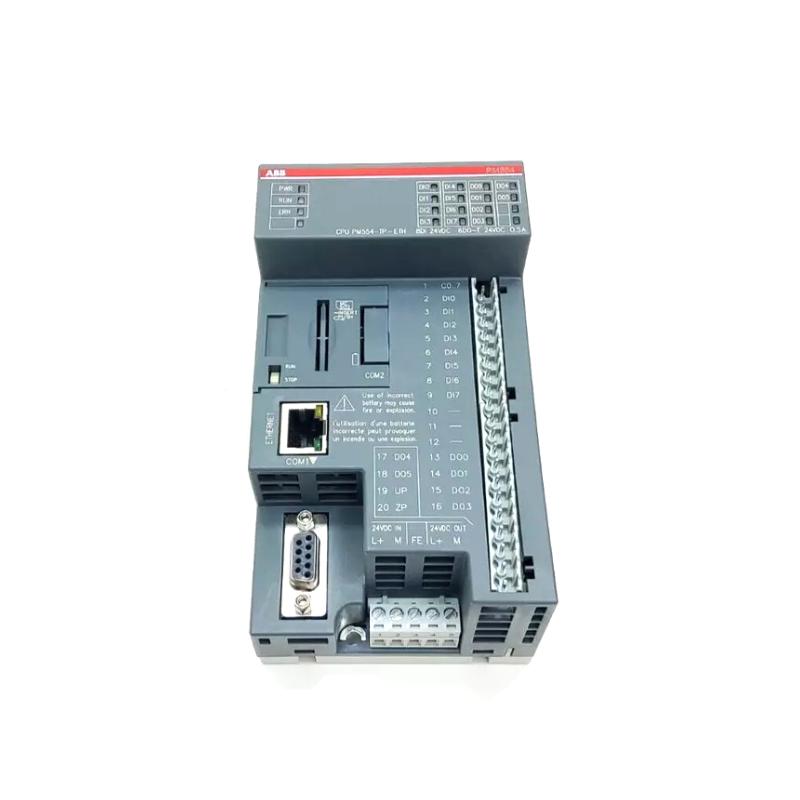

The ABB PM554-TP-ETH CPU Module is a compact yet powerful programmable logic controller designed for modern machine automation and distributed control applications. As part of the ABB AC500-eCo PLC family, this module integrates CPU processing, digital I/O, and Ethernet communication in a single controller, allowing engineers to build efficient automation systems with minimal hardware complexity.

Equipped with high-speed processing and flexible networking capability, the PM554-TP-ETH enables reliable communication with HMIs, SCADA systems, and other networked devices through its industrial Ethernet interface. Its onboard digital inputs and transistor outputs allow direct connection to field devices, making it ideal for equipment manufacturers and control system integrators seeking reliable performance with compact installation.

With ABB’s industrial engineering standards and proven automation technology, this PLC controller delivers long-term operational stability and scalable automation architecture for demanding industrial environments.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM554-TP-ETH
Module Type	PLC CPU Module
PLC Series	AC500-eCo
Processor	High-speed industrial PLC processor
Program Memory	128 kB Flash
Data Memory	142 kB RAM
Digital Inputs	8
Digital Outputs	6 (Transistor)
Communication Interfaces	1 × Industrial Ethernet, 1 × RS-485
Controller Processing Time	0.00008 ms
Supply Voltage	24 V DC
Voltage Range	20.4 – 28.8 V DC
Power Dissipation	Approx. 3.3 W
Protection Rating	IP20
Mounting	DIN Rail
Dimensions (L × W × H)	74 × 82 × 135 mm
Weight	0.29 kg

The controller integrates Ethernet networking, digital I/O channels, and expansion capability, enabling flexible automation architecture for small and mid-scale industrial systems.

Recommended Related Models

For extended system functionality and scalable automation architectures, the following ABB modules are frequently deployed alongside the PM554-TP-ETH:

ABB PM554-TP PLC CPU Module
ABB PM583-ETH PLC Controller
ABB CI801 Communication Interface Module
ABB CI840A Communication Interface Module
ABB AI830A Analog Input Module

These components allow additional analog processing, communication expansion, and distributed system integration.

Popular Allen Bradley Models

In cross-platform industrial automation projects, the following Allen Bradley controllers are commonly used in similar PLC-based control environments:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These modules are widely used in large-scale automation systems and machine control applications.

Applications

The ABB PM554-TP-ETH PLC CPU module supports a wide range of industrial automation solutions where reliable control and network connectivity are essential.

Typical applications include:

Machine automation and OEM equipment control
Packaging and material handling systems
Water treatment and pumping stations
Building automation and HVAC control
Manufacturing production lines
Energy monitoring and process optimization

Its integrated Ethernet communication allows real-time monitoring, remote diagnostics, and seamless integration into industrial networks.

Advantages

Integrated Ethernet Communication
The built-in Ethernet interface enables seamless connectivity with supervisory systems, HMIs, and industrial networks.

Compact Controller Design
Combining CPU, communication, and digital I/O in one module simplifies system architecture and reduces cabinet space.

Reliable Industrial Performance
Designed to meet demanding automation requirements with stable long-term operation.

Flexible System Expansion
Supports connection with additional I/O modules and communication interfaces for scalable automation systems.

Efficient Processing Capability
High-speed instruction execution ensures precise and responsive control of machines and industrial processes.

Technical FAQs

1. What type of controller is ABB PM554-TP-ETH?
It is a PLC CPU module designed for the ABB AC500-eCo automation platform.

2. Does the module support Ethernet communication?
Yes, the controller includes an integrated industrial Ethernet interface.

3. What power supply does the module require?
The module operates on a 24 V DC industrial power supply.

4. How many digital I/O channels are integrated?
The controller includes 8 digital inputs and 6 transistor digital outputs.

5. Can the PLC be expanded with additional modules?
Yes, expansion modules can be connected to increase I/O capacity and communication options.

6. What industries commonly use the PM554-TP-ETH?
Manufacturing, water treatment, building automation, and machine control industries widely use this PLC.

7. What mounting method is used for installation?
The module is designed for DIN rail mounting inside industrial control cabinets.

8. Is this PLC suitable for network-based automation systems?
Yes, its Ethernet interface supports integration with industrial networks and monitoring systems.

9. What operating temperature range is supported?
The controller typically operates within an industrial range of 0°C to 55°C.

10. Why choose ABB PM554-TP-ETH for automation projects?
It provides reliable PLC control, integrated networking, compact design, and flexible expansion for efficient industrial automation systems.
