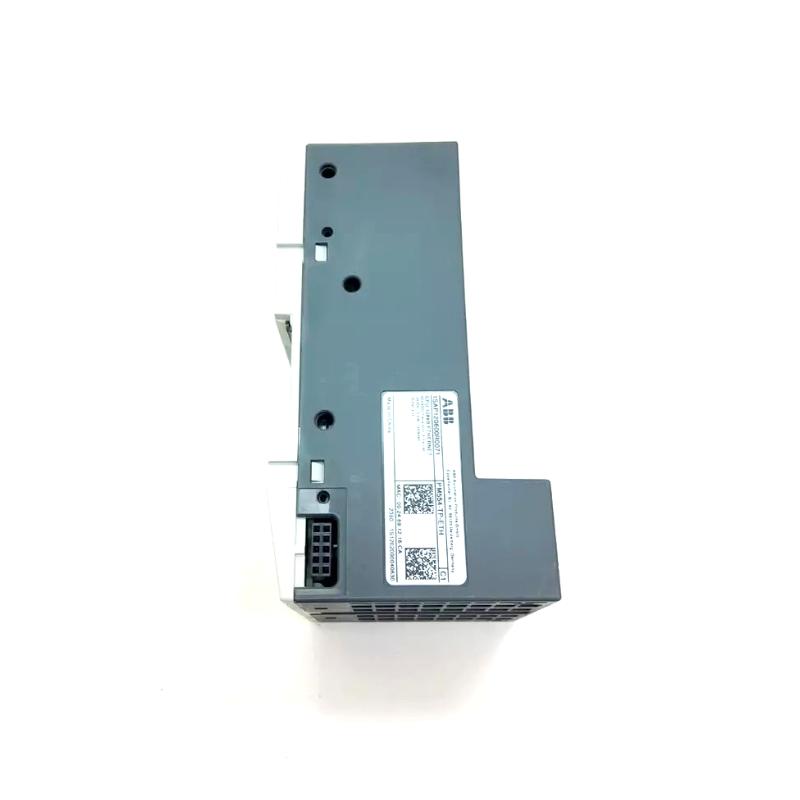

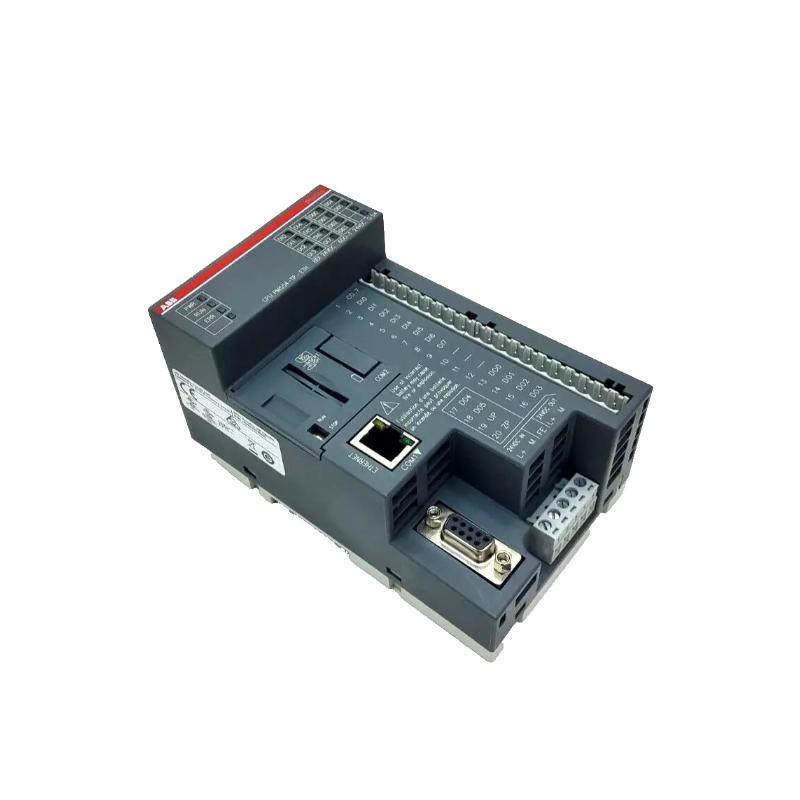

The ABB PM554-TP-ETH CPU Module is a compact programmable logic controller designed for efficient machine automation and distributed industrial control systems. As a member of the AC500-eCo PLC family, this module integrates processing capability, digital I/O, and Ethernet communication into a single controller, enabling reliable and scalable automation architectures.

Engineered for OEM machinery and mid-scale automation projects, the PM554-TP-ETH provides high-speed processing and stable industrial communication. With built-in Ethernet networking and RS-485 communication, it can seamlessly connect to HMIs, SCADA platforms, and other industrial devices across automation networks.

Its compact DIN-rail design, integrated digital inputs and outputs, and expandable I/O capability make it ideal for modern control cabinets where space efficiency and dependable performance are critical. The module is widely used in production equipment, water systems, infrastructure automation, and smart building control solutions.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM554-TP-ETH
Module Type	PLC CPU Module
PLC Series	AC500-eCo
Power Supply	24 V DC
Voltage Range	20.4 – 28.8 V DC
Program Memory	128 kB Flash
Data Memory	142 kB RAM
Digital Inputs	8
Digital Outputs	6 (Transistor)
Communication Interfaces	1 × Industrial Ethernet, 1 × RS-485
Controller Processing Time	0.00008 ms
Protection Rating	IP20
Mounting Method	DIN Rail
Operating Temperature	0°C to 55°C
Dimensions (L × W × H)	74 × 82 × 135 mm
Weight	0.287 kg

The controller integrates Ethernet networking and digital I/O channels while supporting expansion modules, enabling flexible automation system architecture.

Recommended Related Models

For building a complete ABB automation system, the following modules are often deployed alongside the PM554-TP-ETH controller:

ABB PM554-TP PLC CPU Module
ABB PM583-ETH PLC Controller
ABB CI801 Communication Interface Module
ABB CI840A Communication Interface Module
ABB AI830A Analog Input Module

These components provide expanded communication capability, analog signal acquisition, and distributed I/O integration.

Popular Allen Bradley Models

In many industrial environments where multi-vendor automation systems are used, the following Allen Bradley modules are commonly implemented for comparable PLC control tasks:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These controllers are widely used in large-scale production automation systems.

Applications

The ABB PM554-TP-ETH PLC controller is widely deployed in industrial automation environments where stable logic processing and network connectivity are essential.

Typical application scenarios include:

Machine and equipment automation
Packaging and assembly production lines
Water and wastewater treatment plants
Building automation and HVAC control
Material handling and conveyor systems
Industrial energy monitoring systems

Its Ethernet communication capability allows seamless integration with supervisory systems for remote monitoring and diagnostics.

Advantages

Integrated Ethernet Connectivity
Built-in Ethernet communication enables fast data exchange with industrial networks, SCADA systems, and HMIs.

Compact Industrial Controller
The combination of CPU, communication interface, and digital I/O reduces system complexity and cabinet space.

Reliable Industrial Performance
Designed for continuous operation in demanding automation environments with strong electrical stability.

Flexible Expansion Architecture
Additional modules can be connected to expand I/O capacity and communication interfaces.

Efficient Processing Capability
High-speed instruction execution ensures responsive machine control and real-time process monitoring.

Technical FAQs

1. What type of module is ABB PM554-TP-ETH?
It is a PLC CPU module designed for ABB AC500-eCo industrial automation systems.

2. What power supply does the module require?
The controller operates with a nominal 24 V DC industrial power supply.

3. Does the module include Ethernet communication?
Yes, it includes an integrated industrial Ethernet interface for network communication.

4. How many digital inputs and outputs are integrated?
The module provides 8 digital inputs and 6 transistor digital outputs.

5. Can additional modules be connected to the controller?
Yes, expansion modules can be added to extend the automation system.

6. What communication interfaces are available?
The controller supports Ethernet and RS-485 communication interfaces.

7. What industries commonly use the PM554-TP-ETH?
Manufacturing, building automation, water treatment, and machine automation industries commonly deploy this PLC.

8. What mounting method is used?
The controller is designed for DIN rail mounting inside control cabinets.

9. What operating temperature range is supported?
It typically operates within an industrial range of 0°C to 55°C.

10. Why choose the ABB PM554-TP-ETH PLC controller?
It offers reliable control, integrated networking capability, compact installation, and scalable automation architecture.
