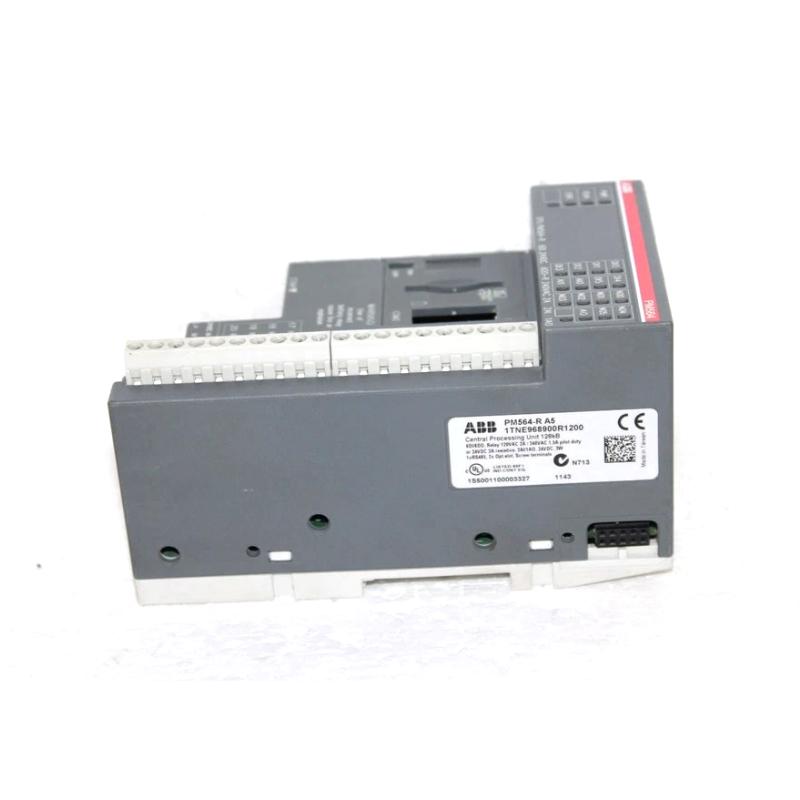

The ABB PM564-R CPU Module is a powerful programmable logic controller designed for flexible machine control and distributed automation systems. As part of the AC500-eCo PLC family, this controller combines integrated digital and analog I/O with reliable processing performance, making it a practical solution for small and medium-scale industrial automation projects.

Built for reliability and long-term operation, the PM564-R integrates CPU processing, communication interfaces, and field I/O within a compact DIN-rail device. It supports serial communication via RS-485 and allows connection to multiple expansion modules, enabling scalable control architectures for industrial equipment and process automation systems.

With its robust design, stable processing capability, and flexible I/O configuration, the PM564-R controller is widely used by system integrators and OEM manufacturers who require dependable PLC control in space-efficient control cabinets.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM564-R
Module Type	PLC CPU Module
PLC Series	AC500-eCo
Power Supply	100–240 V AC
Program Memory	128 kB
User Data Memory	10 kB
Processor	32-bit Industrial CPU
Digital Inputs	6 (24 V DC)
Digital Outputs	6 (Relay)
Analog Inputs	2
Analog Outputs	1
Communication Interface	1 × RS-485
Expansion Capability	Up to 10 I/O modules
Protection Rating	IP20
Operating Temperature	0°C to 60°C
Mounting Type	DIN Rail
Dimensions (L × W × H)	135 × 82 × 74 mm
Weight	0.40 kg

The PM564-R integrates multiple I/O channels and supports scalable system expansion, allowing automation systems to handle hundreds of digital and analog signals through additional modules.

Recommended Related Models

For building a complete ABB AC500 automation architecture, the following modules are commonly used together with the PM564-R:

ABB PM554-TP PLC CPU Module
ABB PM554-TP-ETH PLC CPU Module
ABB PM583-ETH High-Performance PLC Controller
ABB CI801 Communication Interface Module
ABB AI830A Analog Input Module

These modules help extend communication capabilities, analog signal acquisition, and distributed I/O integration.

Popular Allen Bradley Models

In industrial automation projects that combine multiple PLC platforms, the following Allen Bradley modules are frequently used in similar control environments:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These controllers are widely deployed in manufacturing and process automation applications.

Applications

The ABB PM564-R PLC controller is designed for industrial environments requiring reliable logic processing and flexible I/O control.

Typical applications include:

Industrial machine automation
Packaging and assembly equipment
Conveyor and material handling systems
Water and wastewater treatment plants
Building automation and HVAC systems
Energy management and monitoring systems

Its integrated digital and analog I/O channels make it ideal for equipment control systems where direct sensor and actuator connections are required.

Advantages

Integrated I/O Architecture
The controller includes digital and analog I/O channels, reducing the need for additional hardware modules.

Reliable Industrial CPU Performance
Stable processing capability ensures precise logic execution for demanding automation processes.

Flexible Expansion Capability
Supports up to 10 expansion modules, enabling scalable automation system designs.

Compact DIN-Rail Installation
The small footprint allows installation in compact control cabinets while maintaining easy wiring access.

Designed for Industrial Reliability
Robust hardware and ABB engineering ensure dependable operation in continuous industrial environments.

Technical FAQs

1. What type of controller is ABB PM564-R?
It is a PLC CPU module from the ABB AC500-eCo series used for industrial automation systems.

2. What power supply does the PM564-R require?
The module operates with a 100–240 V AC power supply.

3. How many I/O channels are integrated in the controller?
The CPU integrates 6 digital inputs, 6 relay outputs, 2 analog inputs, and 1 analog output.

4. What communication interface is available?
The module provides an RS-485 serial communication interface.

5. Can additional I/O modules be connected?
Yes, the controller supports expansion modules to extend digital and analog I/O capacity.

6. What PLC programming environment is used?
The module is typically programmed using ABB Automation Builder software.

7. What industries commonly use the PM564-R?
Manufacturing, infrastructure, water treatment, and machine automation industries frequently use this PLC.

8. What mounting method is used for installation?
The controller is designed for DIN rail mounting in industrial control cabinets.

9. What protection level does the module provide?
It features an IP20 protection rating for cabinet installation environments.

10. Why choose the ABB PM564-R PLC controller?
It offers integrated I/O, stable processing performance, flexible expansion capability, and reliable ABB automation technology.
