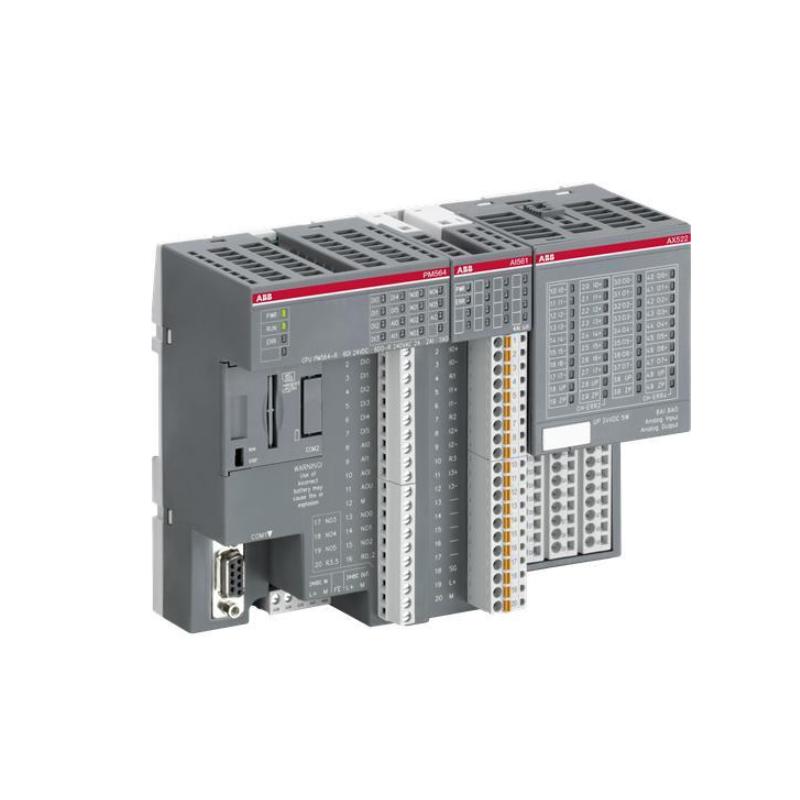

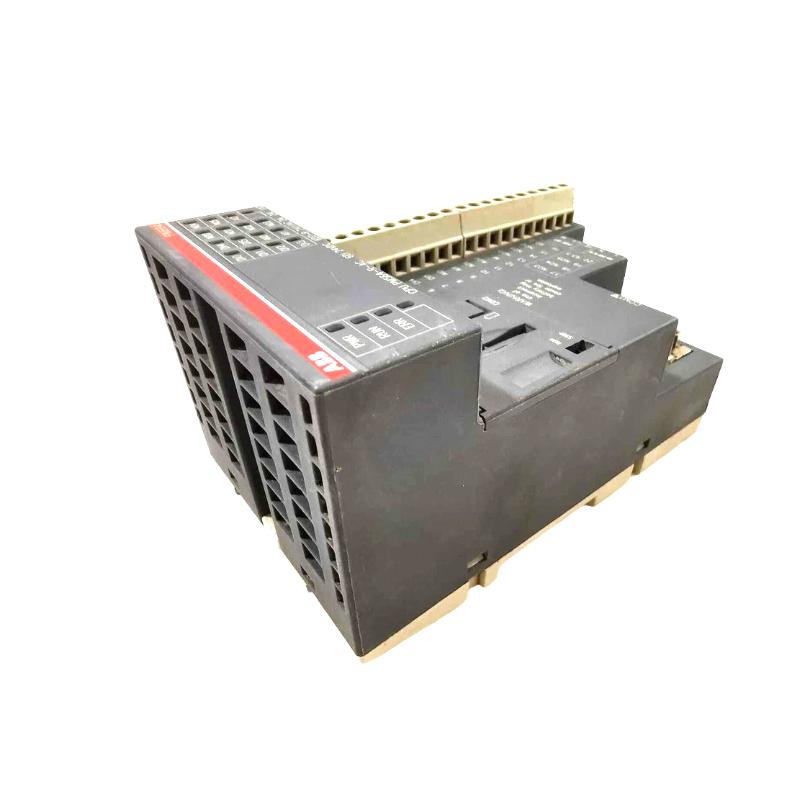

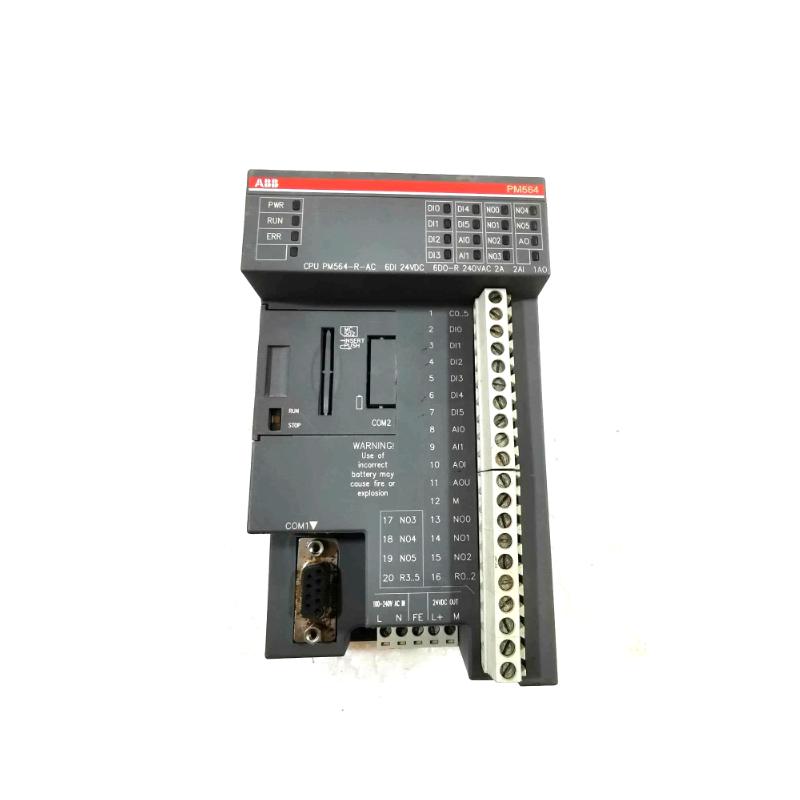

ABB PM564-R-AC AC500-eCo PLC CPU Module with Integrated Digital and Analog I/O for Industrial Automation
ABB PM564-R-AC AC500-eCo PLC CPU Module with Integrated Digital and Analog I/O for Industrial Automation
0.0
Points
Brand:ABB PLC Item No.:ABB PM564-R-AC Product Origin:Sweden Product Dimensions:135 × 82 × 74 mm Product Weight:0.40 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB PM564-R-AC CPU Module is a versatile programmable logic controller designed for reliable machine automation and distributed industrial control systems. As part of the ABB AC500-eCo PLC platform, this module integrates CPU processing, digital and analog I/O channels, and communication capability into a compact controller.
Designed for OEM equipment and automation integrators, the PM564-R-AC offers a powerful combination of built-in I/O and flexible expansion options. It supports AC power input and provides relay outputs, making it suitable for direct control of industrial actuators and field devices.
With its robust hardware design and scalable architecture, the PM564-R-AC is widely used in manufacturing automation, infrastructure control, and process monitoring environments where reliable PLC operation and efficient cabinet installation are essential.
Technical Specifications
Parameter
Specification
Brand
ABB
Model
PM564-R-AC
Module Type
PLC CPU Module
PLC Series
AC500-eCo
Supply Voltage
100 – 240 V AC
Program Memory
128 kB Flash EPROM
Data Memory
10 kB
Digital Inputs
6 (24 V DC)
Digital Outputs
6 (Relay)
Analog Inputs
2
Analog Outputs
1
Communication Interface
1 × RS-485 Serial
Expansion Capability
Up to 256 I/O via expansion modules
Protection Rating
IP20
Operating Temperature
0°C to 60°C
Mounting Method
DIN Rail
Dimensions (L × W × H)
135 × 82 × 74 mm
Weight
0.40 kg
The controller includes built-in digital and analog I/O along with serial communication and expandable architecture, making it suitable for a wide range of automation systems.
Recommended Related Models
For expanded automation systems based on the AC500 platform, the following ABB modules are frequently used together with the PM564-R-AC:
ABB PM554-TP PLC CPU Module
ABB PM554-TP-ETH PLC CPU Module
ABB PM583-ETH High-Performance PLC Controller
ABB CI801 Communication Interface Module
ABB AI830A Analog Input Module
These modules enable enhanced communication capability, expanded I/O capacity, and distributed control system architecture.
Popular Allen Bradley Models
For industrial automation environments where multiple PLC platforms are implemented, the following Allen Bradley controllers are commonly used in similar applications:
Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module
These modules are widely deployed in manufacturing automation and large-scale industrial control systems.
Applications
The ABB PM564-R-AC PLC controller is designed for industrial environments requiring dependable control, integrated I/O capability, and flexible expansion.
Typical application areas include:
Machine automation and OEM equipment control
Packaging and assembly production lines
Conveyor and material handling systems
Water and wastewater treatment facilities
Building automation and HVAC control
Energy monitoring and industrial infrastructure systems
Its integrated I/O configuration allows direct connection of sensors and actuators, reducing the need for additional hardware modules.
Advantages
Integrated Digital and Analog I/O
Built-in inputs and outputs allow direct connection to sensors, switches, and actuators, simplifying system architecture.
AC Power Supply Compatibility
Supports 100–240 V AC power input, enabling flexible installation in various industrial environments.
Reliable Industrial CPU Performance
Stable PLC processing ensures accurate and responsive control of automation processes.
Expandable Automation Architecture
The controller supports multiple expansion modules, allowing large-scale automation systems to be built easily.
Compact Cabinet Installation
DIN-rail mounting and compact size help reduce control cabinet space while maintaining easy wiring access.
Technical FAQs
1. What type of PLC is ABB PM564-R-AC?
It is a CPU module from the ABB AC500-eCo PLC series designed for industrial automation control.
2. What power supply does the controller use?
The module operates with a 100–240 V AC power supply.
3. How many digital inputs and outputs are integrated?
The PLC includes 6 digital inputs and 6 relay digital outputs.
4. Are analog channels included in this controller?
Yes, the controller provides 2 analog inputs and 1 analog output.
5. What communication interface is available?
The module supports RS-485 serial communication.
6. Can the system be expanded with additional modules?
Yes, expansion modules can be added to increase the number of I/O channels.
7. What industries commonly use the PM564-R-AC PLC?
Manufacturing, infrastructure automation, water treatment, and machine control industries widely deploy this controller.
8. What mounting method is used for installation?
The module is designed for DIN rail installation inside industrial control cabinets.
9. What is the protection level of the controller?
The module provides IP20 protection for cabinet-mounted industrial environments.
10. Why choose the ABB PM564-R-AC for automation systems?
It offers reliable PLC control, integrated digital and analog I/O, flexible expansion capability, and dependable ABB industrial engineering.
