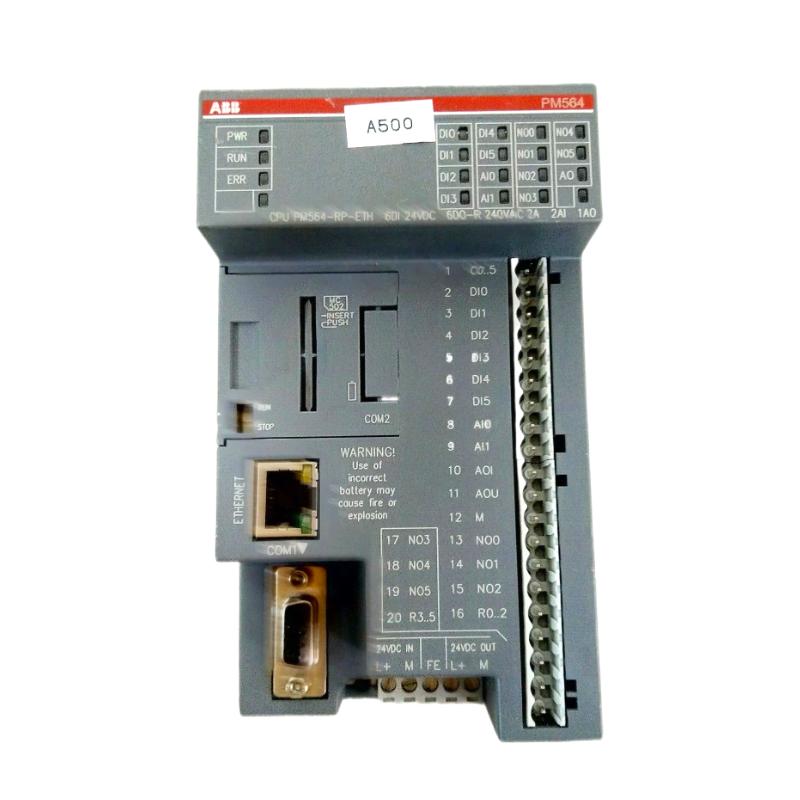

The ABB PM564-RP-ETH CPU Module is a compact and reliable programmable logic controller designed for machine automation, equipment control, and distributed industrial systems. As part of the AC500-eCo PLC family, this controller integrates CPU processing, relay-type digital outputs, analog channels, and Ethernet connectivity within a single compact module.

Engineered for OEM machinery and automation integrators, the PM564-RP-ETH provides stable logic processing while enabling seamless communication with industrial networks. With its built-in Ethernet port, the controller supports fast integration with HMI systems, SCADA platforms, and supervisory control networks.

The module also includes integrated digital and analog I/O channels, reducing the need for additional hardware modules and simplifying cabinet design. Its scalable architecture allows expansion through additional I/O modules, making it suitable for both small automation projects and larger control systems.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM564-RP-ETH
Module Type	PLC CPU Module
PLC Series	AC500-eCo
Power Supply	24 V DC
Program Memory	128 kB
Processor	32-bit Industrial CPU
Digital Inputs	6 (24 V DC)
Digital Outputs	6 (Relay Type)
Analog Inputs	2
Analog Outputs	1
Communication Interfaces	1 × Ethernet (RJ45), 1 × RS-485
Expansion Slots	2
Protection Rating	IP20
Mounting Method	DIN Rail
Operating Temperature	0°C to 55°C
Dimensions (L × W × H)	135 × 82 × 74 mm
Weight	0.29 kg

The controller integrates digital and analog signal handling together with Ethernet communication, enabling flexible machine control and industrial networking capabilities.

Recommended Related Models

To build a complete AC500 automation architecture, the following modules are often deployed together with the PM564-RP-ETH controller:

ABB PM564-RP PLC CPU Module
ABB PM564-RP-AC PLC CPU Module
ABB PM564-TP-ETH PLC CPU Module
ABB CI801 Communication Interface Module
ABB AI830A Analog Input Module

These modules enable expanded communication, distributed I/O architecture, and improved system flexibility.

Popular Allen Bradley Models

In many industrial facilities where multiple automation platforms coexist, the following Allen Bradley modules are commonly used for similar PLC control applications:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These products are widely used in industrial manufacturing and large-scale automation systems.

Applications

The ABB PM564-RP-ETH PLC controller is designed for industrial environments requiring reliable control and network communication.

Typical applications include:

Machine automation and OEM equipment control
Packaging and assembly production lines
Conveyor and material handling systems
Water and wastewater treatment automation
Building automation and HVAC systems
Industrial energy monitoring and infrastructure control

Its integrated Ethernet connectivity allows efficient integration with monitoring platforms and remote diagnostics systems.

Advantages

Integrated Ethernet Networking
Built-in Ethernet communication enables seamless connectivity with SCADA systems, industrial HMIs, and remote monitoring platforms.

Relay Output Design
Relay outputs allow direct switching of industrial loads and actuators without additional interface hardware.

Compact Integrated I/O
Digital and analog I/O channels are integrated into the controller, simplifying system design and reducing hardware requirements.

Flexible System Expansion
The controller supports additional expansion modules to increase I/O capacity as automation systems grow.

Reliable Industrial Operation
Designed with ABB industrial engineering standards, the module ensures stable operation in demanding industrial environments.

Technical FAQs

1. What type of module is ABB PM564-RP-ETH?
It is a PLC CPU module from the ABB AC500-eCo automation platform.

2. What power supply is required for the module?
The controller operates with a 24 V DC industrial power supply.

3. Does the module include Ethernet communication?
Yes, it features a built-in Ethernet port for industrial networking and programming.

4. How many digital inputs and outputs are integrated?
The controller includes 6 digital inputs and 6 relay digital outputs.

5. Are analog channels included in the module?
Yes, the module provides 2 analog inputs and 1 analog output.

6. What communication interfaces are available?
The controller supports Ethernet and RS-485 communication interfaces.

7. Can the controller be expanded with additional modules?
Yes, expansion modules can be connected to extend I/O capacity and communication functions.

8. What programming software is used?
The PLC is typically programmed using ABB Automation Builder based on IEC 61131-3 languages.

9. What industries commonly use the PM564-RP-ETH?
Manufacturing, energy systems, infrastructure automation, and machine control industries widely use this PLC.

10. Why choose the ABB PM564-RP-ETH PLC controller?
It provides reliable PLC processing, integrated I/O capability, Ethernet connectivity, and flexible expansion within a compact industrial controller.
