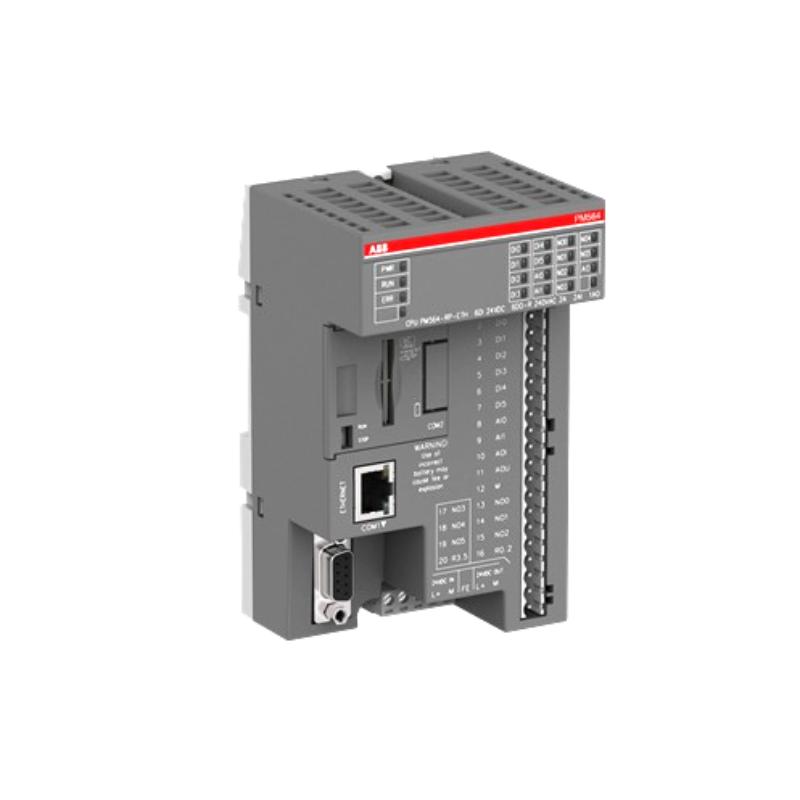

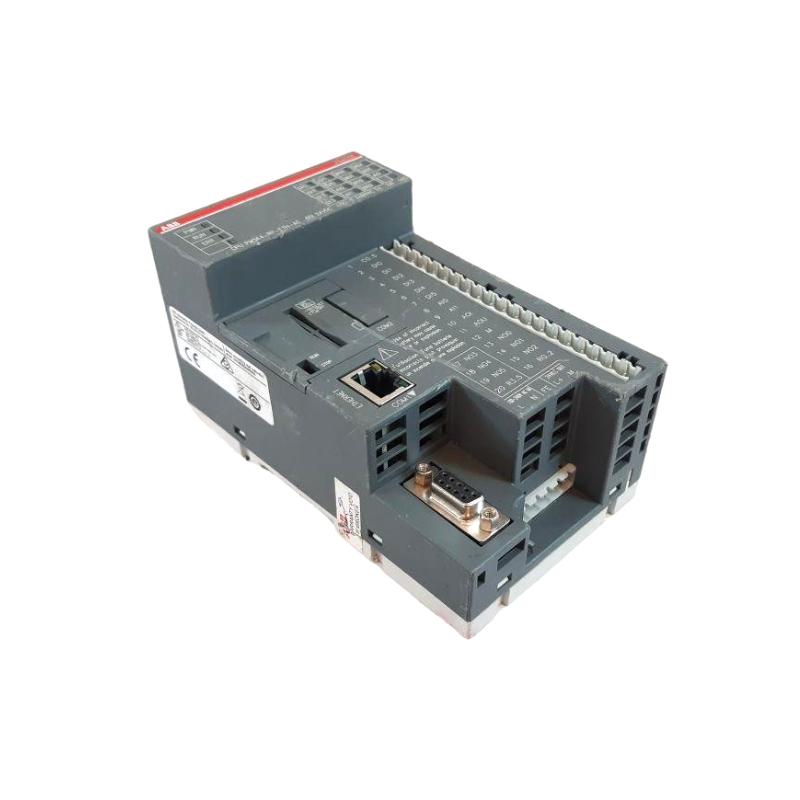

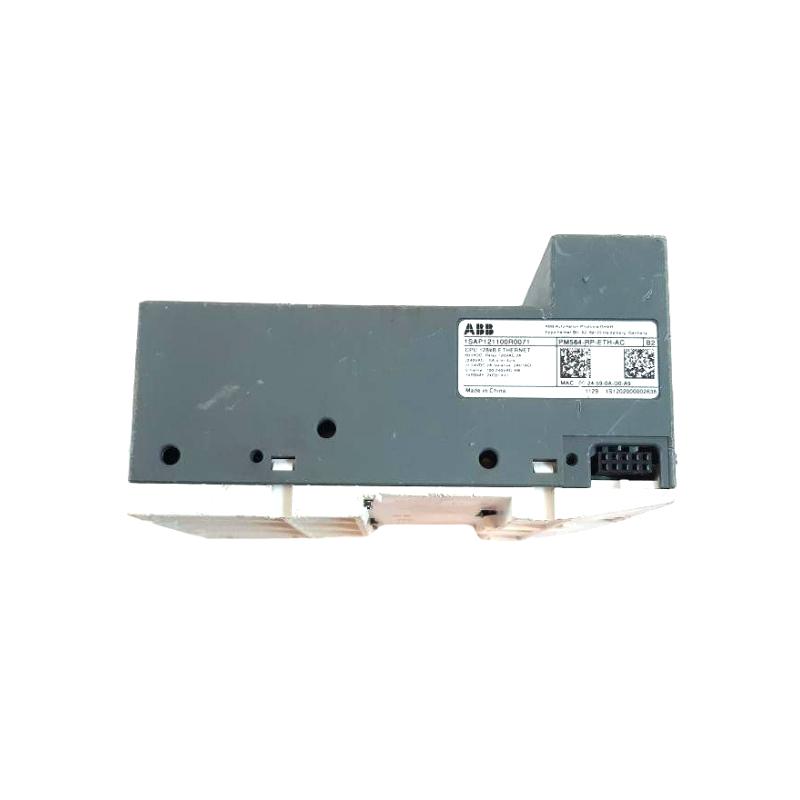

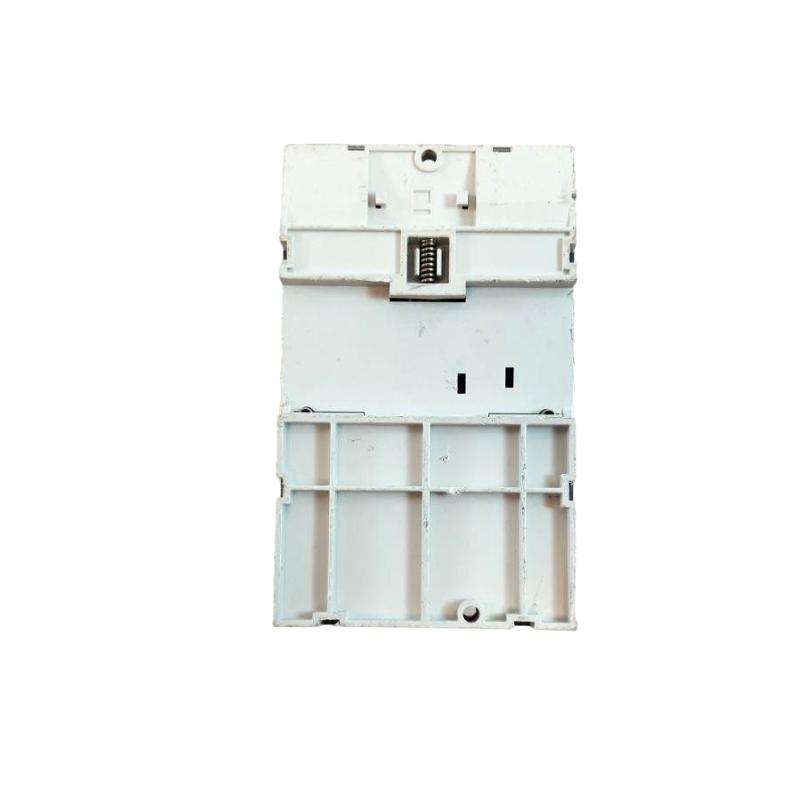

PM564-RP-ETH-AC 1SAP121100R0071 4

The ABB PM564-RP-ETH-AC CPU Module is a compact programmable logic controller designed for cost-effective machine automation and industrial control systems. As part of the AC500-eCo PLC platform, this controller integrates processing capability, relay digital outputs, analog channels, and Ethernet communication into a single DIN-rail device.

Designed for flexible industrial automation, the PM564-RP-ETH-AC combines integrated I/O with powerful networking capabilities. Its built-in Ethernet interface allows fast communication with HMI panels, SCADA systems, and supervisory networks, making it ideal for modern connected factories and smart automation environments.

Powered directly by 100–240 V AC, this PLC eliminates the need for additional DC power supply units in many control cabinets. The integrated digital and analog I/O channels simplify system architecture while supporting scalable expansion for more complex automation applications.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM564-RP-ETH-AC
Module Type	PLC CPU Module
PLC Platform	AC500-eCo
Supply Voltage	100 – 240 V AC
Program Memory	128 kB
Digital Inputs	6 (24 V DC)
Digital Outputs	6 (Relay Type)
Analog Inputs	2
Analog Outputs	1
Communication Interfaces	1 × Ethernet (RJ45), 1 × RS-485
Expansion Capability	Up to 10 I/O expansion modules
Programming Software	Automation Builder (IEC 61131-3)
Protection Rating	IP20
Mounting	DIN Rail
Power Dissipation	Approx. 5.3 W
Operating Temperature	0°C to 55°C
Dimensions (L × W × H)	135 × 82 × 74 mm
Weight	0.40 kg

The controller integrates digital and analog I/O together with Ethernet connectivity and serial communication, making it suitable for distributed automation systems and machine control applications.

Recommended Related Models

To build a complete ABB AC500 automation architecture, the following modules are commonly used alongside the PM564-RP-ETH-AC controller:

ABB PM564-RP PLC CPU Module
ABB PM564-RP-AC PLC CPU Module
ABB PM564-TP-ETH PLC CPU Module
ABB CI801 Communication Interface Module
ABB AI830A Analog Input Module

These modules expand communication capability, increase I/O capacity, and support scalable industrial control system architectures.

Popular Allen Bradley Models

In many global automation environments where multiple PLC platforms operate together, the following Allen Bradley modules are widely used:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These products are frequently deployed in large-scale industrial automation and process control systems.

Applications

The ABB PM564-RP-ETH-AC PLC controller is designed for industrial environments that require reliable logic processing and network communication.

Typical applications include:

Industrial machinery automation
Packaging and assembly production lines
Conveyor and logistics systems
Water and wastewater treatment plants
Building automation and energy management
Industrial monitoring and distributed control systems

Its integrated Ethernet communication simplifies network integration and remote diagnostics within modern industrial facilities.

Advantages

Integrated Ethernet Communication
Built-in Ethernet connectivity enables seamless integration with SCADA, HMI systems, and industrial networks.

AC Power Supply Compatibility
The controller operates directly with 100–240 V AC, simplifying cabinet wiring and reducing additional power supply requirements.

Integrated Digital and Analog I/O
Built-in I/O channels reduce the need for external modules, saving space and lowering system cost.

Flexible Expansion Architecture
Supports additional I/O modules to accommodate larger automation systems.

Reliable Industrial Performance
Designed according to ABB industrial standards, ensuring stable operation in demanding automation environments.

Technical FAQs

1. What type of controller is ABB PM564-RP-ETH-AC?
It is a PLC CPU module from the ABB AC500-eCo automation platform.

2. What power supply does the PLC require?
The controller operates with a 100–240 V AC power supply.

3. Does the module support Ethernet communication?
Yes, the module includes a built-in Ethernet port for industrial networking and programming.

4. How many integrated digital inputs and outputs are included?
The controller includes 6 digital inputs and 6 relay digital outputs.

5. Are analog channels available in the controller?
Yes, the PLC provides 2 analog inputs and 1 analog output.

6. Can the PLC be expanded with additional modules?
Yes, expansion modules can be connected to increase I/O capacity and functionality.

7. What software is used for programming?
The controller is programmed using ABB Automation Builder based on IEC 61131-3 languages.

8. What communication interfaces are available?
The module supports Ethernet and RS-485 communication interfaces.

9. What mounting method is used for installation?
The PLC is designed for DIN rail installation in industrial control cabinets.

10. Why choose the ABB PM564-RP-ETH-AC controller?
It combines reliable PLC performance, integrated I/O, Ethernet networking capability, and flexible expansion in a compact industrial controller.
