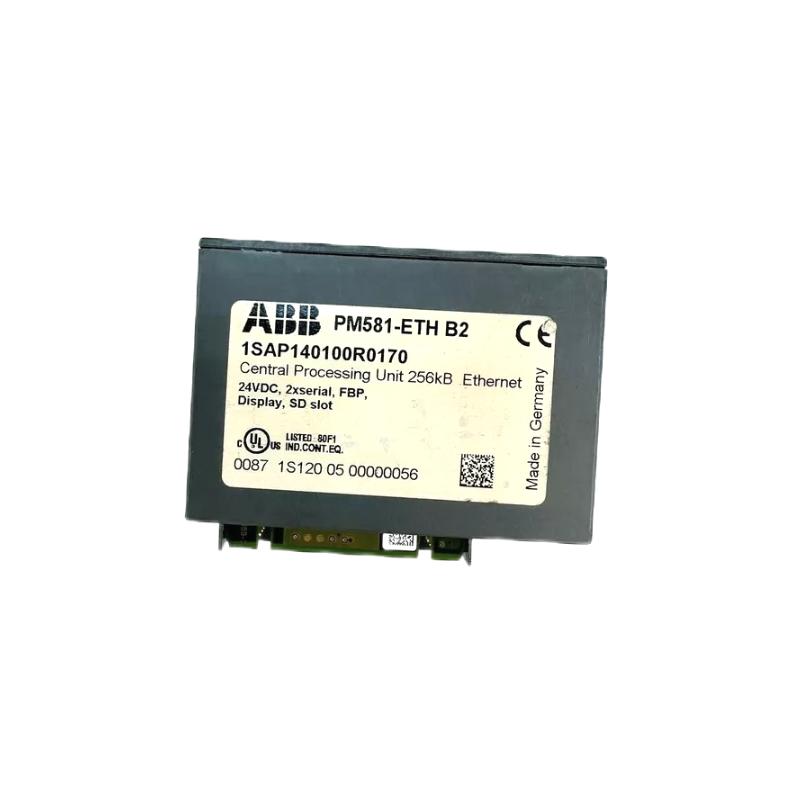

The ABB PM581-ETH PLC CPU Module is a powerful controller developed for the AC500 programmable logic controller platform. Acting as the central processing unit of the automation system, it executes control programs, manages field communication, and coordinates distributed I/O modules to ensure reliable and precise industrial operations.

Designed for demanding automation environments, this controller integrates industrial Ethernet communication, enabling fast data exchange with HMIs, SCADA systems, and distributed field devices. The module supports real-time processing and deterministic control, making it suitable for both machine-level automation and complex process systems.

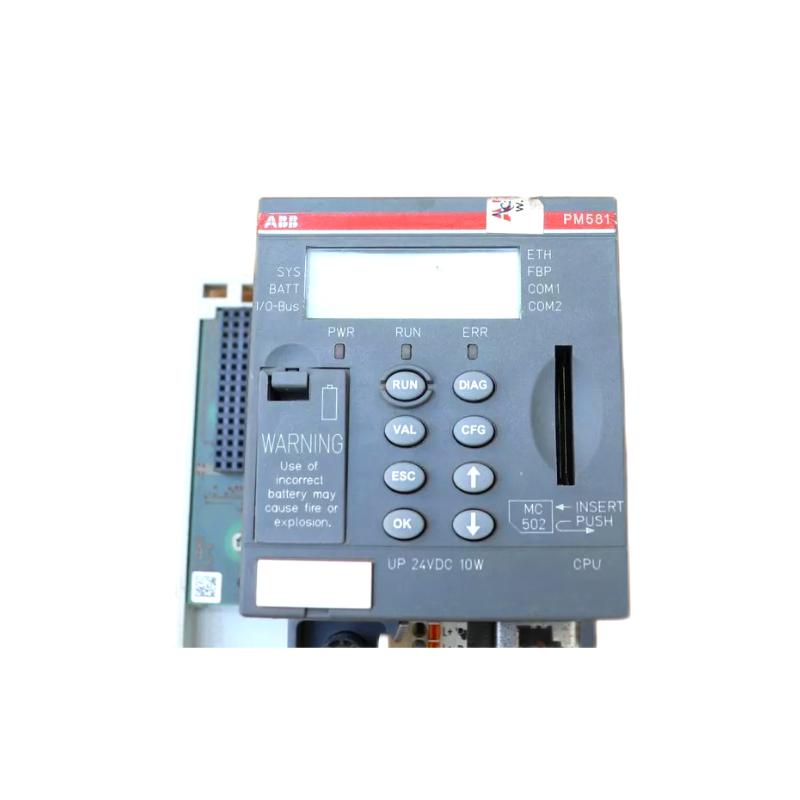

Its compact DIN-rail design, integrated LCD diagnostics display, and scalable architecture allow system integrators to build efficient and expandable automation solutions. The PM581-ETH is widely used in industries where reliability, performance, and flexible networking capabilities are critical.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM581-ETH
Module Type	PLC CPU Module
PLC Platform	AC500
Power Supply	24 V DC
Program Memory	256 kB
User Data Memory	416 kB
Memory Type	Flash EPROM
Communication Interface	Ethernet (10/100 Mbps)
Serial Ports	2 × RS232 / RS485 configurable
Fieldbus Interface	FBP (FieldBus Plug)
SD Card Slot	Yes
Display	Integrated LCD status display
Maximum Expansion Modules	Up to 10 local I/O modules
Maximum Digital I/O	320 DI / 240 DO
Protection Rating	IP20
Operating Temperature	0°C to +60°C
Mounting	DIN Rail
Dimensions (L × W × H)	62 × 67.5 × 76 mm
Weight	0.155 kg

The controller supports Ethernet networking, multiple serial interfaces, and scalable I/O expansion, allowing it to function as the core controller of distributed automation architectures.

Recommended Related Models

To build a complete AC500 automation solution, the following modules are frequently used together with the PM581-ETH controller:

ABB PM571-ETH PLC CPU Module
ABB PM581-ARCNET PLC CPU Module
ABB PM582-ETH PLC CPU Module
ABB CI801 Communication Interface Module
ABB AI830A Analog Input Module

These modules expand communication capabilities and increase the system’s I/O capacity for complex automation projects.

Popular Allen Bradley Models

In multi-platform automation environments, engineers often deploy the following Allen Bradley PLC modules for similar applications:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These controllers are widely recognized for their reliability in high-performance industrial automation systems.

Applications

The ABB PM581-ETH PLC controller is designed for industrial environments that require reliable automation control and efficient network communication.

Typical application areas include:

Manufacturing production lines
Machine automation systems
Packaging and assembly equipment
Water and wastewater treatment facilities
Power generation and energy management systems
Building automation and infrastructure control

Its integrated Ethernet communication enables centralized monitoring, remote diagnostics, and seamless system integration.

Advantages

Integrated Ethernet Connectivity
The built-in Ethernet interface simplifies system networking and enables high-speed communication with industrial devices.

High Reliability for Industrial Environments
Engineered to maintain stable performance under demanding factory conditions and continuous operation cycles.

Expandable Automation Architecture
Supports multiple expansion modules, allowing flexible system design for both small and large automation applications.

Real-Time Control Performance
The powerful CPU ensures precise and deterministic execution of control logic and process operations.

Compact and Efficient Design
The DIN-rail mounting format allows easy installation in industrial control cabinets while saving valuable space.

Technical FAQs

1. What is the ABB PM581-ETH module used for?
It serves as the CPU controller for ABB AC500 PLC automation systems.

2. What communication interface does the module provide?
The controller includes integrated Ethernet communication.

3. What power supply does the PLC require?
The module operates on a 24 V DC industrial power supply.

4. How much program memory is available?
The controller includes 256 kB of program memory.

5. Does the module support serial communication?
Yes, it includes two configurable RS232/RS485 communication ports.

6. Can I expand the system with additional I/O modules?
Yes, the AC500 platform allows connection of up to 10 expansion modules.

7. Is SD card storage supported?
Yes, an SD card slot is available for program backup and firmware updates.

8. What industries commonly use this controller?
Manufacturing, utilities, infrastructure automation, and machine control industries.

9. What mounting method is used for installation?
The controller is designed for DIN-rail installation in industrial control cabinets.

10. Why choose the ABB PM581-ETH PLC module?
It provides reliable PLC control, integrated Ethernet networking, scalable expansion capability, and stable performance for industrial automation systems.
