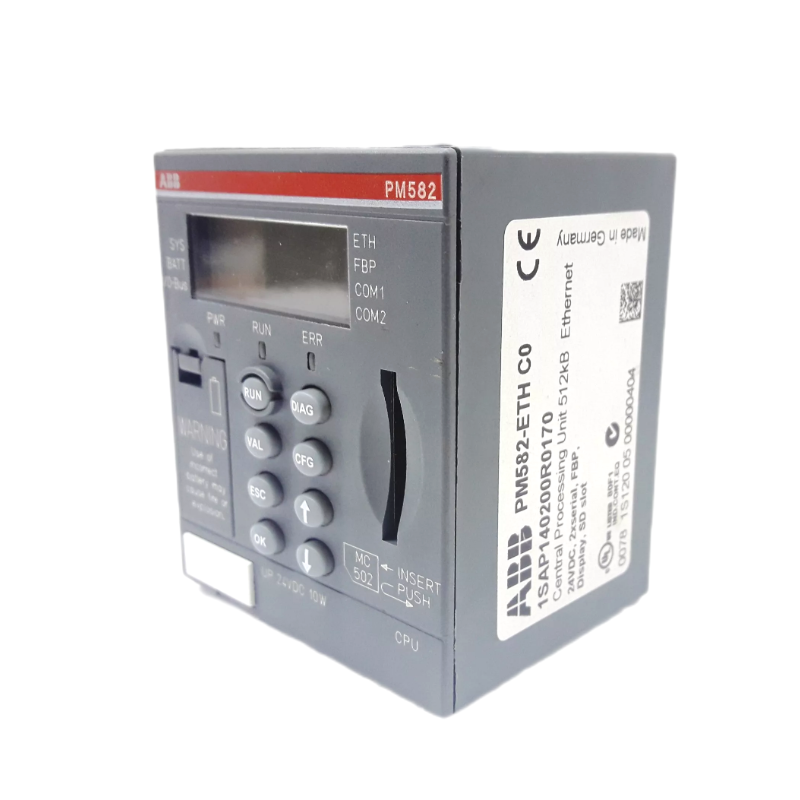

The ABB PM582-ETH PLC CPU Module is an advanced controller designed for the AC500 automation platform. Acting as the central processing unit of the control system, it executes user programs, coordinates distributed I/O modules, and manages communication between field devices and supervisory systems.

This CPU module integrates industrial Ethernet connectivity, enabling high-speed communication with SCADA systems, HMIs, and other controllers within a networked automation environment. With powerful processing capability, large memory capacity, and flexible communication interfaces, the PM582-ETH is suitable for both machine automation and complex process control applications.

Engineered for reliability, the controller includes an integrated diagnostic LCD display, SD card support for program storage and updates, and multiple communication interfaces. Its compact DIN-rail design allows easy installation in control cabinets while providing scalability for expanding industrial automation systems.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM582-ETH
Module Type	PLC CPU Module
PLC Platform	AC500
Program Memory	512 kB
User Data Memory	416 kB
Memory Type	Flash EPROM
Communication Interfaces	Ethernet, Serial, FBP (FieldBus Plug)
Serial Ports	2 × RS232 / RS485 configurable
Display	Integrated LCD
Power Supply	24 V DC
Protection Rating	IP20
Operating Temperature	0°C to +60°C
Storage Temperature	−40°C to +70°C
Mounting	DIN Rail
Dimensions (L × W × H)	62 × 67.5 × 76 mm
Weight	0.151 kg

The controller provides integrated Ethernet networking and supports distributed automation architectures used in modern industrial control systems.

Recommended Related Models

The following modules are frequently deployed alongside the PM582-ETH to build scalable ABB automation systems:

Model	Description
PM571-ETH	Compact PLC CPU with Ethernet interface
PM581-ETH	Mid-range PLC controller for AC500 systems
PM582	Standard AC500 CPU without integrated Ethernet
CI801	Communication interface module
AI830A	Analog input module for process signals

Popular Allen Bradley Models

For cross-platform industrial automation environments, the following Allen Bradley controllers are commonly used:

Model	Module Type
1756-L73	ControlLogix CPU Module
1769-L33ER	CompactLogix Controller
1756-EN2T	Ethernet Communication Module
1756-IB16	Digital Input Module
1756-OB16E	Digital Output Module

Applications

The ABB PM582-ETH PLC controller is widely used in industries requiring stable control and fast industrial communication.

Typical application areas include:

Manufacturing automation lines
Industrial machinery control
Packaging and assembly systems
Water and wastewater treatment plants
Energy management and power distribution systems
Infrastructure monitoring and building automation

Its Ethernet networking capability enables centralized monitoring, remote diagnostics, and seamless integration into distributed control systems.

Advantages

Integrated Ethernet Networking
The built-in Ethernet interface enables efficient communication between PLCs, operator panels, and supervisory systems.

High Processing Capability
With 512 kB of program memory, the controller supports complex automation logic and high-speed processing tasks.

Flexible Communication Options
Dual serial ports and FieldBus Plug interfaces allow integration with a wide range of industrial devices.

Industrial Reliability
Designed for continuous operation in harsh industrial environments with stable and predictable performance.

Expandable Automation Architecture
The AC500 platform supports multiple expansion modules, allowing scalable control system design.

Technical FAQs

1. What is the ABB PM582-ETH used for?
It functions as the CPU controller for ABB AC500 PLC automation systems.

2. Does the controller support Ethernet communication?
Yes, it includes an integrated Ethernet interface for industrial networking.

3. What power supply is required?
The module operates using a 24 V DC industrial power supply.

4. How much program memory does the controller provide?
The PM582-ETH offers 512 kB of user program memory.

5. Are serial communication ports available?
Yes, the controller includes two configurable RS232/RS485 ports.

6. Can the system be expanded with I/O modules?
Yes, the AC500 architecture allows expansion with multiple I/O modules.

7. Does the module include diagnostic features?
Yes, an integrated LCD display provides status and diagnostic information.

8. Is SD card storage supported?
Yes, SD cards can be used for program backup and firmware updates.

9. What industries commonly deploy this PLC controller?
Manufacturing, utilities, infrastructure automation, and machine control industries.

10. Why choose the ABB PM582-ETH controller?
Because it combines Ethernet connectivity, reliable industrial performance, scalable expansion capability, and efficient PLC processing power.
