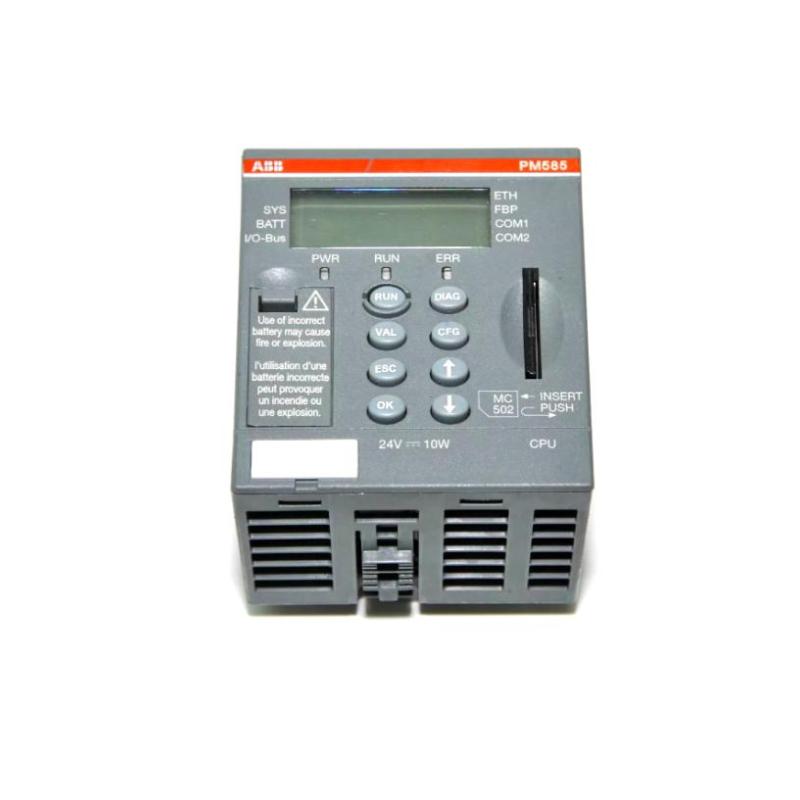

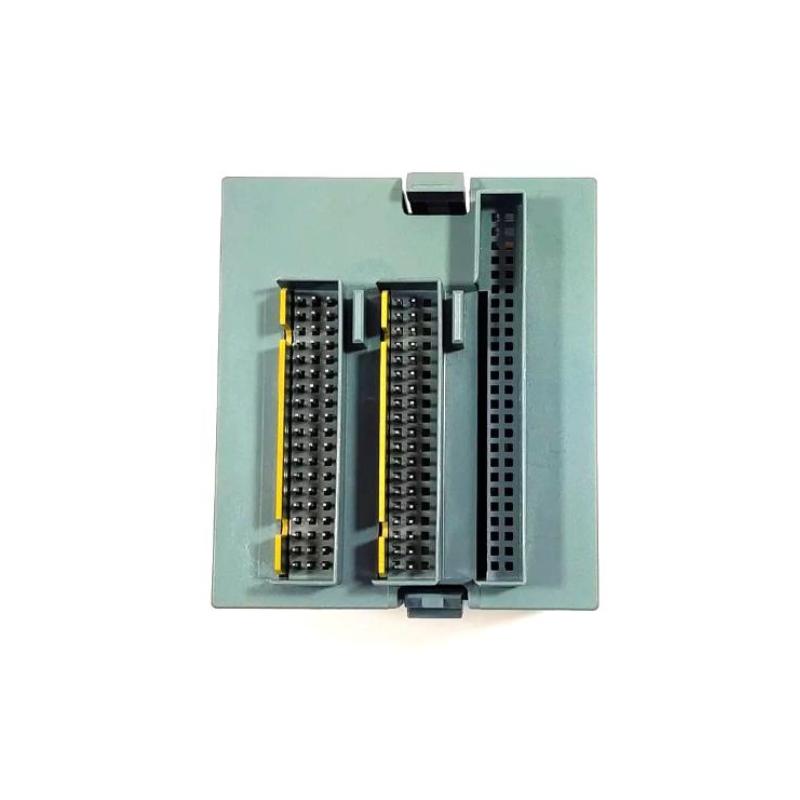

The ABB PM583-ETH PLC CPU Module is a high-performance controller designed for the AC500 automation platform. It functions as the central processing unit of the PLC system, executing control programs, managing communication between field devices, and coordinating distributed I/O modules.

Built for demanding industrial automation environments, the module integrates Ethernet communication, serial interfaces, and a fieldbus connection, enabling seamless connectivity with supervisory systems, HMIs, and other controllers. Its powerful processing capabilities and large memory capacity allow it to handle complex control logic and real-time industrial tasks efficiently.

The PM583-ETH features an integrated LCD diagnostic display that simplifies commissioning, troubleshooting, and system monitoring. Combined with its compact DIN-rail design and scalable architecture, it is widely used in modern automation systems where reliability, networking capability, and performance are essential.

Technical Specifications

Parameter	Specification
Brand	ABB
Model	PM583-ETH
Module Type	PLC CPU Module
PLC Platform	AC500
Product ID	1SAP140300R0271
Power Supply	24 V DC
Program Memory	1024 kB
User Data Memory	1024 kB
Memory Type	Flash EPROM / Non-volatile RAM
Communication Interfaces	1 × Ethernet, 2 × RS232/RS485, 1 × FBP
Display	Integrated LCD
Maximum Digital I/O	320 DI / 240 DO
Maximum Analog I/O	160 AI / 160 AO
Expansion Modules	Up to 10 local modules
Protection Rating	IP20
Operating Temperature	0°C to +60°C
Storage Temperature	−40°C to +70°C
Mounting	DIN Rail (TH35-15)
Dimensions (L × W × H)	62 × 67.5 × 76 mm
Weight	0.134 kg

The controller supports Ethernet networking, serial communication, and fieldbus connectivity, making it suitable for distributed industrial automation systems.

Recommended Related Models

To build scalable AC500 automation architectures, the following modules are commonly used with the PM583-ETH controller:

ABB PM571-ETH PLC CPU Module
ABB PM581-ETH PLC CPU Module
ABB PM582-ETH PLC CPU Module
ABB CI801 Communication Interface Module
ABB AI830A Analog Input Module

These modules expand system capabilities such as communication networking, analog signal acquisition, and distributed control.

Popular Allen Bradley Models

In many industrial automation projects, engineers combine ABB and Allen Bradley platforms. Some commonly used Allen Bradley controllers include:

Allen Bradley 1756-L73 ControlLogix CPU Module
Allen Bradley 1769-L33ER CompactLogix Controller
Allen Bradley 1756-EN2T Ethernet Communication Module
Allen Bradley 1756-IB16 Digital Input Module
Allen Bradley 1756-OB16E Digital Output Module

These modules are widely used for high-performance industrial control and networked automation solutions.

Applications

The ABB PM583-ETH PLC controller is designed for industrial systems requiring reliable processing power and high-speed communication.

Typical applications include:

Manufacturing and production automation
Industrial machinery and equipment control
Water and wastewater treatment plants
Power generation and energy management systems
Building automation and infrastructure monitoring
Process control in chemical and pharmaceutical industries

Its Ethernet connectivity enables efficient integration with modern SCADA systems and industrial networks.

Advantages

High Processing Performance
With advanced CPU capability and large memory capacity, the controller can execute complex control algorithms and large automation programs.

Integrated Ethernet Networking
The built-in Ethernet interface enables fast communication with HMIs, SCADA systems, and distributed automation devices.

Flexible Communication Options
Serial interfaces and fieldbus connectivity allow integration with various industrial devices and communication protocols.

Scalable Automation Architecture
The AC500 platform allows connection of multiple I/O expansion modules, enabling system growth as project requirements evolve.

Reliable Industrial Operation
Designed for continuous operation in demanding industrial environments with stable performance and strong diagnostic features.

Technical FAQs

1. What is the ABB PM583-ETH module used for?
It serves as the CPU controller for ABB AC500 PLC automation systems.

2. What communication interfaces are available?
The module includes Ethernet, two serial RS232/RS485 ports, and a fieldbus interface.

3. What power supply does the controller require?
It operates using a 24 V DC industrial power supply.

4. How much memory does the controller provide?
The PM583-ETH includes 1 MB program memory and 1 MB user data memory.

5. Does the module support system expansion?
Yes, the AC500 architecture allows connection of up to 10 expansion I/O modules.

6. What programming software is used?
The controller is programmed using ABB Automation Builder based on IEC 61131-3 languages.

7. Does the module include a display?
Yes, it features an integrated LCD display for diagnostics and system status.

8. What industries commonly use this PLC controller?
Manufacturing, utilities, infrastructure automation, and process industries.

9. What mounting method is used for installation?
The controller is designed for DIN-rail mounting in industrial control cabinets.

10. Why choose the ABB PM583-ETH PLC CPU module?
It provides powerful processing performance, integrated Ethernet networking, flexible expansion capability, and reliable operation for modern industrial automation systems.
