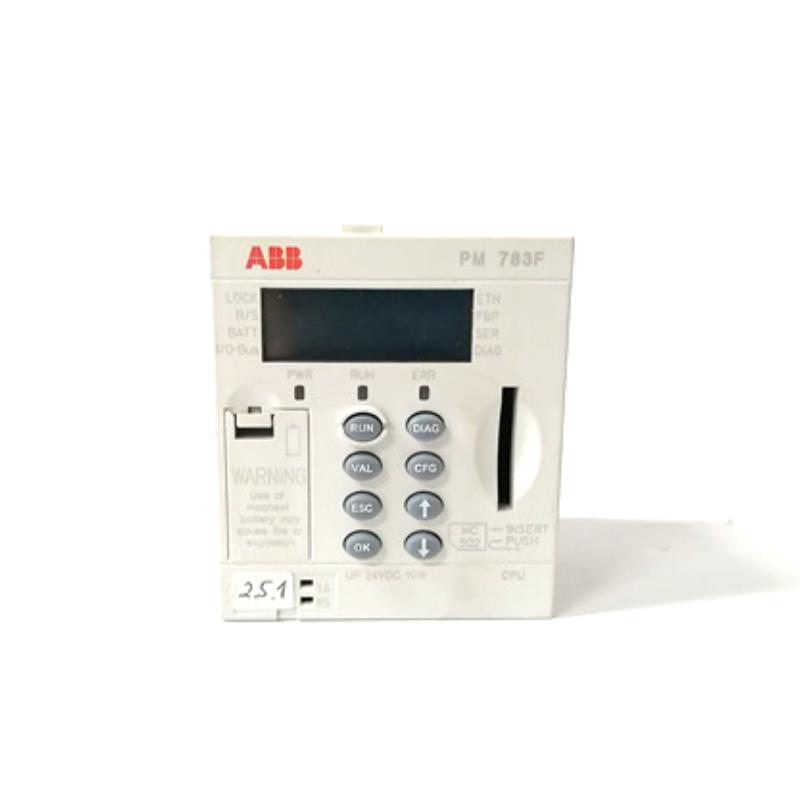

ABB PM783F High-Performance CPU Processor Module for Freelance Distributed Control Systems
ABB PM783F High-Performance CPU Processor Module for Freelance Distributed Control Systems
0.0
Points
Brand:ABB PLC Item No.:ABB PM783F Product Origin:Sweden Product Dimensions:54 × 67.5 × 76 mm Product Weight:0.40 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB PM783F CPU Processor Module is a high-performance controller designed for the ABB Freelance AC 700F distributed control system. It acts as the central processing unit responsible for executing control logic, managing field I/O communication, and coordinating automation processes across industrial networks.
Built with a powerful processor and multitasking architecture, the PM783F delivers reliable real-time performance for complex process control environments. It supports high-speed program execution, flexible communication interfaces, and scalable I/O expansion, allowing engineers to build stable automation systems with up to hundreds of connected signals.
The module integrates Ethernet networking, Modbus communication, and serial diagnostic interfaces, enabling seamless connectivity between controllers, engineering tools, operator stations, and distributed I/O systems. With advanced diagnostics, battery-backed memory, and industrial-grade reliability, the PM783F is widely used in process industries that demand continuous and secure operation.
Technical Specifications
Parameter
Specification
Product Model
PM783F
Manufacturer
ABB
System Platform
Freelance AC 700F
Product Type
PLC CPU Processor Module
Processor Frequency
96 MHz
Total Memory
10 MB
Application RAM
2 MB battery-backed
Program Execution
~0.71 ms per 1000 Boolean operations
I/O Capacity
Up to 300 I/O signals
Communication Interfaces
Ethernet, 2× Serial interfaces
Supported Protocols
Modbus TCP, Modbus RTU, Industrial Ethernet
Multitasking Capability
8 cyclic tasks + 1 fast PLC task
Power Supply
24 VDC
Power Dissipation
Approx. 10 W
Operating Temperature
0°C to +60°C
Protection Class
IP20
Dimensions (L × W × H)
54 × 67.5 × 76 mm
Weight
0.40 kg
Specifications compiled from industrial controller documentation.
Recommended Related Models
Model
Description
PM783
Earlier Freelance CPU controller module
PM802F
Compact process controller for Freelance systems
PM803F
Advanced controller for distributed process automation
PM902F
High-performance process automation CPU
CI801
Communication interface module for fieldbus integration
Popular ABB Models
Model
Module Type
PM583-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Power Supply Module
PP865A
Industrial Operator Panel
Applications
The ABB PM783F CPU module is engineered for continuous process automation and distributed control systems where stability and real-time response are essential.
Common application scenarios include:
Process control in chemical and petrochemical plants
Power generation and energy management systems
Oil and gas production facilities
Water and wastewater treatment plants
Industrial manufacturing automation lines
Infrastructure and utility monitoring systems
Its scalable architecture allows it to handle both small automation setups and medium-sized distributed control systems efficiently.
Advantages
Powerful Industrial CPU Performance
The 96 MHz processor and optimized task scheduling enable rapid execution of automation programs and control algorithms.
Flexible Communication Integration
Built-in Ethernet and serial communication interfaces support Modbus networking and seamless integration with industrial control systems.
Reliable Multitasking Operation
Support for multiple cyclic and priority tasks allows simultaneous processing of various control operations.
Expandable I/O Architecture
The controller can manage up to 300 I/O signals, making it ideal for medium-scale automation systems.
Advanced Diagnostics and Monitoring

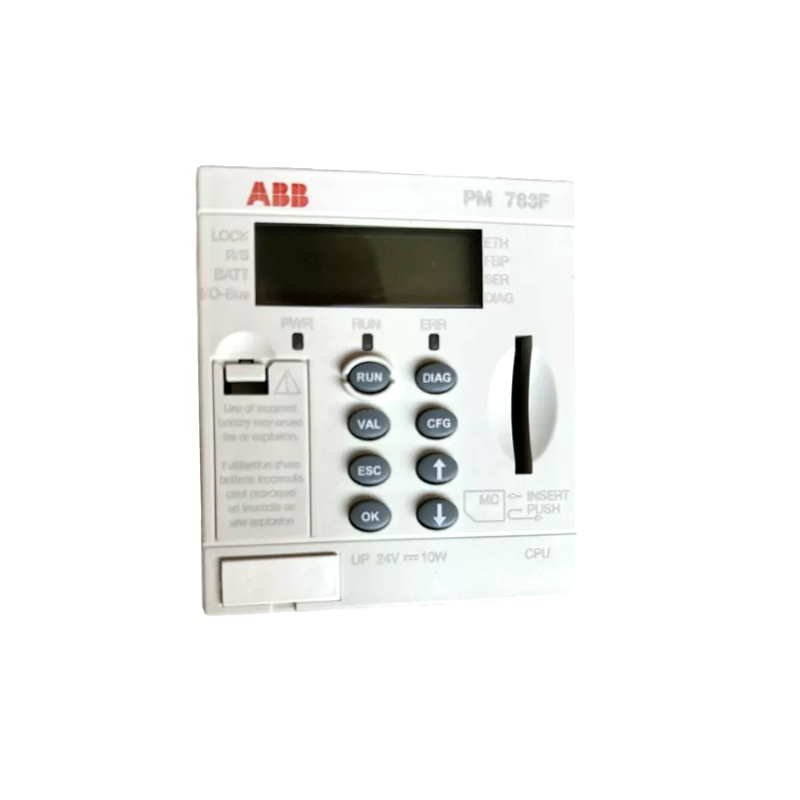

Front panel indicators and diagnostic functions help engineers quickly identify system conditions and troubleshoot issues.
Proven Industrial Reliability
Designed for continuous operation in industrial environments, the PM783F ensures stable automation performance with minimal downtime.
Technical FAQs
1. What is the main function of the ABB PM783F module?
It serves as the CPU controller for the Freelance AC 700F system, executing automation programs and coordinating communication with I/O modules and networks.
2. Which control system uses the PM783F?
It is primarily used in the ABB Freelance distributed control system platform.
3. What is the processor speed of the PM783F?
The module uses a 96 MHz processor for high-speed control operations.
4. How many I/O signals can the controller handle?
The PM783F supports up to approximately 300 I/O signals in a control system.
5. What communication protocols are supported?
It supports Ethernet communication as well as Modbus TCP and serial Modbus protocols.
6. Does the module support multitasking?
Yes, it can execute eight cyclic tasks and an additional fast PLC task simultaneously.
7. What type of power supply is required?
The module operates with an external 24 VDC industrial power supply.
8. Is the PM783F suitable for process automation?
Yes, it is widely used in DCS applications such as chemical plants, energy systems, and water treatment facilities.
9. What diagnostic features does the module include?
It includes front-panel status indicators, system diagnostics, and monitoring capabilities.
10. Why choose the ABB PM783F controller?
Because it provides reliable processing performance, flexible networking capabilities, and proven compatibility with ABB Freelance automation systems.
