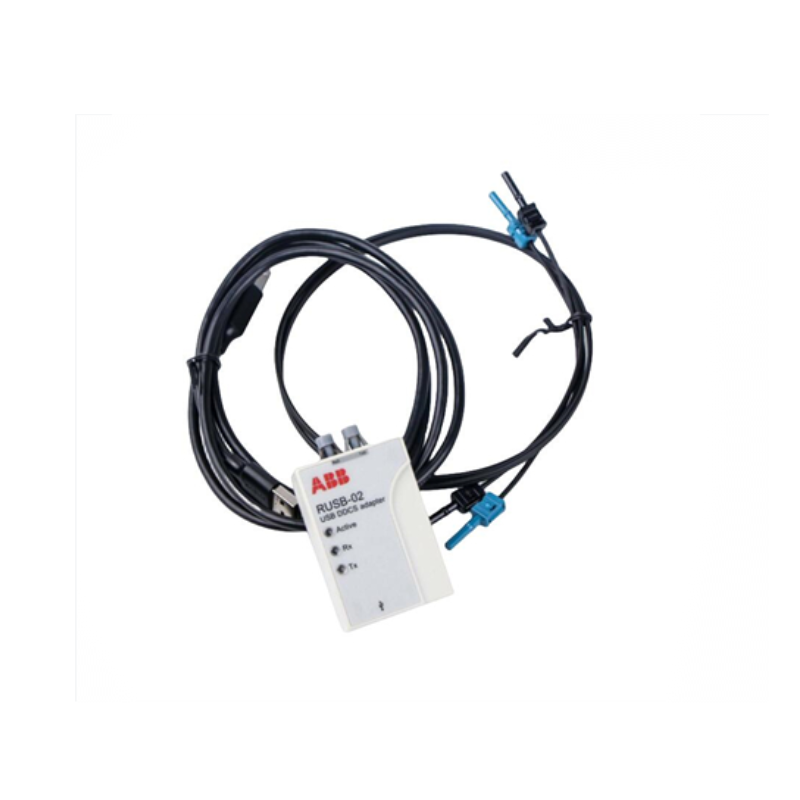

ABB RUSB-02 USB/DDCS Communication Adapter for Industrial Drive Systems
ABB RUSB-02 USB/DDCS Communication Adapter for Industrial Drive Systems
0.0
Points
Brand:ABB PLC Item No.:ABB RUSB-02 Product Origin:Sweden Product Dimensions:104 × 80 × 40 mm Product Weight:0.48 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB RUSB-02 USB/DDCS Communication Adapter is an interface module designed to connect a PC or laptop to ABB industrial drive systems for configuration, monitoring, and diagnostics. Manufactured by ABB, this adapter provides a reliable communication bridge between USB-based computers and ABB drive control networks.
The RUSB-02 allows engineers and technicians to access drive parameters, update firmware, monitor operating conditions, and troubleshoot system issues through ABB software tools such as DriveWindow and DriveAP. It supports ABB drive families including ACS600, ACS800, ACS6000, and DCS600.
Using the adapter, maintenance personnel can perform real-time diagnostics and parameter adjustments directly from a computer, significantly simplifying commissioning and maintenance of ABB variable frequency drives.
Technical Specifications
Parameter
Specification
Product Model
RUSB-02
Manufacturer
ABB
Product Type
USB/DDCS Communication Adapter
Part Number
3AUA0000040000
Supported Drives
ACS600, ACS800, ACS6000, DCS600
PC Interface
USB 2.0
Drive Interface
Dual DDCS fiber-optic ports
Communication Standard
Ethernet 100Base-TX / IEEE 802.3
Supported Software
DriveWindow, DriveAP
Maximum Ethernet Cable Length
100 m
Operating System Compatibility
Windows 7 / Windows 10 (32-bit & 64-bit)
Operating Temperature
−20 °C to +70 °C
Dimensions (W × H × D)
104 × 80 × 40 mm
Weight
0.48 kg
Specifications may vary depending on hardware revision and configuration.
Recommended Related Models
Model
Description
RMIO-01C
Drive control board for ACS800 drives
RDCO-04C
Communication option module
RDCU-12C
Drive control unit module
RINT-5211C
Power interface board
PM783F
AC800M processor module
Popular ABB Models
Model
Module Type
PM583-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Power Supply Module
PP865A
Industrial Operator Panel
Applications
The ABB RUSB-02 adapter is used in industrial drive maintenance, commissioning, and monitoring systems.
Typical applications include:
ABB variable frequency drive configuration
Industrial motor drive diagnostics
Firmware updates for drive controllers
Parameter tuning and performance optimization
Drive system monitoring and troubleshooting
Manufacturing automation systems
Power plant auxiliary drive systems
By connecting directly to ABB drive networks, engineers can quickly analyze faults, adjust drive parameters, and monitor system performance in real time.
Advantages
Direct PC-to-Drive Communication
Provides a fast and reliable connection between USB-based computers and ABB drive networks.
Support for ABB Drive Software
Fully compatible with ABB diagnostic tools such as DriveWindow and DriveAP for configuration and monitoring.
High-Speed Data Exchange
USB 2.0 and Ethernet connectivity enable efficient communication and system diagnostics.
Flexible Installation
Compact adapter design allows easy connection during commissioning or maintenance tasks.
Industrial-Grade Reliability
Designed to operate in demanding industrial environments with wide temperature tolerance.
Improved Maintenance Efficiency
Enables engineers to troubleshoot and configure drives without opening drive cabinets or modifying hardware connections.
Technical FAQs
1. What is the main function of the ABB RUSB-02?
It connects a PC to ABB industrial drives for configuration, monitoring, and diagnostics.
2. Which ABB drive series are compatible with the RUSB-02?
ACS600, ACS800, ACS6000, and DCS600 drive systems.
3. What interface does the adapter use to connect to a PC?
USB 2.0.
4. How does it connect to the drive system?
Through dual DDCS fiber-optic ports.
5. Which software works with the RUSB-02?
ABB DriveWindow and DriveAP software.
6. What operating systems are supported?
Windows 7 and Windows 10.
7. What is the operating temperature range?
−20 °C to +70 °C.
8. What are the dimensions of the module?
104 × 80 × 40 mm.
9. What is the weight of the adapter?
Approximately 0.48 kg.
10. Why use the ABB RUSB-02 adapter?
It provides an efficient and reliable method for drive configuration, diagnostics, and maintenance in ABB motor drive systems.
