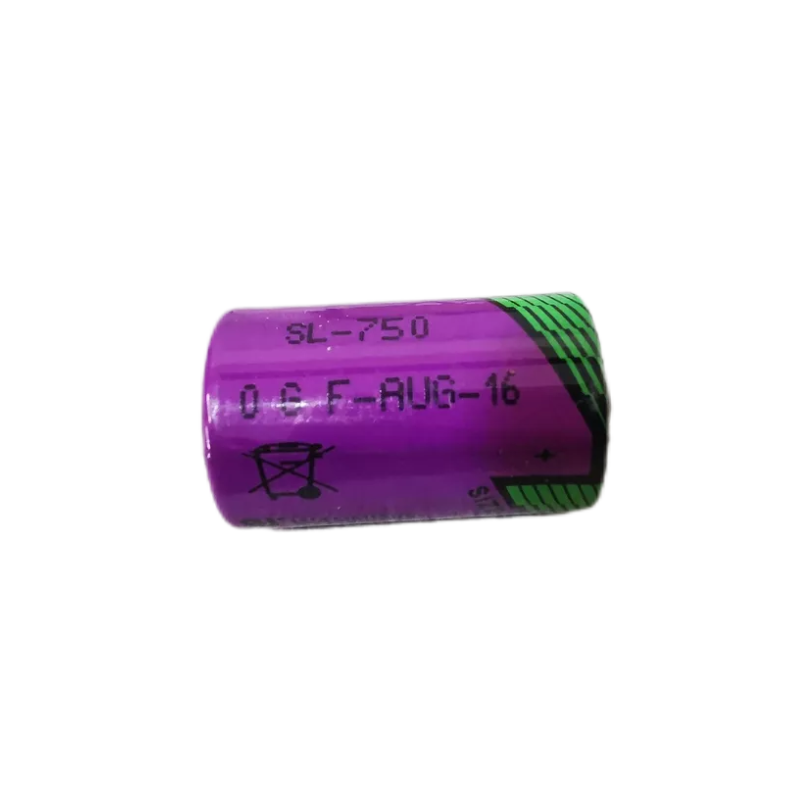

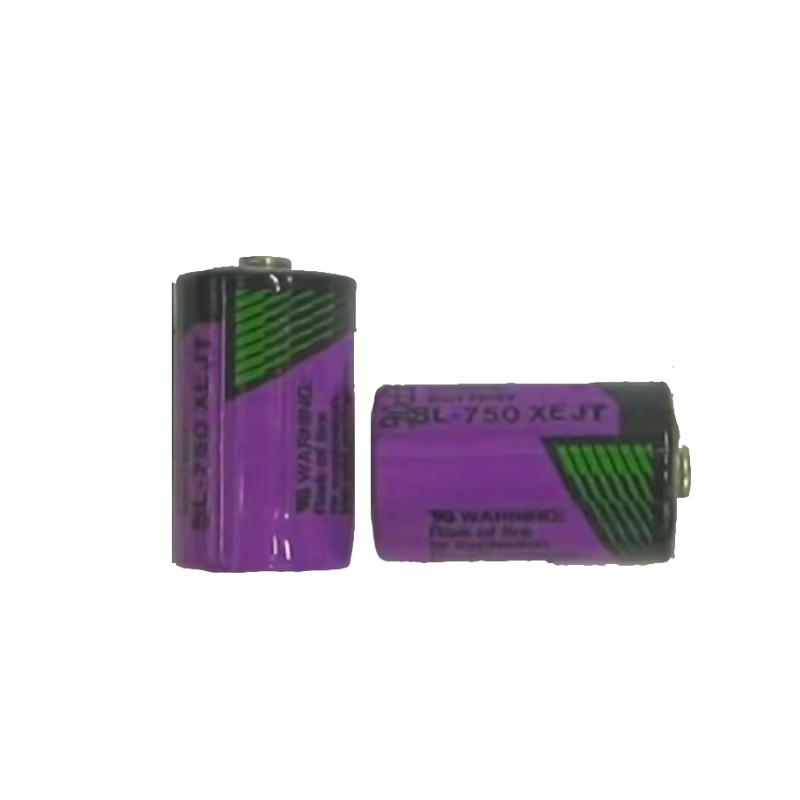

ABB SB 808F Backup Battery Module for AC 800F Controller Systems
ABB SB 808F Backup Battery Module for AC 800F Controller Systems
0.0
Points
Brand:ABB PLC Item No.:ABB SB 808F Product Origin:Sweden Product Dimensions:95 × 60 × 35 mm Product Weight:0.18 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB SB 808F Backup Battery Module is a dedicated power backup component designed to support controller memory and system data retention in industrial automation platforms. Developed for use with ABB control systems, the SB 808F ensures that critical configuration parameters, operational data, and process settings remain محفوظ even during unexpected power interruptions.
In modern automation environments, system reliability depends not only on processing capability but also on the ability to maintain data integrity. The SB 808F provides a stable backup energy source for controller memory circuits, preventing loss of essential system information during shutdowns or power failures.
Compact, reliable, and easy to install, this module is widely used in distributed control systems and industrial controller architectures where uninterrupted data protection is required.
Technical Specifications
Parameter
Specification
Model
SB 808F
Product Type
Backup Battery Module
Manufacturer
ABB
Compatible Systems
AC 800F Controller Platform
Battery Type
Industrial Lithium Backup Battery
Output Voltage
3.6 V DC
Battery Capacity
Long-life memory retention battery
Installation
Plug-in controller module
Operating Temperature
−20 °C to +60 °C
Storage Temperature
−40 °C to +85 °C
Protection Design
Industrial-grade electronic protection
Dimensions (L × W × H)
95 × 60 × 35 mm
Weight
0.18 kg
Recommended Related Models
Model
Module Type
SA811F
Power Supply Module
PM802F
Controller CPU Module
PM803F
Advanced Controller Module
EI813F
Ethernet Communication Module
FI830F
Fieldbus Interface Module
Popular ABB Models
Model
Module Type
PM783F
Processor Module
PM901F
Controller CPU Module
RMIO-01C
Motor Interface Module
RDCU-12C
Drive Control Unit
RUSB-02
Communication Interface Module
Applications
The ABB SB 808F Backup Battery Module is designed for industrial control environments where maintaining system data during power interruptions is essential for operational continuity.
Typical application areas include:
Distributed control systems (DCS)
Industrial automation controllers
Process control systems
Power generation facilities
Manufacturing automation equipment
Oil and gas production systems
Chemical and petrochemical plants
By preserving controller memory and configuration data, the module helps reduce system restart time and ensures that automation processes can resume quickly after power restoration.
Advantages
Reliable Data Protection
The module safeguards controller memory, preventing loss of critical system parameters during power outages.
Stable Backup Power Source
Provides consistent low-voltage backup energy designed specifically for memory retention circuits.
Compact and Easy Installation
The small plug-in design allows simple integration into compatible controller modules without complex wiring.
Industrial Durability
Designed for long service life and stable performance under varying environmental conditions.
Improved System Availability
Helps minimize downtime by ensuring that stored configurations and program data remain intact.
Low Maintenance Operation
Long-life battery technology reduces replacement frequency and maintenance requirements.
Technical FAQs
1. What is the purpose of the ABB SB 808F module?
It provides backup battery power to maintain controller memory and stored system data during power outages.
2. Which systems use the SB 808F battery module?
It is typically used with ABB AC 800F controller systems.
3. What type of battery does the module use?
It uses an industrial lithium battery designed for long-term memory retention.
4. What is the output voltage of the module?
The backup battery provides approximately 3.6 V DC.
5. What happens if the battery fails?
If the battery is depleted, controller memory data may be lost during power interruptions.
6. What are the physical dimensions of the module?
The module measures 95 × 60 × 35 mm.
7. What is the approximate weight?
The module weighs about 0.18 kg.
8. Is the battery replaceable?
Yes, the module is designed to allow battery replacement during maintenance intervals.
9. What industries commonly use this module?
Power generation, manufacturing, process automation, and energy industries.
10. Why is a backup battery important in automation systems?
It protects configuration data and operational parameters, ensuring systems can quickly resume normal operation after power restoration.
