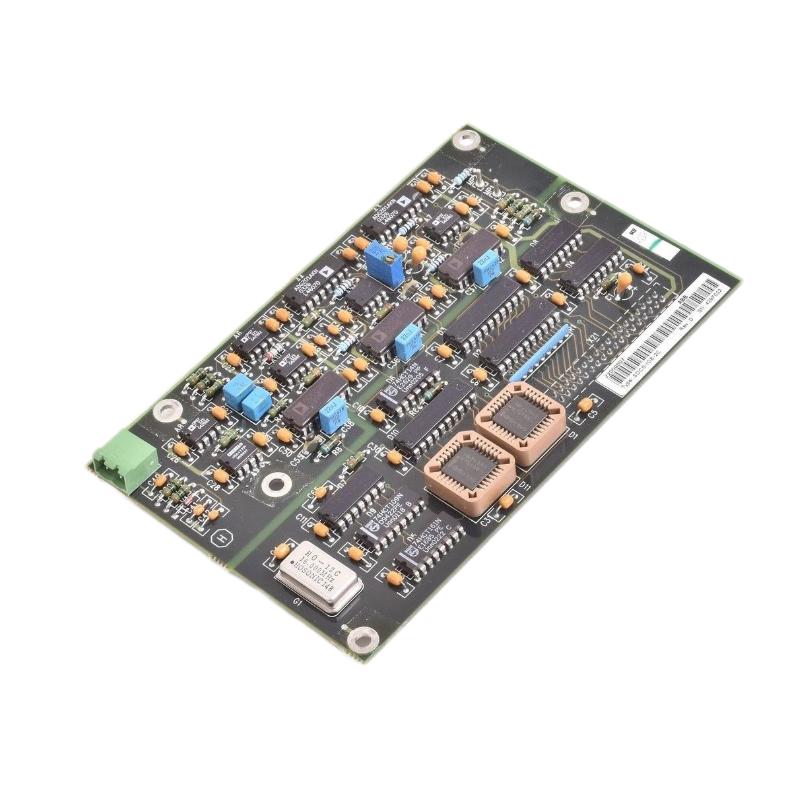

The ABB SDCS-IOE-2 is a high-performance input/output expansion board developed for ABB DC drive control platforms. Designed to enhance system scalability and signal management, this module allows engineers to extend the I/O capacity of existing drive systems without modifying the core architecture.
In modern industrial automation environments, drive systems often need to connect to multiple sensors, switches, and control devices. The SDCS-IOE-2 solves this challenge by providing additional I/O channels and reliable signal conditioning capabilities. Its robust electronic design ensures stable communication between the control board and field equipment, even in environments with electrical noise or heavy industrial loads.
Engineers frequently deploy the SDCS-IOE-2 in ABB DCS500 and DCS800 drive systems where precise signal acquisition and responsive control are essential for maintaining production efficiency. By enabling seamless integration with ABB automation infrastructure, the module helps improve system flexibility, reliability, and long-term operational stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-IOE-2 |
| Module Type | Input / Output Expansion Board |
| Application | ABB DCS500 / DCS800 Drive Systems |
| Power Supply | 24 V DC |
| Communication Protocols | Modbus RTU, CANopen |
| Signal Support | Digital and Analog I/O |
| Operating Temperature | -20°C to +60°C |
| Humidity Range | 5% – 95% (Non-condensing) |
| Mounting Method | Drive Rack / Control Cabinet |
| Dimensions | 150 × 120 × 20 mm |
| Weight | 0.11 kg |
The SDCS-IOE-2 is designed to expand I/O capacity in ABB drive systems and allow additional sensors and actuators to be connected for enhanced process control.
Recommended Related Models
The following ABB modules are commonly installed together with the SDCS-IOE-2 in drive control architectures:
| Model | Module Type |
|---|---|
| ABB SDCS-CON-2A | Drive Control Board |
| ABB SDCS-COM-5 | Communication Interface Module |
| ABB SDCS-FEX-32A | Fieldbus Expansion Board |
| ABB SDCS-DSL-4 | Drive Signal Link Module |
| ABB SDCS-IOB-23 | I/O Interface Board |
| ABB SDCS-FIS-31 | Signal Interface Board |
These modules help engineers build scalable and flexible industrial drive control systems.
Popular ABB Models
Many industrial automation projects integrate the SDCS series with the following widely used ABB modules:
| Model | Category |
|---|---|
| ABB PM891 | Processor Module |
| ABB PM866 | Controller Unit |
| ABB CI840A | Communication Interface |
| ABB AI830A | Analog Input Module |
| ABB DI810 | Digital Input Module |
| ABB DO820 | Digital Output Module |
Together, these devices form the foundation of reliable ABB PLC and DCS automation infrastructures.
