Brand:Yokogawa Electric Item No.:ADV569-P50 Product Origin:Japan Product Dimensions:130 x 127.2 x 32.8 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

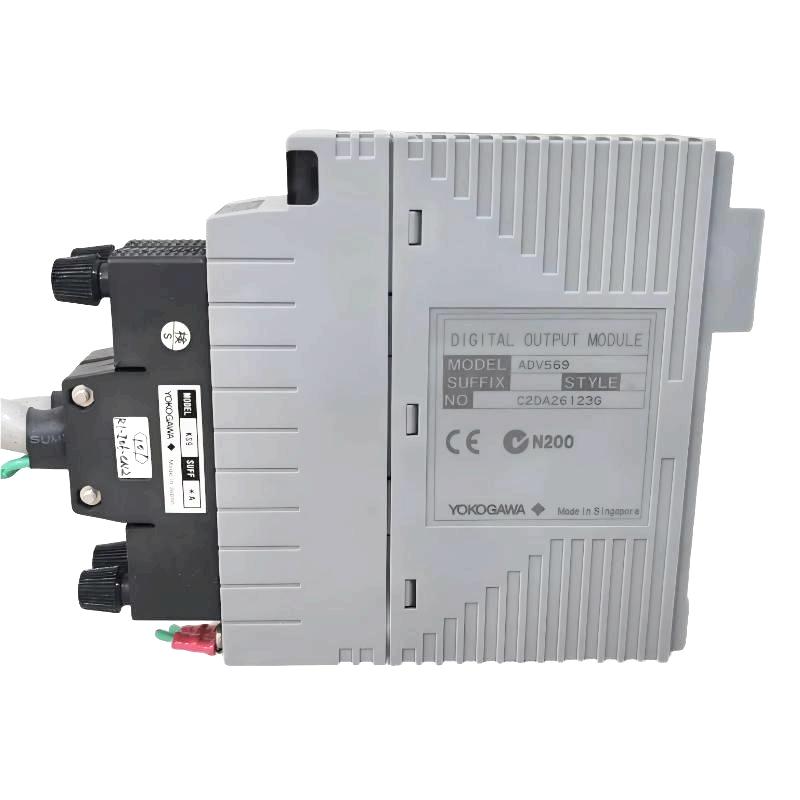

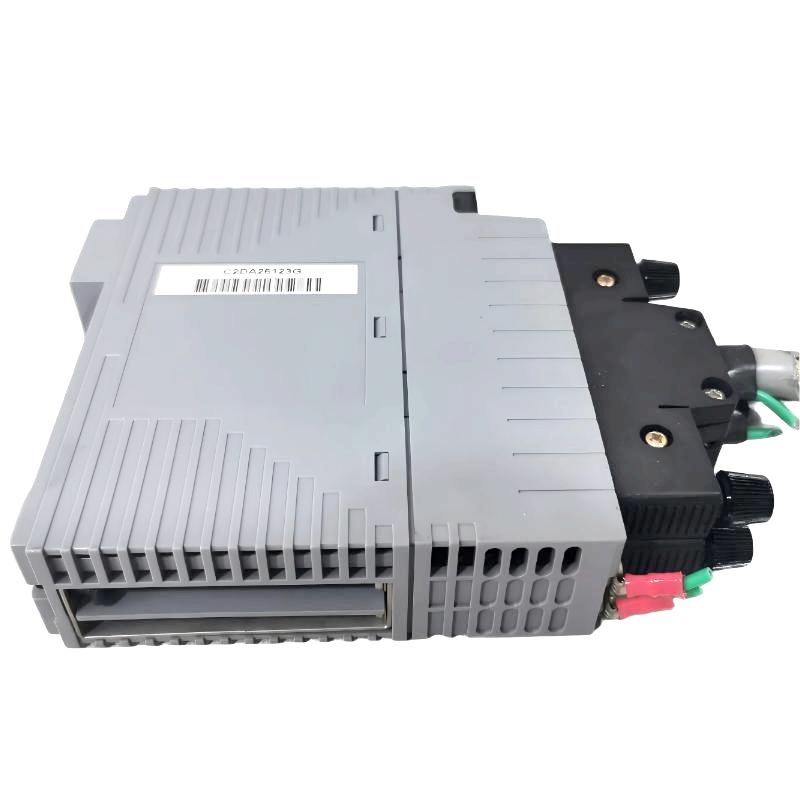

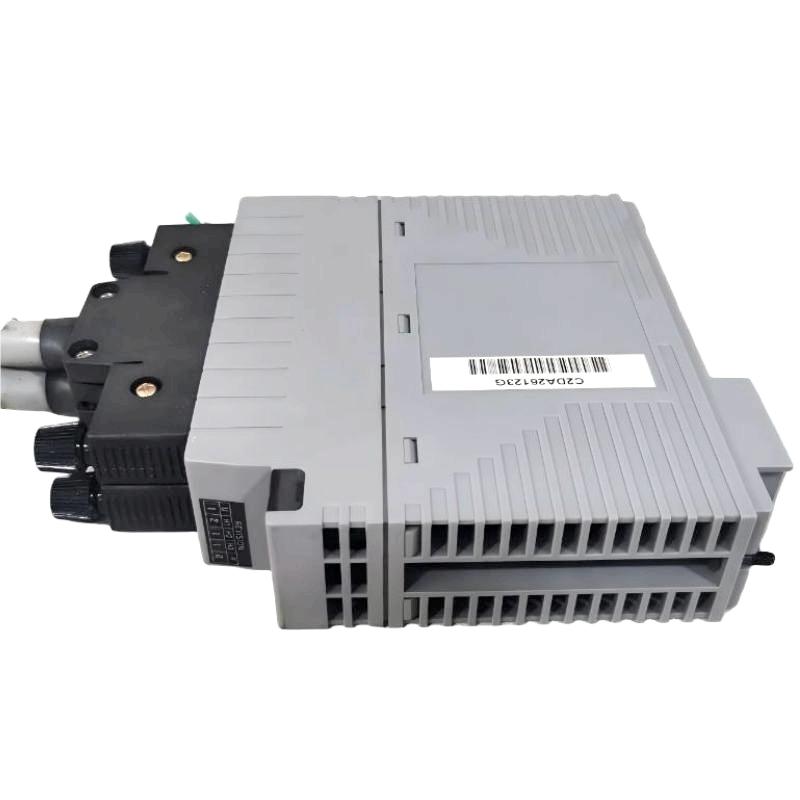

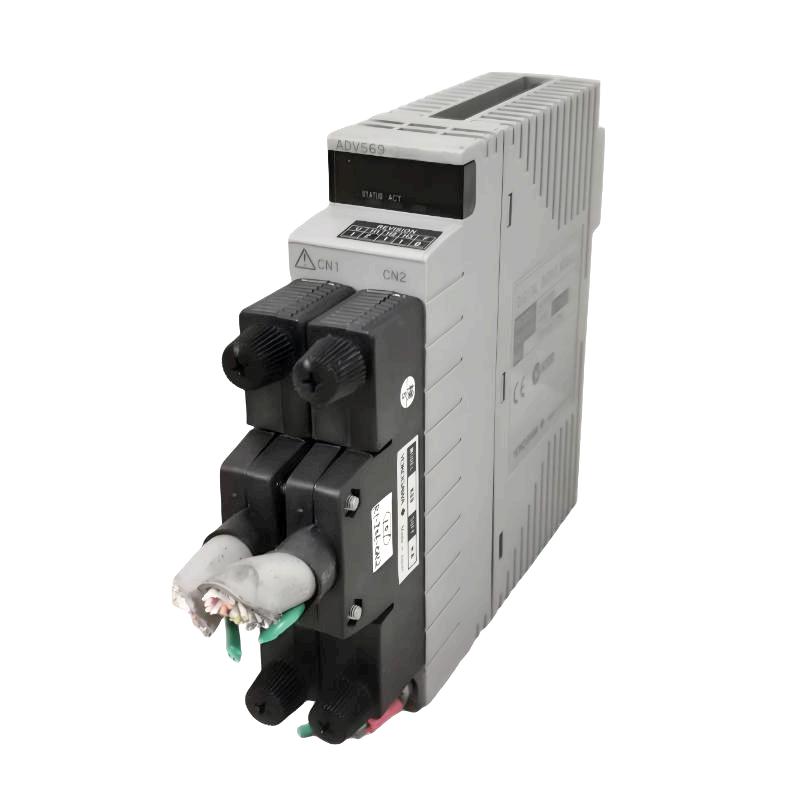

The ADV569-P50 Digital I/O Module is a high-performance interface solution engineered to connect field-level digital signals with advanced automation systems. It enables precise monitoring and control, ensuring consistent system performance in mission-critical applications. Its compact design and reliable construction make it a preferred choice for industries requiring both efficiency and durability.
Technical Specifications
Parameter
Specification
Model
ADV569-P50
I/O Type
Digital Input / Output
Rated Voltage
24 V DC
Isolation
Channel-to-channel isolation
Response Time
Millisecond-level
Mounting
Rack-mounted
Operating Temperature
0°C to 60°C
Storage Temperature
-20°C to 70°C
Dimensions
130 x 127.2 x 32.8 mm
Weight
0.3 kg
Compatible and Complementary Options
Model
Product Name
ADV159-P00
Digital Input Module
ADV559-P00
Digital Output Module
AAI543-H00
Analog Input Module
AAR145-S00
Analog Output Module
Frequently Selected Alternatives
Model
Product Name
ADV151-P10
Digital Input Module
ADV551-P10
Digital Output Module
ADV561-P00
Combined Digital I/O Module
ADV869-P00
Safety Digital I/O Module
Applications
• Distributed Control Systems (DCS) – Reliable signal exchange between field devices and controllers
• Power generation systems – Stable monitoring and control of power processes
• Oil & gas facilities – Handles digital signals in demanding environments
• Chemical processing plants – Accurate control in complex workflows
• Manufacturing automation – Smooth machine coordination and control
Key Advantages
• High signal integrity – Stable and accurate data transmission
• Easy system integration – Seamless compatibility with Yokogawa platforms
• Durable construction – Built for long-term industrial operation
• Fast response – Supports real-time control applications
FAQs
1. What types of digital signals are supported?
The module supports standard industrial digital input and output signals for automation systems.
2. Can the module operate in redundant configurations?
Yes, it is suitable for redundant system setups to enhance reliability and uptime.
3. How is the module configured?
Configuration is performed using Yokogawa’s engineering tools within the control system environment.
4. Does it support hot-swapping?
Yes, it can typically be replaced without shutting down the entire system.
5. What kind of isolation is implemented?
It features electrical isolation between channels to protect signal integrity.
6. Is it suitable for harsh industrial environments?
Yes, it is designed to withstand challenging conditions including electrical noise and temperature variations.
7. What is the response time performance?
The module provides fast switching speeds suitable for real-time automation processes.
8. Does it require periodic calibration?
No, digital modules like this generally do not require routine calibration.
9. Which systems is it compatible with?
It is fully compatible with Yokogawa distributed control systems.
10. How does it maintain signal stability?
Through integrated filtering and high-quality circuit design that minimizes interference.
