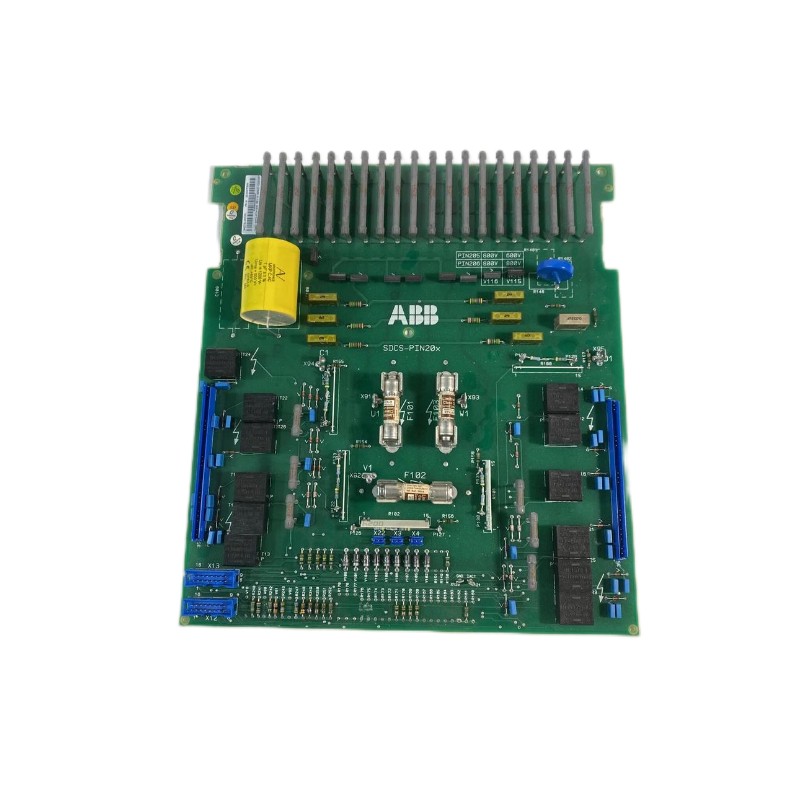

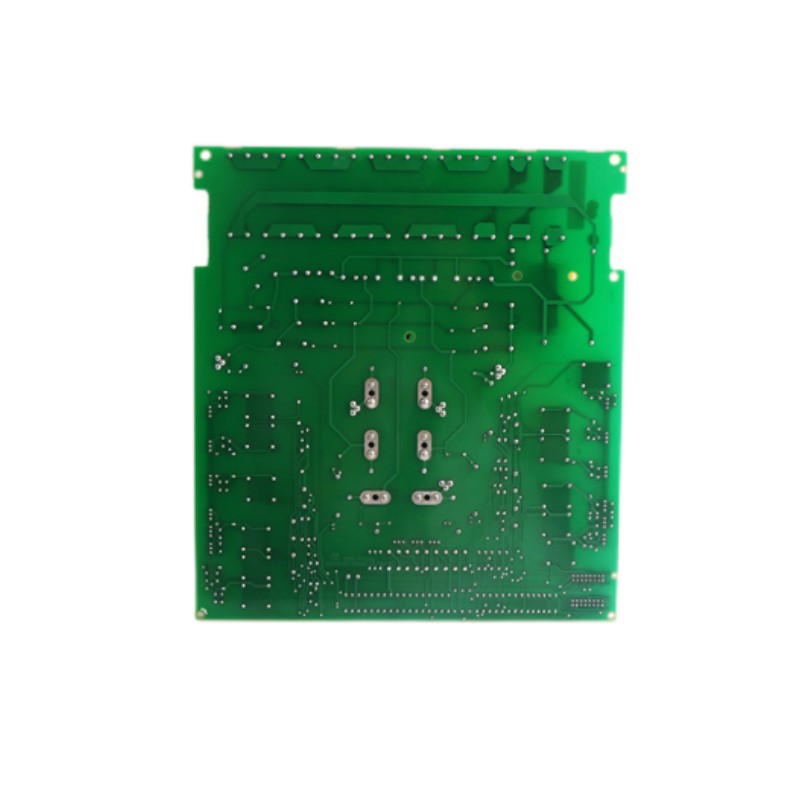

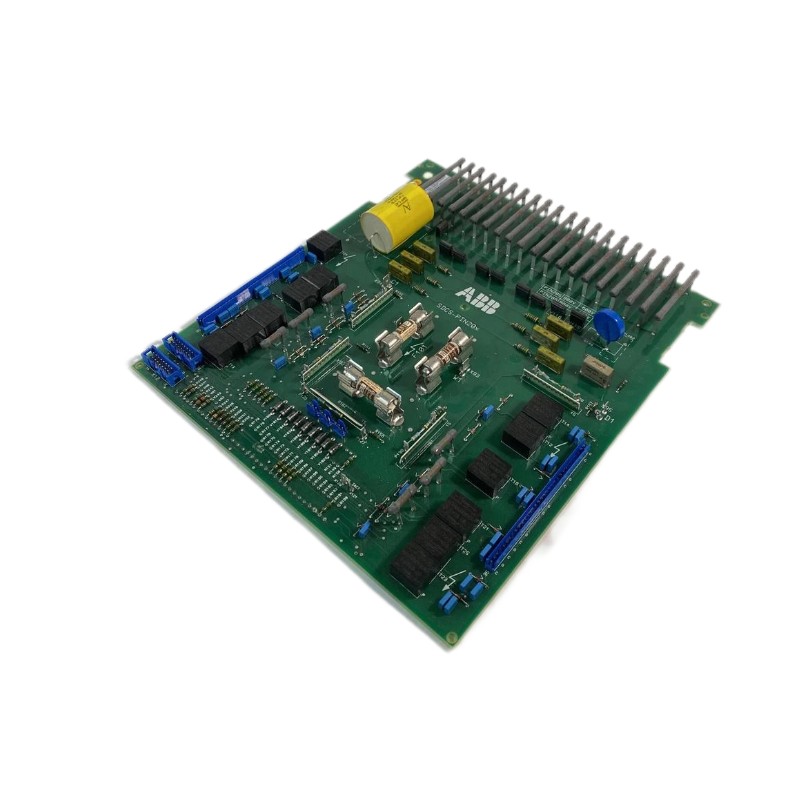

The ABB SDCS-PIN-205 is a high-performance power interface board designed for ABB DC drive control platforms. It functions as a critical interface between the drive’s control electronics and power conversion circuitry, enabling stable signal processing and reliable energy distribution within the drive system.
In industrial drive architectures, precise handling of voltage and current feedback signals is essential for maintaining stable motor operation. The SDCS-PIN-205 processes analog and digital feedback signals, isolates high-voltage inputs, and converts them into safe control signals that can be interpreted by the drive controller. This ensures accurate monitoring of electrical parameters such as generator voltage, stator current, and synchronization signals.
Designed as part of ABB’s SDCS board family, the module integrates seamlessly with ABB DCS500 and DCS600 DC drive systems and excitation control platforms. Its robust industrial design ensures dependable performance even in harsh environments such as steel mills, power plants, and heavy manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-205 |
| Module Type | Power Interface Board |
| Primary Function | Signal conditioning and power interface for drive control |
| Compatible Systems | ABB DCS500 / DCS600 DC Drives |
| Input Voltage | 24 V DC / 48 V DC / 230 V AC / 380-480 V AC |
| Output Voltage | Typically 24 V DC for control circuits |
| Channels | 16 Analog Input Channels |
| Communication Interface | Dual RS-485 / Modbus compatible |
| Power Consumption | Approx. 5 W |
| Protection Features | Over-voltage protection and signal isolation |
| Operating Temperature | −20°C to +55°C |
| Dimensions | 220 × 130 × 45 mm |
| Weight | 0.70 kg |
The module ensures stable signal acquisition and electrical isolation, protecting the drive controller from high-voltage feedback signals and electrical interference.
Recommended Related Models
When maintaining or expanding ABB DC drive systems, the following modules are commonly used together with the SDCS-PIN-205:
| Model | Module Type |
|---|---|
| ABB SDCS-CON-2A | Main Drive Control Board |
| ABB SDCS-POW-1 | Power Supply Board |
| ABB SDCS-DSL-4 | Drive Signal Link Board |
| ABB SDCS-IOB-21 | Input/Output Interface Board |
| ABB SDCS-FEX-2A | Fieldbus Expansion Module |
| ABB SDCS-COM-5 | Communication Interface Module |
These components form the internal control architecture of ABB DC drive platforms.
