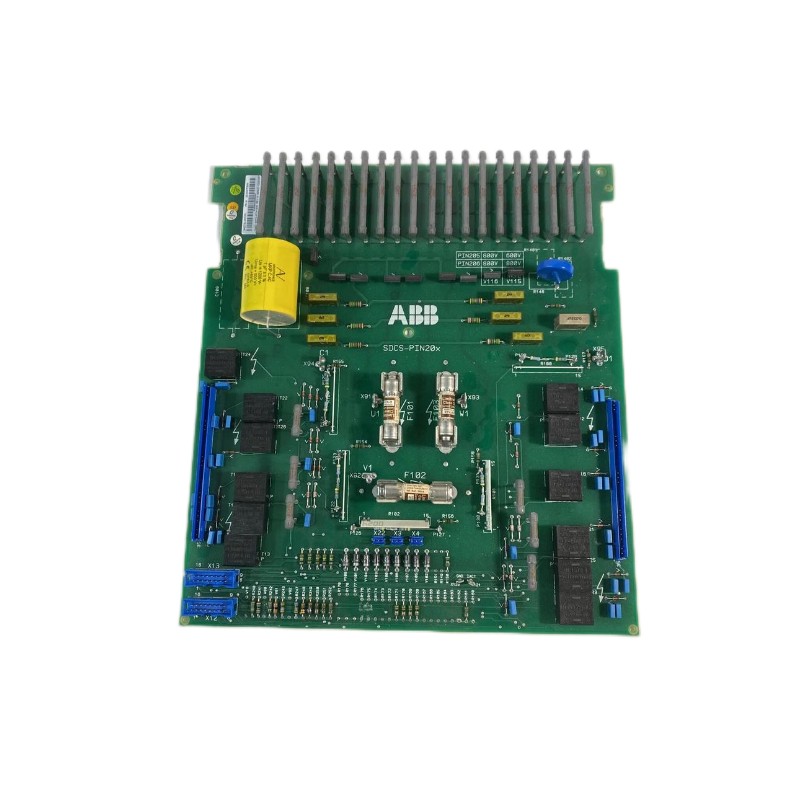

The ABB SDCS-PIN-205C is an industrial power interface board designed for ABB DC drive converter systems. As part of the SDCS control board family, this module connects the drive’s control electronics with its high-power converter stage, enabling safe signal transmission and stable electrical regulation within the drive cabinet.
In high-power motor drive applications, precise monitoring of voltage and current signals is essential. The SDCS-PIN-205C performs signal conditioning and electrical isolation so that feedback from high-voltage circuits—such as generator terminal voltage or current transformers—can be safely processed by the drive controller. This ensures reliable motor regulation and protects sensitive control electronics from electrical disturbances.
The module is commonly integrated into ABB DCS500 and DCS600 DC drive systems as well as certain excitation control platforms. With its rugged construction and industrial-grade components, the board supports continuous operation in demanding environments such as steel mills, power plants, and heavy manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-205C |
| Module Type | Power Interface Board |
| Primary Function | Signal conditioning and power interface for drive converters |
| Compatible Systems | ABB DCS500 / DCS600 DC Drive Systems |
| Signal Types | Analog and digital feedback signals |
| Voltage Inputs | High-voltage measurement inputs (VT/PT) and current transformer signals |
| Isolation | Galvanic isolation between power and control circuits |
| Communication Interface | Internal drive system interface |
| Operating Temperature | −20°C to +55°C |
| Storage Temperature | −40°C to +85°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Dimensions | 220 × 130 × 45 mm |
| Weight | 0.70 kg |
The module provides electrical isolation and signal conditioning so that high-voltage feedback signals can be safely processed by the control system.
Recommended Related Models
The SDCS-PIN-205C is often used together with other SDCS control boards in ABB DC drive systems.
| Model | Module Type |
|---|---|
| ABB SDCS-CON-2A | Main Drive Control Board |
| ABB SDCS-DSL-4 | Drive Signal Link Module |
| ABB SDCS-FEX-2A | Fieldbus Expansion Module |
| ABB SDCS-COM-5 | Communication Interface Module |
| ABB SDCS-IOB-21 | I/O Interface Board |
| ABB SDCS-PIN-11 | Pulse Interface Control Board |
These modules work together to form the internal control and communication architecture of ABB DC drive platforms.
