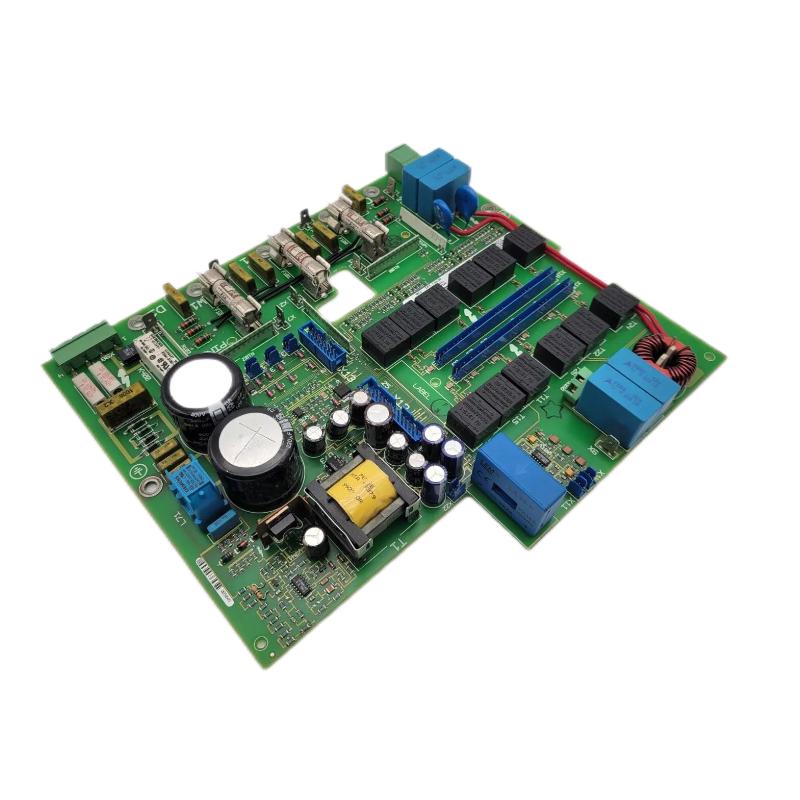

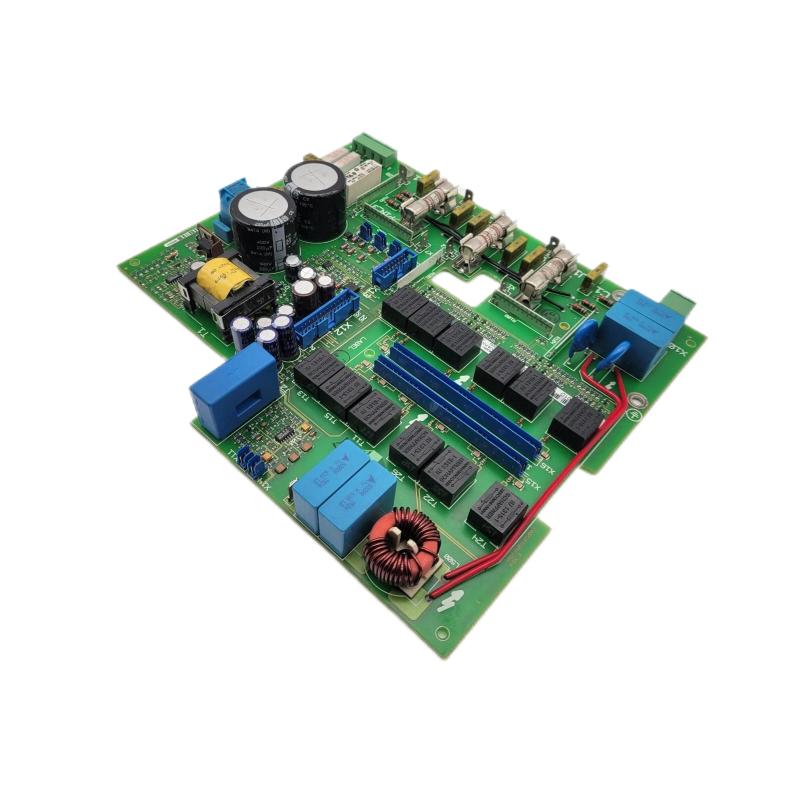

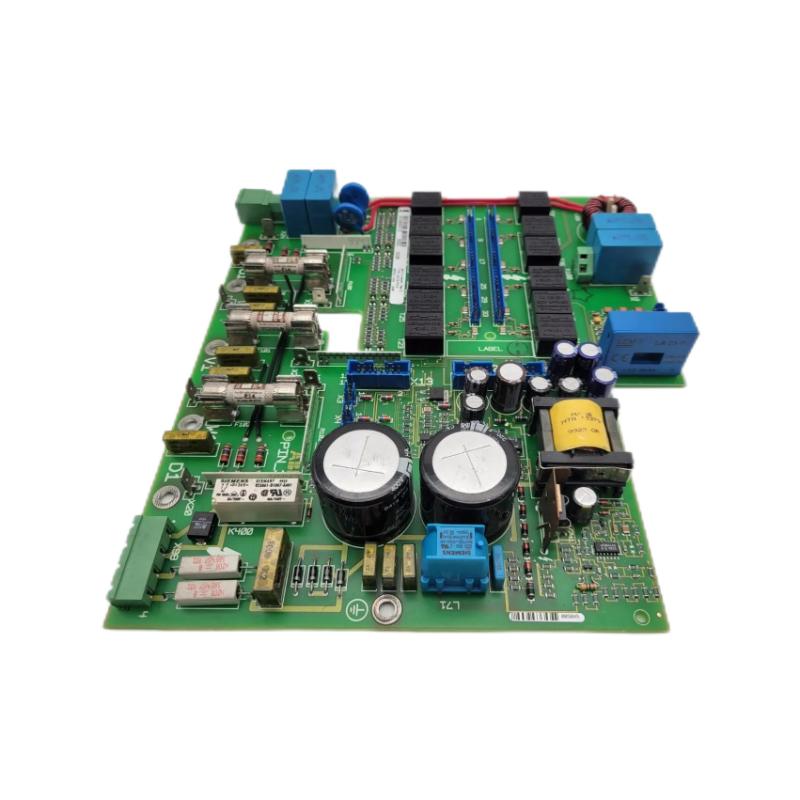

The ABB SDCS-PIN-3 is a power interface board developed for ABB industrial DC drive systems. It functions as a critical connection point between the drive’s high-power converter stage and the control electronics, enabling accurate transmission of electrical feedback signals within the drive architecture.
In high-power motor control environments, stable monitoring of voltage and current signals is essential for maintaining consistent motor speed, torque regulation, and system protection. The SDCS-PIN-3 performs signal conditioning and electrical interfacing so that measurement signals from the power circuits can be safely processed by the drive control unit. This ensures that the control system receives reliable feedback for precise drive operation.
Installed within the control cabinet of ABB DC drive platforms, the module operates together with control boards, communication interfaces, and I/O modules. Its rugged design and dependable electrical isolation make it suitable for demanding industrial applications such as metal processing, heavy machinery operation, and continuous process manufacturing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-PIN-3 |
| Module Type | Power Interface Board |
| Primary Function | Signal conditioning and power interface for drive systems |
| Compatible Systems | ABB DC Drive Control Platforms |
| Signal Types | Analog and digital feedback signals |
| Isolation | Galvanic isolation between power circuits and control electronics |
| Communication Interface | Internal drive system interface |
| Operating Temperature | −20°C to +55°C |
| Storage Temperature | −40°C to +85°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Dimensions | 220 × 130 × 45 mm |
| Weight | 0.60 kg |
The module ensures reliable signal transfer between high-power drive components and the low-voltage control system while maintaining electrical isolation and operational safety.
Recommended Related Models
The SDCS-PIN-3 is frequently used together with other SDCS series modules within ABB DC drive systems.
| Model | Module Type |
|---|---|
| ABB SDCS-CON-2A | Main Drive Control Board |
| ABB SDCS-COM-5 | Communication Interface Module |
| ABB SDCS-DSL-4 | Drive Signal Link Module |
| ABB SDCS-IOB-21 | I/O Interface Board |
| ABB SDCS-FEX-2A | Fieldbus Expansion Module |
| ABB SDCS-PIN-205C | Power Interface Board |
These modules form a coordinated internal control network that supports reliable drive system operation.
