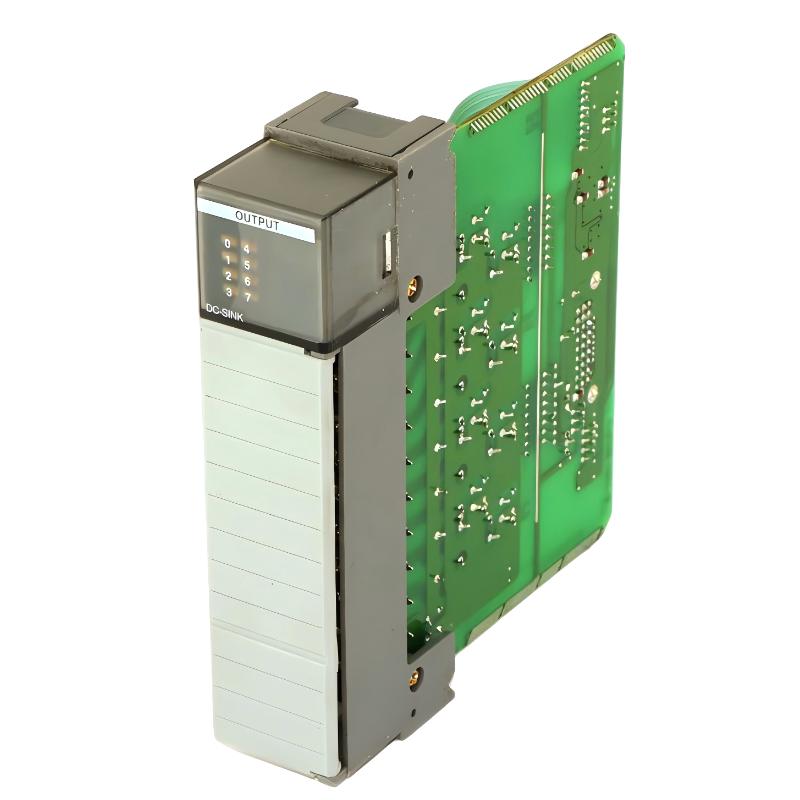

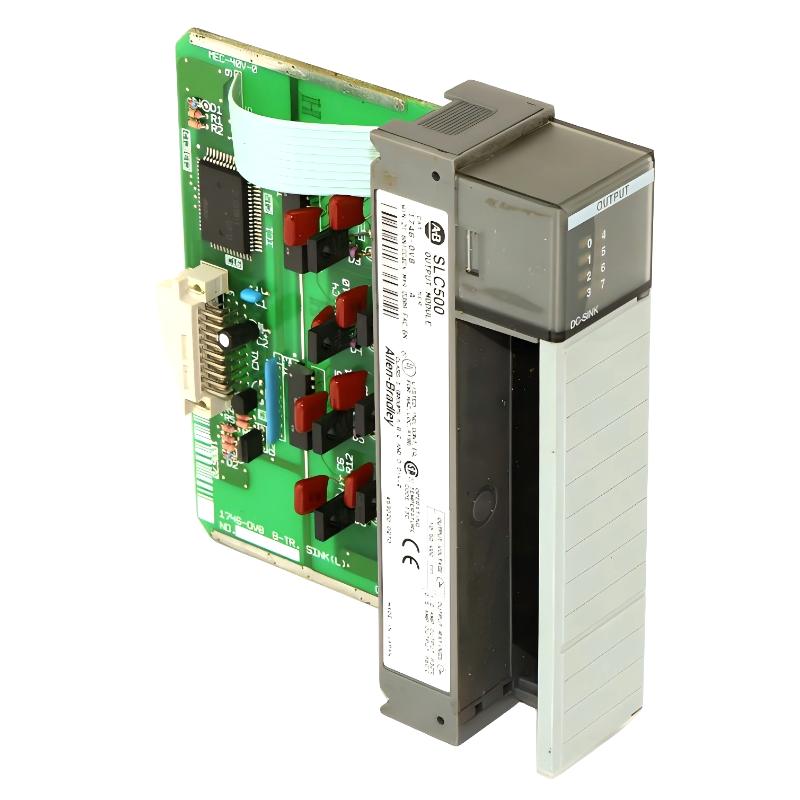

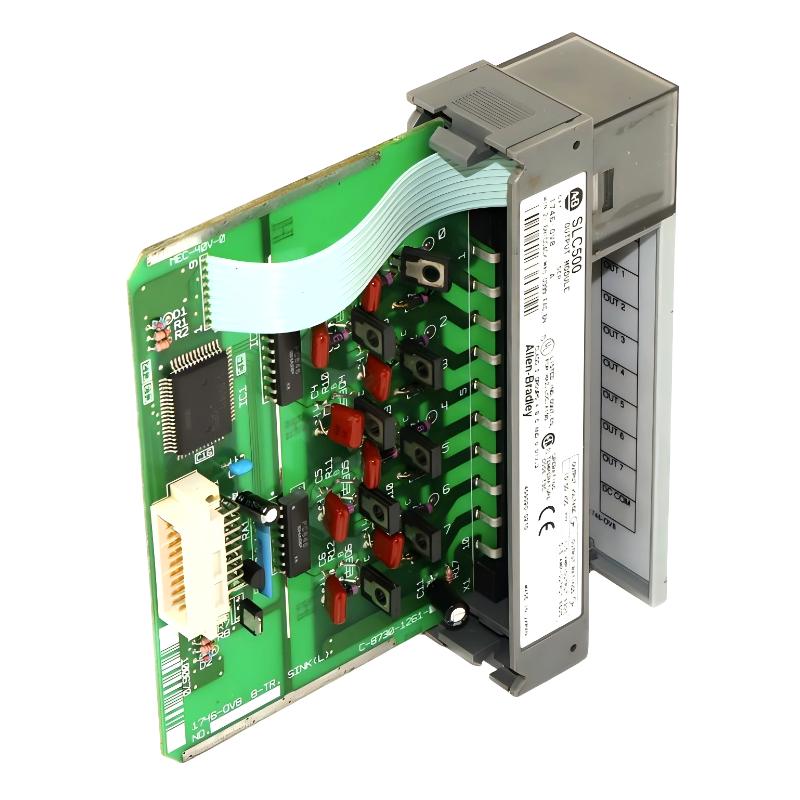

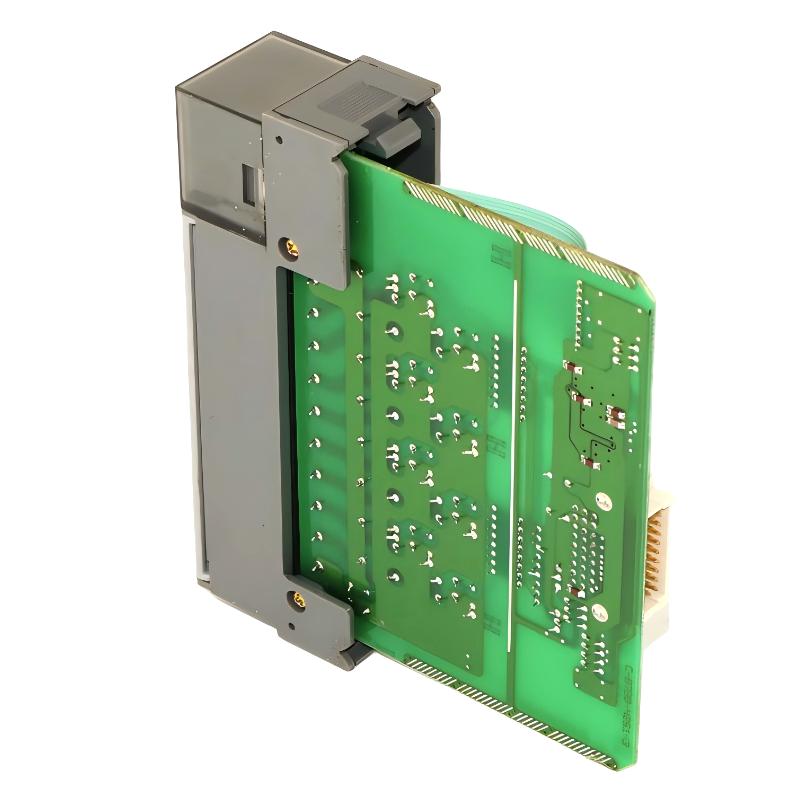

Allen Bradley 1746-OV8 SLC 500 Digital Output Module
Allen Bradley 1746-OV8 SLC 500 Digital Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1746-OV8 Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.16 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1746-OV8 SLC 500 Digital Output Module is designed to deliver reliable, high-speed control of industrial actuators, lights, and relays. Compatible with the SLC 500 PLC platform, this compact and rugged module ensures accurate digital output switching for automation and process control applications. Built-in diagnostics simplify maintenance and troubleshooting, making it a dependable choice for expanding or replacing digital output capabilities in industrial systems.
Technical Specifications
Specification
Details
Module Type
8-Channel Digital Output Module
Dimensions
144.5 × 34.6 × 130.18 mm
Weight
0.16 kg
Output Channels
8 digital outputs
Signal Type
Discrete ON/OFF
Mounting
SLC 500 chassis compatible
Operating Temperature
0°C to 60°C
Diagnostics
Built-in channel status and fault indicators
Recommended Related Models
Model
Product Name
Allen Bradley 1746-OB8
8-Channel Relay Output Module
Allen Bradley 1746-OW8
8-Channel Sinking Output Module
Allen Bradley 1746-I8
8-Channel Digital Input Module
Allen Bradley 1746-A8
Analog Output Module for SLC 500
Popular Related Models
Model
Product Name
Allen Bradley 1746-OV16
16-Channel Digital Output Module
Allen Bradley 1746-OB16
16-Channel Relay Output Module
Allen Bradley 1746-I16
16-Channel Digital Input Module
Allen Bradley 1746-AO8
8-Channel Analog Output Module
Applications
• Control of actuators, solenoids, and indicator lights in automation systems.
• Integration with Allen Bradley SLC 500 PLC platforms for reliable digital output.
• Interface with industrial machinery in manufacturing and processing plants.
• Automation of process control systems requiring precise ON/OFF signal management.
• Replacement or expansion of digital output capabilities in existing control panels.
Key Advantages
• Provides 8 high-speed digital output channels for versatile control applications.
• Compact form factor allows efficient panel space utilization.
• Robust industrial-grade construction ensures reliable operation in harsh environments.
• Easy installation reduces wiring errors and simplifies module replacement.
• Built-in diagnostics enable quick fault identification and system troubleshooting.
Technical FAQs
1. How many output channels does the 1746-OV8 module provide?
It provides 8 digital output channels for industrial control applications.
2. What type of signals can the module handle?
The module supports standard discrete ON/OFF digital signals.
3. Is it compatible with SLC 500 PLC systems?
Yes, it integrates seamlessly with Allen Bradley SLC 500 series controllers.
4. Can it operate in harsh industrial environments?
Yes, the module is built to withstand vibration, dust, and EMI conditions.
5. What is the module’s response time?
It provides rapid digital switching suitable for high-speed automation applications.
6. Are diagnostics available for fault detection?
Yes, the module includes built-in diagnostics for output channel status and faults.
7. How is the module mounted?
It is designed for standard SLC 500 chassis mounting.
8. Is configuration required before operation?
Minimal configuration is needed; the module is plug-and-play within the SLC 500 system.
9. Can it drive external relays or indicators directly?
Yes, the module can drive compatible industrial loads directly or through relays.
10. What isolation features are included?
The module includes isolation to protect the PLC and connected devices from voltage spikes.
