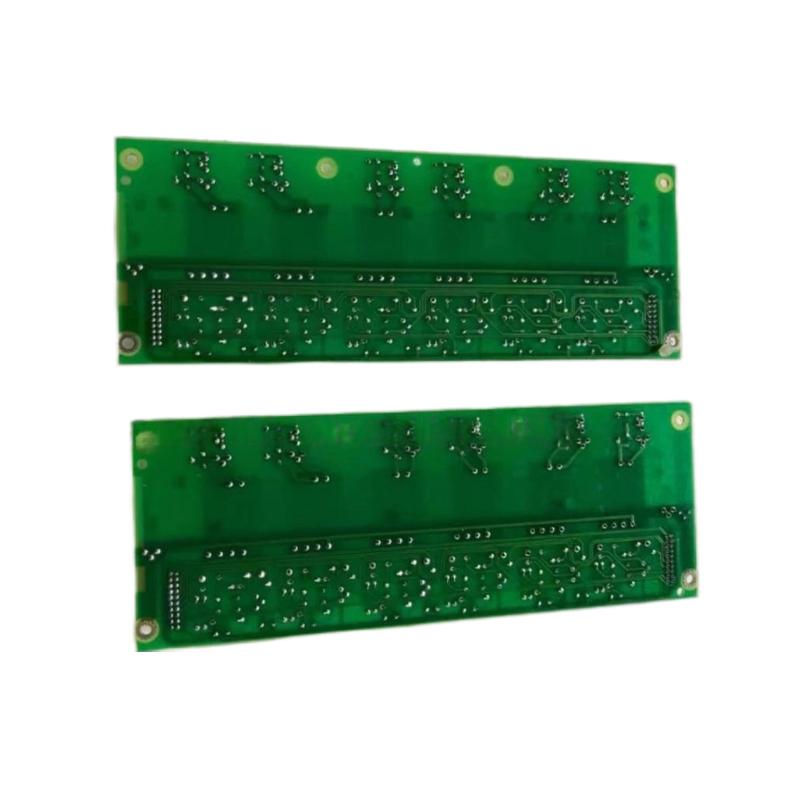

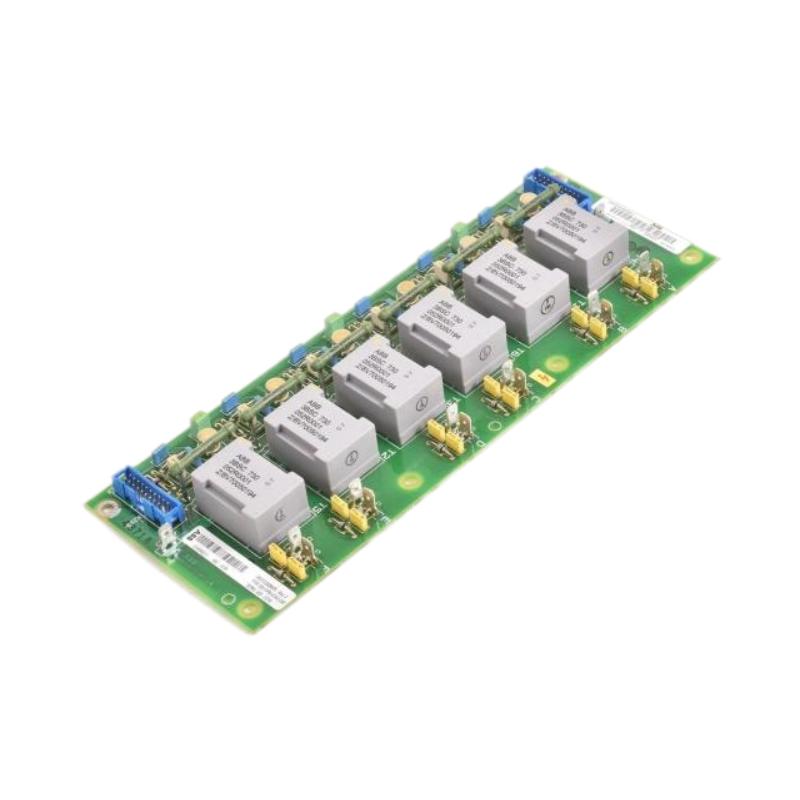

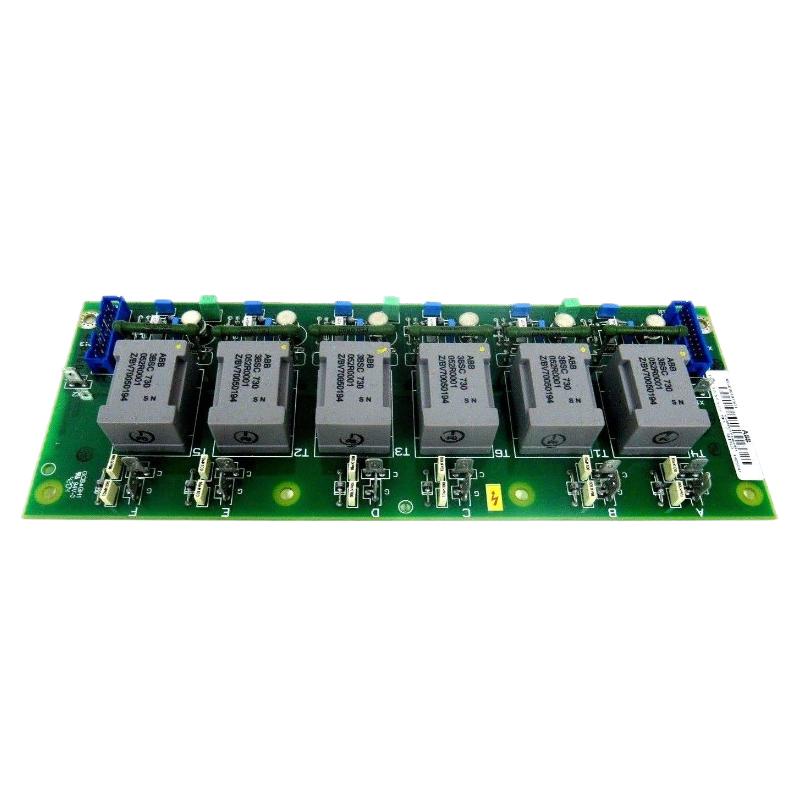

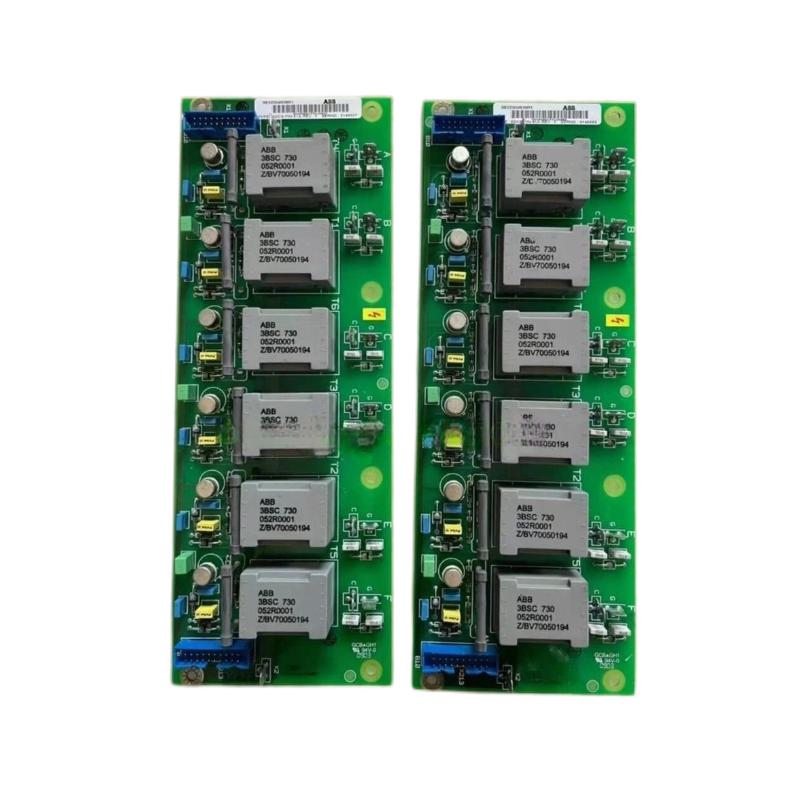

ABB SDCS-PIN-41A Pulse Transformer Module for Thyristor Drive Control Systems
ABB SDCS-PIN-41A Pulse Transformer Module for Thyristor Drive Control Systems
0.0
Points
Brand:ABB PLC Item No.:ABB SDCS-PIN-41A Product Origin:Sweden Product Dimensions:270 × 100 × 34 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB SDCS-PIN-41A Pulse Transformer Module is a specialized control board used in ABB industrial drive platforms to generate precise firing pulses for power semiconductor devices such as thyristors. This module is an important element within SDCS-based control architectures, ensuring accurate switching control and stable operation in high-power drive systems.
Designed for demanding automation environments, the SDCS-PIN-41A enables precise timing of trigger signals, which is essential for regulating current and maintaining safe drive operation. Its pulse-generation capability allows power converters and DC drives to operate efficiently while protecting the system from voltage transients and switching disturbances.
With a compact design and industrial-grade durability, this module is commonly deployed in heavy industrial sectors including metal processing, rolling mills, cranes, and high-power motor control applications. Its ability to support high braking currents and maintain accurate current regulation makes it a reliable component for modern industrial automation systems.
Technical Specifications
Parameter
Specification
Model
SDCS-PIN-41A
ABB Part Number
3BSE004939R0001 / 3BSE004939R1
Module Type
Pulse Transformer / Trigger Control Module
System Compatibility
ABB SDCS Drive Control Systems
Input Voltage
220 V AC
Output Frequency
Up to 30 kHz
Current Regulation Accuracy
±0.1%
Braking Current Capacity
Up to 600 A peak
Transient Protection
Up to 2000 V/μs
Protection Rating
IP54
Operating Temperature
−25°C to +70°C
Installation
Rack or drive cabinet slot mounting
Dimensions (L × W × H)
270 × 100 × 34 mm
Weight
0.30 kg
This module delivers stable pulse triggering and accurate control for high-power semiconductor switching devices.
Recommended Related Models
For maintenance, system upgrades, or spare parts planning, the following modules are frequently used alongside the SDCS-PIN-41A:
Model
Description
SDCS-PIN-3A
Power interface board for drive control systems
SDCS-PIN-3B
Signal interface module for SDCS drives
SDCS-PIN-4
Power interface board
SDCS-PIN-48
Trigger interface module for high-power drives
SDCS-PIN-205
Advanced drive interface module
Popular ABB Models
These ABB automation modules are widely used in industrial control and drive systems:
Model
Module Type
PM590-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Redundant Power Supply Module
PP865A
Industrial Operator Panel
Applications
The ABB SDCS-PIN-41A module is designed for high-power industrial automation environments where precise semiconductor control is required.
Typical application scenarios include:
DC motor drive control systems
Rolling mill automation equipment
Industrial crane and hoist control systems
Metallurgical production lines
Power conversion systems
Heavy-duty manufacturing automation
Regenerative braking control systems
Its ability to generate accurate firing pulses ensures stable control of thyristor-based power electronics.
Advantages
High-Precision Pulse Generation
The module provides accurate trigger signals that ensure precise switching control for power semiconductor devices.
Excellent Transient Protection
Built-in protection against voltage spikes improves system safety and long-term reliability.
High Current Handling Capability
Supports braking currents up to 600 A, making it suitable for demanding drive applications.
Industrial-Grade Durability
Designed to operate in harsh industrial environments with wide temperature tolerance.
Seamless Integration with ABB Drives
Compatible with multiple ABB drive platforms, enabling quick installation and efficient system maintenance.
Technical FAQs
1. What is the main function of the SDCS-PIN-41A module?
It generates trigger pulses for controlling thyristors or other power semiconductor devices in industrial drive systems.
2. Which systems typically use the SDCS-PIN-41A?
It is commonly used in ABB SDCS-based drive systems such as DC drives and high-power motor control platforms.
3. What input voltage does the module require?
The module typically operates with a 220 V AC input.
4. What is the maximum braking current supported?
The module can handle braking currents up to approximately 600 A peak.
5. What protection features are included?
It provides protection against voltage transients up to 2000 V/μs.
6. What is the operating temperature range?
The module operates reliably from about −25°C to +70°C.
7. Is the SDCS-PIN-41A suitable for high-power industrial drives?
Yes, it is specifically designed for high-power drive and automation applications.
8. Can the module be easily installed in drive cabinets?
Yes, it supports modular installation within ABB drive control racks.
9. What industries commonly use this module?
Industries such as metallurgy, manufacturing, power generation, and heavy machinery automation.
10. What are the key benefits of using the SDCS-PIN-41A?
Precise trigger control, high current capability, strong reliability, and seamless compatibility with ABB drive systems.
