ABB SDCS-PIN-48-SD Pulse Transformer Board for ABB DCS800 Drive Systems
ABB SDCS-PIN-48-SD Pulse Transformer Board for ABB DCS800 Drive Systems
0.0
Points
Brand:ABB PLC Item No.:ABB SDCS-PIN-48-SD Product Origin:Sweden Product Dimensions:160 × 160 × 120 mm Product Weight:0.328 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

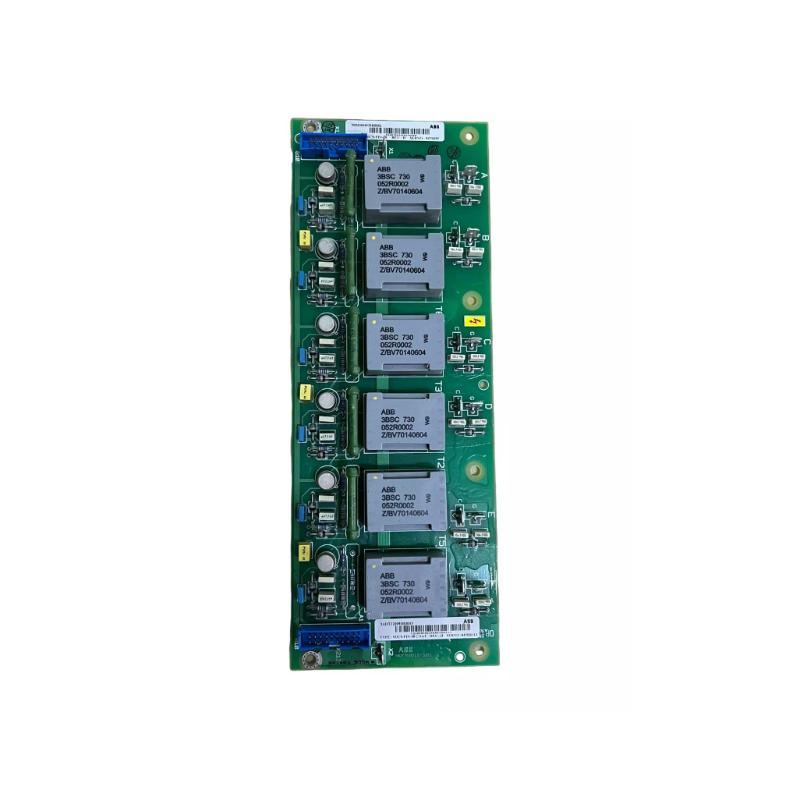

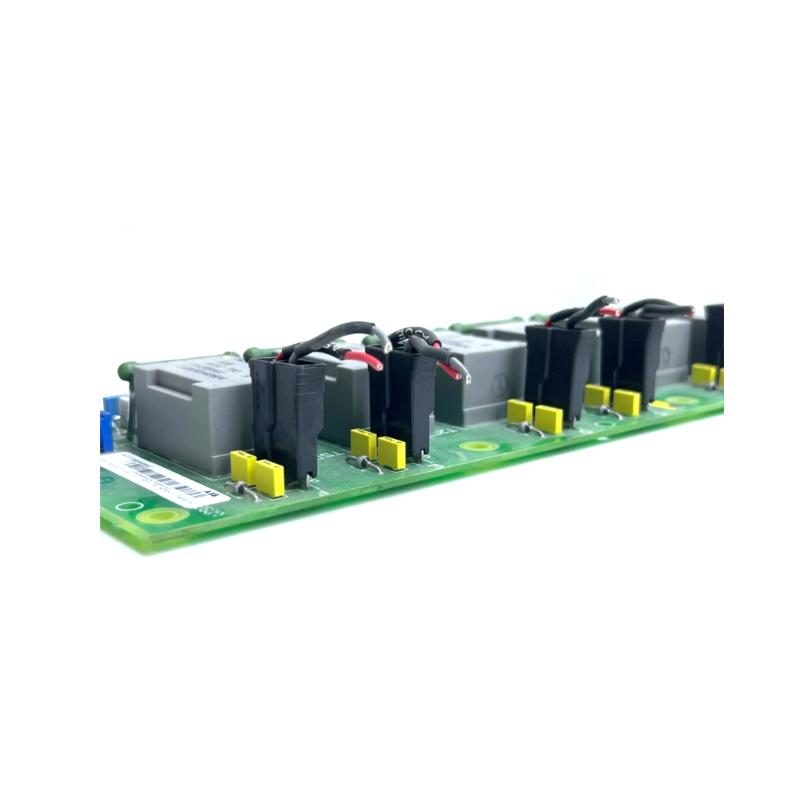

The ABB SDCS-PIN-48-SD Pulse Transformer Board is a specialized interface module used in ABB SDCS-based drive control architectures, particularly within high-power DC drive platforms such as DCS800. This board converts control signals from the drive controller into isolated gate pulses that trigger power semiconductor devices like thyristors and IGBTs.
Designed for demanding industrial environments, the SDCS-PIN-48-SD ensures accurate pulse transmission and strong electrical isolation between the control electronics and the power stage. This capability is critical for maintaining stable switching behavior and protecting sensitive control circuits from high-voltage disturbances generated by power converters.
The module integrates directly into ABB drive control systems and supports reliable operation in applications requiring precise power electronics control. Its rugged industrial design and compatibility with ABB drive platforms make it a dependable solution for modern automation systems.
These modules are frequently installed together with the SDCS-PIN-48-SD within ABB drive control cabinets:
Model
Description
SDCS-PIN-3A
Power interface module
SDCS-PIN-3B
Drive signal interface board
SDCS-PIN-4
Power distribution module
SDCS-PIN-41A
Trigger pulse control board
SDCS-PIN-46
Pulse transformer interface board
Popular ABB Models
The following ABB automation modules are widely used across industrial control systems and process automation environments:
Model
Module Type
PM590-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Backup Power Supply Module
PP865A
Industrial Operator Panel
Applications
The SDCS-PIN-48-SD module is designed for applications where accurate gate triggering and reliable power electronics control are required.
Typical industries and use cases include:
DC motor drive systems
Metallurgical rolling mills
Industrial crane and hoist control
Mining and heavy machinery equipment
Power converter and rectifier systems
Paper and pulp production lines
High-power industrial automation systems
Its precise pulse generation capability ensures stable switching performance and improved operational reliability in demanding automation environments.
Advantages
Precise Gate Pulse Control
Ensures accurate firing signals for power semiconductor devices, improving drive system efficiency and stability.
High Electrical Isolation
Provides strong galvanic isolation between control electronics and high-power circuits, enhancing operational safety.
Designed for Harsh Industrial Environments
Built to operate reliably under wide temperature ranges and high electrical noise conditions.
Seamless Integration with ABB Drive Platforms
Fully compatible with ABB SDCS and DCS800 drive architectures, simplifying installation and maintenance.
Reliable Industrial Performance
High-quality components and proven ABB engineering ensure long service life and consistent operation.
Technical FAQs
1. What is the main function of the SDCS-PIN-48-SD module?
It converts controller signals into isolated gate pulses used to trigger thyristors or IGBTs in industrial drive systems.
2. Which ABB systems commonly use this board?
It is typically installed in ABB SDCS-based drive platforms such as DCS800 DC drives.
3. What input voltage does the module require?
The board operates using a 24 V DC power supply.
4. What is the purpose of the pulse transformer on the board?
The pulse transformer provides electrical isolation and safe transmission of gate trigger signals to power semiconductors.
5. What temperature range can the module operate in?
It supports an operating range of approximately −40°C to +70°C.
6. Does the board include protection features?
Yes, it includes protections against over-voltage, over-current, and short circuits.
7. Can the module be replaced in existing drive systems?
Yes, it is commonly used as a replacement board in ABB DCS800 drive systems.
8. Does the module support communication interfaces?
Depending on system configuration, interfaces such as Ethernet or RS-485 may be supported through the drive control system.
9. What industries commonly use the SDCS-PIN-48-SD?
Industries include metallurgy, manufacturing, mining, energy production, and heavy machinery automation.
10. What are the main benefits of using the SDCS-PIN-48-SD?
Accurate pulse triggering, strong electrical isolation, and reliable integration with ABB drive systems.
