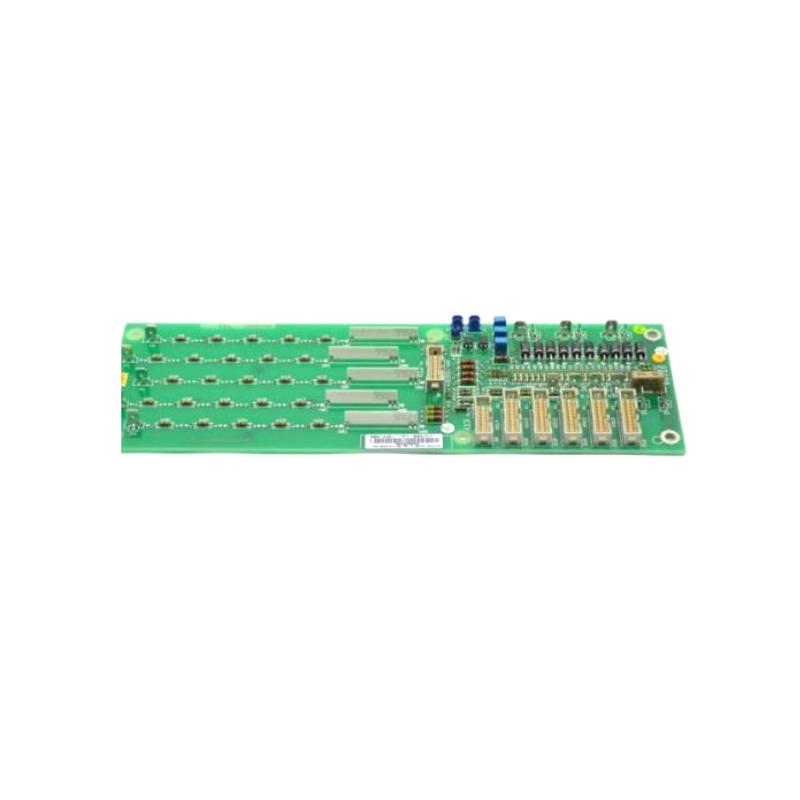

ABB SDCS-PIN-52 Measurement Interface Board for ABB SDCS Drive Control Systems
ABB SDCS-PIN-52 Measurement Interface Board for ABB SDCS Drive Control Systems
0.0
Points
Brand:ABB PLC Item No.:ABB SDCS-PIN-52 Product Origin:Sweden Product Dimensions:120 × 100 × 30 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB SDCS-PIN-52 Measurement Interface Board is a specialized signal acquisition module designed for ABB SDCS-based DC drive systems. It performs key electrical measurement functions by collecting voltage and current signals from the power circuit and transferring this data to the drive controller for monitoring and regulation.
Within the SDCS architecture, the SDCS-PIN-52 board plays an important role in drive protection and control accuracy. It measures armature voltage, current feedback, and other electrical parameters, allowing the control system to maintain stable operation under changing load conditions. Older ABB converter systems operating at line voltages up to approximately 500 V often used this board before later revisions introduced updated measurement modules.
Designed for industrial reliability, the module integrates seamlessly into ABB DC drive platforms and offers robust performance in harsh environments such as metal processing plants, manufacturing facilities, and heavy industrial automation systems.
Technical Specifications
Parameter
Specification
Model
SDCS-PIN-52
Manufacturer
ABB
Module Type
Measurement Interface Board
ABB Part Number
3BSE011316R1
System Compatibility
ABB SDCS / DCS Drive Systems
Function
Voltage and current measurement interface
Input Voltage
24 V DC
Measurement Signals
Armature voltage, current, and auxiliary signals
Signal Type
Analog measurement interface
Electrical Isolation
Industrial isolation design
Installation
Internal drive control board slot
Operating Temperature
−20°C to +70°C
Storage Temperature
−40°C to +85°C
Protection Class
Industrial Grade
Dimensions (L × W × H)
120 × 100 × 30 mm
Weight
0.45 kg
The module enables precise signal acquisition and supports accurate drive regulation and monitoring in industrial power conversion systems.
Recommended Related Models
These modules are commonly used together within ABB SDCS drive control systems:
Model
Description
SDCS-PIN-3A
Power interface board
SDCS-PIN-4B
Power interface module
SDCS-PIN-41A
Trigger pulse control module
SDCS-PIN-48
Gate pulse interface board
SDCS-PIN-51
Updated measurement interface board
Popular ABB Models
The following ABB modules are widely used across industrial automation and process control systems:
Model
Module Type
PM590-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Backup Power Supply Module
PP865A
Industrial Operator Panel
Applications
The SDCS-PIN-52 board is designed for industrial environments requiring precise electrical measurement and stable drive control.
Typical application scenarios include:
DC motor drive systems
Steel rolling mill automation
Industrial crane and hoist drive control
Mining and heavy material handling equipment
Power converter and rectifier systems
Paper and pulp processing plants
High-power manufacturing automation systems
Its measurement capabilities help ensure safe and efficient operation of high-power industrial drive platforms.
Advantages
Accurate Electrical Measurement
The board enables precise acquisition of voltage and current signals, improving drive control accuracy.
Reliable Industrial Performance
Built for long-term operation in harsh industrial environments with strong electrical interference.
Integrated System Monitoring
Supports monitoring of key electrical parameters for drive protection and control optimization.
Seamless ABB System Compatibility
Designed specifically for ABB SDCS drive systems, allowing easy integration and maintenance.
Compact and Robust Design
The compact PCB layout allows efficient installation inside drive control cabinets.
Technical FAQs
1. What is the main function of the SDCS-PIN-52 module?
It measures electrical parameters such as voltage and current in ABB SDCS drive systems.
2. Which systems typically use the SDCS-PIN-52?
It is used in older ABB DC converter systems within the SDCS drive platform.
3. What replaced the SDCS-PIN-52 in newer systems?
Later systems often use the SDCS-PIN-51 measurement board as a replacement.
4. What signals can the module measure?
It measures armature voltage, current feedback, and other analog electrical signals.
5. What power supply does the module require?
The board typically operates with a 24 V DC supply.
6. What environments is the module designed for?
It is designed for heavy industrial environments such as steel mills and manufacturing plants.
7. Can the SDCS-PIN-52 be replaced during system maintenance?
Yes, it can be replaced or upgraded during maintenance of ABB drive control systems.
8. Where is the module installed inside the drive system?
It is installed within the drive control board assembly as part of the measurement circuit.
9. What industries commonly use this module?
Industries include metallurgy, manufacturing automation, mining, and energy systems.
10. What are the main benefits of using the SDCS-PIN-52?
Reliable signal acquisition, accurate drive control support, and stable operation in high-power industrial systems.
