ABB SDCS-PIN-F01 Power Interface Module for ABB DCS Drive Control Systems
ABB SDCS-PIN-F01 Power Interface Module for ABB DCS Drive Control Systems
0.0
Points
Brand:ABB PLC Item No.:ABB SDCS-PIN-F01 Product Origin:Sweden Product Dimensions:105 × 55 × 35 mm Product Weight:0.20 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

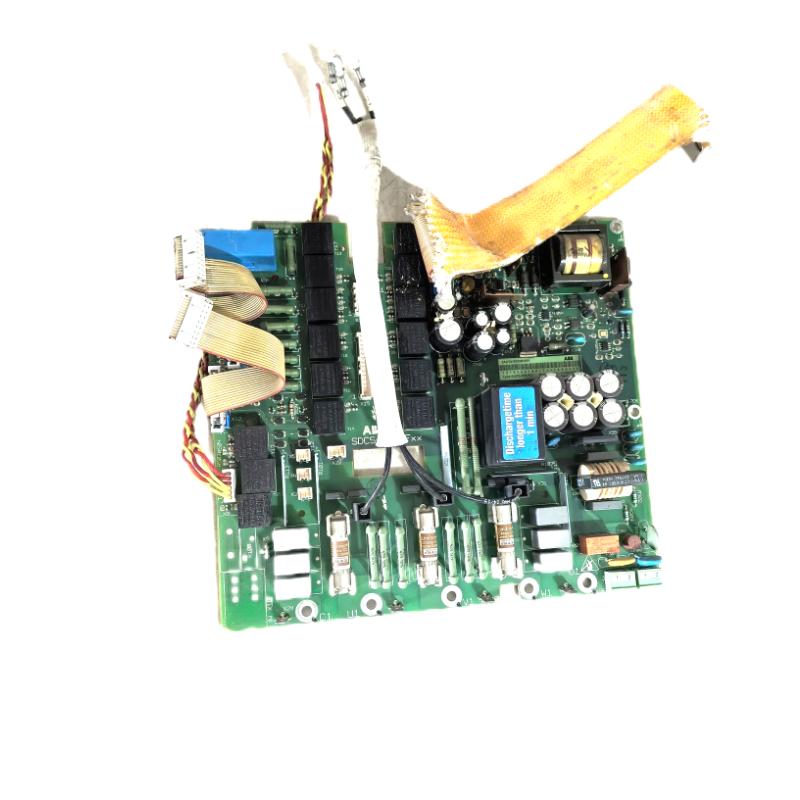

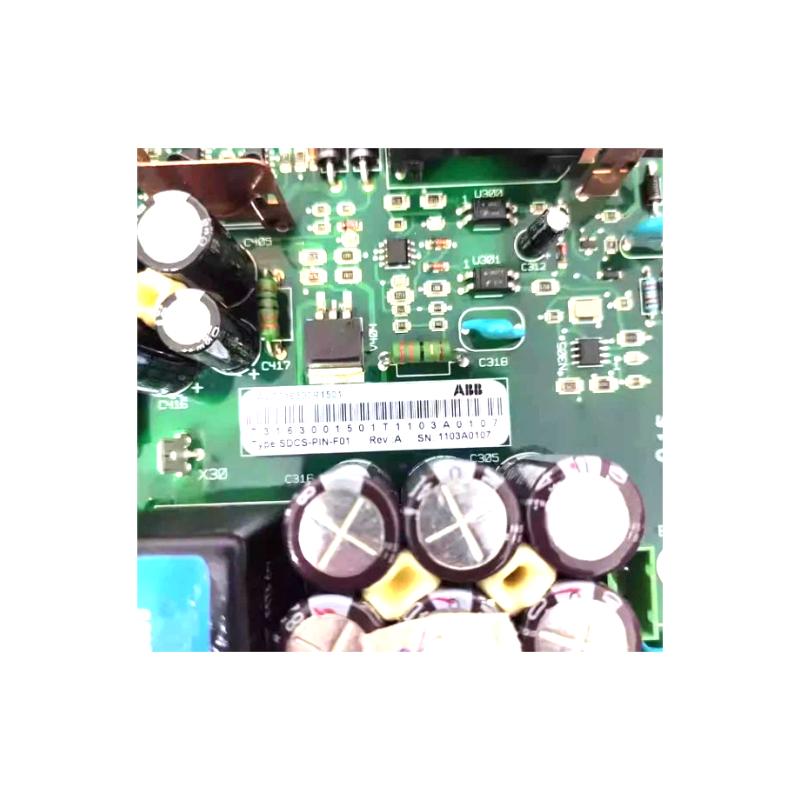

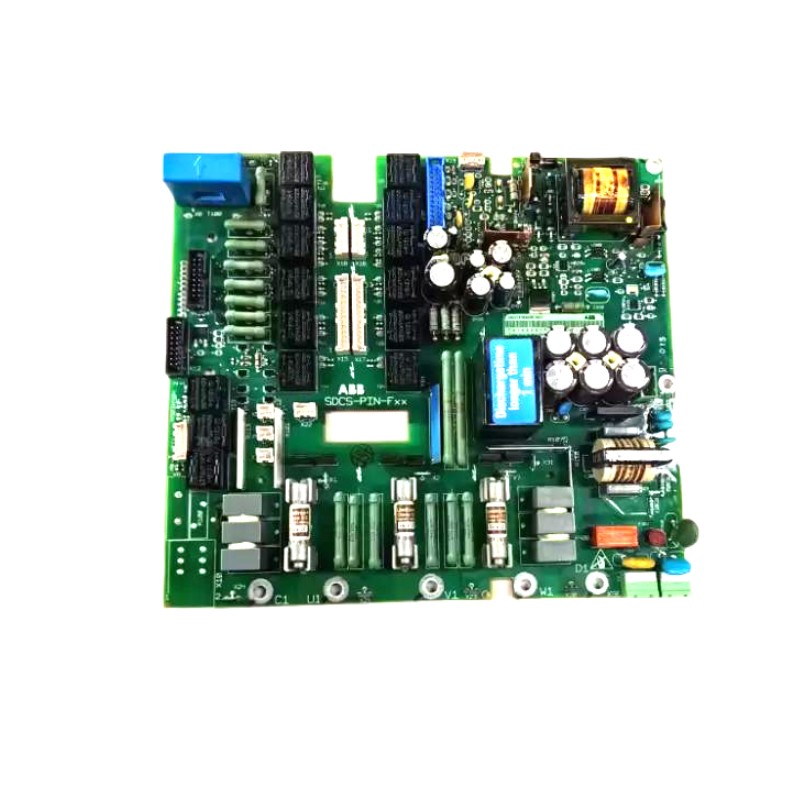

The ABB SDCS-PIN-F01 Power Interface Module is an industrial control board designed for ABB SDCS-based DC drive systems. It functions as a power interface and pulse distribution board that supports communication between the drive control electronics and the field excitation circuit within the converter system.
In ABB DC drives such as the DCS550 series, this module is integrated into the field excitation section where it generates and transfers firing pulses to the exciter circuit. These pulses are used to control the field current of the motor, allowing the drive system to regulate speed, torque, and magnetic flux with high precision.
The SDCS-PIN-F01 works together with other SDCS control boards, forming a reliable architecture for high-power industrial motor drives. Its robust design allows it to operate reliably in harsh electrical environments such as steel plants, mining operations, and heavy manufacturing facilities.
Technical Specifications
Parameter
Specification
Model
SDCS-PIN-F01
Manufacturer
ABB
Module Type
Power Interface / Pulse Interface Board
System Compatibility
ABB SDCS / DCS550 Drive Systems
Function
Field excitation pulse generation and power interface
Input Voltage
100–240 V AC
Output Current Capacity
Up to 16 A
Interface Type
Internal drive control board connection
Installation
Drive control cabinet slot mounting
Operating Temperature
−20°C to +60°C
Storage Temperature
−40°C to +85°C
Protection Class
Industrial Grade
Dimensions (L × W × H)
105 × 55 × 35 mm
Weight
0.20 kg
The module supports reliable power distribution and pulse triggering within the field excitation section of ABB DC drives.
Recommended Related Models
The following modules are commonly installed together with the SDCS-PIN-F01 within ABB SDCS drive control architectures:
Model
Description
SDCS-CON-F01
Drive control processor module
SDCS-BAB-F01
Field exciter bridge board
SDCS-PIN-3B
Signal interface module
SDCS-PIN-48
Pulse transformer interface board
SDCS-PIN-51
Measurement interface module
Popular ABB Models
These ABB automation modules are widely used in industrial control and drive systems:
Model
Module Type
PM590-ETH
PLC CPU Module
CI840A
Communication Interface Module
AI830A
Analog Input Module
SB822
Redundant Power Supply Module
PP865A
Industrial Operator Panel
Applications
The SDCS-PIN-F01 module is designed for industrial environments requiring precise control of field excitation circuits in DC motor drives.
Typical applications include:
DC motor drive control systems
Steel rolling mill automation
Industrial crane and hoist drive control
Mining and heavy material handling equipment
Power converter and rectifier systems
Paper and pulp production facilities
High-power manufacturing automation lines
Its reliable pulse transmission ensures accurate control of field current and stable operation of DC drive systems.
Advantages
Reliable Field Excitation Control
Provides accurate firing pulses for the field exciter circuit, ensuring stable motor operation.
High Electrical Stability
Designed to operate reliably under high electrical noise and fluctuating load conditions.
Seamless Integration with ABB Drives
Fully compatible with ABB SDCS architecture and easily integrated into DCS drive platforms.
Compact and Robust Design
The compact board structure allows efficient installation inside industrial drive cabinets.
Industrial-Grade Durability
Built to withstand harsh conditions such as high temperature, dust, and electrical interference.
Technical FAQs
1. What is the main function of the SDCS-PIN-F01 module?
It generates firing pulses for the field excitation circuit in ABB DC drive systems.
2. Which ABB systems commonly use this module?
It is primarily used in ABB DCS550 and other SDCS-based DC drive platforms.
3. What voltage range does the module support?
The module typically operates with an input voltage range of 100–240 V AC.
4. What is the role of field excitation in DC drives?
Field excitation controls the magnetic field of the motor, enabling accurate speed and torque regulation.
5. Where is the SDCS-PIN-F01 installed in the drive system?
It is installed within the drive control cabinet as part of the field excitation control assembly.
6. Does the module work with other SDCS boards?
Yes, it works together with boards such as SDCS-CON-F01 and SDCS-BAB-F01.
7. What industries commonly use this module?
Industries include metallurgy, mining, manufacturing automation, and heavy machinery systems.
8. What temperature range can the module operate in?
It typically operates reliably between −20°C and +60°C.
9. Can the module be replaced during maintenance?
Yes, it is often used as a spare part replacement in ABB drive systems.
10. What are the key benefits of the SDCS-PIN-F01?
Accurate field excitation control, reliable industrial performance, and seamless integration with ABB drive architectures.
